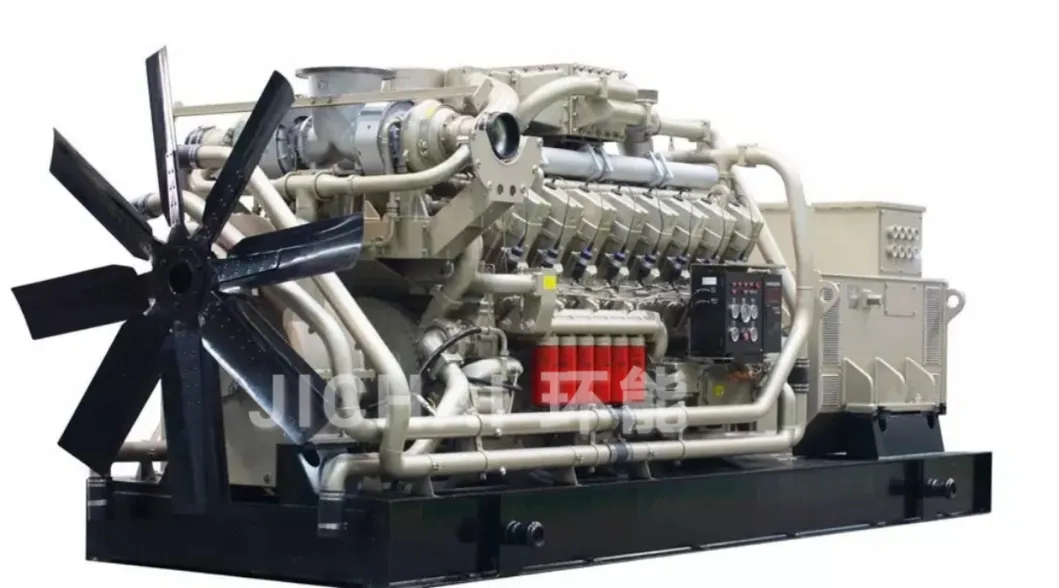

Landfill Gas Generator 1000kVA 800kw
landfill gas generator 1000kva 800kwJichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stabil......
Send Inquiry
Product Description
landfill gas generator 1000kva 800kw
Jichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stability and low fluctuation. The generator is desirable for industrial power solution.
500kw Bio gas engine generator
This 500kW Biomass Generator is equipped with M12V190ZL Gas engine as original power, and possesses the following outstanding characteristics and functions: A) The output voltage can be 400V, 6300V, 10500V, reducing the initial investment and running cost.
B) Big bore of 190mm ensures its continuous constant power output.
C) Middle speed of 1000rpm ensures the service life.
D) Natural aspiration ensures the safety of coal bed methane delivery.
E) Easy maintenance and low noise.
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Biomass power plant Cogeneration
MAIN SPECIFICATIONS OF GAS GENERATOR SET
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Biomass power plant Cogeneration
MAIN SPECIFICATIONS OF GAS ENGINE
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Biomass power plant Cogeneration

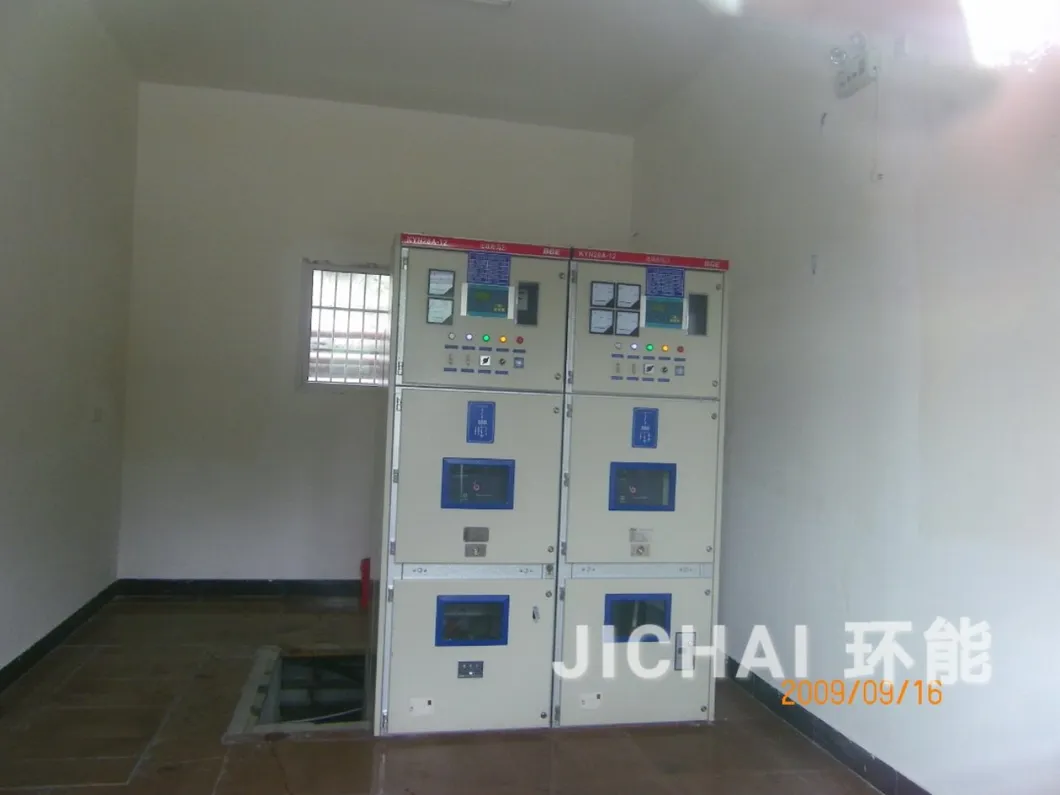

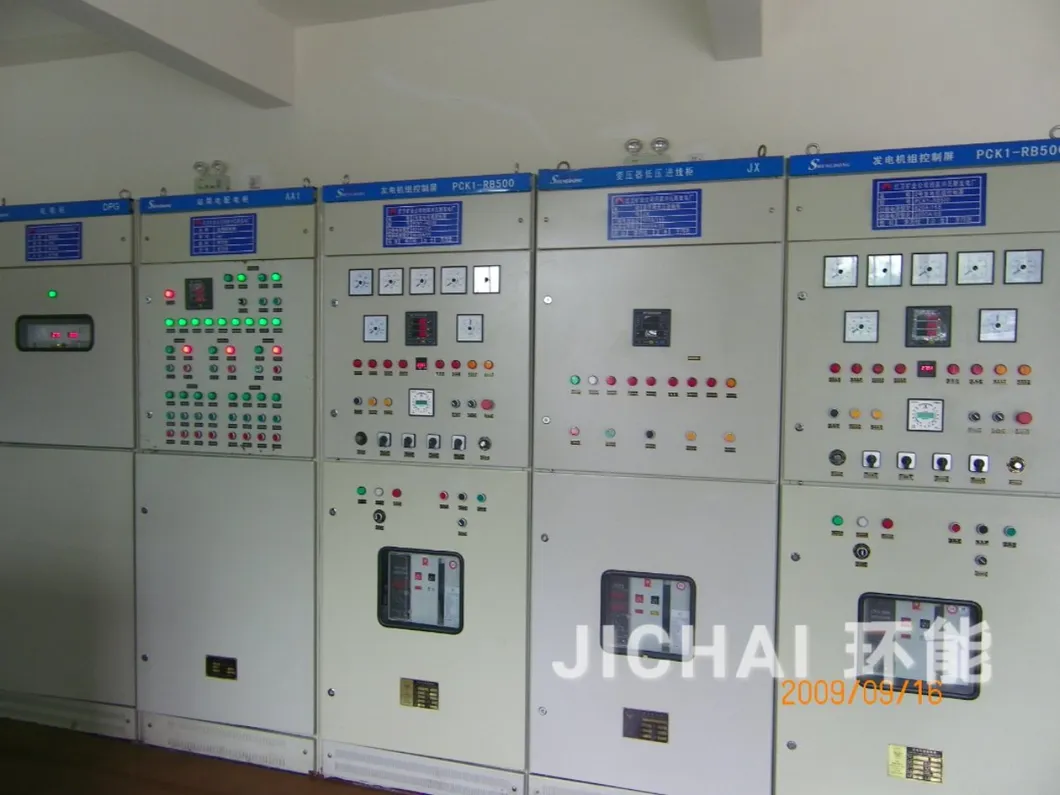

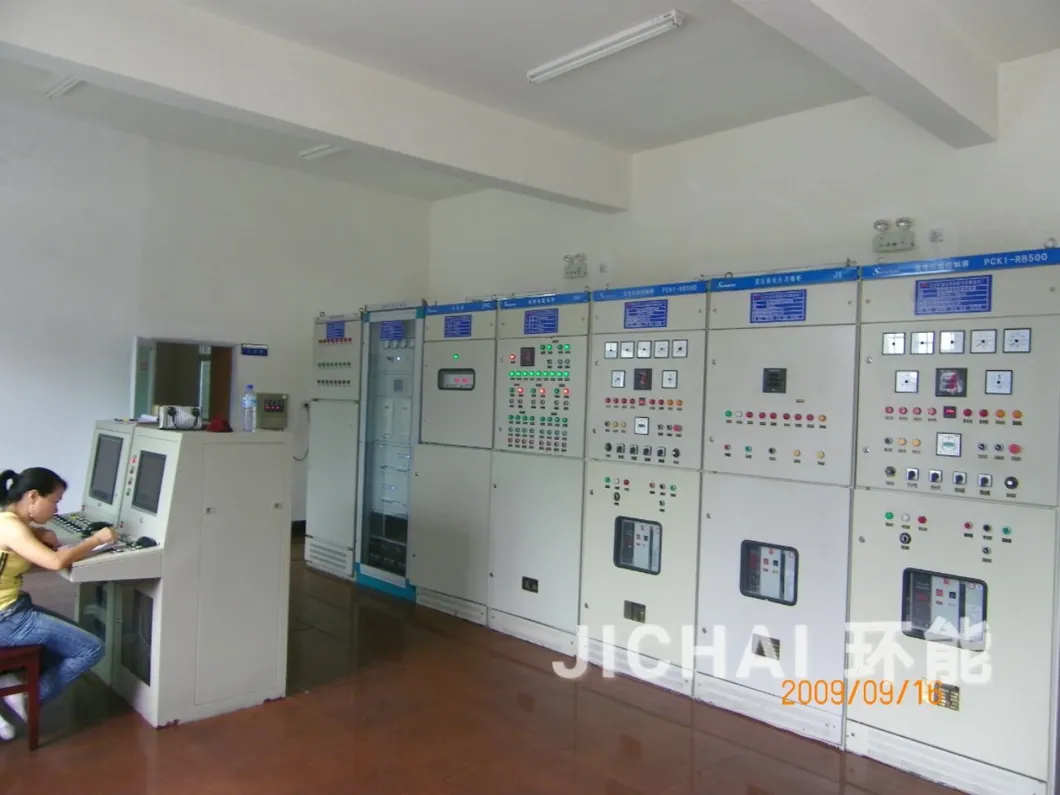

CONTROL PANEL
Control panel is panel type, vertical structure, model is GPL500. Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions.
The Generator possesses the following automatic monitoring and protective functions:
A) Audio or visual alarm for:
- High oil and water temperature
- Low oil pressure
- Over current
- Short circuit
- Over-speed
- Reverse power
B) Shut-off for:
- Low oil pressure
- Over-speed
- Short circuit
- Over-speed
- Reverse power
C) Trip-off for:
- Over-current
- Short circuit
- Reverse power
The generator can not only supply power directly to load but also can be paralleled running.
OPTIONAL DEVICE
Steel Soundproof Container (sound attenuated canopy) More Technical date,feel free to contact jichaipower @ outlook. com

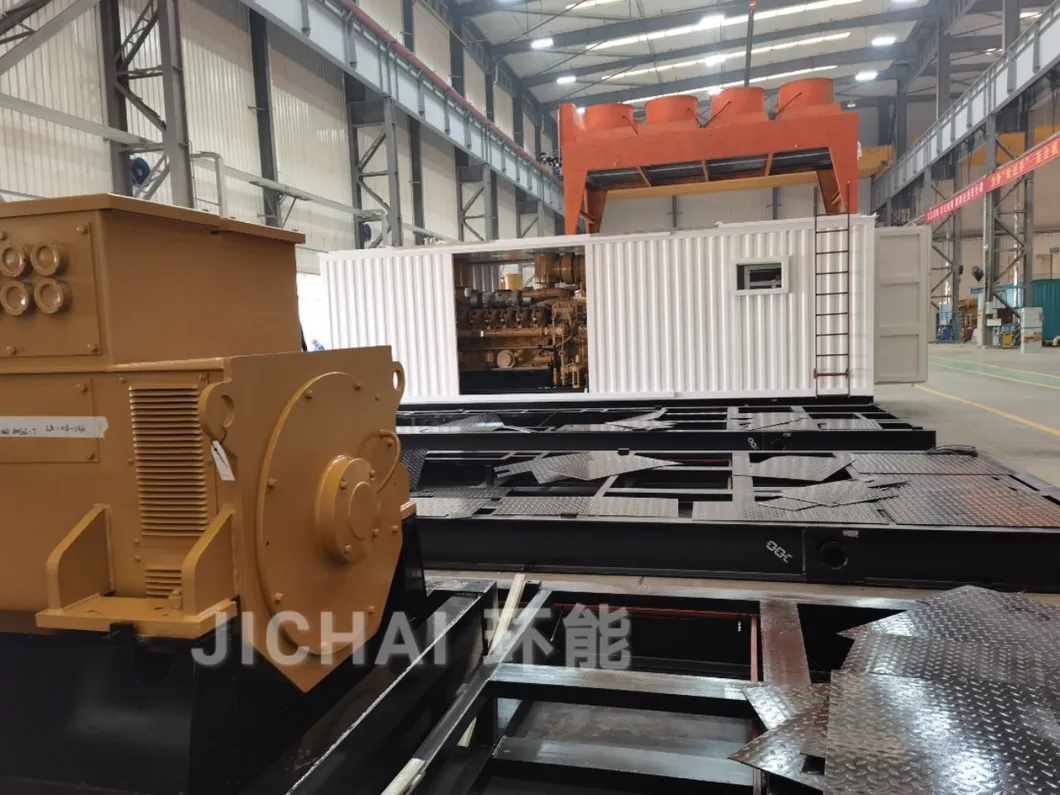

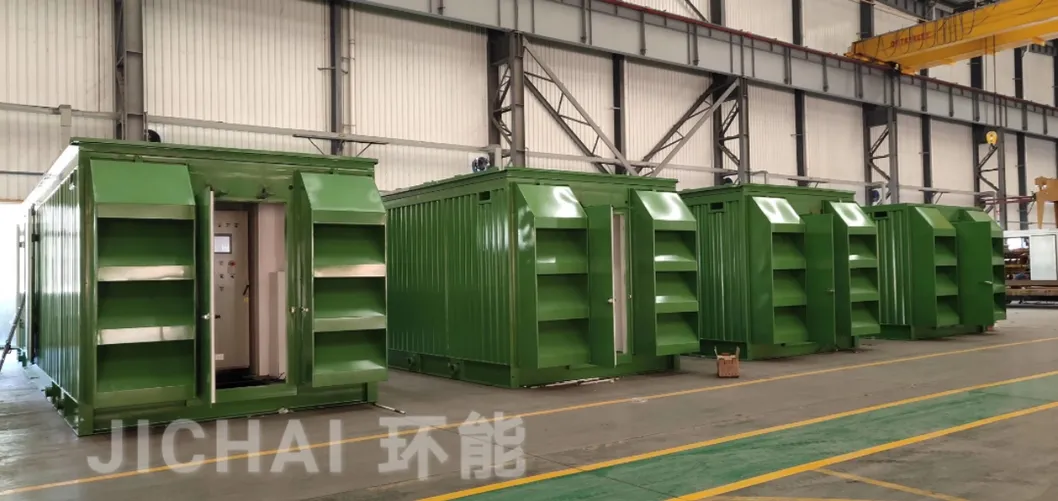

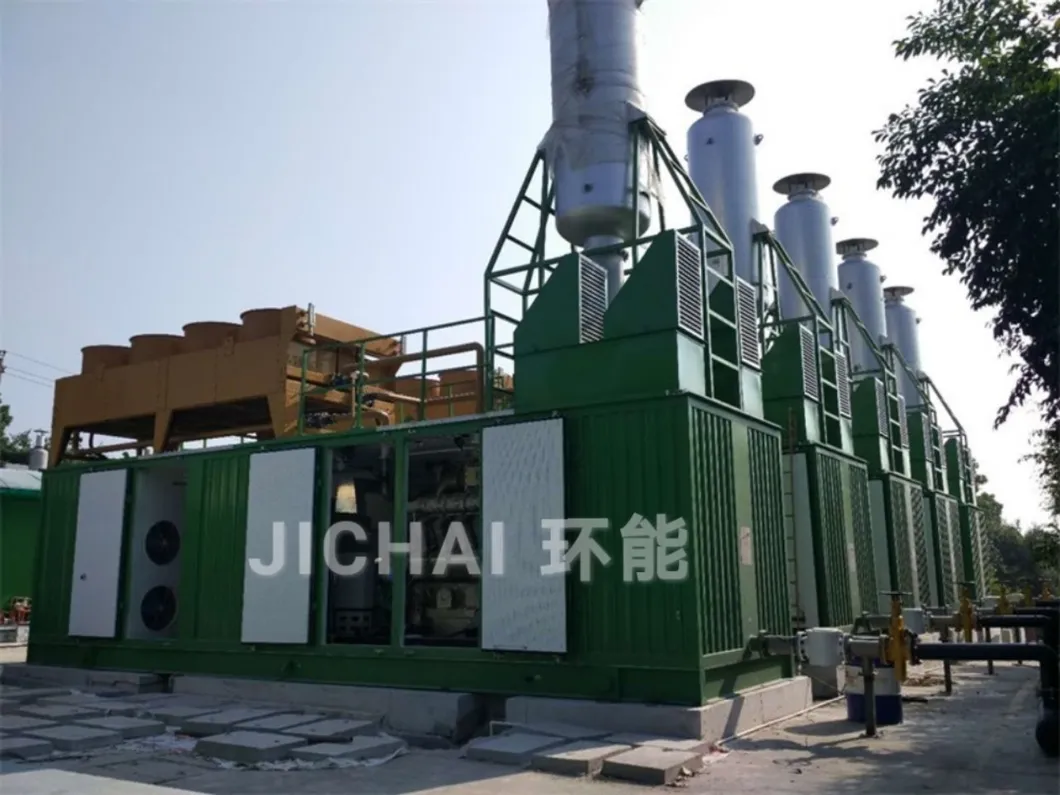

CONTAINERIZED GENERATOR SET (OPTIONAL)
Framework adopts high strength steel and I bar to form the base. The sound-proof container is equipped with explosion-proof lighting,air blower, combustible gas leakage alarm etc. to satisfy protection requirements.
Noise reduction measures should meet national standard requirements, which requires noise should not be more than 85db at 1m distance away from the generator.
Flat bed radiator is laid on the roof of the container which requires high quality of the container strength
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Biomass power plant Cogeneration
CHP/ Cogeneration/CCHP Trigeneration
In order to make full use of total thermal energy from combustible gas, customer requires CHP system on the basis of power generation use. This system consists of heat exchanger, liquid supply pump or hot liquid circulation pump, valves and insulation liquid pipe.
The above components form a circulation system, with liquid supply pump or hot liquid circulation pump as power source.
It adopts heat exchanger and boiler with adding antifreezer to produce hot water for production and daily use.
★Heat recovery boilers waste heat of exhaust
In order to make full use of the exhaust heat of the unit and improve the comprehensive utilization rate of gas, a waste heat recovery boiler is added to the exhaust system to recover the exhaust heat and generate hot water (70 to 90°C) or saturated steam (1MPa). The waste heat can be used for production or life Use heat.
★Heat recovery boilers waste heat of hot water
Generator with a semi-open circulation cooling system, the internal circulating high-temperature water (cylinder jacket water) transfers heat to the external circulating high-temperature water through the heat exchanger. The external circulating high-temperature water pipe can be directly introduced into heating equipment such as heating, where the heat is exchange to increase the temperature in the fermenter.
This makes full use of the heat of the engine cooling water and improves the overall utilization rate.
ATS and Synchronization Parallelling Panel
Oil and Water Heater
Jichai Brand Generator is designed and manufactured to be high quality, long usage life, easy operation, low maintenance cost, high intelligence with low engine speed, low fuel consumption, low gas quality requirement, tough environmental adaptability, high stability and low fluctuation. The generator is desirable for industrial power solution.
500kw Bio gas engine generatorThis 500kW Biomass Generator is equipped with M12V190ZL Gas engine as original power, and possesses the following outstanding characteristics and functions:
B) Big bore of 190mm ensures its continuous constant power output.
C) Middle speed of 1000rpm ensures the service life.
D) Natural aspiration ensures the safety of coal bed methane delivery.
E) Easy maintenance and low noise.
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Biomass power plant Cogeneration
MAIN SPECIFICATIONS OF GAS GENERATOR SET
| Model | 500GFM | Gas Engine Model | M12V190ZL | |
| Rated power | 500kw | Alternator | synchronous brushless generator | |
| Rated voltage | 400 V | Insulation class | F | |
| Rated speed | 1000rpm | Voltage regulation | Automatic | |
| Rated frequency | 50Hz | Class of protection | IP22 | |
| Rated current | 1281A | Cooling method | Water cooling with radiator and fan | |
| Power factor | 0.8 Lagging | Dimension (mm) | 5750×2650×2500mm | |
| Control mode | Electric control | Net Weight (kg) | 14500 Kg |
MAIN ELECTRICAL PERFORMANCE OF THE GAS GENERATOR
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Biomass power plant Cogeneration
| Voltage | |||
| Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
| ±2.5% | +20% | 2 S | 1% |
| Frequency | |||
| Stabilized regulation | Instantaneous regulation | Recovery time | Fluctuation |
| 0-5% adjustable | ≤±10% | < 7 S | 1% |

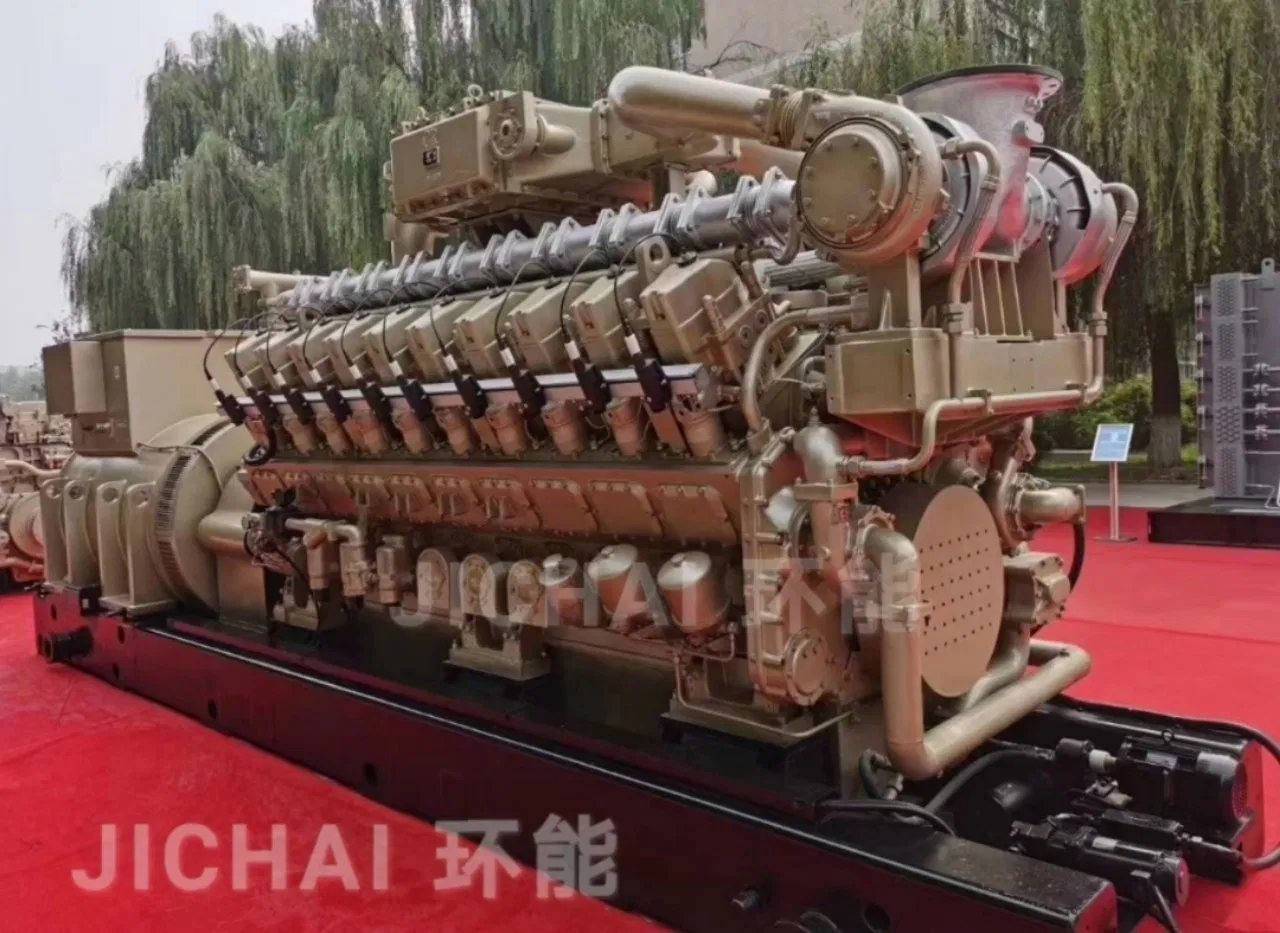

MAIN SPECIFICATIONS OF GAS ENGINE
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Biomass power plant Cogeneration
| Type | M12V190ZL |
| Number of cylinders | 12 |
| Cylinder Arrangement | Vee,60° |
| Cylinder diameter x stroke | 190×210 mm |
| Total Displacement | 71.5 L |
| Intake Type | Turbocharged and inter-cooled |
| Rated Power,kW | 750 |
| Rated Speed,r/min | 1000 |
| Biogas input pressure,kPa | 5-10 |
| Exhaust Temperature before turbocharger,ºC | ≤650 |
SAFETY AND PROTECTION DEVICE OF THE GENSETS
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Cogeneration| Output voltage too low/too high alarm and stop | Single phase connection trouble alarm and stop |
| Frequency too high/too low alarm and stop | Cooling water temp high alarm |
| Reverse power alarm and break brake | Lubrication oil temp too high alarm |
| Overload alarm and break brake | Lubrication oil pressure too low alarm and stop |
| Over speed alarm and stop | Battery voltage too low alarm |
| Blast prevention of air inlet and crankcase | Gas leaking protection |
CONTROL PANEL
Control panel is panel type, vertical structure, model is GPL500. Control panel is equipped with meters showing various parameters of operating status, automatic air switch and timer. All of the electric cells possess three-proof functions.
The Generator possesses the following automatic monitoring and protective functions:
A) Audio or visual alarm for:
- High oil and water temperature
- Low oil pressure
- Over current
- Short circuit
- Over-speed
- Reverse power
B) Shut-off for:
- Low oil pressure
- Over-speed
- Short circuit
- Over-speed
- Reverse power
C) Trip-off for:
- Over-current
- Short circuit
- Reverse power
The generator can not only supply power directly to load but also can be paralleled running.
OPTIONAL DEVICE
Steel Soundproof Container (sound attenuated canopy) More Technical date,feel free to contact jichaipower @ outlook. com
CONTAINERIZED GENERATOR SET (OPTIONAL)
Framework adopts high strength steel and I bar to form the base. The sound-proof container is equipped with explosion-proof lighting,air blower, combustible gas leakage alarm etc. to satisfy protection requirements.
Noise reduction measures should meet national standard requirements, which requires noise should not be more than 85db at 1m distance away from the generator.
Flat bed radiator is laid on the roof of the container which requires high quality of the container strength
500kw LNG CNG Natural Gas Syngas Genset Biogas CHP Unit Biomass power plant Cogeneration
CHP/ Cogeneration/CCHP Trigeneration
In order to make full use of total thermal energy from combustible gas, customer requires CHP system on the basis of power generation use. This system consists of heat exchanger, liquid supply pump or hot liquid circulation pump, valves and insulation liquid pipe.
The above components form a circulation system, with liquid supply pump or hot liquid circulation pump as power source.
It adopts heat exchanger and boiler with adding antifreezer to produce hot water for production and daily use.
★Heat recovery boilers waste heat of exhaust
In order to make full use of the exhaust heat of the unit and improve the comprehensive utilization rate of gas, a waste heat recovery boiler is added to the exhaust system to recover the exhaust heat and generate hot water (70 to 90°C) or saturated steam (1MPa). The waste heat can be used for production or life Use heat.
★Heat recovery boilers waste heat of hot water
Generator with a semi-open circulation cooling system, the internal circulating high-temperature water (cylinder jacket water) transfers heat to the external circulating high-temperature water through the heat exchanger. The external circulating high-temperature water pipe can be directly introduced into heating equipment such as heating, where the heat is exchange to increase the temperature in the fermenter.
This makes full use of the heat of the engine cooling water and improves the overall utilization rate.
ATS and Synchronization Parallelling Panel
Oil and Water Heater
