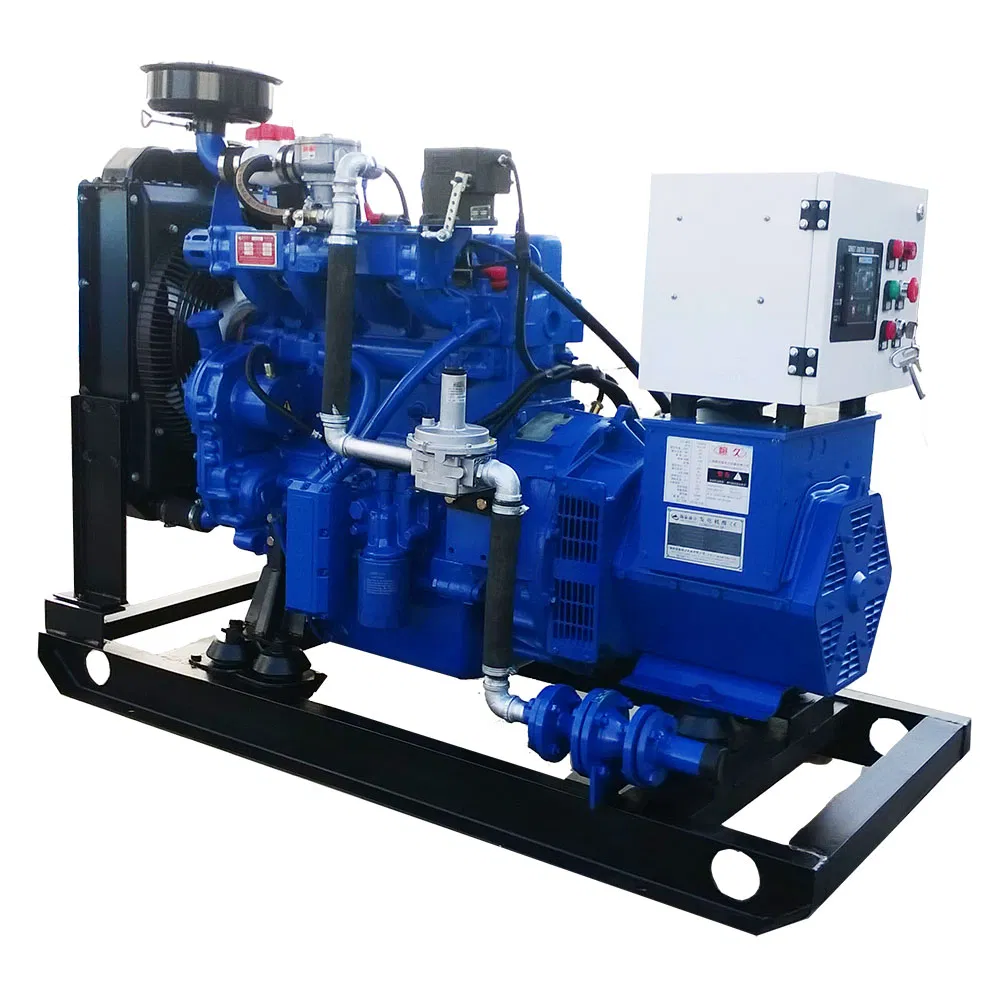

Ce ISO 25kw Natural Gas Turbine Generator /Biogas/LPG/Biomass Farm
Ce ISO 25kw natural gas turbine generator /Biogas/LPG/Biomass FarmShandong Pulita New Energy Technology Co.,LTD,located in Weifang National High-Tech Industrial Development zone, which is the biggest area of the power manufacturing in China. Pulita major in design, manufacturing, and installing of s......
Send Inquiry
Product Description
Product Description
Model | HTD-25DF | Rated current | 45A | |
Rated power | 25kw/31.25kva | Power factor | 0.8 | |
Standby power | 27.5kW/34.375kVA | Controller | Auto PLC controller | |
Rated voltage | 400V/230V | Speed Governor | Electric control | |
Rated frequency | 50Hz/60Hz | Fuel | Natural gas | |
Rated speed | 1500 rpm / 1800 rpm | Gas Consumption | ≤0.3m³/kW·h |

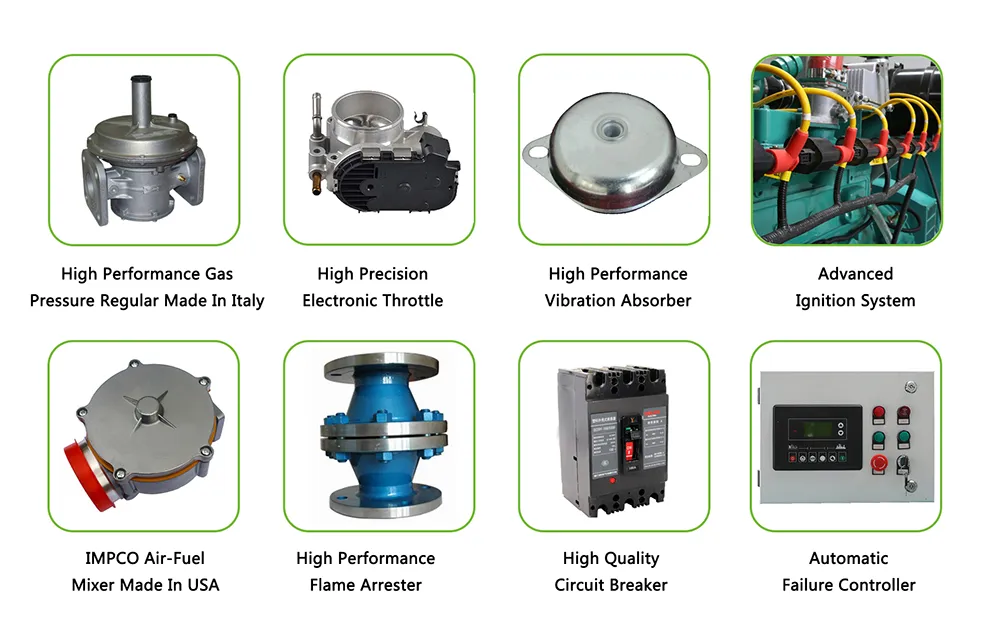

Product advantange
Biogas generator Safety - Stability - Economy - Reliability Power
1. Brand new original Natural Gas / Biogas special use water cooled diesel engine
2. Engine ECU governing and ignition system use BOSH and Germany part, with High reliability and safety
3. Genset equipped with explosion-proof safety system and Gas mixture automatically control system
4. Brand new Stamford type brushless AC alternator, 230/400V, 3-Phase, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class
5. Genset equipped with radiator with engine driven fan mounted on skid.
6. Genset Digital-6120U Automatic control system of diesel generator include, High speed protect, High water temperature protect, low oil pressure protect, 3 phase Voltage,current and frequency,calculagraph,output power, LED display with AMF functions (for ATS)
7. Genset equipped with MCCB
8. Anti-vibration mounting
9. 24V DC Electric start system with maintenance free battery and Battery Connect wire
10. ndustrial class silencers with flexible connects and elbow
11. Genset with engine manual, controller manual, operation manual and standard engine tools
12. H igh protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

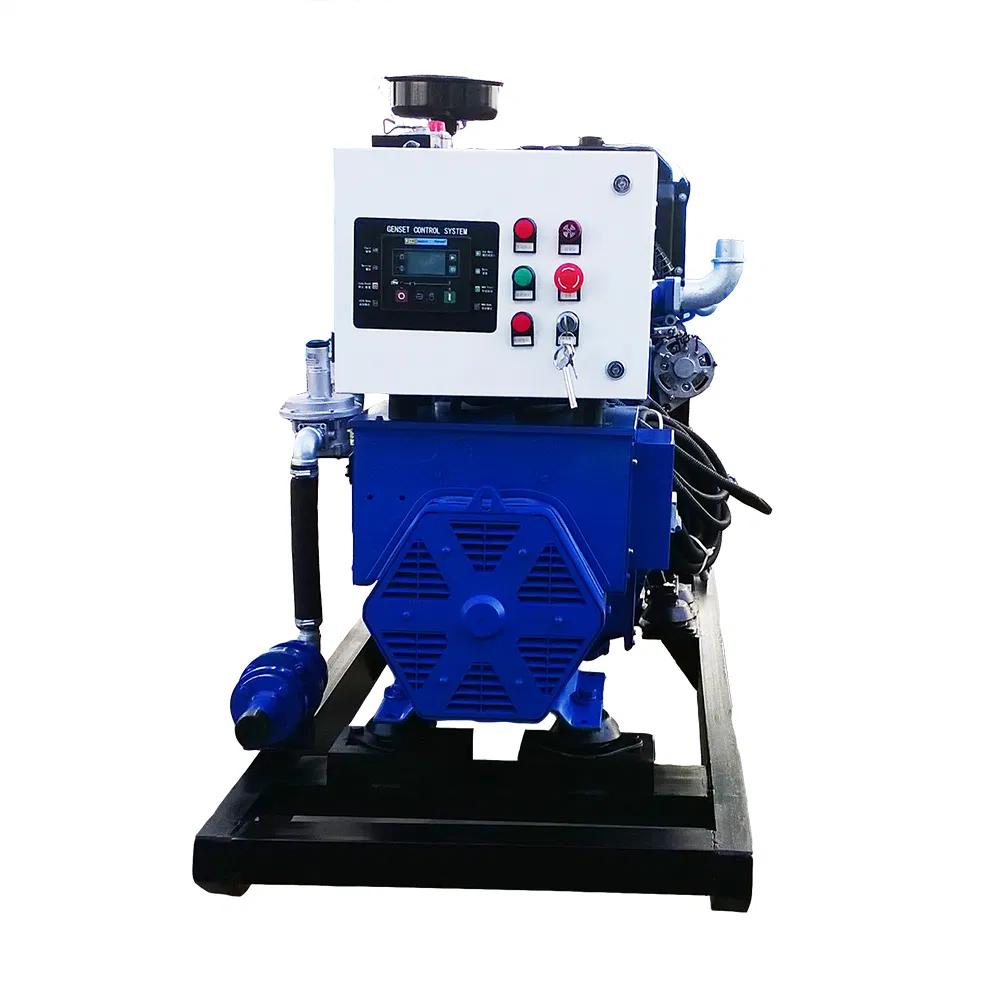

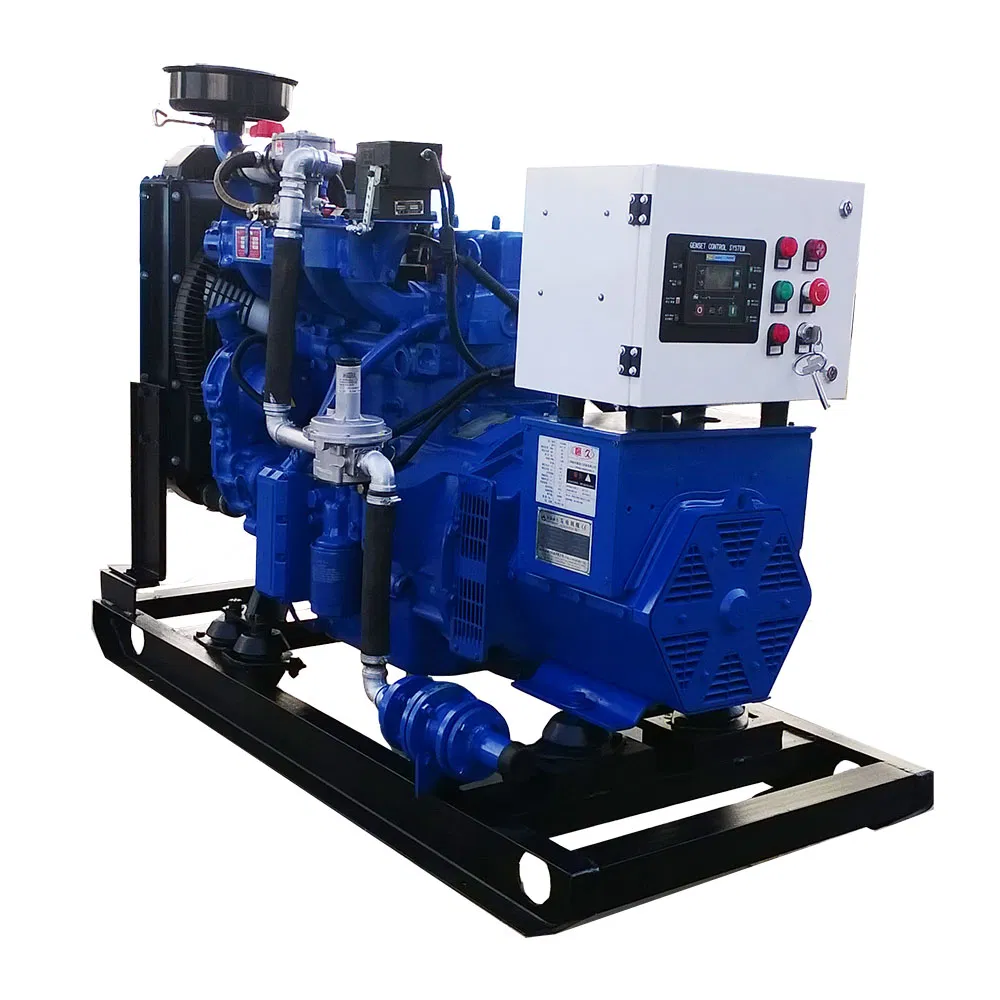

Producet Detail
Packaging & Shipping
Our services
one year or 1000 hours whichever reach first from exfactory date.
1. During the guarantee period-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

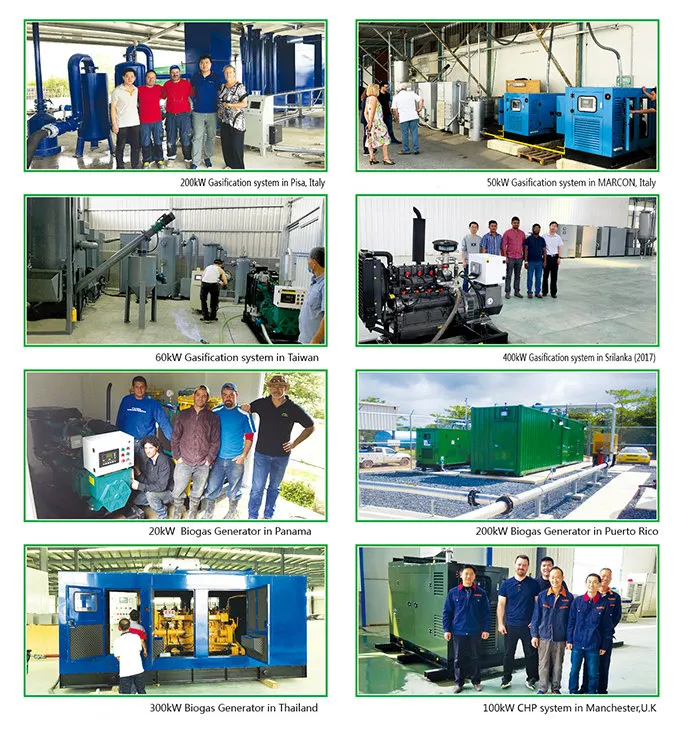

Our customer
FAQ

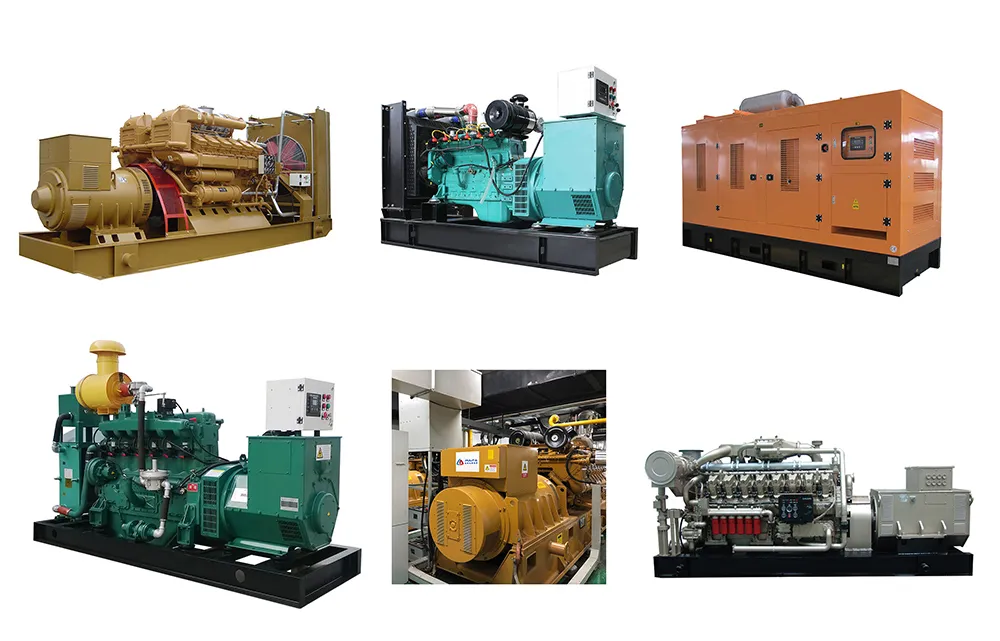

1.What's your power range of gas generators?
Re: We can offer the range from 10kW~1000kW.
2.What's your delivery time?
Re: 7-25 work days after we get the down payment, if your order is some special engine and alternator, then the delivery time is longer.
3.What's your payment?
Re: We accept T/T, L/C, Alibaba trade assurance also acceptable.
4.What's your warranty?
Re: All our products we offer one year warranty or 1500 hours which comes first.
5.What's your MOQ?
Re: One set.
6.What's the frequency of diesel generators?
Re: 50Hz/60Hz.
7.Do you have single phase or three phase diesel generators?
Re: Sure, we have single phase and three phase diesel generators.
8.What's the voltage of your diesel generator?
Re: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage.
