Anaerobic Digester Plant Used 400kw Biogas Generator
Anaerobic digester plant used 400kW Biogas generator Requirments for natural gas1.Methane should be at least 50%2.The natural gas temperature should be between 0-60 ºC3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.4. Heat value should be at least 8500kcal/......
Send Inquiry
Product Description
1.Methane should be at least 50%
2.The natural gas temperature should be between 0-60 ºC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Application

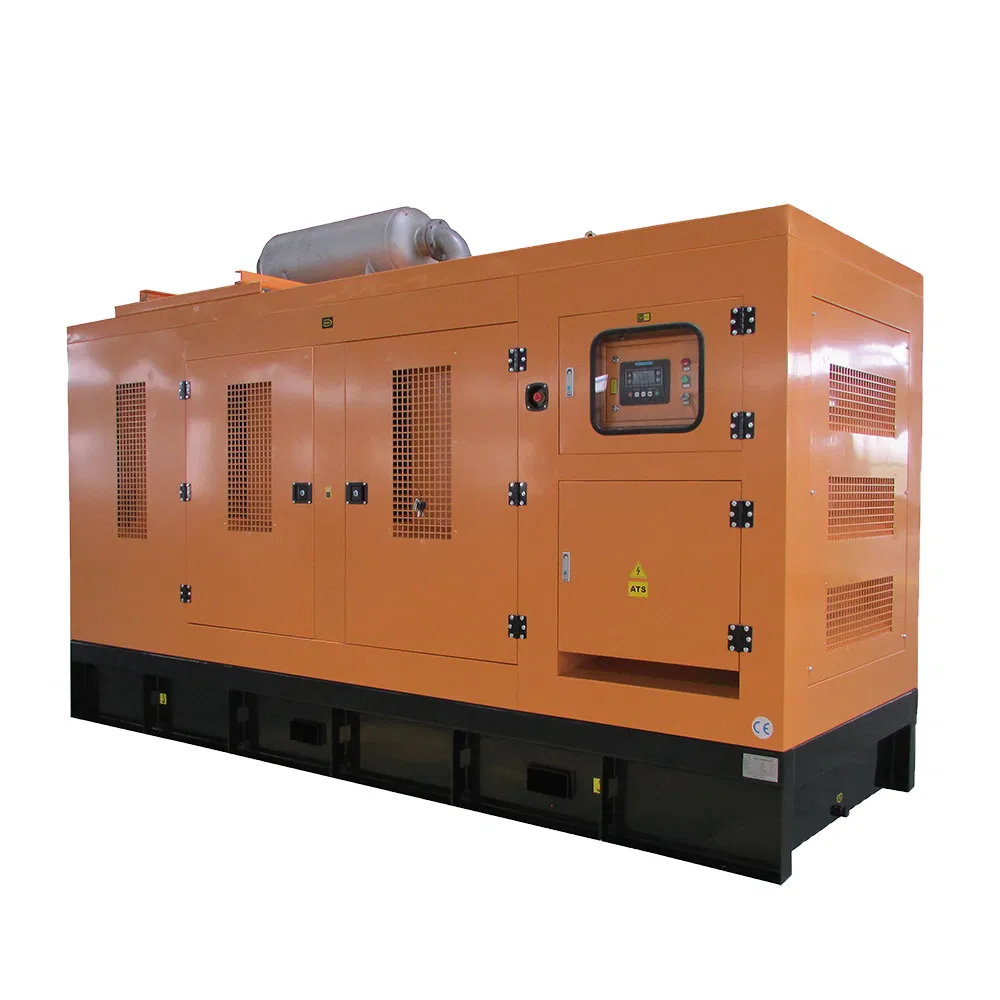

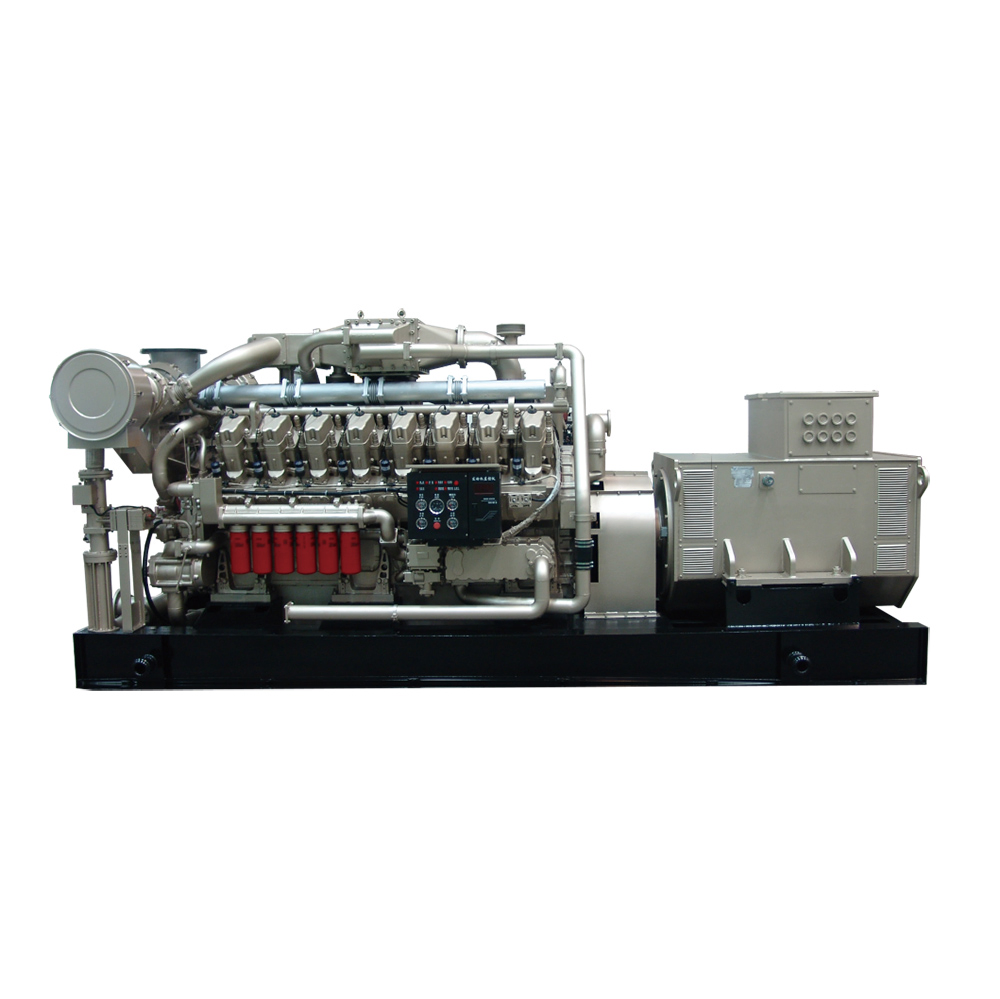

Our Gas generator
Specifications
Model of genset | PRG-400GF |
Model of engine | Ricardo,Deutz,Jichai |
Type | Four Stroke,Spark Plug Ignition |
Model of alternator | Faraday |
Rated speed(r/min) | 1500 |
Rated power(kW/kVA) | 400KW/500KVA |
Rated voltage(V) | 400V/230V |
Rated frequency(Hz) | 50/60 |
Rated power factor | 0.8 lagging |
Voltage regulation | Automatic |
Supply connecting | 3 phase 4 wire |
Governor | Electric governor |
Control model | Remote electric control, Hand control |
Starting method | 12V DC electric starting motor |
Cooling method | Water cooling system |

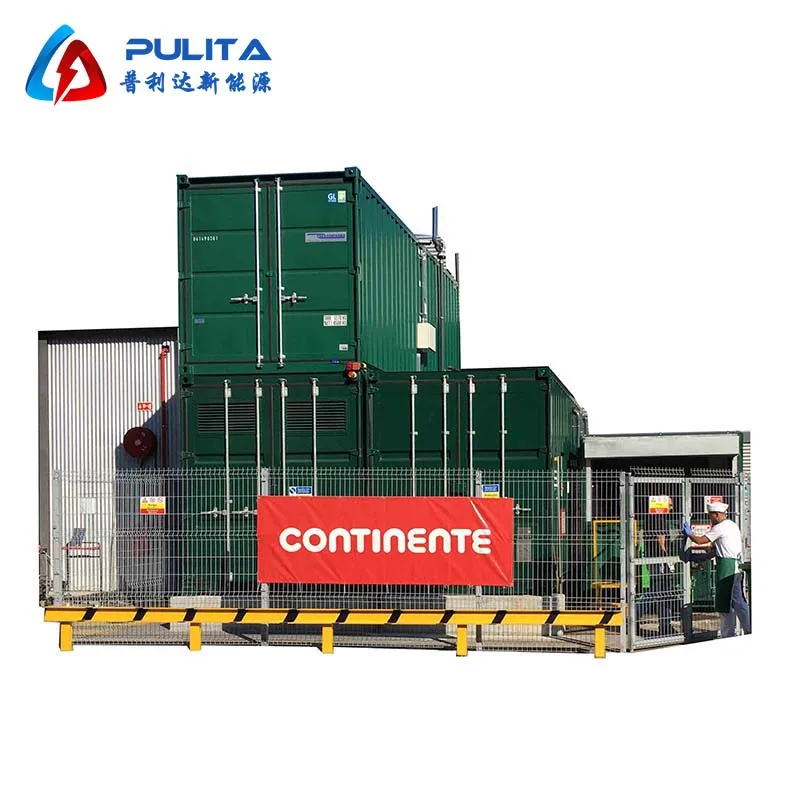

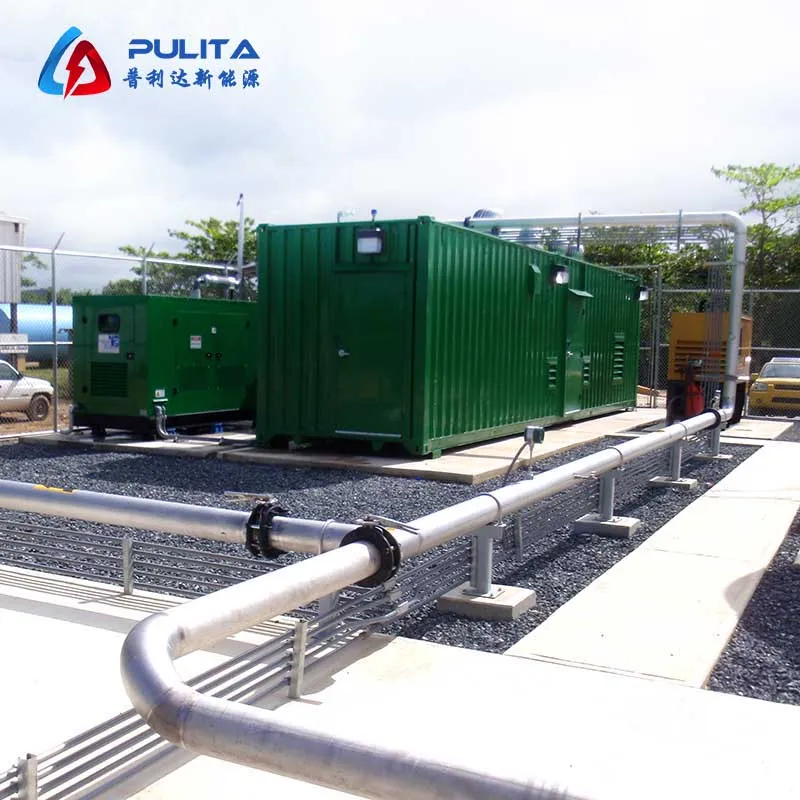

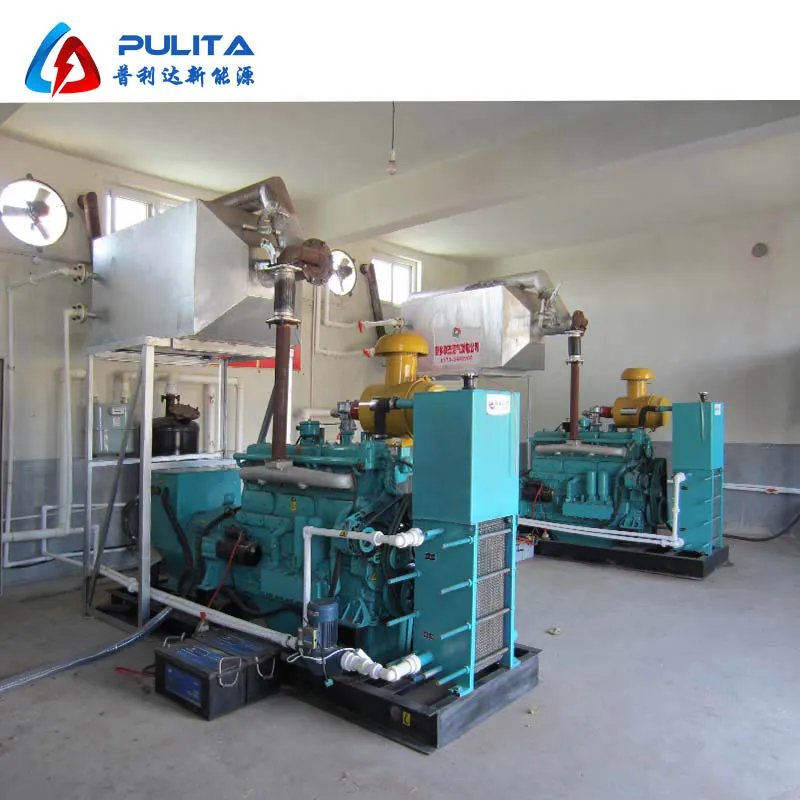

Successful cases
Company Information and Certificates

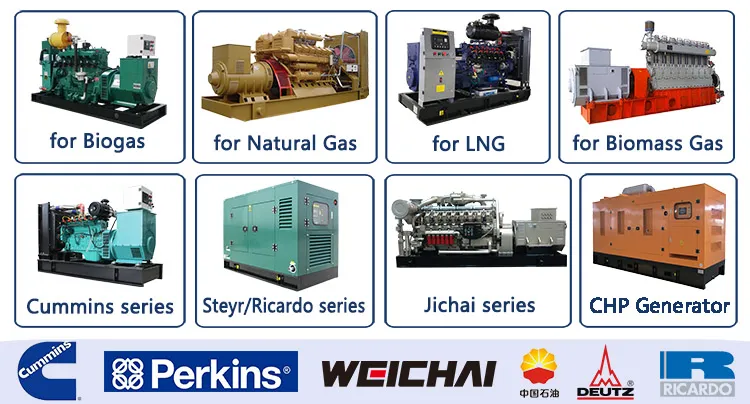

Various model in our workshop
FAQ:
Q1.Are you a factory or trading company?
We have two modern factory. We have 50 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.
Q2. Is Your products the lowest price?
HAITAI take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.
Q3.What's your warranty?
Re: All our products we offer one year warranty or 1500 hours which comes first.
Q4. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.
Q5. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q6. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
