Product Description
Related products:
Requirments for natural gas / biogas / biomass gas / LPG LNG etc.
1.Methane should be at least 50%
2.The natural gas temperature should be between 0-60 ºC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm
Models list
Model of genset | PDG-XXGF |
Model of engine | Deutz,Man,Weichai |
Type | Four Stroke,Spark Plug Ignition |
Model of alternator | Faraday,Stamford,Siemens |
Rated speed(r/min) | 1500/1800/1000 |

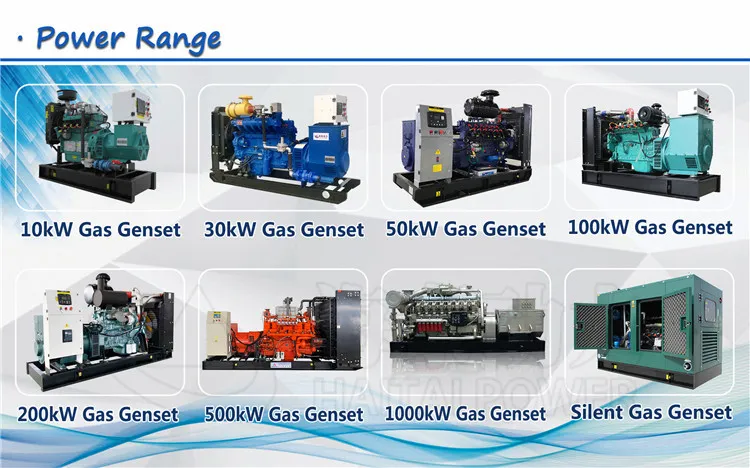

Rated power(kW/kVA) | 10-300kW |
Cylinder numbers and Type | 4 cylinders in line,6 Cylinders in line,6V |
Rated voltage(V) | 400V/230V |
Rated frequency(Hz) | 50/60 |
Rated power factor | 0.8 lagging |
Voltage regulation | Automatic |
Supply connecting | 3 phase 4 wire |
Governor | Electric governor |

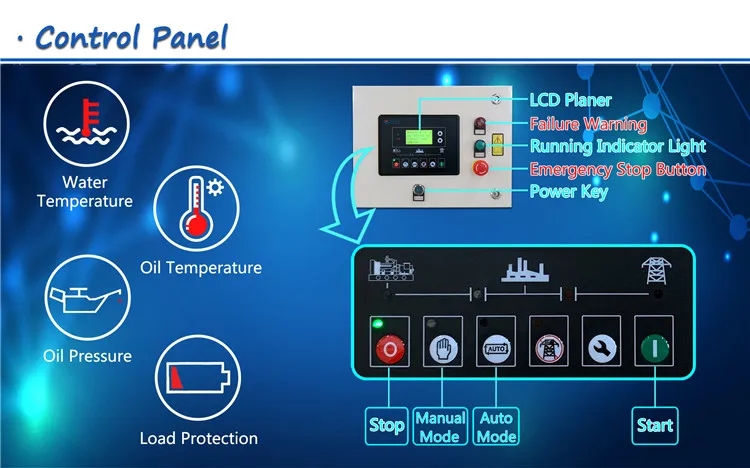

Control model | Remote electric control, Hand control |
Starting method | 12V DC electric starting motor |
Cooling method | Water cooling system |
