62.5kVA Biogas Power Generator Sets

62.5KVA Biogas Power Generator Sets
Binshi Gas Generator Sets Description:

Genset Information:
Model: BCF50-B. With Cummins Power 6BTAA
Prime Power: 62.5KVA
Voltage Class: 400V
Electrical Efficiency: 35.5%
Heat Efficiency: 51.3%
Overall Efficiency: 86.8%
Frequency/Speed: 1500rmp
Storage Battery Quantity Specifications: 2x80Ah
Gen-set Dimention: 2120x860x1430(mm)
Weight: 1200KG

Engine:
Feature: In-line 6 Cylinder, 4 stroke, Turbocharge mid-cooling.
Ignition System: Kingbang
Speed Regulating System: Kingbang
Control Module: Deepsea from UK. DSE7320 or DSE8610 as your demond
Direction of Rotation: Anticlockwise. Face to flywheel side
Bore & Stroke: 102× 120(mm)
Displacement: 5.9L
Compression Ratio: 10.5
Fuel type: Biogas
Dry Weight: 420KG

Faraday Alternator:
Model: FD2C-4
Prime Power: 50kw
1 Hour Overload Capacity: 110%
Power factors: 0.8
Frequency: 50Hz@1500rpm/60Hz@1800rpm
Voltage: 400V
Weight: 270KG
Insulation class: H
Protection class: IP23
Environment temperature: 40 degree centigrade

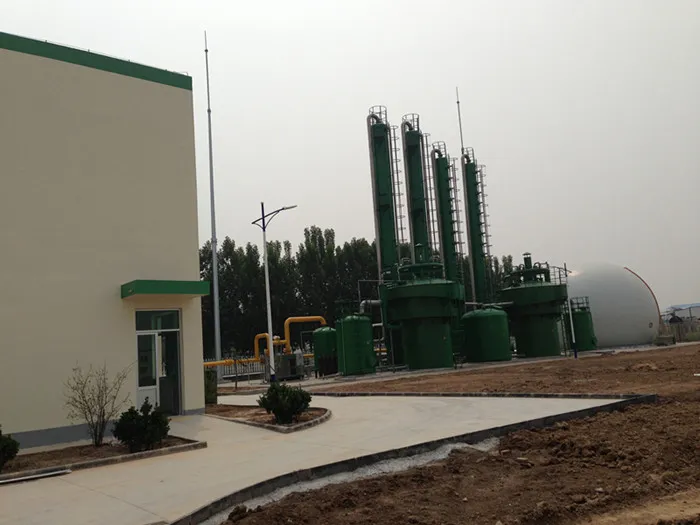

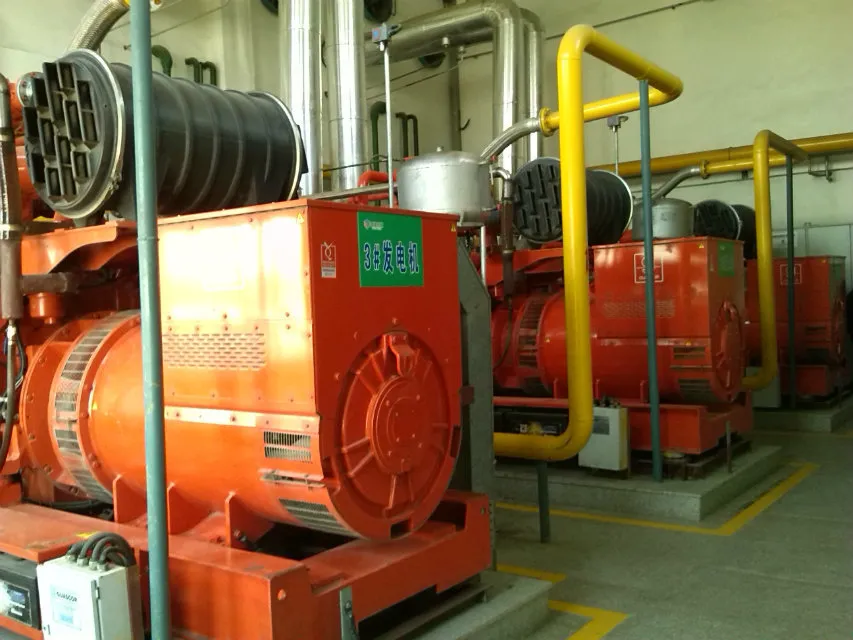

Our Gas Generator Project in Shandong Province
