500kw Industrial Exhaust Gas 12V190 Series Lcv Gas Generator Set
Product Photo Display Gas IntroductionGas Composition and Calorific Value Parameter TableGas TypeComposition(Volume%)Low Calorific Value MJ/Nm3Industrial Exhaust GasCOH2CO2N21184556The closed furnace for smelting enterprise producing a large amount of surplus industrial exhaust gas in the smeltin......
Send Inquiry
Product Description

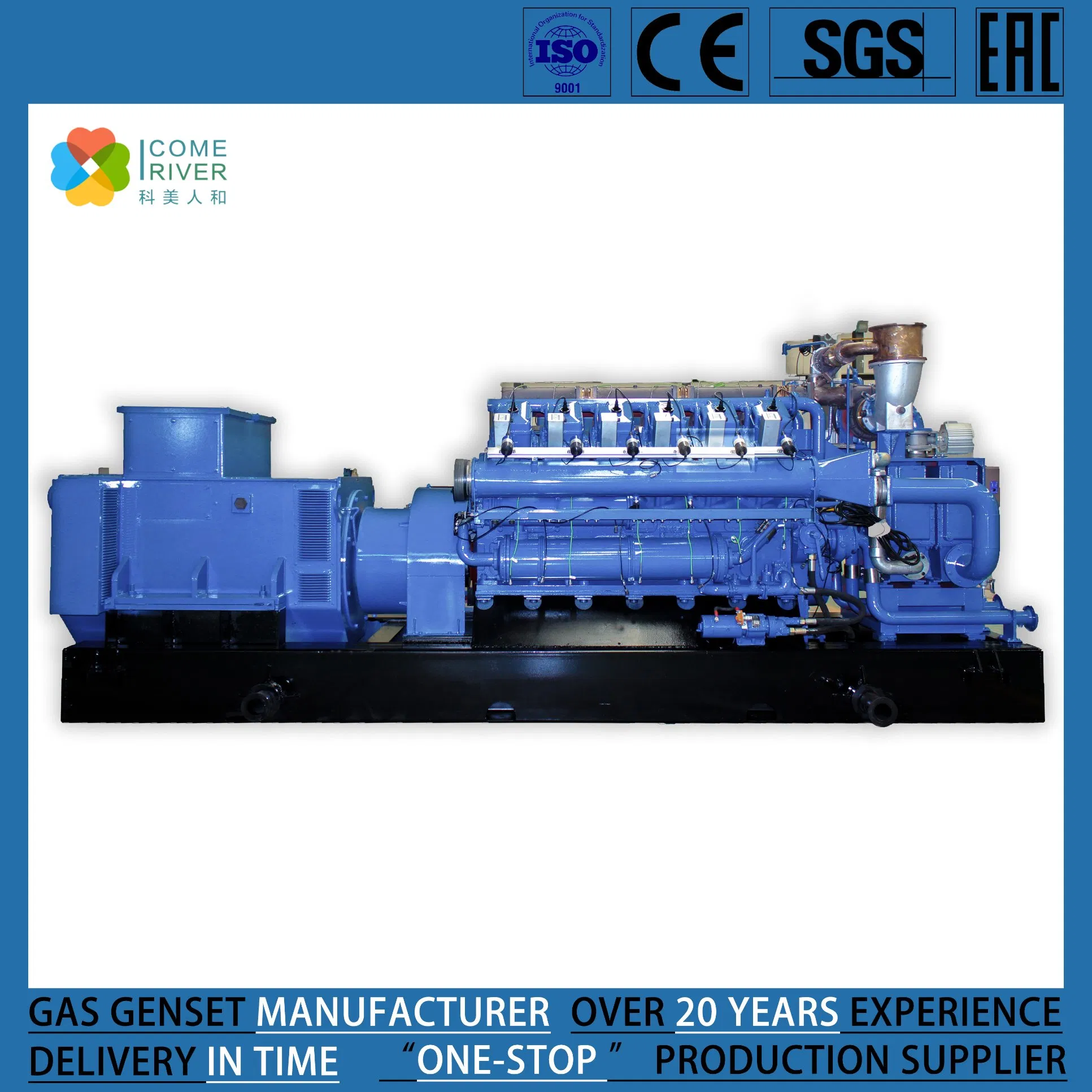

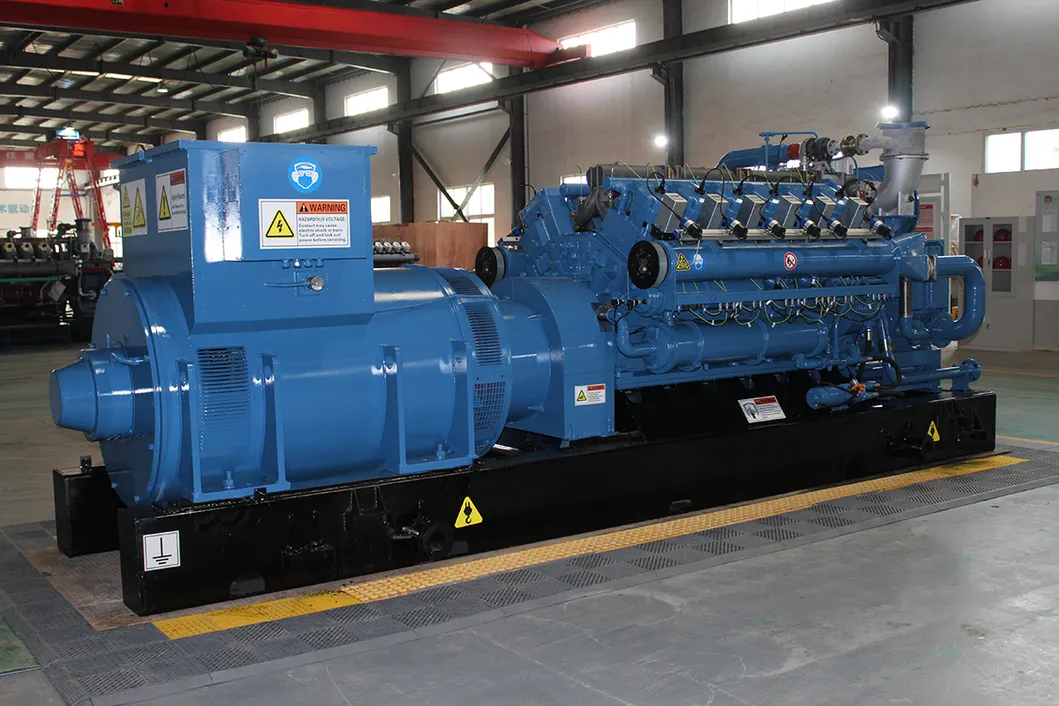

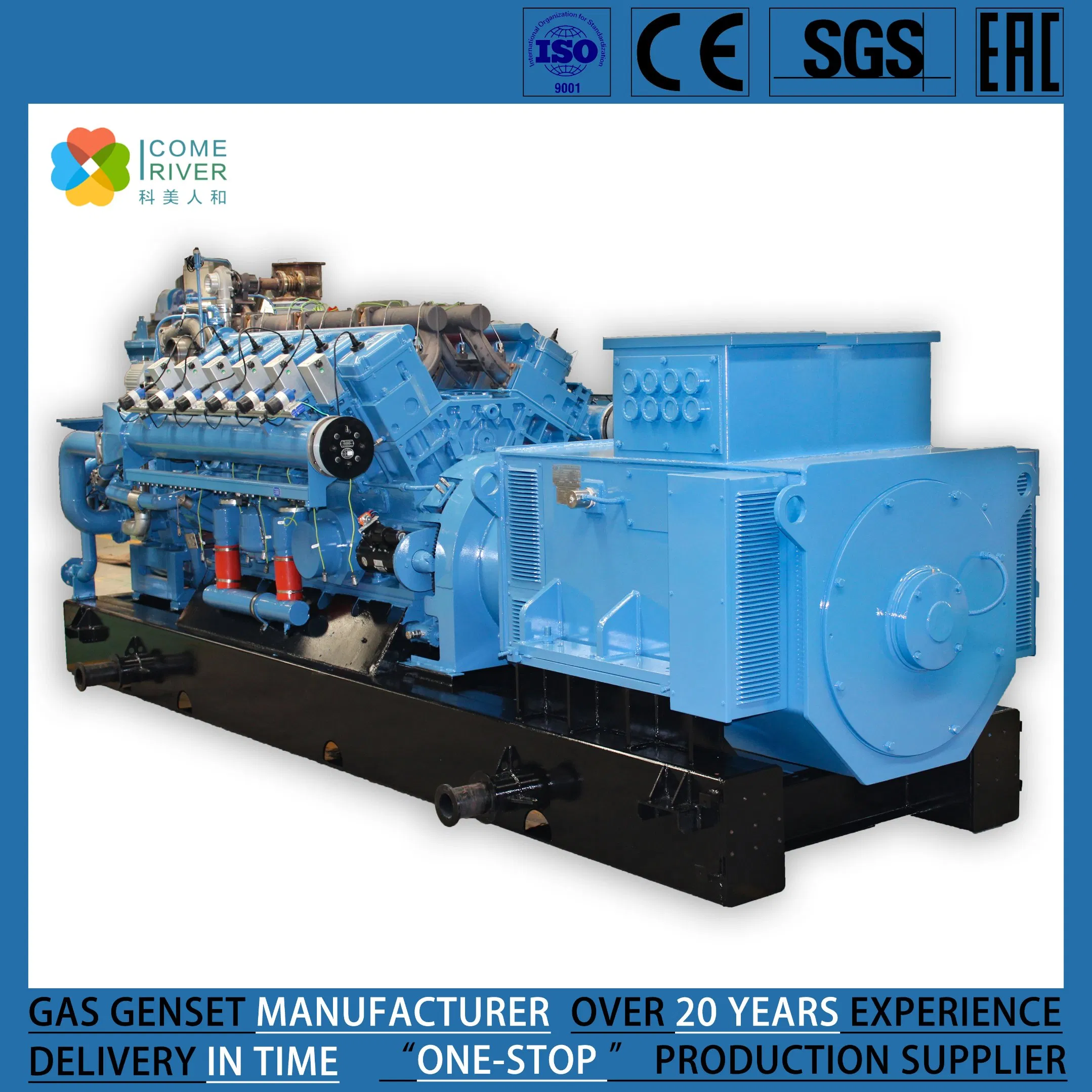

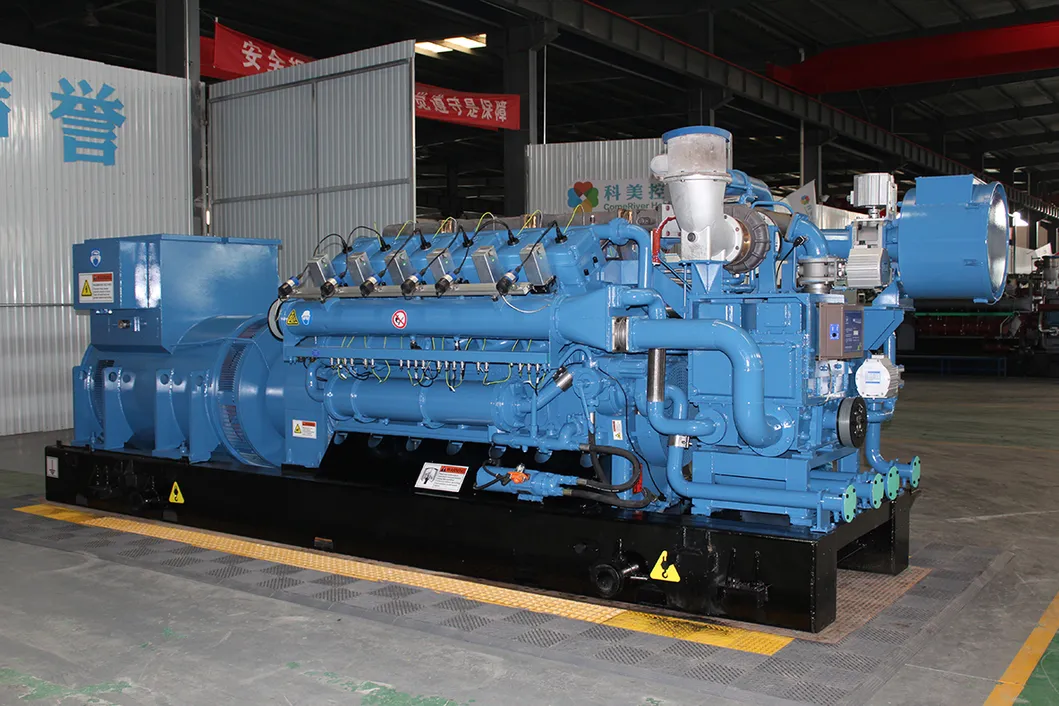

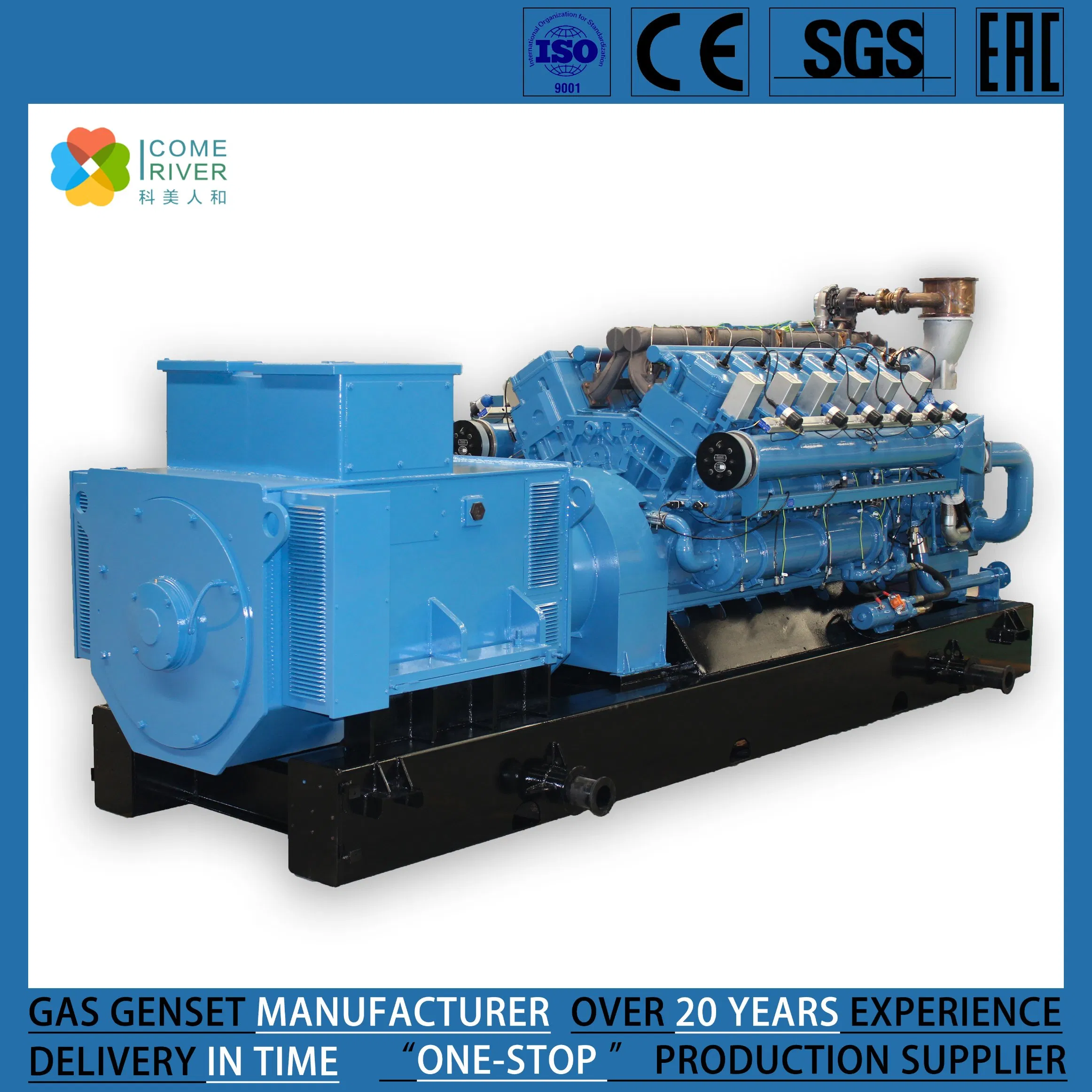

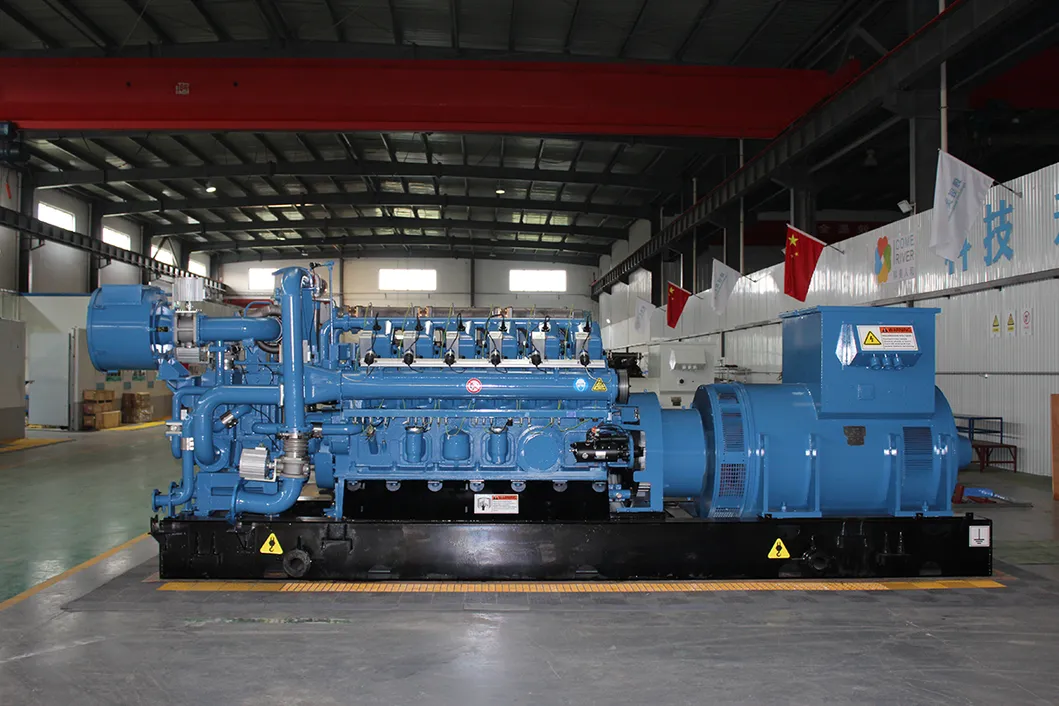

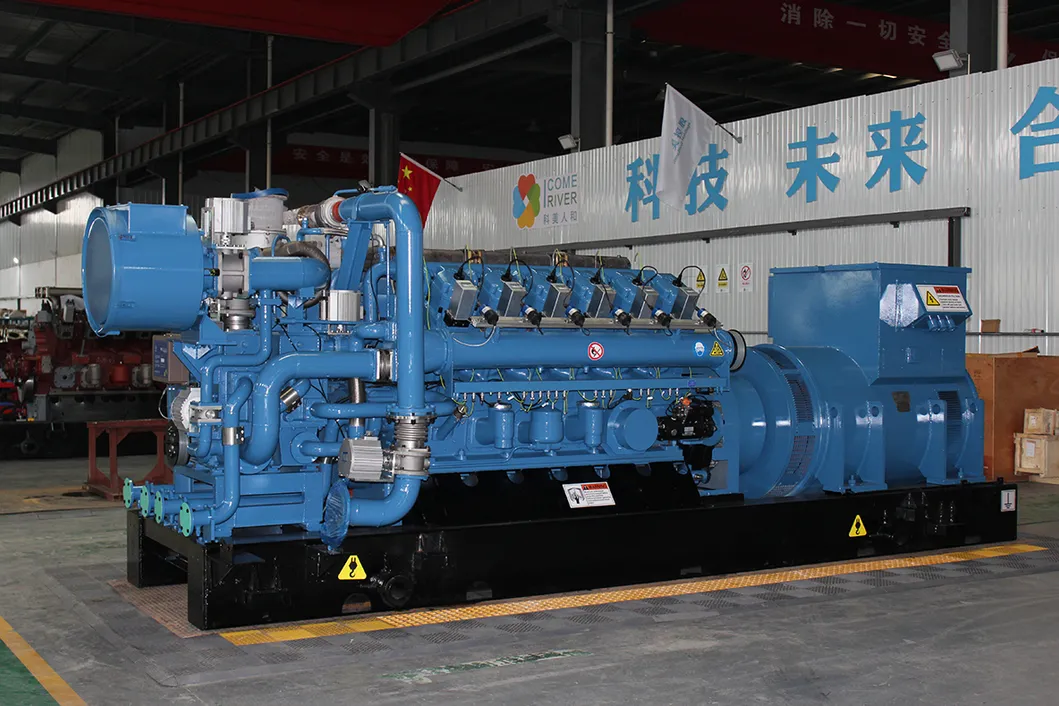

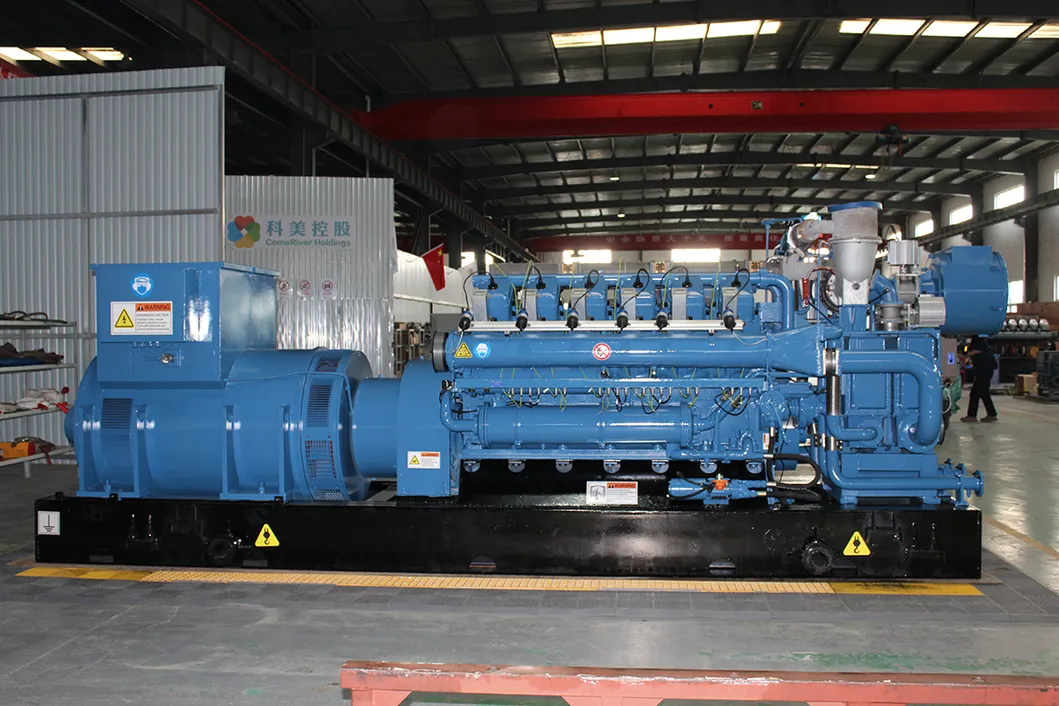

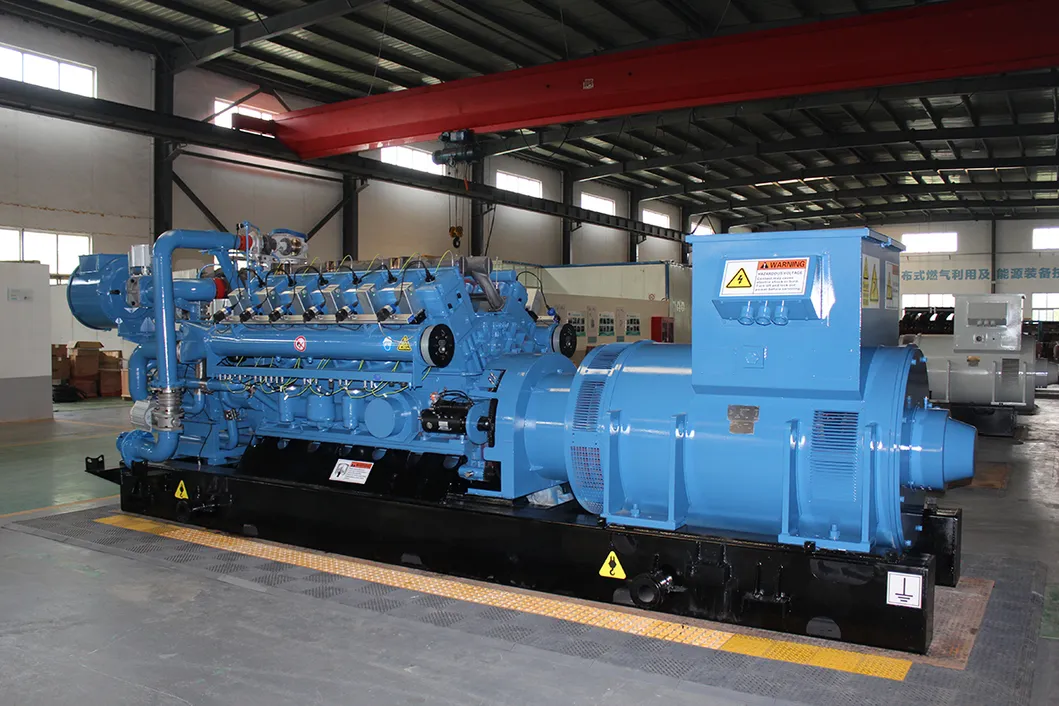

Product Photo Display
Gas Introduction
| Gas Composition and Calorific Value Parameter Table | |||||
| Gas Type | Composition(Volume%) | Low Calorific Value MJ/Nm3 | |||
| Industrial Exhaust Gas | CO | H2 | CO2 | N2 | 11 |
| 84 | 5 | 5 | 6 | ||
CR Genset Introduction
ComeRiver Power industrial exhaust gas generator set is aiming at the gas exploitation with high hydrogen content and high carbon monoxide content, the genset is fully optimized and designed based on the general genset. The genset adopts modular design, engine, alternator and intercooler are the three major modules which the middle part is the engine, easier for daily maintenance, gas intake and exhaust, the cooling water is placed at the free end, that is easier for power plant installation and arrangement.The engine adopts double turbocharging dual shunt intake technology, and it is special designed for generator set with hydrogen content included, reliable structure design, safety operation feature, and after the optimization of the double turbocharges, a higher efficiency will provide a more efficient turbocharging pressure, thereby the genset operation power and efficiency definitely will have an obvious improvement.
The product has the features of high efficiency, low energy consumption, and low emission, etc.. The genset core control system components are all fully automatized, including ECU, air-fuel control system, speed regulating system, and ignition system, etc., product quality is extraordinary reliable and these are already widely applied on the gas generator sets. Genset adopts SE3 control system, perfect man-machine interaction, and better maneuverability. ComeRiver Power genset combines advantages of high-performance engine, core control components and advanced gas genset control system, and it has been highly recognized by clients on the market.
High Power
Under the condition that the gas source and operating environment meet the requirements, the maximum power of the genset is 700KW.
High Efficiency
The double turbocharging technology has been optimized and verified for a long period, with reliable structure and high operating efficiency, thereby the genset is able to run for a long time at full loading.
Good Reliability
All major components are being fully optimized. genset owns comprehensive control system functions, complete parameter gathering and wide protection range.
Good Adaptability
The genset is specially optimized with various adjustment and control, which can adapt to the change of gas source on site.
Easy Operation and Maintenance
The three-section modular design makes the genset easy to maintain. The control system has a high degree of automation. Easy to operate.
CR Genset Parameter Tables

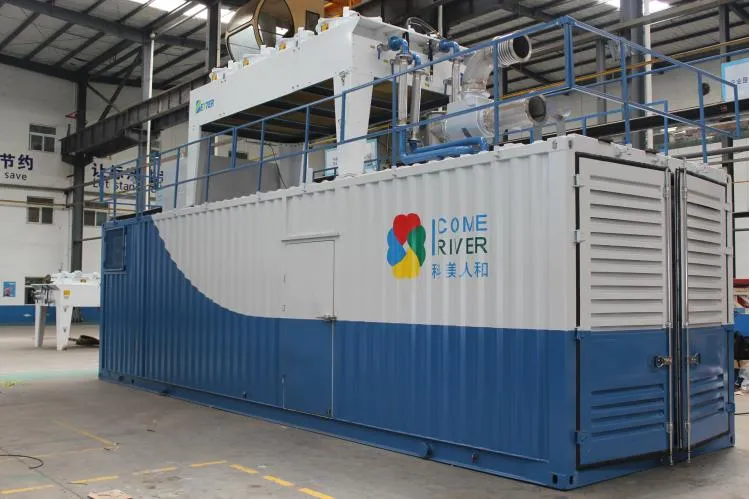

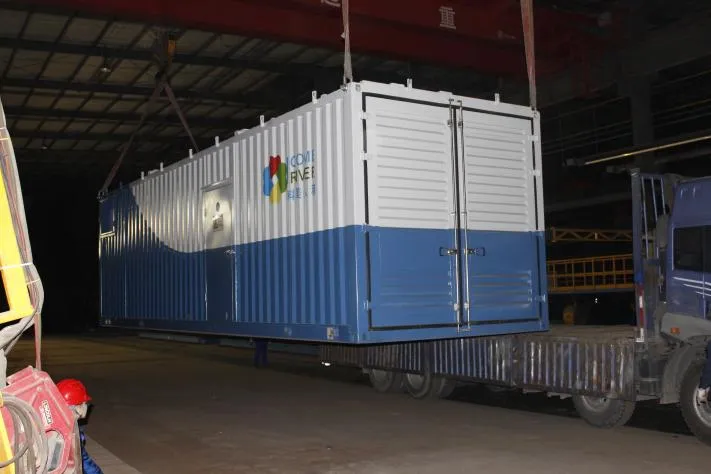

| Genset Container Parameters | |
| Boundary dimension of container(L×W×H, as a useful reference for transportation),unit: mm | 10450×3000×3000 |
| Noise at 1m away from the gas genset, unit: dB(A) | ≤85 |
| Total Weight (Ton) | 25 |
| Industrial Exhaust Gas Generator Set Parameter | |
| Parameter Descriptions | Parameters |
| Genset Series | 11 Series(12V190) |
| Genset Model | CP500GFJ11 |
| Rated power, kW | 500 |
| Rated current, A | 902/57.3/34.4 |
| Rated voltage, V | 400/6300/10500 |
| Rated frequency, Hz | 50/60 |
| Rated rotation speed, r/min | 1000/1200 |
| Rated power coefficient, cosΦ | 0.8 |
| Oil Heat Consumption, g/(kW·h) | 0.5 |
| Property Grade | G2 |
| Phase Number & Wiring Method | 3 Phase 3 Wire or 3 Phase 4 Wire |
| Pressure Adjustment Method | Automatic Voltage Control |
| Excitation Method | Brushless Excitation |
| Starting Method | DC24V Electrical Starting |
| Boundary Dimension(LxBxH), mm | 6200×1950×2175 |
| Net Weight, kg | 11200 |
| Engine Parameters | |
| Model of engine | CP12V190-500-02 |
| Configuration and type | Shunt Intake, turbocharging intercooler |
| Cylinder arrangement | V-Type 60° Angle |
| No. of cylinder | 12 |
| Cylinder diameter, mm | 190 |
| Piston working Distance, mm | 210 |
| Total displacement (L) | 71.45 |
| Rated speed(r/min) | 1000 |
| Idle speed(r/min) | 600 |
| Rated power(kW) | 540 |
| Lube oil consumption (g/kWh) | 0.8 |
| High outlet water temp(ºC) | 60~75 |
| Low outlet water temp(ºC) | 28~48 |
| Lube oil temp (ºC) | 65~80 |
| Lube oil pressure in oil main line(kPa) | 500~800 |
| Lube oil pressure in turbocharger (kPa) | 250~450 |
| Stable speed drop | 0~5 Adjustable |
| Lubricating system | Pressure and splatter combined lubrication method |
| Ignition method | Sparking plug electric ignition |
| Starting method | DC24V Electrical Starting |
| Direction of rotation | Counterclockwise (facing the output end) |
| Speed Regulation | Electronic Speed Regulating |
| Cooling system | Forced Circulation Water Cooling |
| Output way | Flywheel output |
| Alternator Parameters | |
| Alternator model | 1FC6 455-6LA42 |
| Output power(kVA) | 625 |
| Rated speed(r/min) | 1000 |
| Rated voltage(V) | 400 |
| Rated current(A) | 722 |
| Frequency(Hz) | 50 |
| Power factor(lag) | 0.8 |
| Insulation Clause | F Grade |
| Direction of rotation | Clockwise(face to shaft end) |
| Protection Clause | IP23 |
| Cooling method | Air Cooling |
| Alternator model | JFG 500-6/6300 |
| Output power(kVA) | 625 |
| Rated speed(r/min) | 1000 |
| Rated voltage(V) | 6300 |
| Rated current(A) | 57.3 |
| Frequency(Hz) | 50 |
| Power factor(lag) | 0.8 |
| Insulation Clause | F Grade |
| Direction of rotation | Clockwise(face to shaft end) |
| Protection Clause | IP23 |
| Cooling method | Air Cooling |
| Alternator model | JFG 500-6/10500 |
| Output power(kVA) | 625 |
| Rated speed(r/min) | 1000 |
| Rated voltage(V) | 10500 |
| Rated current(A) | 34.4 |
| Frequency(Hz) | 50 |
| Power factor(lag) | 0.8 |
| Insulation Clause | F Grade |
| Direction of rotation | Clockwise(face to shaft end) |
| Protection Clause | IP23 |
| Cooling method | Air Cooling |
CR Technical Advantages
Three-Section Modular Design
Genset adopts three-section modular design, including gas engine, turbocharging intercooler three modules and the design improved the genset maintenance operation.
Engine places at the middle, fewer auxiliary equipment on both sides, which is convenient for daily maintenance; the intake and exhaust are concentrated in the free end, which is convenient for the layout of the power station. The three modules are evenly distributed to make the mass distribution of the genset more uniform and easier to hoisting.
Shunt Intake Technology
Due to biomass gas with characterizations of containing hydrogen and low methane value, the burning speed is fast, backfire and knock are likely to be caused, ComeRiver adopts shunt intake technology with a reliable structure, compared with the multi-point electric injection and mechanical injection, shunt intake technology has a simple and reliable control mechanism; the possibility of backfire occurring is being avoided completely.
Shunt Pressurization Technology
Adopting the shunt pressurization technology, the genset operation safety is high, the gas does not need other auxiliary pressurization equipment, it is not only saves energy consumption, but also the low pressure gas intake is realized.
Single Cylinder Control Technology
Single cylinder control technology is adopted to control and protect the combustion of each cylinder separately to improve the safety and reliability of genset operation.
High Extent of Automation
Control system has the feature of perfect man-machine interaction, easy to operate. High extent of automation, human intervention is unnecessary under normal operation. The system has the functions of air-fuel ratio control, speed regulating control, pressurization bypass control, system self-adaptation, and system protection, etc.
Core Components Comprehensive Automation
All core components are independent designed, including ECU, air-fuel control system, speed regulating system, and ignition system.
Multiple Choices of Genset Type
Multiple options of regular gensets and containerized gensets;
Multiple options of voltage grades, 400V,6.3kV,10.5kV;
Special designs accord to the application mode.
