Wind Generator Turbine Savonius Wind Generator Turbine
wind generator turbine savonius wind generator turbine Product description of wind generator turbine:1) Housing, office, farm and factory;2) Telecommunications Station3) TV Transfer Station;4) Monitoring Station (military, hydrology, observatory)5) Water-pumping Station; Technical data of wind gener......
Send Inquiry
Product Description
wind generator turbine savonius wind generator turbine
Product description of wind generator turbine:
1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;
1) Housing, office, farm and factory;
2) Telecommunications Station
3) TV Transfer Station;
4) Monitoring Station (military, hydrology, observatory)
5) Water-pumping Station;
Technical data of wind generator turbine:
| Model No. | wind generator turbine savonius wind generator turbine |
| Configuration | 3 Blades, Horizontal axis, Upwind |
| Rotor Diameter | 9.0 m / 29.5 ft |
| Swept Area | 63.62 m2 / 541.1 ft2 |
| Direction of Rotation | Clockwise looking upwind |
| Blade Material | Fiberglass reinforced composite |
| Rated Power | 20 kW @ 11.5m/s |
| Battery Bank Voltage | 240 Vdc |
| System Output Voltage | 380 Vac three phase |
| Cut-in Wind Speed | 3 m/s |
| Rated rotating rate | 180 r/min |
| Working Wind Speed | 3-25 m/s |
| Survival Wind Speed | 50 m/s |
| Alternator | Permanent magnet alternator, SCF technology |
| Alternator Weight | 496 kg / 1093.5 lbs |
| Energy monitoring & User control | Siemens PLC controller with touch screen |
| Gearbox | None, Direct drive with front generator design |
| Over Speed Regulation | Auto Yawing & Hydraulic Braking(optional) |
| Shutting Down Method | Manual & Automatic electromagnetism Braking |
| Warranty | 5 years |
Product characteristics of wind generator turbine:
Ø Rotation speed controlled by passive variable pitch mechanism with centrifugal force.
Ø Power curve optimized by two-stage springs to balance the pitch driving force.
Ø No tail vane, down-wind designing with electricity transmitted by collecting ring.
Ø 3-phase direct drive permanent magnet generator with maintenance free.
Ø All surfaces sealed with outer parts pot galvanized, antirust.
Ø Quick installation & easy operating.
Ø Compact structure with streamline and nice appearance.
Ø Running stably and safely with 15 years lifetime, easy maintenance.

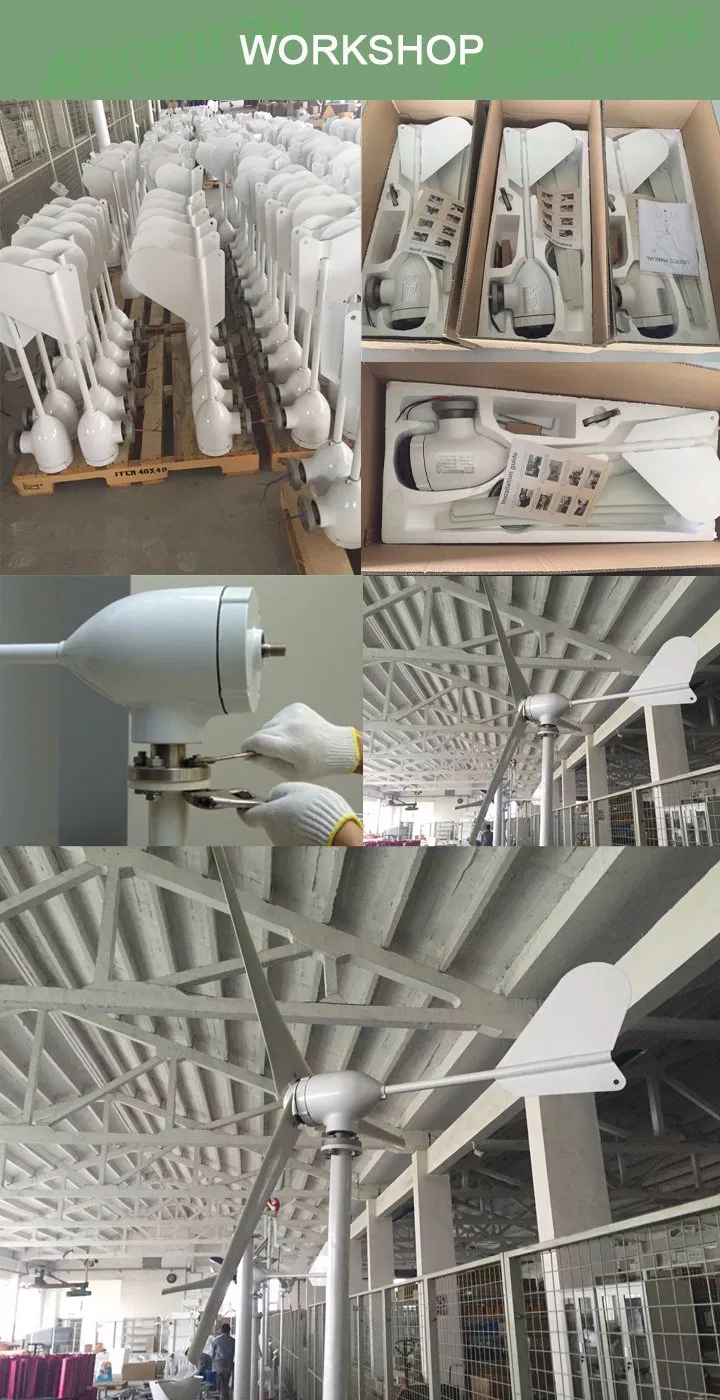

Workshop of wind generator turbine:
Ø Rotation speed controlled by passive variable pitch mechanism with centrifugal force.
Ø Power curve optimized by two-stage springs to balance the pitch driving force.
Ø No tail vane, down-wind designing with electricity transmitted by collecting ring.
Ø 3-phase direct drive permanent magnet generator with maintenance free.
Ø All surfaces sealed with outer parts pot galvanized, antirust.
Ø Quick installation & easy operating.
Ø Compact structure with streamline and nice appearance.
Ø Running stably and safely with 15 years lifetime, easy maintenance.
Workshop of wind generator turbine:
