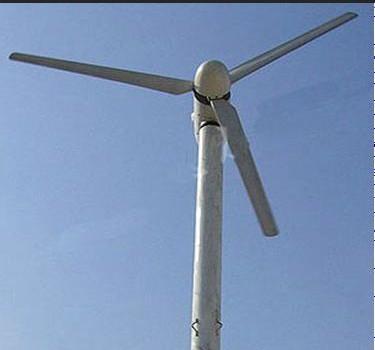

5kw Pitch Controlled Variable Speed Wind Turbine Generator
Variable pitch wind turbines act just like the above automatic transmission by automatically adjusting their variable pitch blades to optimize blade efficiency over a broad range of wind speeds.HY--5000W Technical ParameterRated power(kW)5Material of the bladesFiberglass-Reinforced PlasticsRated win......
Send Inquiry
Product Description
Variable pitch wind turbines act just like the above automatic transmission by automatically adjusting their variable pitch blades to optimize blade efficiency over a broad range of wind speeds.
Technology characteristic
1. Leading centrifugal pitch controlled technology world-wide.
(1) Exactly regulation
Information input source of pitch controlled mechanism is wind rotor rotating speed. System regulation is more stable, reliable and quick response and so on.
(2) Softness regulation
Impact caused by wind speed becoming will be decreased through the pitch controlled mechanism. Regulation soft, failure rate low
(3) Longer service life
System adopts mechanical part, floating connection, smaller fraction losses, less failure sources, better environment adaptability, Longer Service life.
| HY--5000W Technical Parameter | |||
| Rated power(kW) | 5 | Material of the blades | Fiberglass-Reinforced Plastics |
| Rated wind speed(m/s) | 11 | Speed regulation method | Adjustable-Pitch of blades |
| Startup wind speed(m/s) | 3 | Generator style | 3-phase AC PM |
| Working wind speed(m/s) | 4~25 | Tower height (m) | 8 |
| Survived wind speed(m/s) | 50 | Stop method | Sweepback Adjustable-Pitch |
| Rated rotate speed (r/min) | 240 | Main machine weight(kg) | 340 |
| Rotor Diameter(m) | 5.6 | Guyed tower weight(kg) | 380 |
| Working voltage(v) | DC240V/AC220V | Freestanding tower weight (kg) | 600 |
| Annual power generation (KWH) | 7500/22500 | ||
1. Leading centrifugal pitch controlled technology world-wide.
(1) Exactly regulation
Information input source of pitch controlled mechanism is wind rotor rotating speed. System regulation is more stable, reliable and quick response and so on.
(2) Softness regulation
Impact caused by wind speed becoming will be decreased through the pitch controlled mechanism. Regulation soft, failure rate low
(3) Longer service life
System adopts mechanical part, floating connection, smaller fraction losses, less failure sources, better environment adaptability, Longer Service life.
