off Grid System 500W Wind Turbine Generator (Wind Turbine 100W-20KW)
We can supply horizontal axis wind turbine from 100W~20KW.The main feature is as following:Features Rated voltage 12V\24v\48vDesign-optimization in our own wind-tunnelPermanent magnet-generatorVery good start-up performance due to low cogging torque at 2,2m/s wind speedExternal hybrid controller for......
Send Inquiry
Product Description
We can supply horizontal axis wind turbine from 100W~20KW.
The main feature is as following:
Features
Rated voltage 12V\24v\48v
Design-optimization in our own wind-tunnel
Permanent magnet-generator
Very good start-up performance due to low cogging torque at 2,2m/s wind speed
External hybrid controller for wind- and solar-energy with multi-function display
and integrated electronic/manual stop switch
Universal application for low, middle and high wind
Hand laminated, UV-resistant carbon blades, successfully tested according to DIN EN 61400-2 at hurricane speed 122km / h (5480 rpm, with almost Speed of sound at the blade tips).
Our blades are handmade incorporating high tensile carbon fibre mats. This is a more labour
intensive process resulting in an optimized blade profile at the lowest weight, which combines
a very quiet operation, blade longetivity and an exceptional safety record.
Aerodynamic design from aircraft-engeneering
Low noise
Durable and low maintenance by external controller and high-quality components
Well used in
Housing, office, farm and factory
Telecommunications Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Wind solar hybrid street light system
TechnicalData

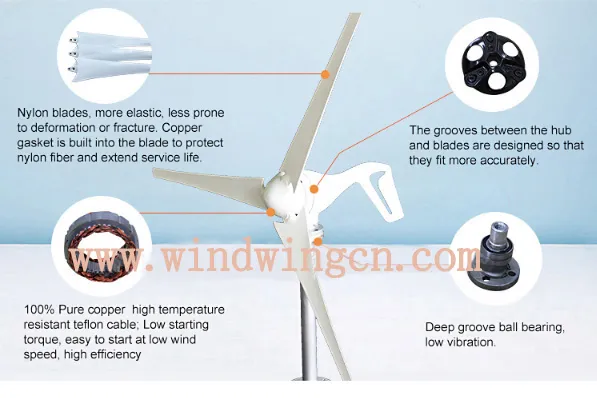

Product Details

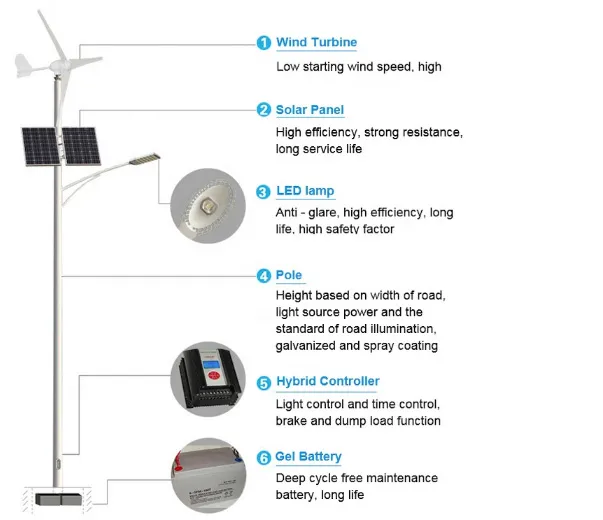

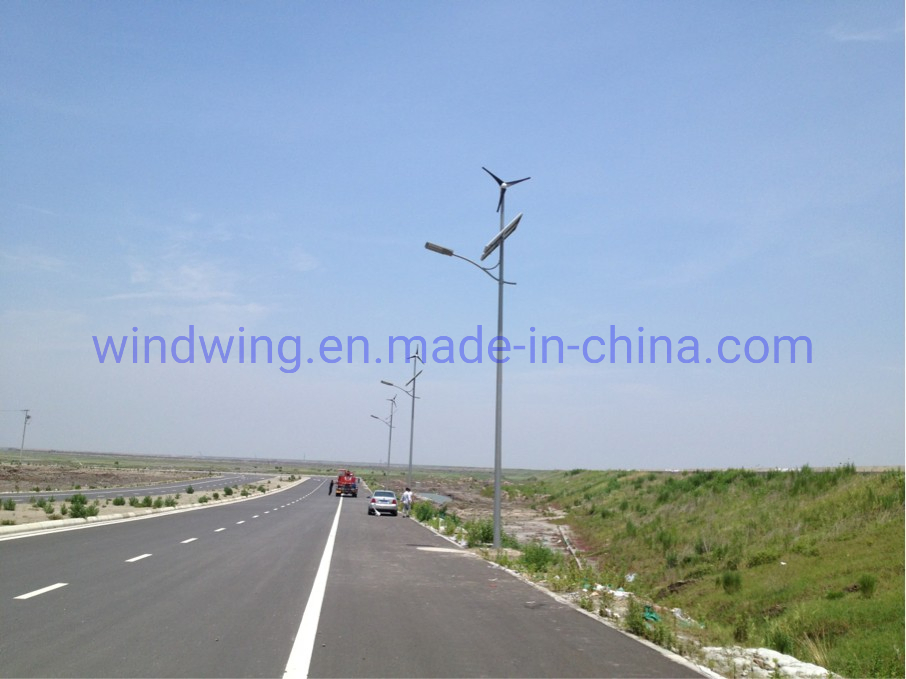

Wind Solar Hybrid Streetlight system:
Package and Delivery
Certification
Our Services
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed
4. Solved the problem with you during using our products
Thank for your visiting
The main feature is as following:
Features
Rated voltage 12V\24v\48v
Design-optimization in our own wind-tunnel
Permanent magnet-generator
Very good start-up performance due to low cogging torque at 2,2m/s wind speed
External hybrid controller for wind- and solar-energy with multi-function display
and integrated electronic/manual stop switch
Universal application for low, middle and high wind
Hand laminated, UV-resistant carbon blades, successfully tested according to DIN EN 61400-2 at hurricane speed 122km / h (5480 rpm, with almost Speed of sound at the blade tips).
Our blades are handmade incorporating high tensile carbon fibre mats. This is a more labour
intensive process resulting in an optimized blade profile at the lowest weight, which combines
a very quiet operation, blade longetivity and an exceptional safety record.
Aerodynamic design from aircraft-engeneering
Low noise
Durable and low maintenance by external controller and high-quality components
Well used in
Housing, office, farm and factory
Telecommunications Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Wind solar hybrid street light system
TechnicalData
| Model | WKH-500 |
| Rated Power | 500W |
| Max Power | 600w |
| Start-up Wind Speed | 2m/s |
| Rated Wind Speed | 12m/s |
| Survival Wind Speed | 45m/s |
| Output Voltage | DC12/24/48V |
| Working Wind Speed | 2.0-25m/s |
| Rotor Diameter | 1.54m |
| Material of Blades | Carbon fiber composite |
| Quantity of Blades | 3/5pcs |
| Generator type | AC, 3 phases |
| Controller Braking System | 3-Phase short circuit by NFB brake |
| Range of Working Temperature | -40ºC-60ºC |
Product Details
Wind Solar Hybrid Streetlight system:
Package and Delivery
Certification
Our Services
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed
4. Solved the problem with you during using our products
Thank for your visiting
