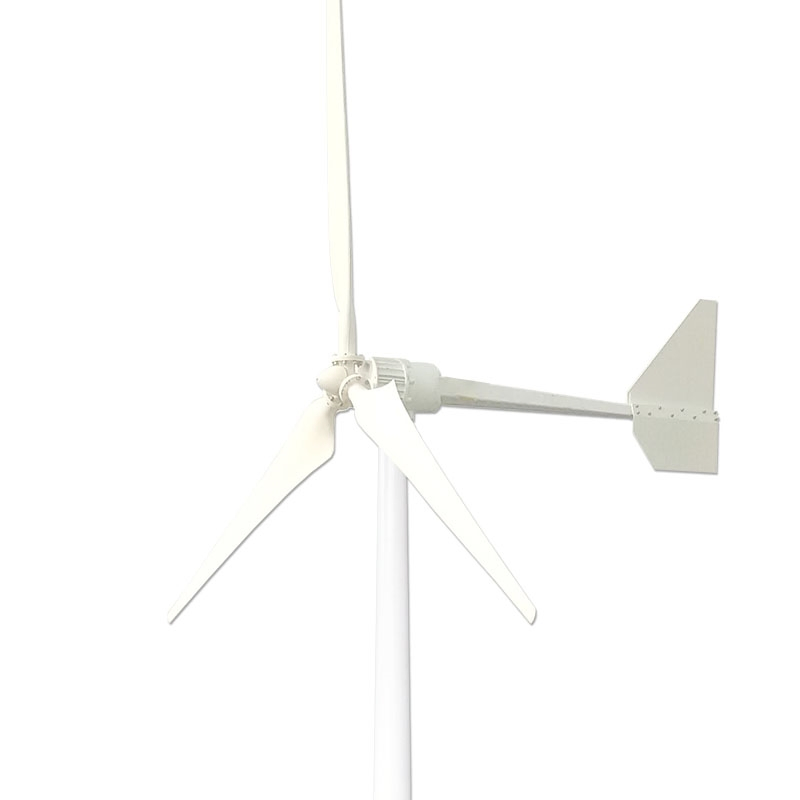

High Performance Wind Turbine 5kw Small Windmills for Sale

Product Description

Features:

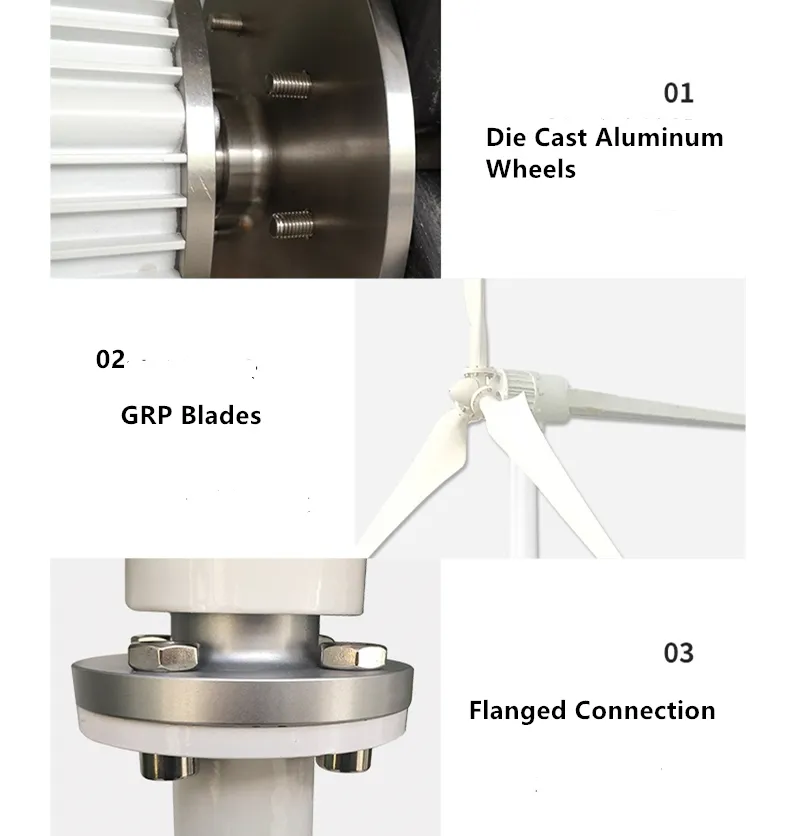

Carbon steel body, compact, safe.
Reinforced glass fiber blades, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.
Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
Tail adopts mechanical yaw technique, making it survive storm and run safely.
With epoxy zinc rich primer and polyurethane anti-corrosion treatment, be ultraviolet-proof, acid rain resistant, salt resistant.
Intelligent automatic grease injection, which ensure flexible running and durable life.

Technical Specification:

Model	CH-G-3000W	CH-G-5000W	CH-G-10000W
Rated Power	3KW	5KW	10KW
Maximum Power	3.5KW	5.5KW	12KW
Rated Voltage	96/120V	120/220V	220/380V
Start-up Wind Speed	2.0m/s	2.0m/s	2.0m/s
Rated Wind Speed	11m/s	11m/s	11m/s
Survival Wind Speed	45m/s	45m/s	45m/s
Wheel Diameter	5.2m	6.1m	7.8m
Number of Blades	3	3	3
Blades Material	Nylon fiber	Nylon fiber	Nylon fiber
Generator Type	Three phase permanent magnet AC synchronous generator
Magnet Material	NdFeB
Generator Case	Casting aluminum alloy
Control System	Electromagnet/wind wheel yaw
Speed Regulation	Automatically adjust windward direction
Working Temperature	-40°C - 80°C
Design Life	20 y
Certificates	CE, ISO14001, ISO 9001, TUV
