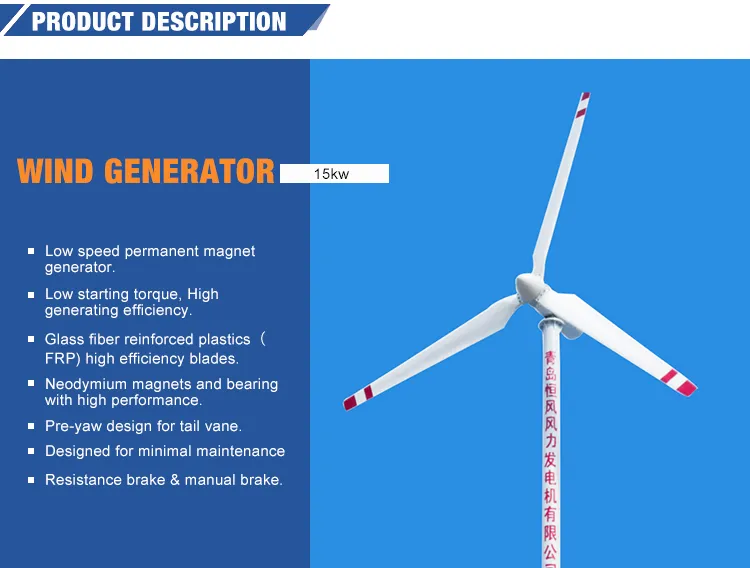

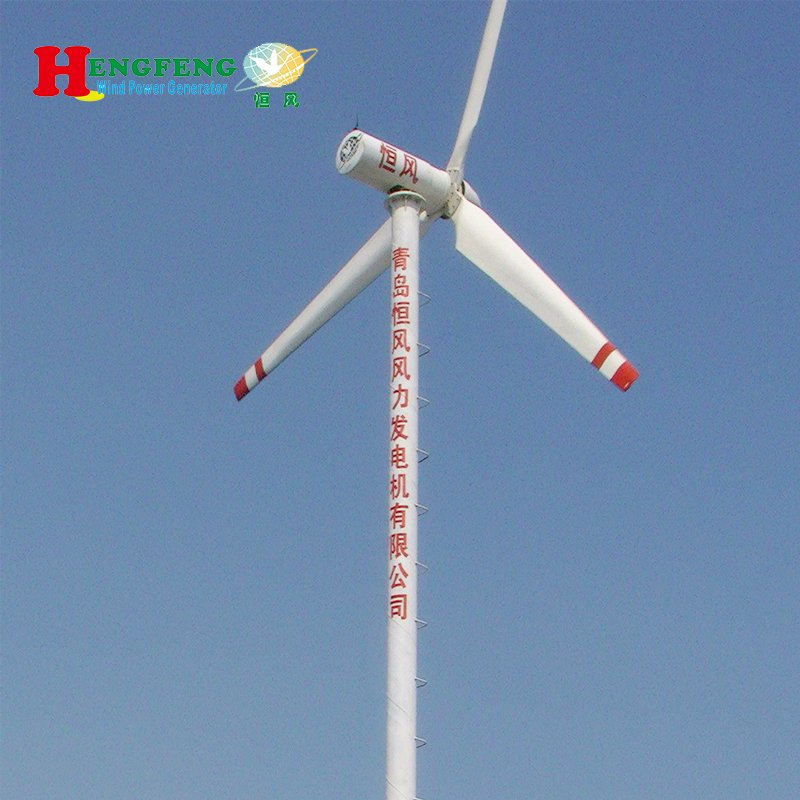

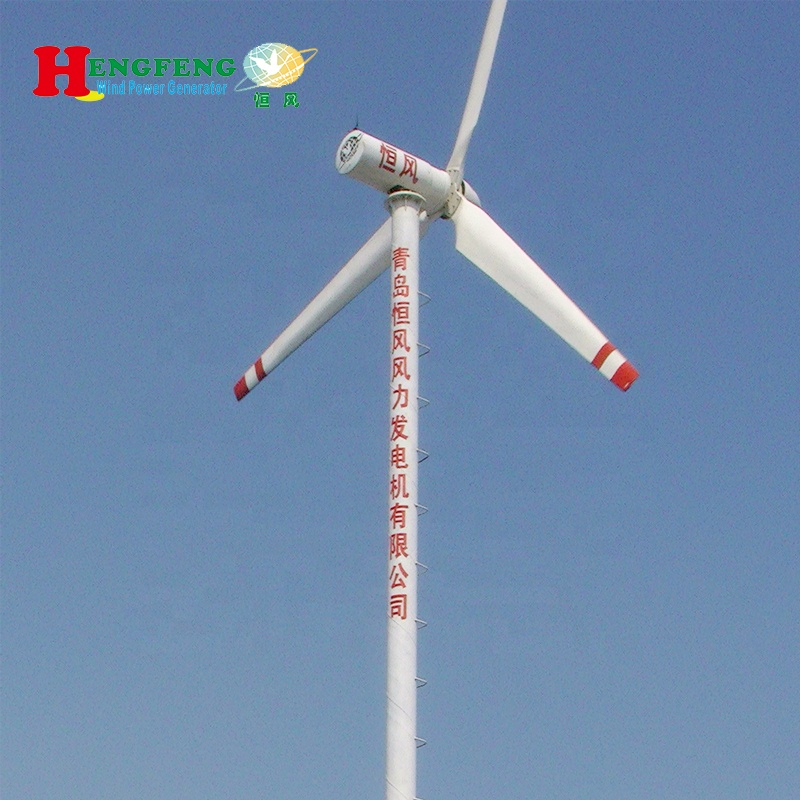

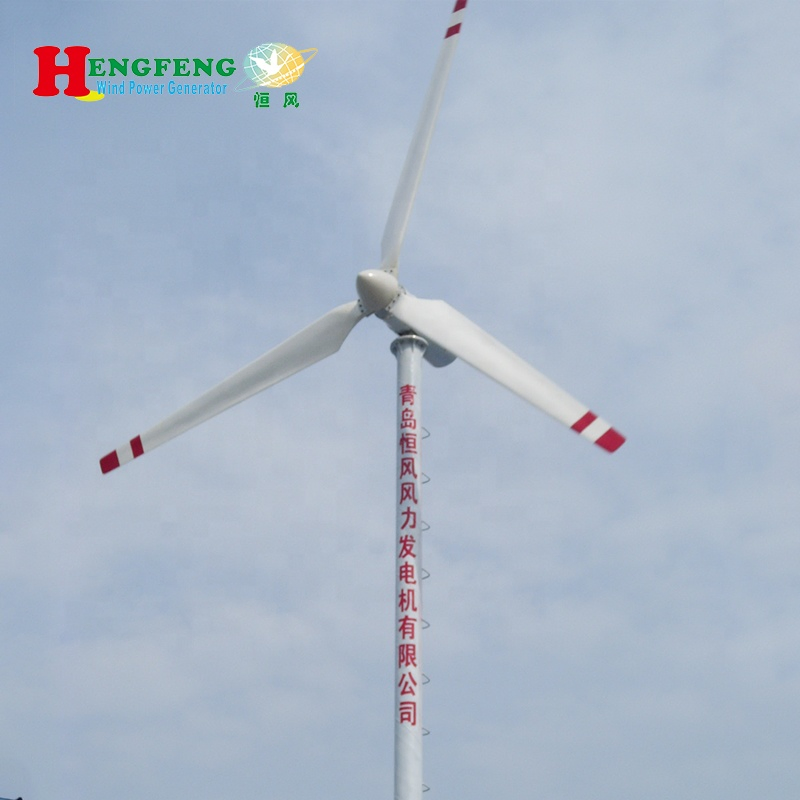

Hengfeng 15kw Noise Free 3 Phase Wind Turbine Generator for Sale
Product Description:Power15KWBlade diameter9.0mRated rotor speed200r/minRated speed8m/sRated power15KWMax power20KWOutput voltage380VStart up wind speed3m/sWork speed3-25m/sSecurity wind speed50m/sHeight of tower16mTop quality except tower680kgTower typeguy wire tower & free stand towerOutput co......
Send Inquiry
Product Description
Product Description:
| Power | 15KW |
| Blade diameter | 9.0m |
| Rated rotor speed | 200r/min |
| Rated speed | 8m/s |
| Rated power | 15KW |
| Max power | 20KW |
| Output voltage | 380V |
| Start up wind speed | 3m/s |
| Work speed | 3-25m/s |
| Security wind speed | 50m/s |
| Height of tower | 16m |
| Top quality except tower | 680kg |
| Tower type | guy wire tower & free stand tower |
| Output controller system | Controller & inverter |
| System | off-grid system and on-grid system |
| Can supply power for | Referigerator,Washing Machine,Water Pump,TV,Lighting,Electric fan,Charge |
Advantages :
1. Generator: The stator and housing adopt a suspended design, which effectively reduces the heat generation rate of the generator and greatly increases the power generation.
2. The generator coil adopts enameled wire resistant to high temperature of 180ºC, which has higher safety and longer service life.
3. The magnet uses high-quality Ru-Fe-B, rare earth materials are not easy to demagnetize, so that the power generation is better and more stable. The rotating body adopts manual carbon brush ring and is sealed, which can be applied to any bad weather. The fan can be adjusted in 360°.
4. The tail adopts partial tail protection. We calculate the length of the tail boom and the area of the tail wing by calculating the swept area of the blade tail and the cut-in and cut-out wind speed. When the wind speed is too high, the partial tail protection will effectively intervene to truly protect the generator and blades.
5. The paint uses two-component automotive paint, which has the advantages of long anti-aging time, not easy to rust, and no fading.
6. The blade adopts high-grade anti-corrosion, anti-weathering, FRP gel coat and high-density fiber cloth, and the anti-fatigue effect is improved by more than 50% compared with other blades. The blade process adopts imported metal film to protect it, which effectively prevents the cracking of the blade.

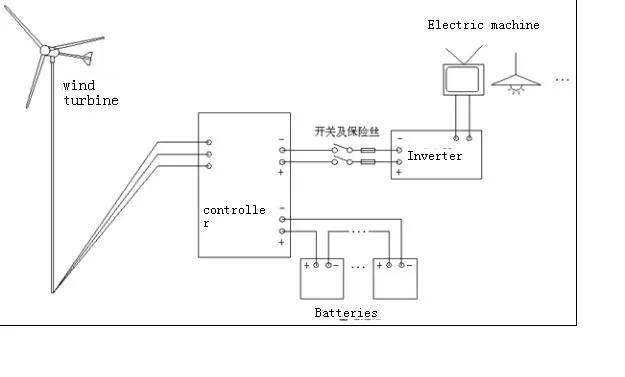

Wind turbine system working way :
Why will you choose Hengfeng?
1. Provide professional person to communicate with you before the order.
2. Provide permanent magnet generator with advanced technology, exquisite workmanship, top design.
3. Provide strict quality check for each part, each process before export.
4. Provide optimum system solution based on each client's specific requirement and local location's weather condition.
5. Provide complete post-sale service, including installation, technical guide and training.
FAQ:
1. Q: Is installation easy?A: Yeah, it's very easy, every customer can do it by themselves. We supply you all the components and the installation manual.
2. Q: Is our wind enough for a wind generator?
A: Our wind generator can start running at low wind speed, 3m/s. So if your average annual wind speed is more than 5m/s, you can use it.
3. Q: Which model of wind generator should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
How many watts are they and their working time?
4. Q: Can I only buy parts of the whole system?A: Yes.
