Factory 10kw 220/380V Windmill Best Price
Factory 10kw 220/380v windmill best price1.Carbon steel body, compact, safe.2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.3.Patented permanent magnet ac generator with special stator,effectively redu......
Send Inquiry
Product Description
1.Carbon steel body, compact, safe.
2.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance
the wind energy utilization and annual output.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the
wind wheel and generator, and ensure the performance of whole system.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely.
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment,be ultraviolet-proof, acid rain resistant, salt resistant.
6.Intelligent automatic grease injection, which ensure flexible running and durable life.
Factory 10kw 220/380v windmill best price

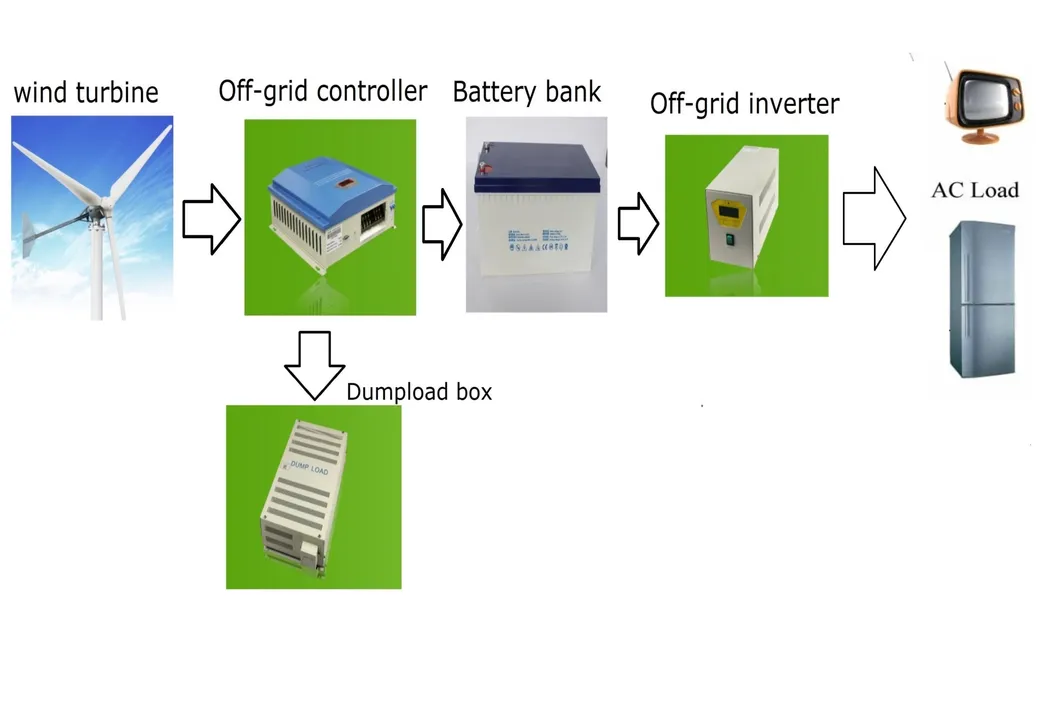

Off-grid system diagram

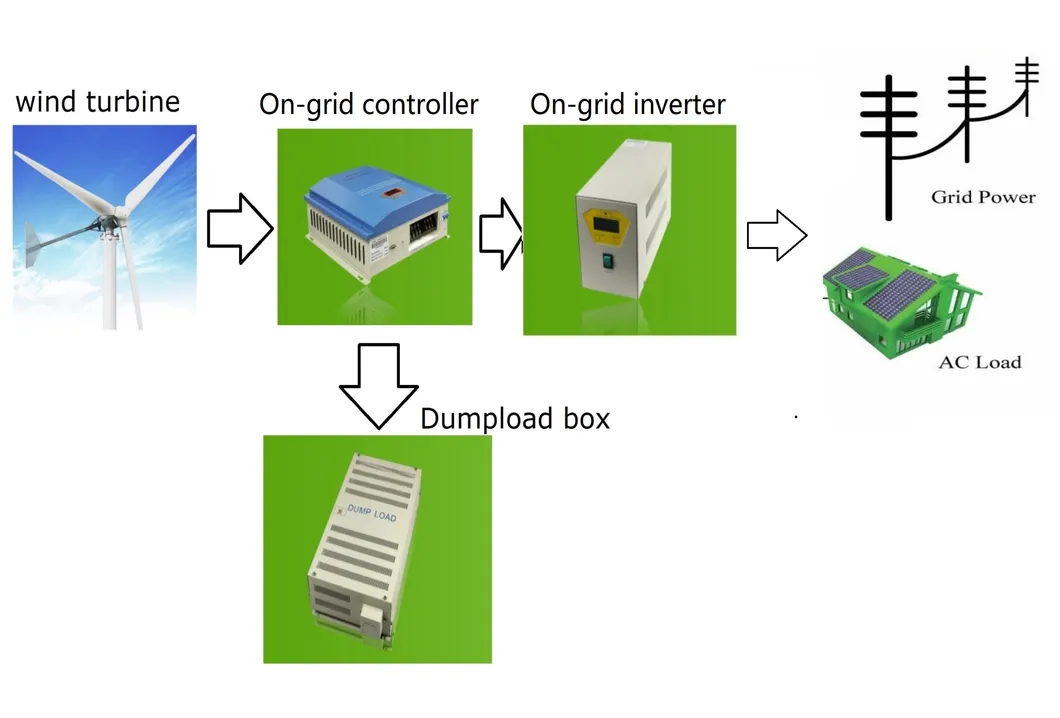

On-grid system diagram

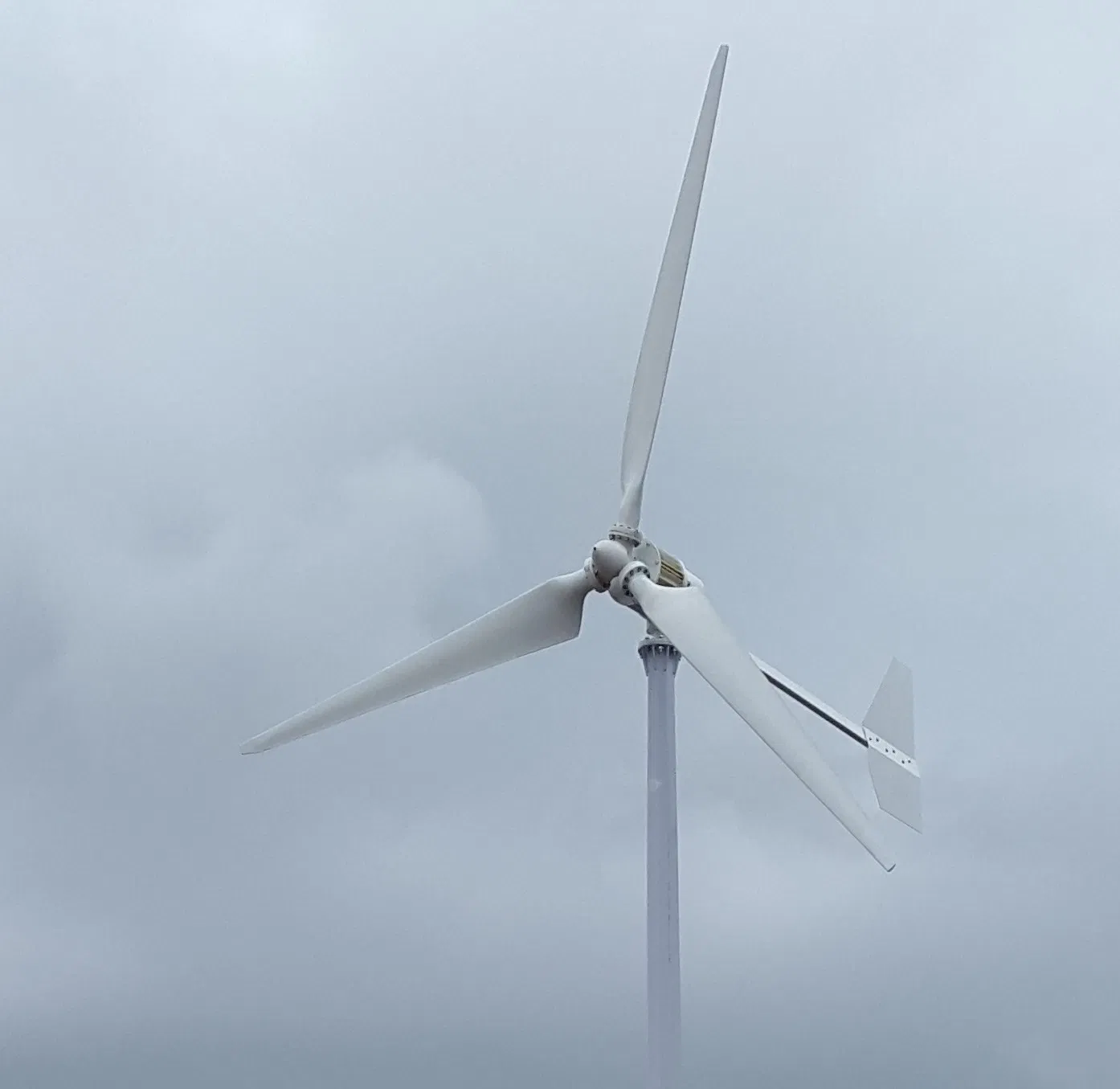

High quality 10kw windmill generator
| Model | NE-10000G |
| Rated power | 10000W |
| Max power | 11000W |
| Rated voltage | 220/380V |
| Start-up wind speed | 3m/s |
| Rated wind speed | 12m/s |
| Safety Wind speed | 45m/s |
| Net weight | 365kg |
| Blades Rotor Diameter | 6.3m |
| Tower height | 12/15m |
| Blades number | 3 |
| Blades Material&Quantity | Glass fiber Reinforced Plastics |
| Generator Type | Three phase AC |
| Magnet material | 3 |
| Generator shell | Glass fiber Reinforced Plastics |
| Control | Dump load /Self‐furling |
| Speed adjustment | Automatically yawing |
| Working Temperature | -40ºC-80ºC |
| Lubrication | Grease |
Shipping
Our customers have a wider range of processing choices for transportation mode:
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
--Disadvantage: Slow and you need to take the goods from your destination port by yourself.
Production flow
Raw material ⇒ cutting ⇒machine ⇒ welding ⇒ painting ⇒
coiling ⇒ assembling ⇒ testing ⇒ packing
Our company
Established in 2009, registed capital 2.5 million dollars, Jiangsu Naier wind power is a company which specialized in developing,manufacturing, sales and after sale service.
Thanks to the specialists in different areas and all kinds of manufacturing testing facilities,we are making huge progress year by year. With ISO9001 ,ISO14001 and CE approved,all products patented ,our company has advanced advantage in new energy area. 100w-200kw small wind generator ,wind solar hybrid street light,monitoring system,home wind generator are our major products.As an OEM,we have very competitive price. Combined with superb quality and stronge sales team,we get almost 40% domestic market.More over ,we also have partners in American,Germany,France,Canada,Norway,Australia,etc.. Nowadays,our products are warm welcomed by the customers from all over the world.
More products
-------Horizontal axis wind turbines from 100w-200kw
-------Vertical axis wind turbines from 100w-20kw
-------Low rpm permanent magnet generators form 100w-500kw
