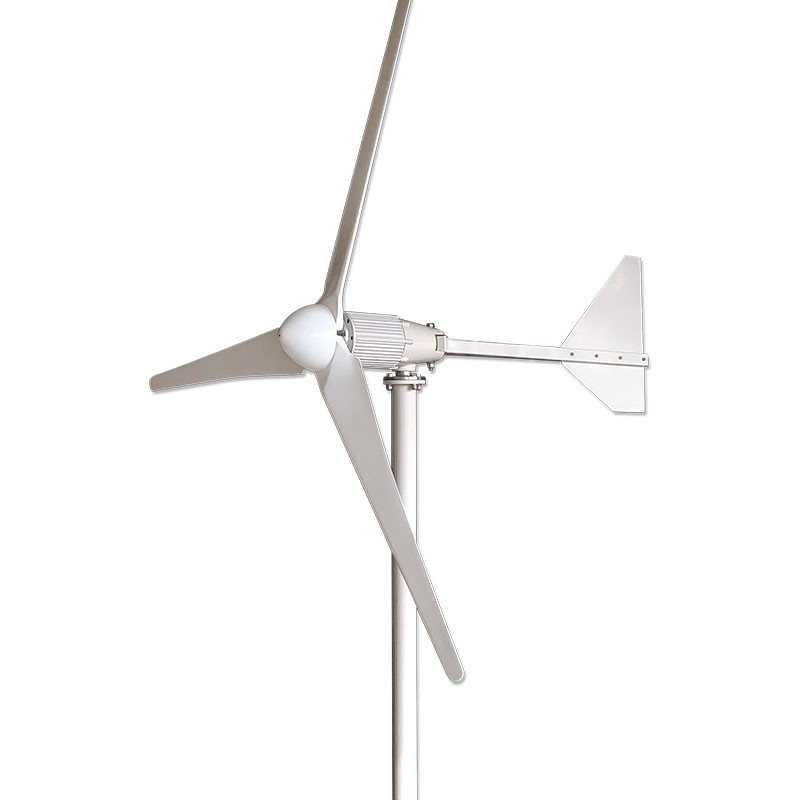

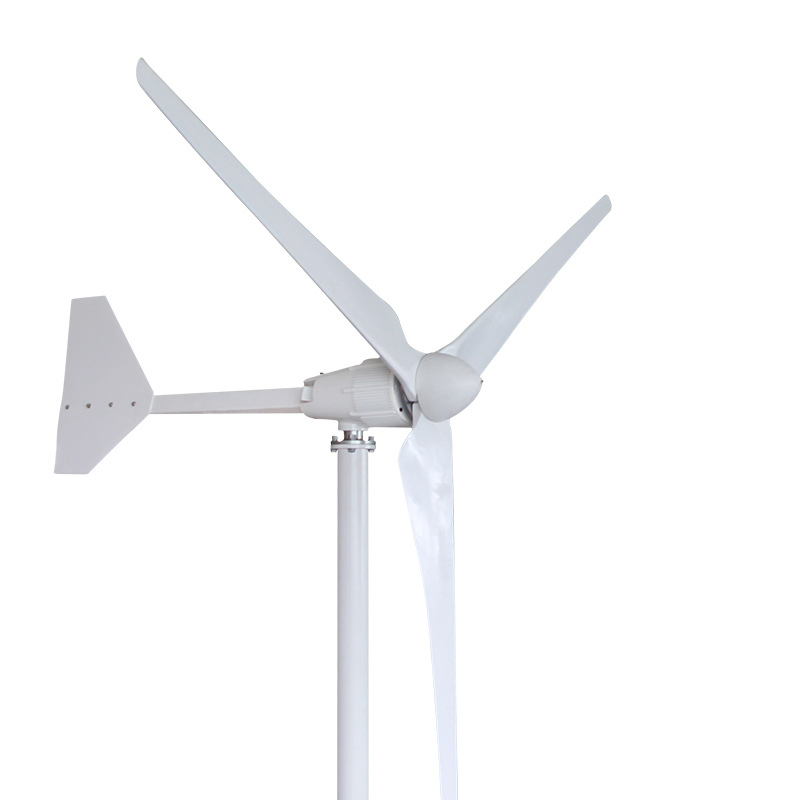

1500W Domestic Clean Energy Wind Power Generator/ Windmill for Home Use
Features:1.Low start-up speed, high wind energy utilization.2.Easy installation, tube, or flange connection optional.3.Blades using new art of precision injection. 4.Body of casting aluminum alloy, with 2 bearings swivel.5.Patented permanent magnet ac generator with special stator, effectively reduc......
Send Inquiry
Product Description
Features:
1.Low start-up speed, high wind energy utilization.
2.Easy installation, tube, or flange connection optional.
3.Blades using new art of precision injection.
4.Body of casting aluminum alloy, with 2 bearings swivel.
5.Patented permanent magnet ac generator with special stator, effectively reduce torque.
6.CE, ISO, TUV certified.
Technical Specification:
Details Show:

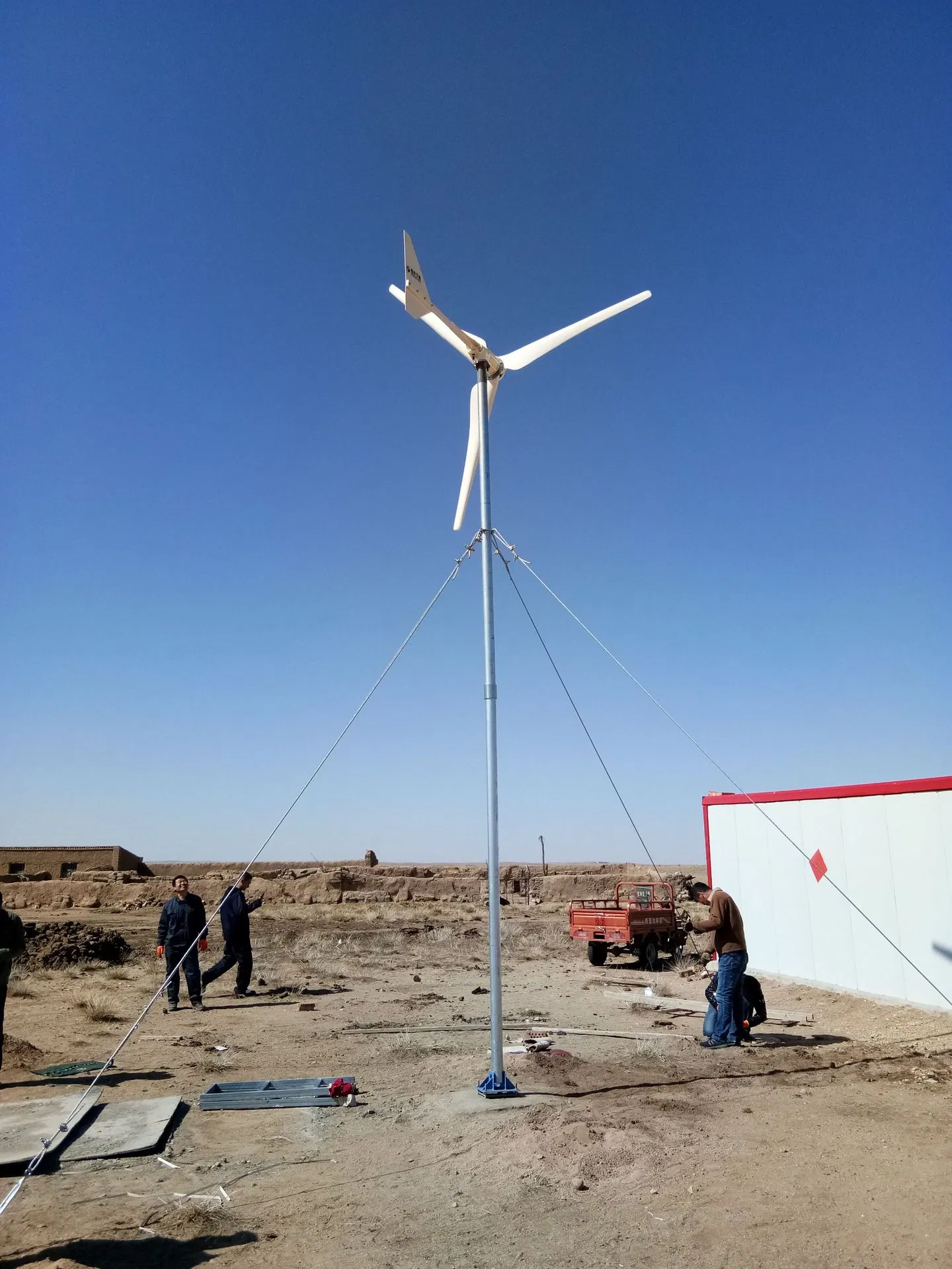

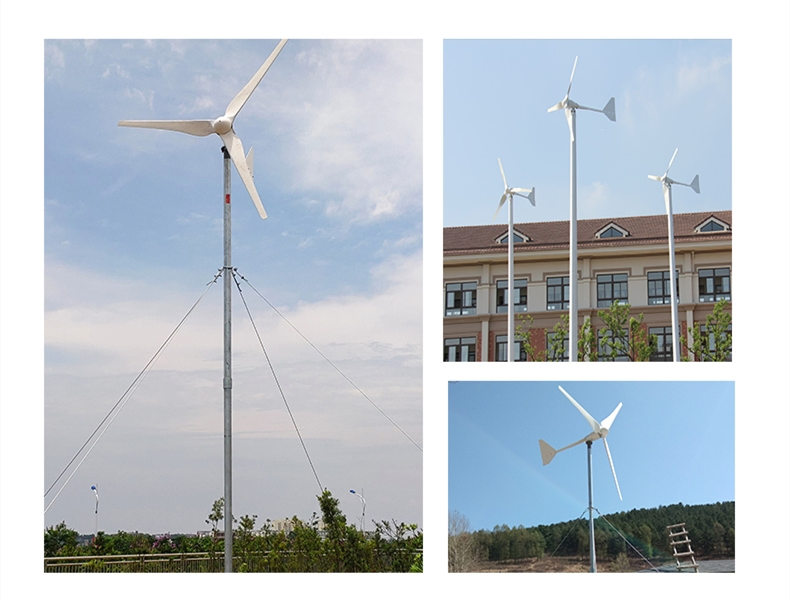

Engineering Projects:

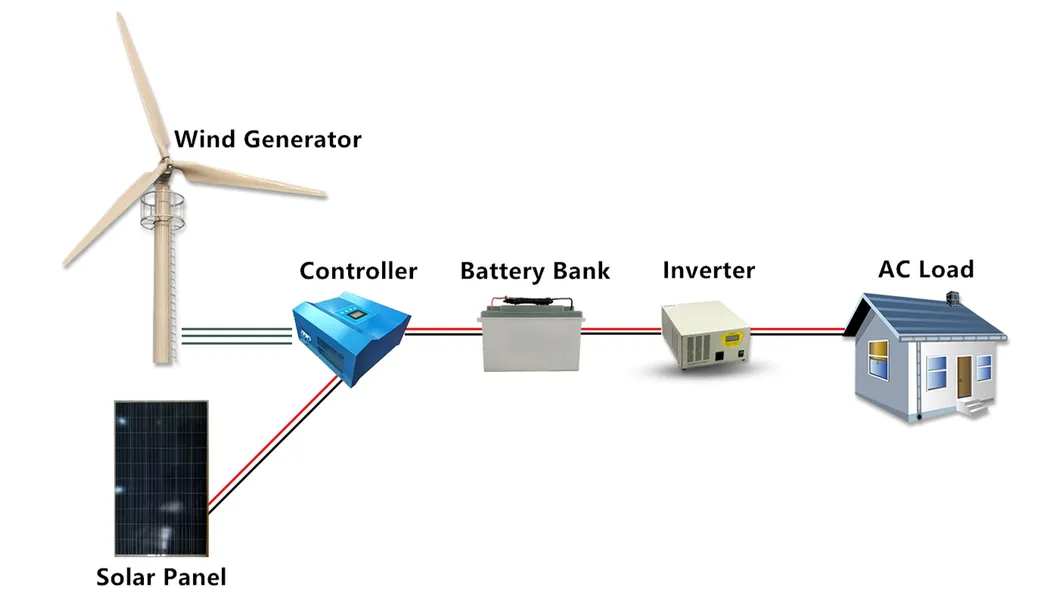

Off-grid system:

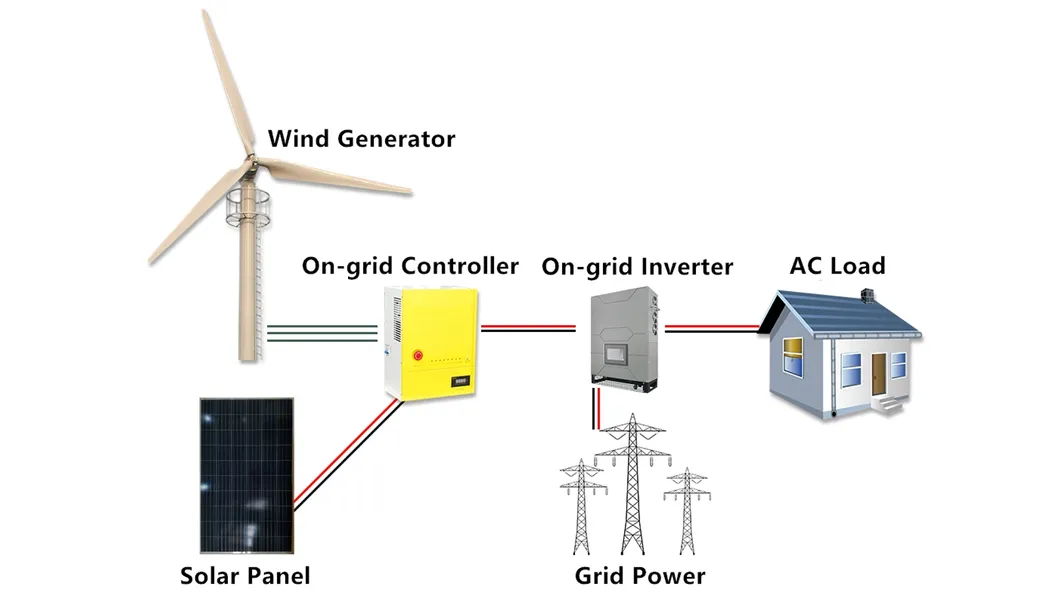

On-grid system:
Our Team:
Contact us for affordable power solutions and services!
1.Low start-up speed, high wind energy utilization.
2.Easy installation, tube, or flange connection optional.
3.Blades using new art of precision injection.
4.Body of casting aluminum alloy, with 2 bearings swivel.
5.Patented permanent magnet ac generator with special stator, effectively reduce torque.
6.CE, ISO, TUV certified.
Technical Specification:
| Model | CH-L1-1000W | CH-L1-1500W | CH-L1-2000W |
| Rated Power | 1000W | 1500W | 2000W |
| Maximum Power | 1200W | 1700W | 2300W |
| Rated Voltage | 48/96V | 48/96V | 48/96V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 11m/s | 11m/s | 11m/s |
| Survival Wind Speed | 45m/s | 45m/s | 45m/s |
| Wheel Diameter | 2.55m | 2.85m | 3.15m |
| Number of Blades | 3 | 3 | 3 |
| Blades Material | Nylon fiber | Nylon fiber | Nylon fiber |
| Generator Type | Three phase permanent magnet AC synchronous generator | ||
| Magnet Material | NdFeB | ||
| Generator Case | Casting aluminum alloy | ||
| Control System | Electromagnet/wind wheel yaw | ||
| Speed Regulation | Automatically adjust windward direction | ||
| Working Temperature | -40°C - 80°C | ||
| Design life | 20 y | ||
| Certificates | CE, ISO14001, ISO 9001, TUV | ||

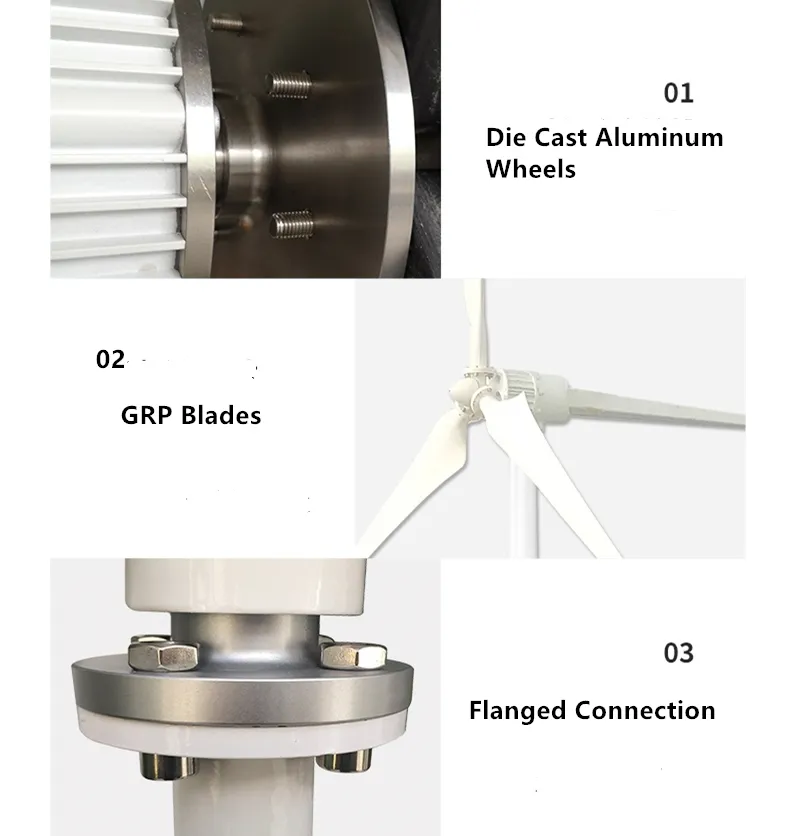

Details Show:
Engineering Projects:
Off-grid system:
On-grid system:Our Team:
Contact us for affordable power solutions and services!
