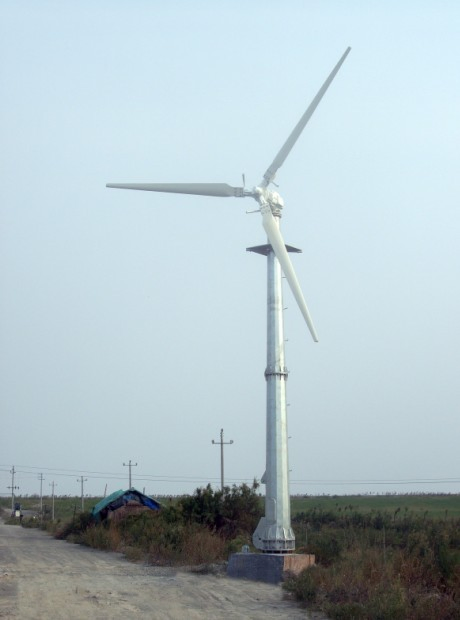

10kw Variable Pitch Wind Turbine Generator
Pitch controlled wind turbine is a technical revolution in small and medium wind turbine industry. Through centifugal pitch controlled mechanism, it adjusts the blade angle according to the wind speed, to guarantee the wind rotor use efficiency at optimumcondition. Meanwhile, the wind rotor never ov......
Send Inquiry
Product Description
Pitch controlled wind turbine is a technical revolution in small and medium wind turbine industry. Through centifugal pitch controlled mechanism, it adjusts the blade angle according to the wind speed, to guarantee the wind rotor use efficiency at optimumcondition. Meanwhile, the wind rotor never overspeed. Thus the wind rotor use efficiency is high and more electricity generated.
2kw, 5kw, 10kw 20kw, 30kw pitch controlled wind turbine also available
2kw, 5kw, 10kw 20kw, 30kw pitch controlled wind turbine also available
| Model | 10kW |
| Wind rotor diameter (m) | 7.6m |
| Blade material and quantity | Fiber glass reinforced * 3 |
| Rated power / max power (w) | 10000/12000 |
| Rated wind speed (m/s) | 11 |
| Rated rotate speed (rpm) | 220 |
| Working wind speed (m/s) | 3-30 |
| Startup wind speed (m/s) | 2.5 |
| Survived wind speed (m/s) | 60 |
| Working voltage (v) | DC240V/DC500V |
| Speed regulation method | pitch-controlled |
| Stop method | Manual brake/Automatic electrical brake |
| Generator style | Three phase, permanent magnet |
| Wind turbine weight (kg) | 450 |
| AAA Tower height / weight (m/kg) | 12/120 |
