China Vr6 Alternator Voltage Regulator AVR

Product Description

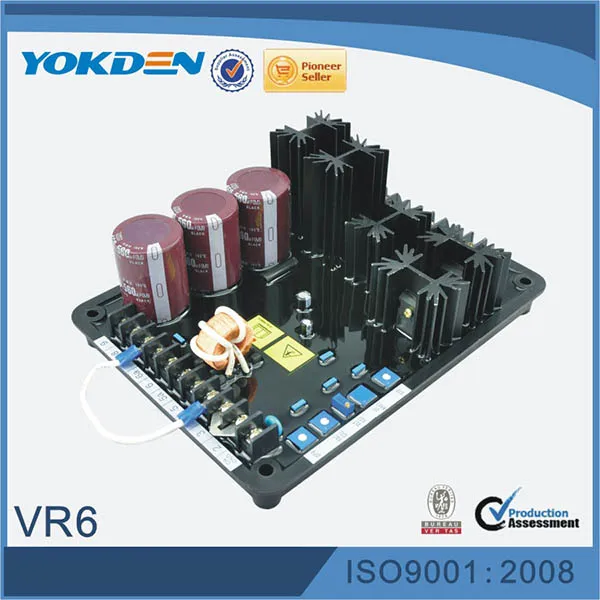

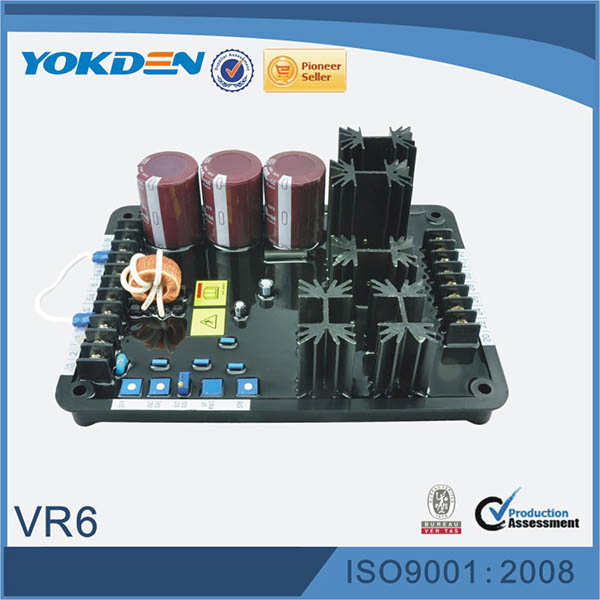

VR6 Alternator Voltage Regulator AVR

More Picture And Package

VR6
Specification	K65-12B	K125-10B
Output power(with a 240 Vac input)	12Adc @ 65 Vdc Max cfontainuous; 25 Adc @ 125 Vdc forcing for 10 seconds	10 Adc @ 125 Vdc max continuous. 20 Adc @ 250 Vdc forcing for 10 seconds.
AC input power	100 to 280 Vac, single-phase 50 to 400 Hz; or 63 to 105 Vac three-phase, 50 to 400 Hz; 1092 VA max continuous burden	180 to 280 Vac, single-phase or three-phase, 50 to 400 Hz, 1750 VA max continous burden.
AC sensing voltage	90 to 140 Vac, 50/60 Hz; single-or-three phase.	90 to 140 Vac, 50/60 Hz; single-or-three phase.
External voltage adjust rheostat	10K ohm, 2W, potentiometer	10K ohm, 2W, potentiometer
Regulation accuracy	±0.5% Average responding	±0.5% Average responding
Voltage drift	±1% voltage variation for a 40 Deg. C change.	±1% voltage variation for a 40 Deg. C change.
Response time	<4 ms	<4ms
Frequency compensation	1 or 2 V/Hz jumper selectable with knee adjustable from 45 Hz to 65 Hz	1 or 2 V/Hz jumper selectable with knee adjustable from 45 Hz to 65 Hz
EMI suppression	Internal filter	Internal filter
Voltage Build-Up	Internal provisions for automatic voltage build-up from generator residual voltages as low as six Vac	Internal provisions for automatic voltage build-up from generator residual voltages as low as six Vac
Droop	1 A or 5 A, <10 VA,adjustable from 0 to 10% at rated input current, 0.38 power factor	1 A or 5 A, <10 VA,adjustable from 0 to 10% at rated input current, 0.38 power factor
Operating and storage temperature	-40 Deg. C to +70 Deg.C	-40 Deg. C to +70 Deg.C
Shock:	Withstands up to 20 g in each of three mutually perpendicular axes	Withstands up to 20 g in each of three mutually perpendicular axes
Vibtation:	Withstands the following accelerations at the stated frequency: 0.5g; 18 to 2000Hz	Withstands the following accelerations at the stated frequency: 0.5g; 18 to 2000Hz

Why Choose Us
1 All of our Products has one-year guarantee
2 Has been specialized in generator parts for 10 years, we can offer customized service
3 We ave a big research department which has about 10 technicians, we can offer technical support
4 Cares about the quality, each products will be test before shipping.
