3034572 (120mm) Diesel Genset Generator Magnetic Pickup Speed Sensor Mpu Diesel Engine Rpm Sensor 3034572
3034572 (120mm) Diesel Genset Generator Magnetic Pickup Speed Sensor MPU Diesel Engine RPM Sensor 3034572Magnetic Pick-up Speed Sensor MPU 3034572Magnetic Pickup Speed Sensor 3034572 indicates when ring gear teeth, or other ferrous projictions,pass the tip of the sensor.Magnetic Pick-up Speed Sensor......
Send Inquiry
Product Description

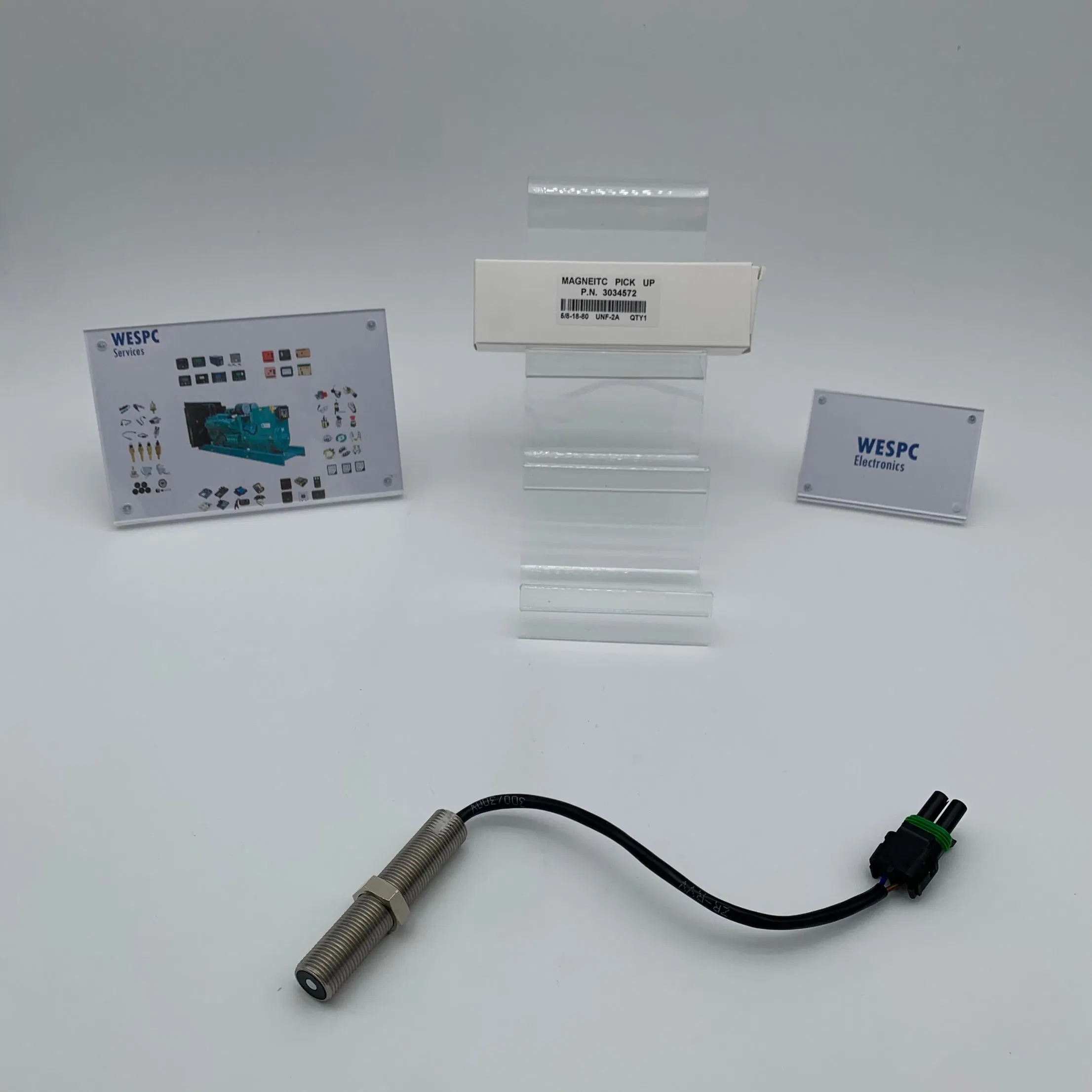

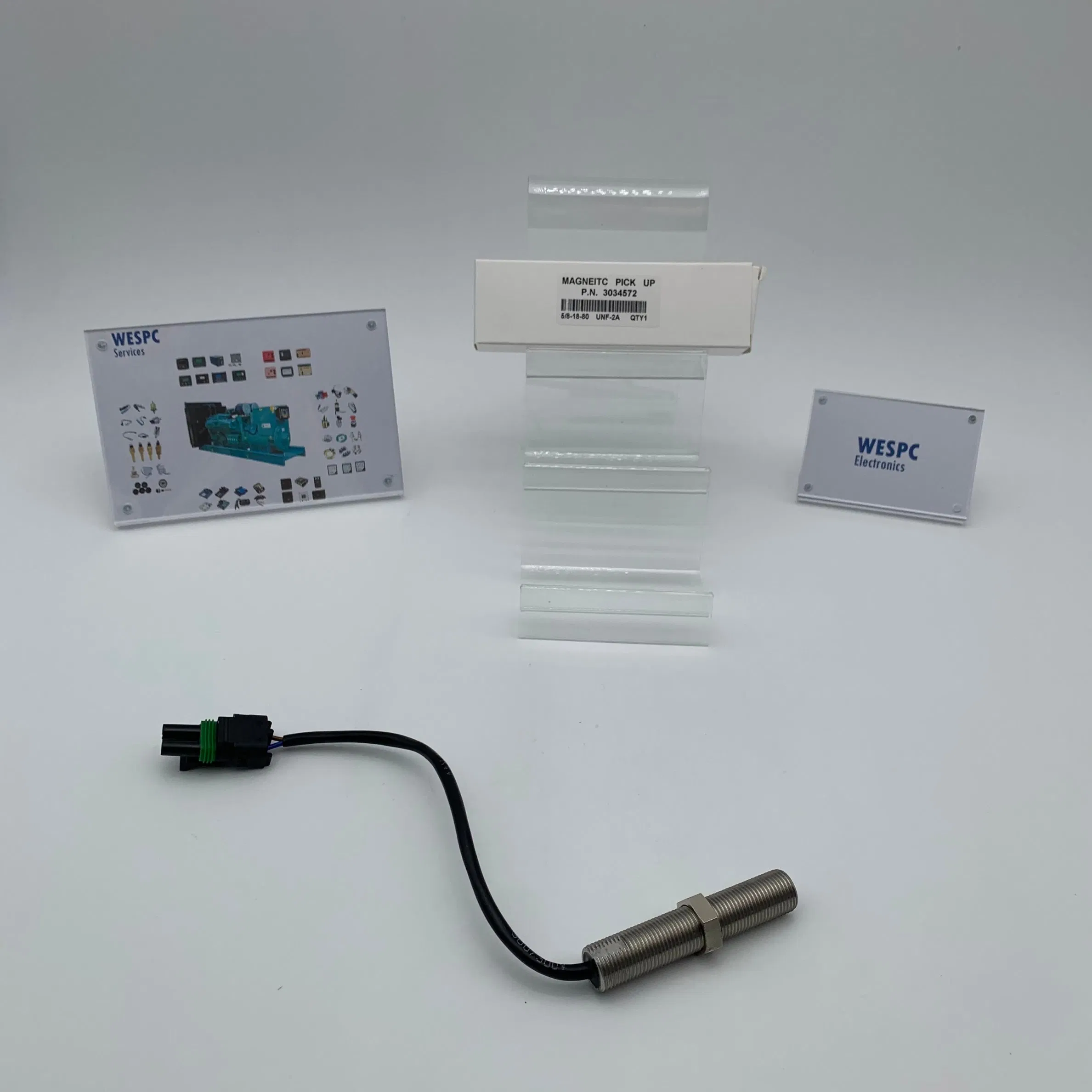

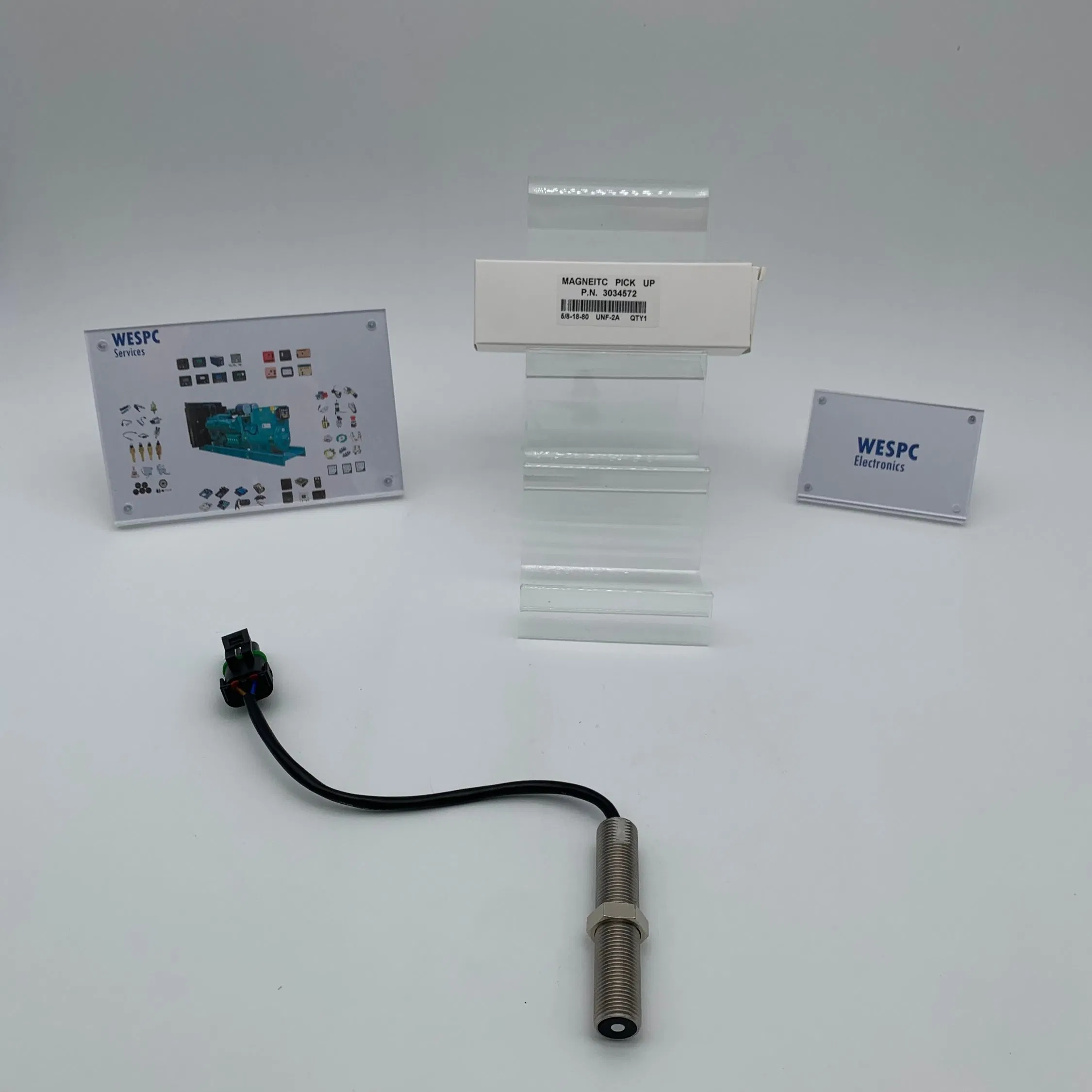

Magnetic Pick-up Speed Sensor MPU 3034572
Magnetic Pick-up Speed Sensor MPU 3034572 | |||||
Inductance | 142MH+25% | ||||
Thread Size | 5/8-18 UNF-2A | ||||
Proximity to Gear Teeth | 0.025-0.035in.(0.64-0.89mm.) | ||||
Temperature Range | -55ºC to 105ºC | ||||
Idle Ouput | 1.5 volts AC minimum | ||||
Max Output | 40 volts AC | ||||
Generator engine parts magnetic pickup speed sensor 3034572(120mm) for diesel engine indicates when other ferrous projections,pass the tip of the sensor. Electrical impulses are induced within the coil and sent to the speed control unit. The signal from the magnetic speed Sensor, teeth per second(HZ), is directly proportional to engine speed.
The magnetic pickup speed sensor is mounted in the flywheel bell housing of the engine. The threaded hole for the speed sensor should be perpendicular to the center line of the crankshaft. A spot face should be present to provide a flat surface on which to anchor the lock nut.
Specification
| Product Name | Generator Speed Sensor |
| Model | 3034572 (120mm) |
| Measure Range | 50-5000Hz |
| Inductance | 142MH+25% |
| Thread Size | 5/8-18 UNF-2A |
| Tap Drill Size | 37/64 inch |
| Temperature Range | -55 degree C to 105 degree C |
| Output at Cranking Speed | 1.5 Volts AC Minimum |
| Maximum Output | 30 Volts AC |
| Coil Resistance | 300 ohms maximum |
