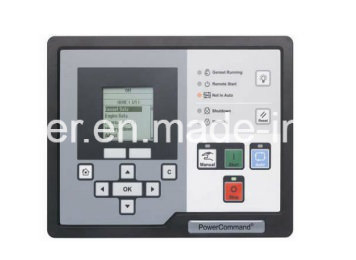

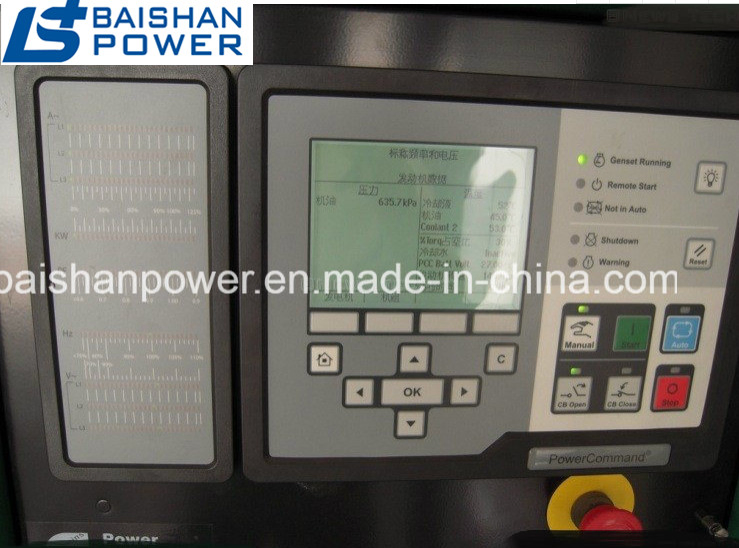

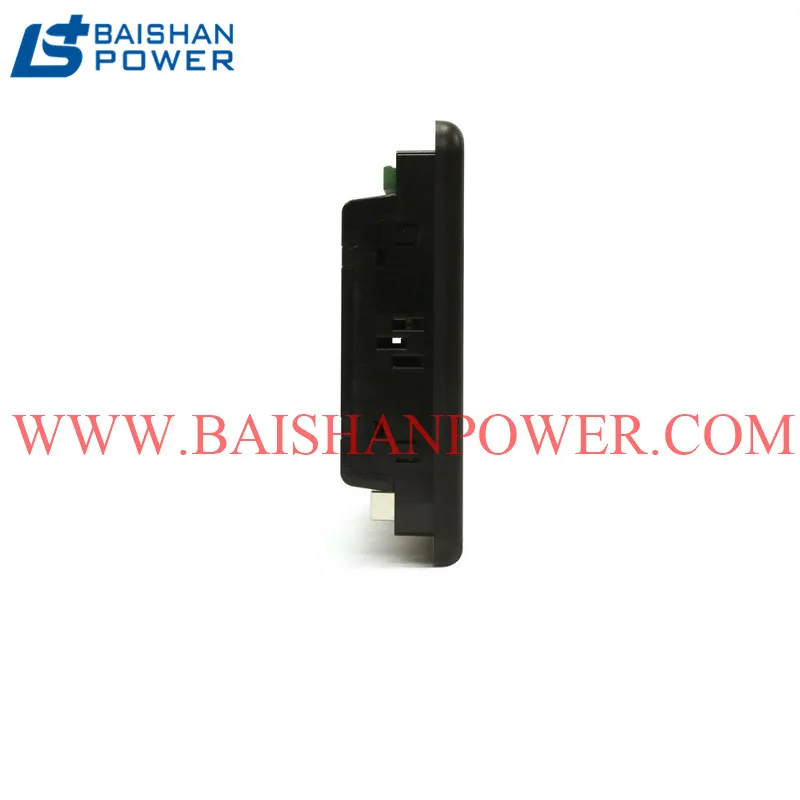

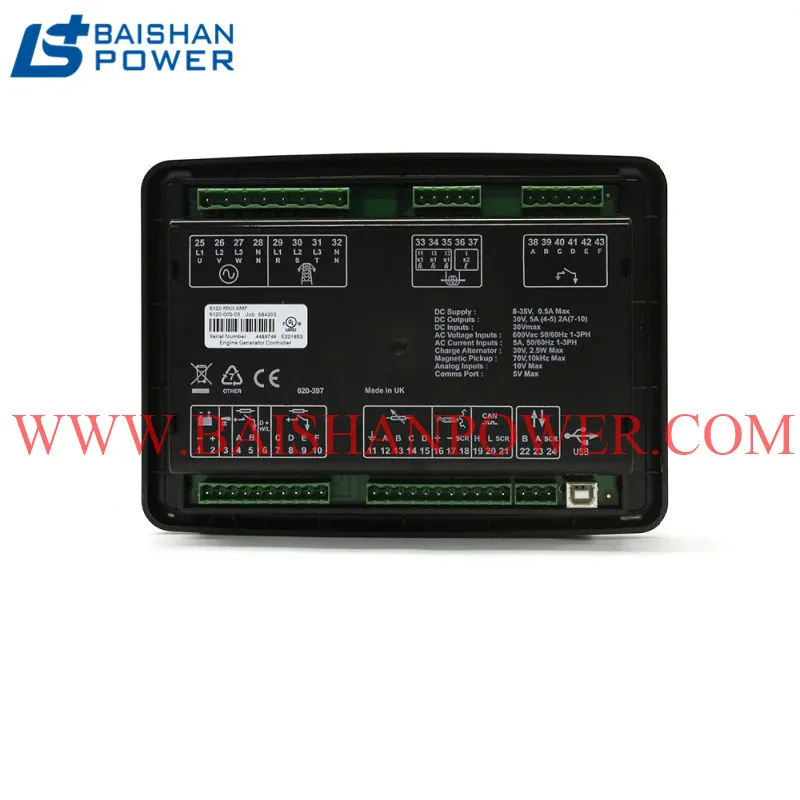

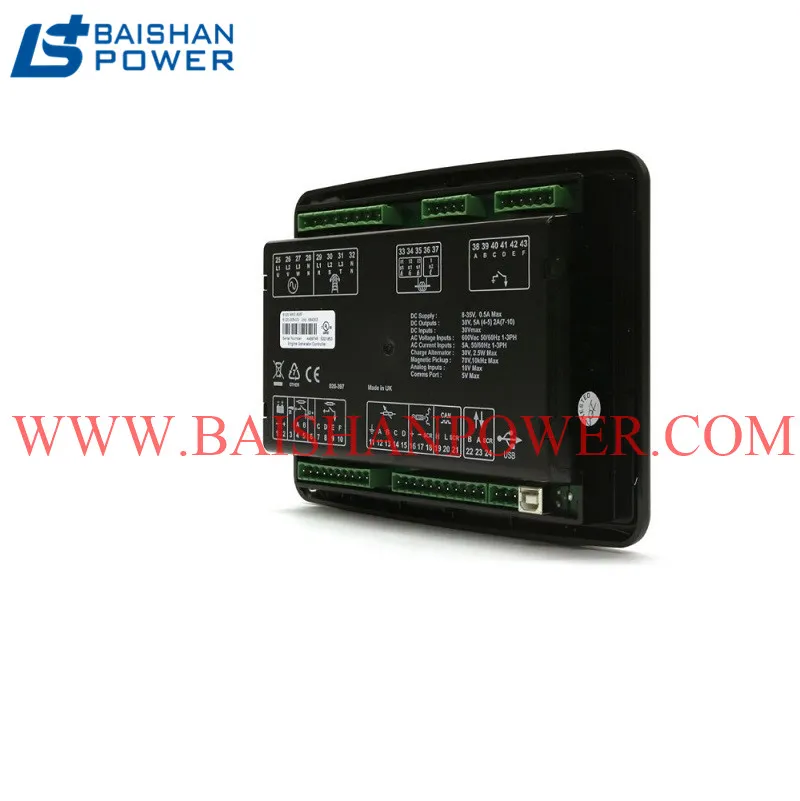

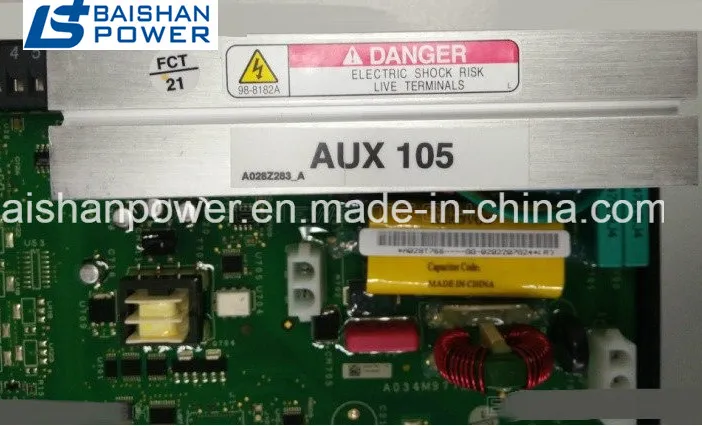

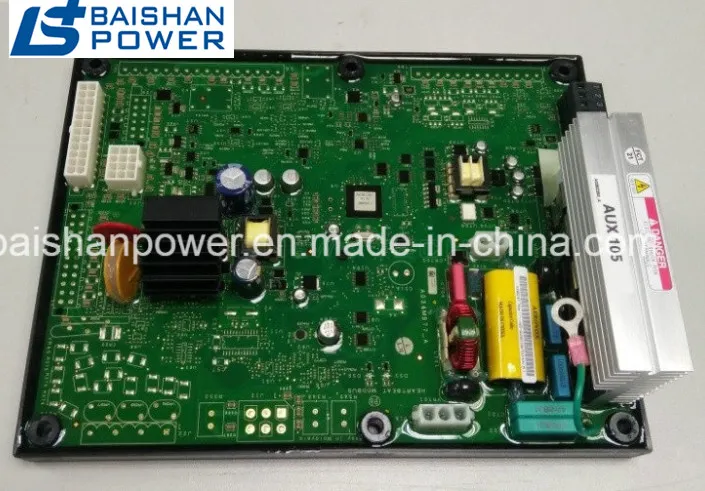

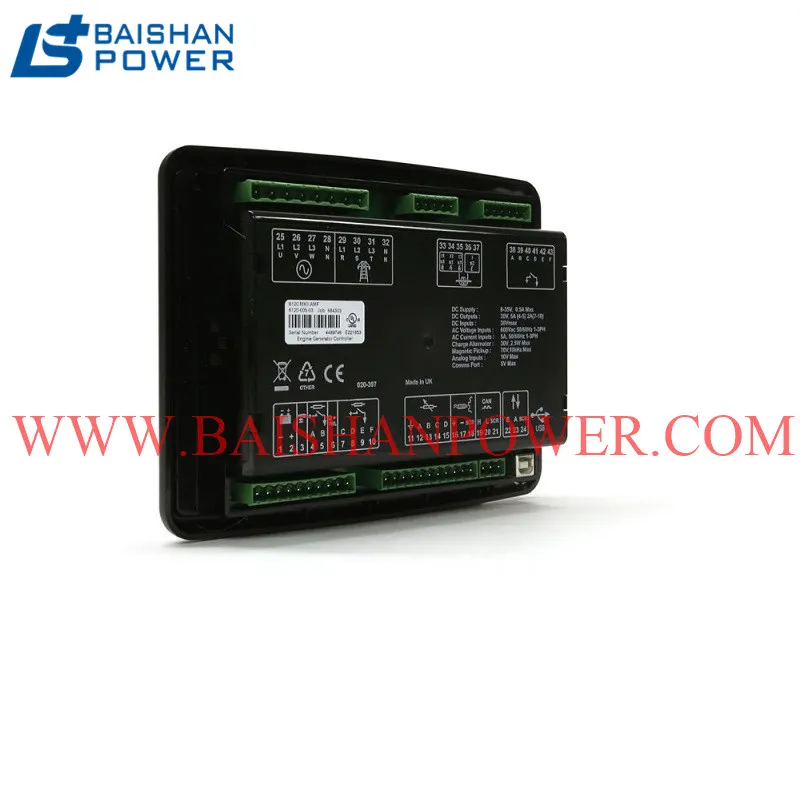

Qsx15-G8 300 6315 02 Display Card Onan 300- 6315 -02 Controller HMI320 Engine Controls Module Power Generation Cpg Vta28 Qsk23 Qsk60 Generator
SPECIFICATIONSDC SUPPLYCONTINUOUS VOLTAGE RATING8 V to 35 V ContinuousCRANKING DROPOUTSAble to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintaineddurin......
Send Inquiry
Product Description
SPECIFICATIONS
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained
during cranking.
MAXIMUM OPERATING CURRENT
100 mA at 12 V, 105 mA at 24 V
MAXIMUM STANDBY CURRENT
60 mA at 12 V, 55 mA at 24 V
MAXIMUM SLEEP CURRENT
40 mA at 12 V, 35 mA at 24 V
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained
during cranking.
MAXIMUM OPERATING CURRENT
100 mA at 12 V, 105 mA at 24 V
MAXIMUM STANDBY CURRENT
60 mA at 12 V, 55 mA at 24 V
MAXIMUM SLEEP CURRENT
40 mA at 12 V, 35 mA at 24 V
INPUTS
DIGITAL INPUTS A to F
Negative switching
ANALOGUE INPUT A
Configurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 240 Ω
ANALOGUE INPUTS B to D
Configurable as:
Negative switching digital input
0 Ω to 480 Ω
DIGITAL INPUTS A to F
Negative switching
ANALOGUE INPUT A
Configurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 240 Ω
ANALOGUE INPUTS B to D
Configurable as:
Negative switching digital input
0 Ω to 480 Ω
FREQUENCY RANGE
3.5 Hz to 75 Hz
Testing Standard
ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for
the Industrial Environment
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment
EMC Generic Immunity Standard for
the Industrial Environment
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment
ELECTRICAL SAFETY
BS EN 60950
Safety of Information Technology Equipment,
including Electrical Business Equipment
TEMPERATURE
Safety of Information Technology Equipment,
including Electrical Business Equipment
TEMPERATURE
BS EN 60068-2-1
Ab/Ae Cold Test -30 oC
BS EN 60068-2-2
Bb/Be Dry Heat +70 oC
Ab/Ae Cold Test -30 oC
BS EN 60068-2-2
Bb/Be Dry Heat +70 oC
VIBRATION
BS EN 60068-2-6
Ten sweeps in each of three
major axes
5 Hz to 8 Hz @ +/-7.5 mm,
8 Hz to 500 Hz @ 2 gn
Ten sweeps in each of three
major axes
5 Hz to 8 Hz @ +/-7.5 mm,
8 Hz to 500 Hz @ 2 gn
HUMIDITY
BS EN 60068-2-30
Db Damp Heat Cyclic 20/55 oC
@ 95% RH 48 Hours
BS EN 60068-2-78
Cab Damp Heat Static 40 oC
@ 93% RH 48 Hours
Db Damp Heat Cyclic 20/55 oC
@ 95% RH 48 Hours
BS EN 60068-2-78
Cab Damp Heat Static 40 oC
@ 93% RH 48 Hours
SHOCK
BS EN 60068-2-27
Three shocks in each of three major axes
15 gn in 11 mS
Three shocks in each of three major axes
15 gn in 11 mS
DEGREES OF PROTECTION PROVIDED BY ENCLOSURES
BS EN 60529
IP65 - Front of module when installed into the control panel with the supplied sealing gasket.
IP65 - Front of module when installed into the control panel with the supplied sealing gasket.
CONNECTION DIAGRAM
Other Controllers
Generator controller brands
Deep sea , Comap ,and Smartgen

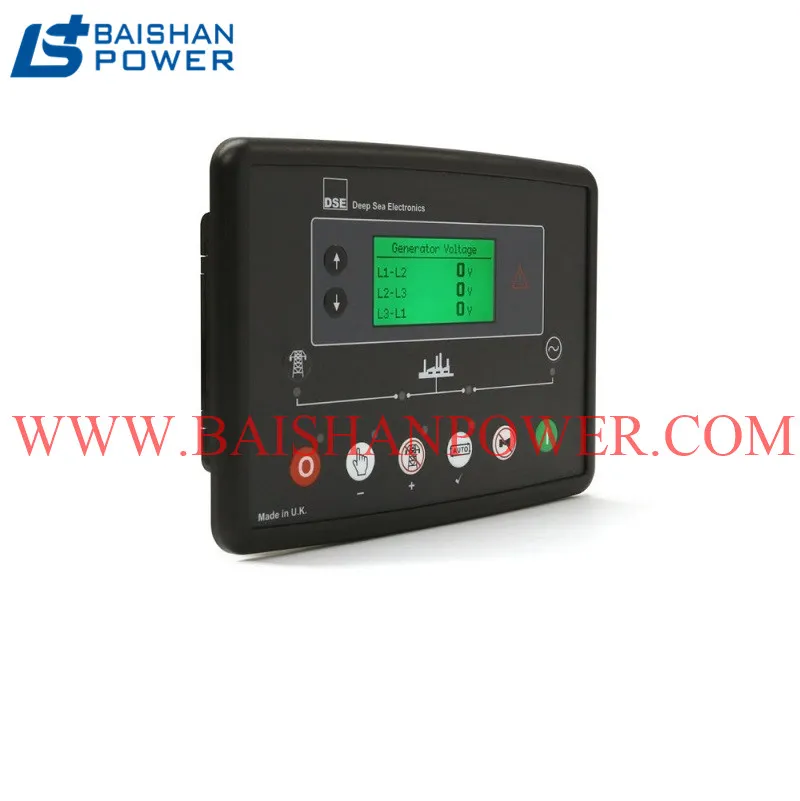

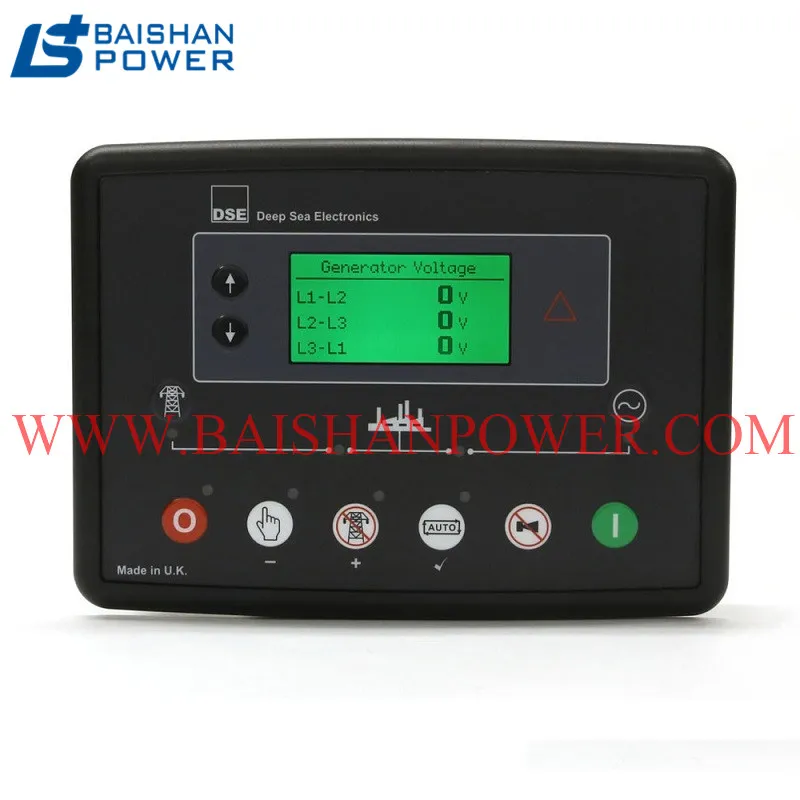

DEEP SEA Genset Generator Auto Start Control Modules:
DSE6110, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320 ,DSE7010., DSE7020, DSE704, DSE710, DSE720, DSE5110, DSE5220, DSE6110, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320 and Others
Smartgen Genset Generator Auto Start Control Modules
HGM6010, HGM6020, HGM6110, HGM6120, HGM6320, HGM7210, HGM7220, HGM8110, HGM8120, HGM9310, HGM9320, HGM9610,HGM9620
