Yihua China Brand Shang Chai GF Series 110kw Diesel Generator
Open Type_Yihua China Brand Shangchai GF series 110KW Diesel Generator Output range8kw ----2400kwRated Current14.4---4334.4ANoise level65db to 80db @ 7m (soundproof type)Engine brandDeutz, Lovol,doosan , detuz, weichai, shangchai etcEngine typeWater cooling, 4 stroke, direct injectionAlternatorYihua......
Send Inquiry
Product Description

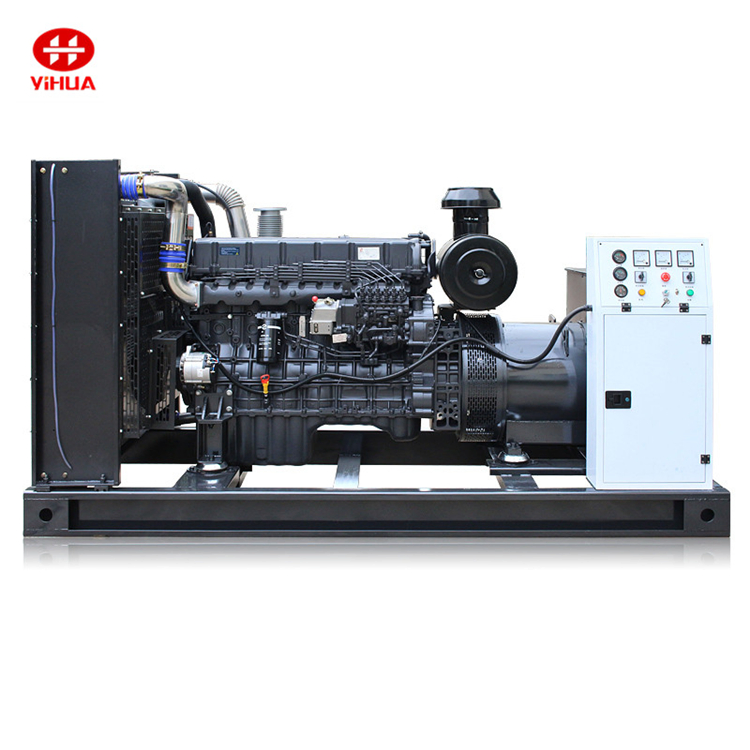

Yihua China Brand Shangchai GF series 110KW Diesel Generator
Output range | 8kw ----2400kw |
Rated Current | 14.4---4334.4A |
Noise level | 65db to 80db @ 7m (soundproof type) |
Engine brand | Deutz, Lovol,doosan , detuz, weichai, shangchai etc |
Engine type | Water cooling, 4 stroke, direct injection |
Alternator | Yihua, Stamford , Leroy Smoer, marathon , engga etc |
Phase/connecting method | 3 phase 4wire/Y type connection |
type | Brushless , insulation class: H, IP21-IP23 |
self excited or PMG | |
Frequency | 50/60HZ |
Frequency at stable state | 0.5% |
Frequency deviation at instantaneous state | ≤+10% |
Frequency return time | ≤3s |
Voltage deviation at stable state | ≤±1% |
Voltage deviation at instantaneous state | ≤±20% |
Voltage return time | ≤4s |
Voltage modulation | ≤0.3% |
Starting system | DC alternator |
Short circuit protection | MCCB air switch |
Cooling system | Water cooling |
Automatic alarm system | High water temperature |
Low oil pressure | |
Over load | |
Bettery charging failure | |
Operating display | voltage, current and frequency display |
Water temperature ,oil pressure display | |
Fuel level, fuel temperature display | |
Fuel tank | For 8 hours using |
