80kw/100kVA Cummins 6bt5.9-G2 Diesel Generator Set

Product Description

58GF-C22/58GJS-C22
58KW good quality genset manufactured by Doosun Electric.

Product Description:

The series 20-400kW are installed with American Cummins engine.Different brand of generator as Marathon,Stamford,Engga and control panel are at your option,Doosun generator set have four protective functions as water temperature,oil temperature,oil pressure,overspeed.With the feature of voltage adjustment precision,good dynamic performance,stable voltage,high efficiency,reliable long service life etc.The genset can be made into self-starting type,low noise type,MobilePowerStation or manufacture according to your requests.

Product Pictures:

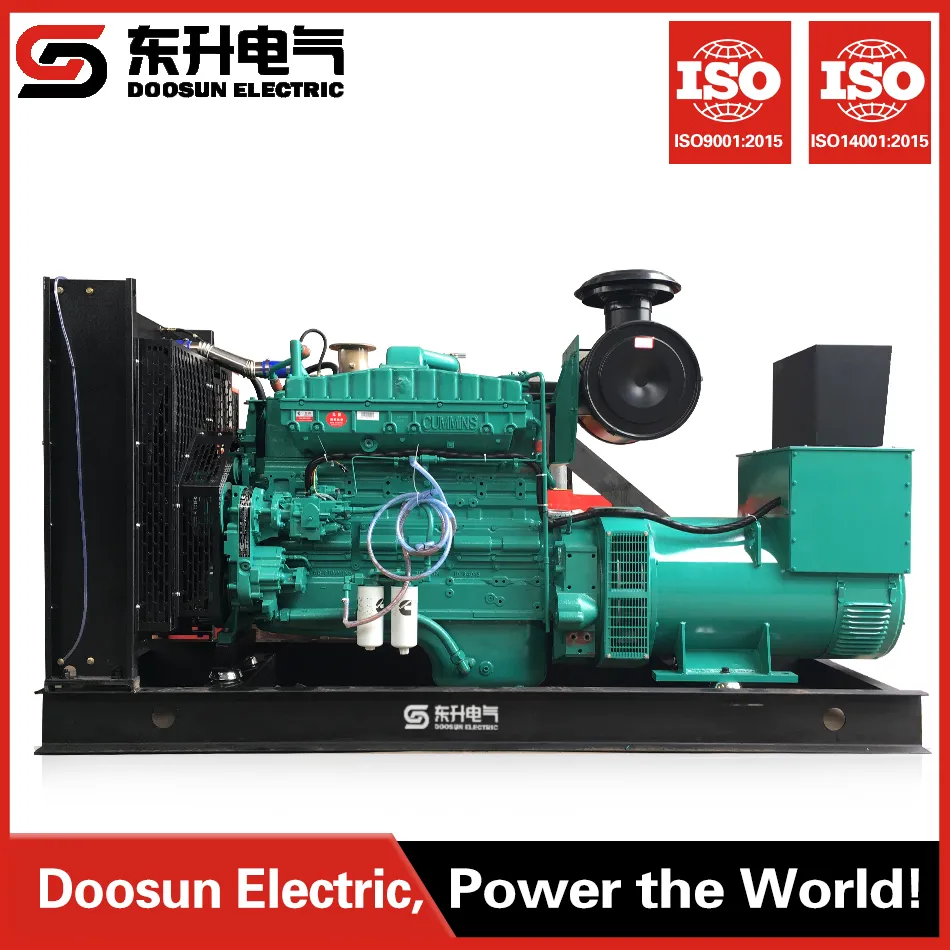

80kw/100kVA Cummins 6bt5.9-G2 Diesel Generator Set

Product Parameters:

50Hz 3Ph 400V Pf0.8
Open Type	Silent Canopy	Standby power		Prime Power		Cons 100%	Dimension	Dimension	Weight (Open Type)	Weight (Silent Canopy)	Fuel Tank capacity	Engine Model	Lube Capacity	Coolant Capacity	Alternator Model
		Standby power		Prime Power		Cons 100%	Dimension	Dimension	Weight (Open Type)	Weight (Silent Canopy)	Fuel Tank capacity		Lube Capacity	Coolant Capacity
		kVA	kW	kVA	kW	(L/h)	(Open Type) L×W×H(mm)	(Silent Canopy) L×W×H(mm)	(kg)	(kg)	(L)		(L)	(L)
		kVA	kW	kVA	kW	(L/h)	(Open Type) L×W×H(mm)	(Silent Canopy) L×W×H(mm)	(kg)	(kg)	(L)		(L)	(L)
20GF-C22	20GJS-C22	27	22	25	20	6.3	1580×650×1146	2350×1133×1516	777	1380	267	4B3.9-G2	11	20	PI144E
22GF-C22	22GJS-C22	30	24	27.5	22	6.5	1580×650×1146	2350×1133×1516	777	1380	267	4B3.9-G2	11	20	PI144F
24GF-C22	24GJS-C22	33	26.4	30	24	6.7	1800×730×1290	2350×1133×1516	830	1420	267	4BT3.9-G2	11	20	PI144G
28GF-C22	28GJS-C22	39	31	35	28	8.3	1800×730×1290	2350×1133×1516	830	1420	267	4BT3.9-G2	11	20	PI144H
32GF-C22	32GJS-C22	44	35	40	32	9.4	1800×730×1290	2350×1133×1516	830	1420	267	4BT3.9-G2	11	20	PI144J
40GF-C22	40GJS-C22	55	44	50	40	11.7	1900×783×1257	2350×1133×1516	926	1530	267	4BTA3.9-G2	11	23	UCI224D
45GF-C22	45GJS-C22	63	50	56	45	13.8	1900×783×1257	2350×1133×1516	975	1540	267	4BTA3.9-G2	11	23	UCI224E
52GF-C22	52GJS-C22	70	56	65	52	13.8	1900×783×1257	2350×1133×1516	975	1540	267	4BTA3.9-G2	11	23	UCI224F
58GF-C22	58GJS-C22	80	64	72	58	16.2	1900×783×1257	2350×1133×1516	975	1540	267	4BTA3.9-G11	11	23	UCI224F
68GF-C22	68GJS-C22	93	74	85	68	19.5	2200×830×1278	3200×1133×1766	1249	2037	374	6BT5.9-G2	16	24	UCI224G
80GF-C22	80GJS-C22	110	88	100	80	22.9	2200×830×1278	3200×1133×1766	1272	2059	374	6BT5.9-G2	16	24	UCI274C
84GF-C22	84GJS-C22	115	92	105	84	23.6	2200×830×1278	3200×1133×1766	1297	2084	374	6BT5.9-G2	16	24	UCI274D
92GF-C22	92GJS-C22	125	100	115	92	25.5	2200×830×1325	3200×1133×1766	1297	2130	374	6BTA5.9-G2	16	27	UCI274D
108GF-C22	108GJS-C22	145	116	135	108	29.5	2360×830×1334	3200×1133×1766	1381	2168	374	6BTAA5.9-G2	16	27	UCI274E
124GF-C22	124GJS-C22	170	136	155	124	34.8	2360×830×1334	3200×1133×1766	1420	2430	374	6BTAA5.9-G12	16	27	UCI274F
128GF-C22	128GJS-C22	175	140	160	128	35.7	2360×847×1366	3600×1333×2040	1782	3040	573	6CTA8.3-G2	24	32	UCI274F
145GF-C22	145GJS-C22	200	160	182	145	41.2	2360×847×1366	3600×1333×2040	1832	3100	573	6CTA8.3-G2	24	32	UCI274G
160GF-C22	160GJS-C22	220	176	200	160	43.3	2400×980×1460	3600×1333×2040	1850	3040	573	6CTAA8.3-G2	24	34	UCI274H
180GF-C22	180GJS-C22	250	200	225	180	47.8	2540×1018×1527	3600×1333×2040	1960	3380	573	6LTAA8.9-G2	24	35	UCDI274J
200GF-C22	200GJS-C22	265	212	250	200	53	2540×1018×1527	3600×1333×2040	1985	3400	573	6LTAA8.9-G2	24	35	UCDI274K
200GF-C22	200GJS-C22	275	220	250	200	54	2540×1018×1527	3600×1333×2040	2204	3619	573	6LTAA8.9-G3	28	35	UCDI274K
288GF-C22	288GJS-C22	400	320	360	288	82.1	3100×1360×2100	5000×1983×2371	3460	6345	1594	QSZ13-G6	-	75.3	HCI444FS
310GF-C22	310GJS-C22	425	340	388	310	73.5	3250×1360×2100	5000×1983×2371	3600	6400	1594	6ZTAA13-G3	45	55	HCI444F
320GF-C22	320GJS-C22	450	360	400	320	89.7	3200×1360×2100	5000×1983×2371	3600	6420	1594	QSZ13-G7	-	75.3	HCI444F
350GF-C22	350GJS-C22	475	380	438	350	87	3250×1360×2100	5000×1983×2371	3700	6450	1594	6ZTAA13-G2	45	55	HCI544C
350GF-C22	350GJS-C22	475	380	438	350	89.5	3250×1360×2100	5000×1983×2371	3700	6450	1594	6ZTAA13-G4	45	55	HCI544C
350GF-C22	350GJS-C22	468	375	438	350	88.8	3250×1360×2100	5000×1983×2371	3700	6450	1594	QSZ13-G2	45	57	HCI544C
360GF-C22	360GJS-C22	500	400	450	360	93.7	3250×1360×2100	5000×1983×2371	3700	6450	1594	QSZ13-G5	-	75.3	HCI544C
380GF-C22	380GJS-C22	500	400	475	380	96.5	3250×1360×2100	5000×1983×2371	3750	6510	1594	QSZ13-G3	45	57	HCI544C

60Hz 3Ph 400V Pf0.8
Open Type	Silent Canopy	Standbypower		Prime Power		Cons 100%	Dimension	Dimension	Weight (Open Type)	Weight (Silent Canopy)	Fuel Tank Capacity	Engine Model	Lube Capacity	Coolant Capacity	Alternator Model
Open Type	Silent Canopy	kVA	kW	kVA	kW	(L/h)	(Open Type) L×W×H(mm)	(Silent Canopy) L×W×H(mm)	(kg)	(kg)	(L)	Engine Model	(L)	(L)	Alternator Model
17.5LF-C22	17.5LJS-C22	24	19	21.9	17.5	6.3	1580×650×1146	2350×1133×1516	750	1390	267	4B3.9-G2	11	20	PI044H
24LF-C22	24LJS-C22	33	26.5	30	24	8.6	1580×650×1146	2350×1133×1516	777	1390	267	4B3.9-G2	11	20	PI144E
30LF-C22	30LJS-C22	41	33	37.5	30	9.5	1800×730×1290	2350×1133×1516	802	1420	267	4BT3.9-G2	11	20	PI144G
34LF-C22	34LJS-C22	45	36	42	34	10.7	1800×730×1290	2350×1133×1516	802	1420	267	4BT3.9-G2	11	20	PI144H
44LF-C22	44LJS-C22	60	48	55	44	13.8	1900×783×1257	2350×1133×1516	926	1540	267	4BTA3.9-G2	11	23	UCI224C
50LF-C22	50LJS-C22	70	56	62	50	15.9	1900×783×1257	2350×1133×1516	926	1540	267	4BTA3.9-G2	11	23	UCI224D
60LF-C22	60LJS-C22	83	66	75	60	17.8	1900×783×1257	2350×1133×1516	926	1540	267	4BTA3.9-G2	11	23	UCI224E
72LF-C22	72LJS-C22	100	80	90	72	20.5	1900×783×1257	2350×1133×1516	926	1540	267	4BTA3.9-G11	11	23	UCI224F
84LF-C22	84LJS-C22	115	92	105	84	29	2200×830×1278	3200×1133×1766	1272	2059	374	6BT5.9-G2	16	24	UCI224G
100LF-C22	100LJS-C22	138	110	125	100	31.3	2200×830×1278	3200×1133×1766	1290	2084	374	6BT5.9-G2	16	24	UCI274C
105LF-C22	105LJS-C22	145	116	131	105	31	2200×830×1325	3200×1133×1766	1290	2090	374	6BTA5.9-G2	16	27	UCI274D
120LF-C22	120LJS-C22	165	132	150	120	34.3	2360×830×1334	3200×1133×1766	1370	2178	374	6BTAA5.9-G2	16	27	UCI274E
130LF-C22	130LJS-C22	180	143	163	130	37.8	2360×830×1334	3200×1133×1766	1420	2430	374	6BTAA5.9-G12	16	27	UCI274E
143LF-C22	143LJS-C22	195	157	178	143	41.4	2360×847×1366	3600×1333×2040	1755	3050	573	6CTA8.3-G2	24	32	UCI274E
160LF-C22	160LJS-C22	220	176	200	160	44.7	2360×847×1366	3600×1333×2040	1755	3050	573	6CTA8.3-G2	24	32	UCI274F
175LF-C22	175LJS-C22	240	192	220	175	49	2400×980×1460	3600×1333×2040	1800	3204	573	6CTAA8.3-G2	24	34	UCI274G
200LF-C22	200LJS-C22	275	220	250	200	54.4	2540×1018×1527	3600×1333×2040	1940	3050	573	6LTAA8.9-G2	24	35	UCI274H
218LF-C22	218LJS-C22	300	240	273	218	60	2540×1018×1527	3600×1333×2040	1940	3390	573	6LTAA8.9-G2	24	35	UCDI274J
236LF-C22	236LJS-C22	325	260	295	236	62	2540×1018×1527	3600×1333×2040	1940	3400	573	6LTAA8.9-G3	28	35	UCDI274J
275LF-C22	275LJS-C22	375	300	344	275	77	2940×1000×1555	4300×1483×2145	3090	4127	883	QSM11-G2	-	36.7	HCI444D
300LF-C22	300LJS-C22	413	330	375	300	77.8	3250×1360×2100	5000×1983×2371	3600	6400	1594	6ZTAA13-G3	45	55	HCI444D
315LF-C22	315LJS-C22	438	350	395	315	89.2	3100×1360×2100	5000×1983×2371	3460	6345	1594	QSZ13-G6	-	75.3	HCI444ES
350LF-C22	350LJS-C22	460	368	438	350	92.8	3250×1360×2100	5000×1983×2371	3600	6400	1594	6ZTAA13-G2	45	55	HCI444E
360LF-C22	360LJS-C22	460	368	450	360	95.2	3250×1360×2100	5000×1983×2371	3600	6400	1594	6ZTAA13-G4	45	55	HCI444FS
360LF-C22	360LJS-C22	500	400	450	360	90.7	3200×1360×2100	5000×1983×2371	3600	6430	1594	QSZ13-G2	-	75.3	HCI444FS
360LF-C22	360LJS-C22	500	400	450	360	101.8	3200×1360×2100	5000×1983×2371	3600	6430	1594	QSZ13-G7	-	75.3	HCI444FS
400LF-C22	400LJS-C22	550	440	500	400	104.8	3200×1360×2100	5000×1983×2371	3600	6430	1594	QSZ13-G3	-	75.3	HCI444F
400LF-C22	400LJS-C22	550	440	500	400	102.7	3200×1360×2100	5000×1983×2371	3600	6430	1594	QSZ13-G5	-	75.3	HCI444F

Supply System:

80kw/100kVA Cummins 6bt5.9-G2 Diesel Generator Set

About us:

Doosun Electric is a professional manufactuer specialized in gensets for over 25 years.we develop the mature technologies and the whole gensets system through such a long experience and have established long-term bussiness relationship worldwide.Our factory occupies an area of over 500 sm and employs over 100 workers with the production capacity of 1000 sets/month.Meanwhile,we have build a firm and efficient supply system,such as Commins,Perkins,Stamford,VOLVO,SME,Marathon and so forth to manufature high durable and steady gensets to meets the continuity of working.As our slogan shows,Doosun Electric,power the world,Doosun Electric aims to manufacture the best gensets to enlighten the world with consistent power.For this good vision,we sincerely look forward to the cooperation with you from anywhere and anytime.

80kw/100kVA Cummins 6bt5.9-G2 Diesel Generator Set

Our Advantages:

We can manufacture wide range of gensets from 10KW to 2500KW.
We can install different unit parts according to your demands.
We can provide high quality and durable gensets to assure your regular use.
We can provide all the accessories of your ordered gensets immediately.

FAQ:

Q:Is your company a factory ?
  A:Yes,we are a manufacturer of gensets with over 25 years history.And our factory is located in Guangzhou ,occupying over 30000 square meters area.

Q:How long can we receive our gensets?
  A:We can finish producing your gensets in 25 working days and the delivery time will be decided by the shipment to your countries.

Q:Do you supply accessories of gensets?
  A:Yes,we have stored all the kinds of gensets accessories for you and can deliver them to you immediately you need them.

Q:Can we customize our gensets with our own brand?
  A:Yes,we can provide OEM manufacuture service to help you develop your business in your own coutries.

Q:What is your MOQ & Payment?
  A:Our MOQ is 1 set,and we can accept the payment of T/T,L/C and Westunion.

Q:What is the applicated voltage and frequency of your gensets ?
  A:We can manufacture your gensets according to the electricity standards of your country.the voltage range is 110V,115V,120V,127V,220V,230 V,240V,440V,480V.The optional frequency is 50Hz and 60Hz.
