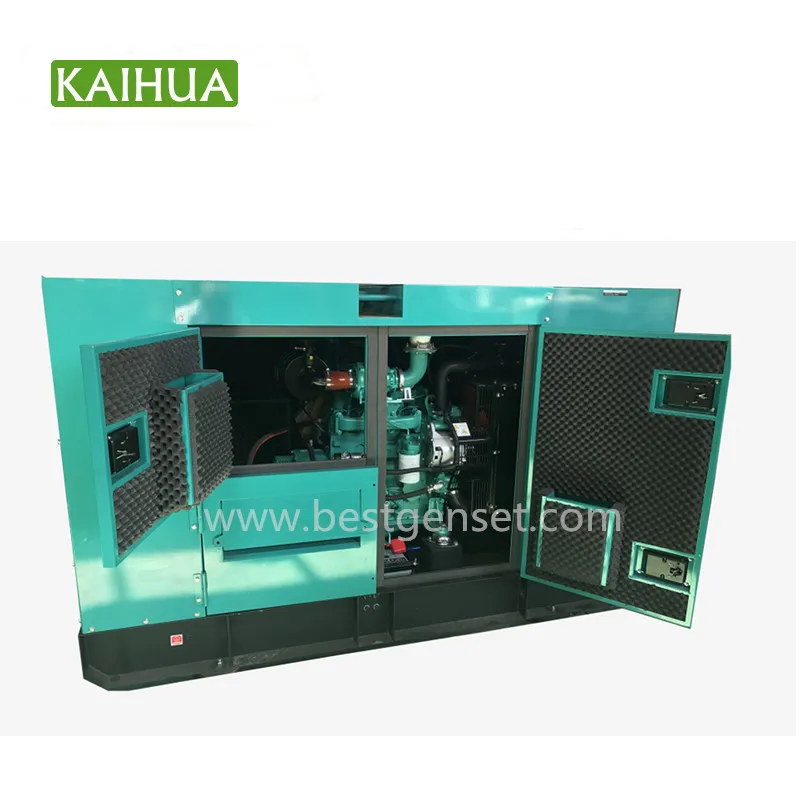

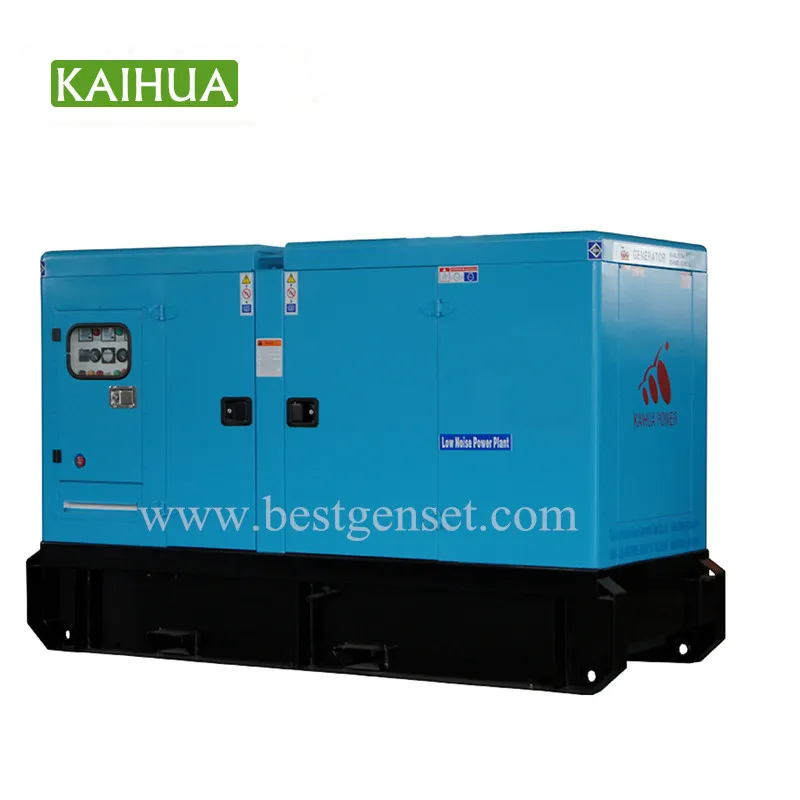

Ce Proved 100kVA/80kw 6bt5.9-G2 Silent Diesel Generator
Technical SpecificationsGenset ModelKH-80GFPrime Power100KVA/80KWStandby Power110KVA/88KWRated Voltage(V)400/230Rated Current(A)144Rated Frequency(Hz)50Rated Speed(RPM)1500Power Factor(COS¢)0.8(lagging) Engine brandCumminsEngine model6BT5.9-G2Number of Cylinders6Cylinder arrangementL typeCycleF......
Send Inquiry
Product Description
| Technical Specifications | ||||||
| Genset Model | KH-80GF | ||||
| Prime Power | 100KVA/80KW | ||||
| Standby Power | 110KVA/88KW | ||||
| Rated Voltage(V) | 400/230 | ||||
| Rated Current(A) | 144 | ||||
| Rated Frequency(Hz) | 50 | ||||
| Rated Speed(RPM) | 1500 | ||||
| Power Factor(COS¢) | 0.8(lagging) |
| Engine brand | Cummins | ||||
| Engine model | 6BT5.9-G2 | ||||
| Number of Cylinders | 6 | ||||
| Cylinder arrangement | L type | ||||
| Cycle | Four Stroke | ||||
| Aspiration | Turbocharged and After-cooled | ||||
| Fuel System | Direct Injection Cummins PT | ||||
| Bore×Stroke (mm×mm) | 102x120 | ||||
| Displacement (Liter) | 5.9 | ||||
| Cooling System | Water Cooling | ||||
| Speed Governor | Electronic | ||||
| Compression Ratio | 17.3:1 | ||||
| Starting Method | DC 24V electrical starting | ||||
| Total Oil Capacity (Liter) | 16.4 | ||||
| Fuel Consumption (100% load) | 22.3L/H | ||||
| Total Coolant Capacity (Liter) | 27 |
| Alternator brand | Stamford, Leroy Somer, Marathon, Copy Stamford | ||||
| Connecting Type | 3 Phase and 4 Wires | ||||
| Number of Bearing | 1 | ||||
| Protection Grade | IP23 | ||||
| Altitude | ≤1000m | ||||
| Exciter Type | Brushless ,Self-exciting, AVR &100% Copper winding wire | ||||
| Insulation Class | H |
| Company Information | ||||||

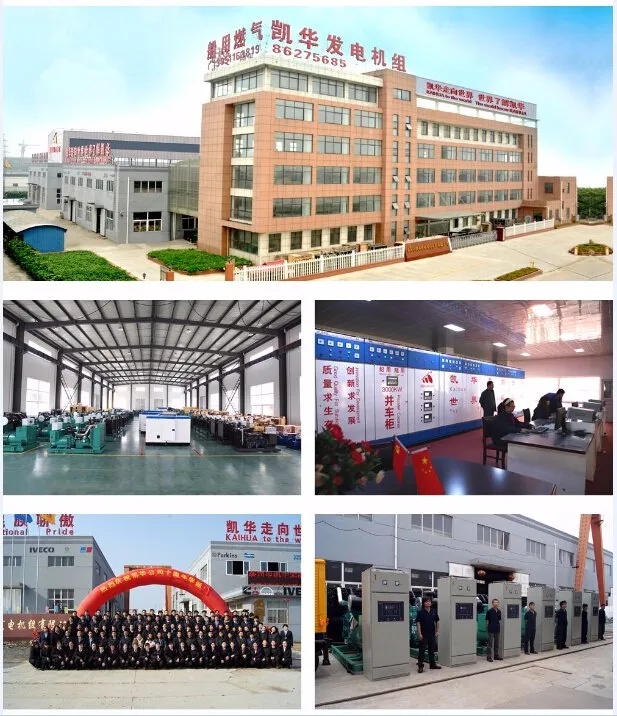

| Kaihua was built up in 2003, with registered capital reaching 17 million USD. Its products were exported to 50 more countries. Annual output is over 2000 sets with revenue around 30 million USD in total. 100 people work here, among whom 2/3 are college educated. Engineer team consists of 15 more people with professional electric background. With a complete production line combined with advanced testing center, we ensure to produce high quality and reliable products. CE, ISO9001:2008, ISO14001 certificates are awarded. Kaihua aims to provide one stop service for all customers. 3 main products (ie 3~3000kva diesel generator sets, control cabinets, spare parts) total 27 types to cover customer's needs comprehensively. | ||||||
| Exhibition |
| Awards | ||||||
