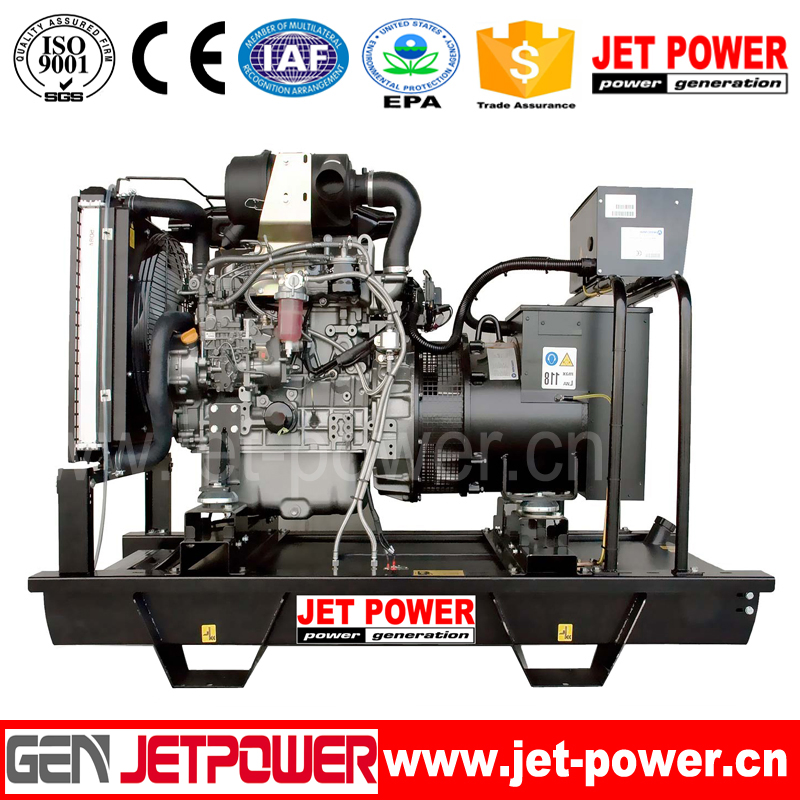

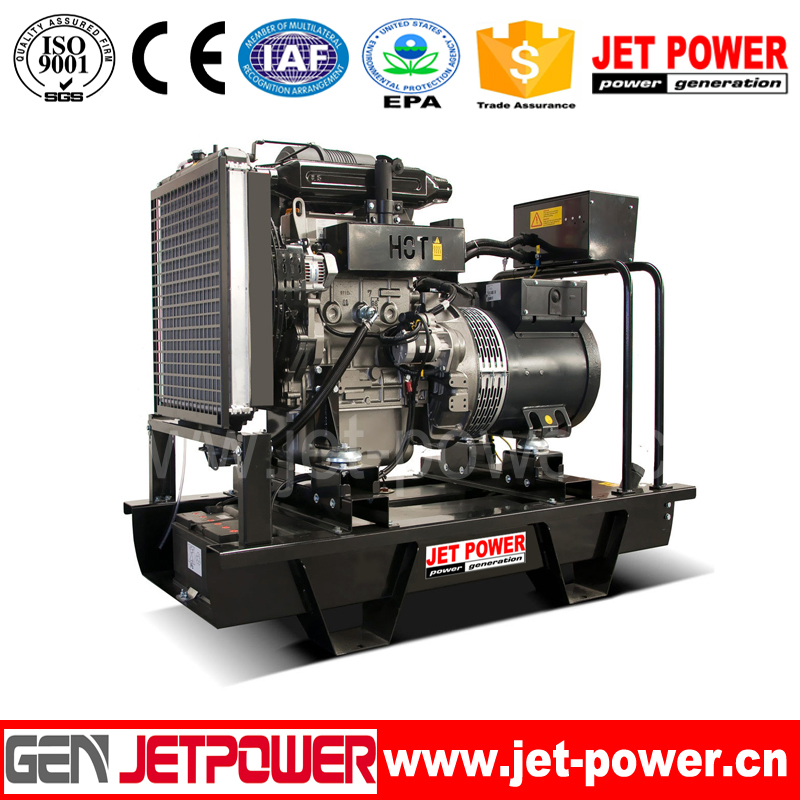

Yanmar 8kw Engine Portable Diesel Power Generator
Product DescriptionGenset SpecificationModel 400V / 50Hz / 1500RPMJapan Yanmar Diesel EngineAlternatorStandby outputPrime OutputModelEngine typeDisplacementBore×StrokeStamfordKVAKWKVAKWNo. of CylinderGovernor(L)(MM)YN-11118.81083TNV82A-GGE3Mech.1.33182x84PI044EYN-1413.81112.5103TNV88-GGE3M......
Send Inquiry
Product Description
Product Description
Genset Specification
details pictures
Generator Diesel Description
2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire
4. Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.
5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.
Our Service
one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.
1. During the guarantee period-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Our Company
Genset Specification
| Model | 400V / 50Hz / 1500RPM | Japan Yanmar Diesel Engine | Alternator | |||||||
| Standby output | Prime Output | Model | Engine type | Displacement | Bore×Stroke | Stamford | ||||
| KVA | KW | KVA | KW | No. of Cylinder | Governor | (L) | (MM) | |||
| YN-11 | 11 | 8.8 | 10 | 8 | 3TNV82A-GGE | 3 | Mech. | 1.331 | 82x84 | PI044E |
| YN-14 | 13.8 | 11 | 12.5 | 10 | 3TNV88-GGE | 3 | Mech. | 1.642 | 88x90 | PI044F |
| YN-16 | 16.5 | 13.2 | 15 | 12 | 4TNV88-GGE | 4 | Mech. | 2.19 | 88x90 | PI044G |
| YN-20 | 20.0 | 16 | 17.5 | 14 | 4TNV88-GGE | 4 | Mech. | 2.19 | 88x90 | PI044H |
| YN-22 | 22 | 17.6 | 20 | 16 | 4TNV84T-GGE | 4 | Mech. | 1.995 | 84x90 | PI144D |
| YN-28 | 27.5 | 22 | 25 | 20 | 4TNV98-GGE | 4 | Mech. | 3.319 | 98x110 | PI144E |
| YN-33 | 33 | 26.4 | 30 | 24 | 4TNV98-GGE | 4 | Mech. | 3.319 | 98x110 | PI144G |
| YN-42 | 41.3 | 33 | 37.5 | 30 | 4TNV98T-GGE | 4 | Mech. | 3.319 | 98x110 | PI144J |
| YN-55 | 55 | 44 | 50 | 40 | 4TNV106-GGE | 4 | Mech. | 4.412 | 106x125 | UCI224D |

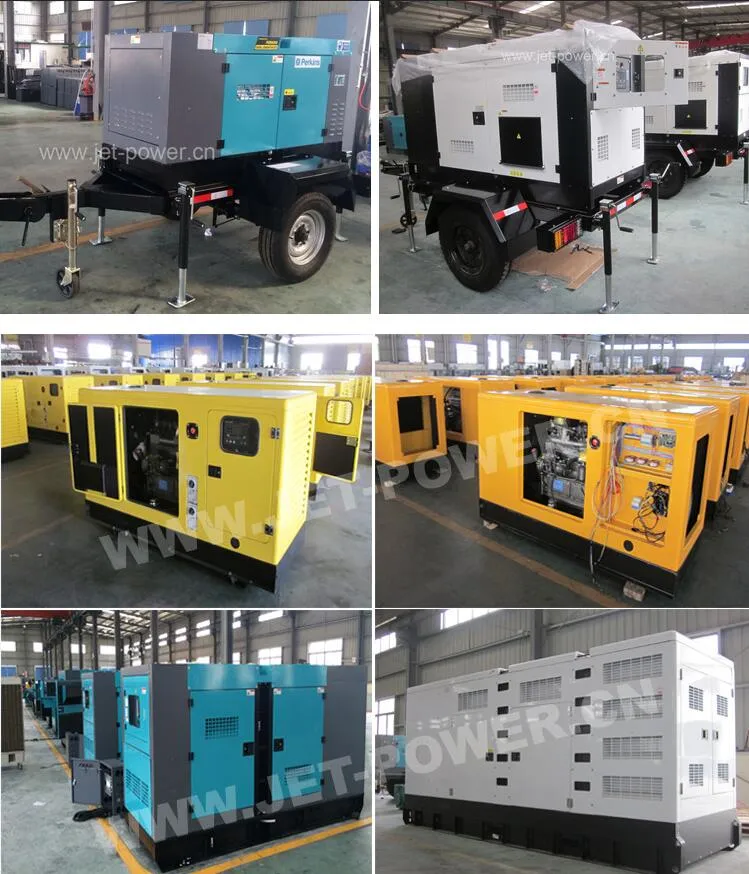

details pictures
diesel generator set

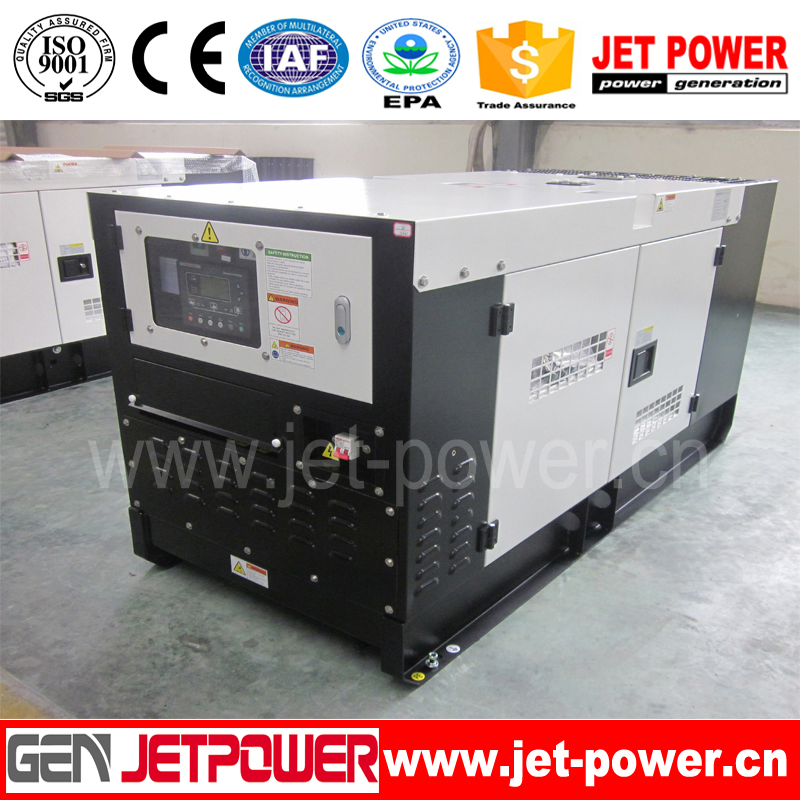

Generator diesel All new design for diesel generator set of open, Silent, Supper silent, Soundproof, Trailer type container
Generator Diesel Description
| main standards | GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard |
| Prime output power | from 5KVA to 2500KVA |
| Rated voltage | 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional |
| Generator Phase and connecting | 3 phase, 4wire |
| Rated frequency | 50Hz@1500rpm or 60Hz@1800rpm |
| Alternator excited type | Brushless, self excited or PMG optional |
| Alternator Insulation | Class H |
| Alternator Protection | IP21 ~ IP23 |
| Voltage regulation | AVR automatic control 1% |
| Altitude above sea level | ≤1000 meters |
| Ambient air temperature | ≤40°C |
| Relative air humidity | ≤ 90% |
Our advantages
1.Generator diesel High-quality steel are thickness canopy -- 2MM to 6MM2.Generator diesel high density sound-absorbing material -- sound insulation, fireproofing
3.Generator diesel 12V/ 24V DC battery with charger, battery connects wire
4. Generator diesel 10-12 hours fuel tank with fuel indicator, long time for working.
5. Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.Generator diesel Beautiful & practicably design, Bottom hole for forklift, water outlet & oil outlet for easy maintenance
8. Double open door on both sides of the Gensets.Spacious doors can check for every part of the engine and alternator.
Our Service
one year or 1000 hours(diesel generator set ) whichever reach first from exfactory date.
1. During the guarantee period-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Our Company
FUZHOU JET ELECTRIC MACHINERY CO., LTD is a leadind manufacturer focus on Gasonline Generators, Disel Generators, Pump, Motor,Garden Machines. The factory is located in Fuan City Fujian provice, which is a well-konw electrical and machine city in China. For more convenient and efficient business, we set up company in HONGKONG and FUZHOU CITY.
