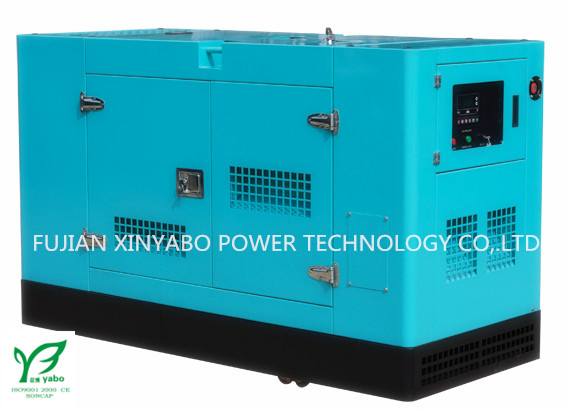

Yabo GF3 /160kw Diesel Generator Set with Soundproof

Product Description

GF3/160KW
Prime Power	kVA	200KVA
	kW	160KW
Frequency	Hz	1500
Output Voltage	V	400/230
Engine Model		6ATAA8.3-G2
No.of Cylinder		6Cylinder in line
Bore	mm	100
Stroke	mm	127
Displacement	L	3.99
Alternator Model		SLG274H
Alternator Brand		COPY Stamford
Rate Output	kVA	160KW
Frequency	Hz	50Hz
Alternator for choice	We also have Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator for your choice.

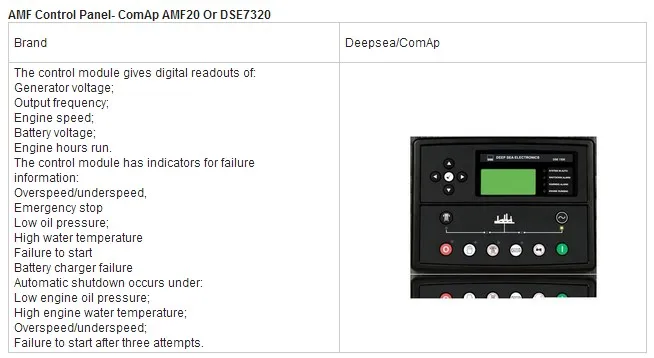

Control Panel Model	AMF
Controller	Deepsea Brand Model DSE6120
Function of control panel	Automatic genset start/stop
	Automatic battery charger
	Emergency stop
	AMF (Automatic Mains Fault)
	Remote control
	Micro-processor based design
	LED alarm indication and Sound alarm
Display of the controller	Generator voltage: Uab, Ubc, Uca
	Generator current: Ua, Ub, Uc
	Generator temp.: ºC/ºF both display
	Generator frequency: Hz
	Generator power: kW, kVA, kWh, kVAr, kVArh, kVAh
	Generator starts count: 999999 times (Max)
	Generator pressure: kPa/Psi/Bar both display
	Charging Voltage: V
	Battery Voltage: V DC
Protection of Diesel Generator	Over / Under Speed Alarm and Shutdown
	Start / Stop Failure Alarm
	Over Current Alarm and Shutdown
	Under / Over Generator Voltage Alarm and Shutdown
	Low Oil Pressure Alarm and Shutdown
	High Engine Temperature Alarm and Shutdown
	Over Load Alarm and Shutdown
	Low and High Battery Voltage Alarm
	Lose of Speed Signal Alarm and Shutdown
	Charge Fail Alarm

1.Factory Inspection, the test items before delivery are mainly as follows:
1)  Each genset shall be put into commission more than 4 hours totally.They are tested on idle load, fully load and 10% overload;
2)      The noise level is tested
3)      All of the meters on the control panel shall be tested
4)      The appearance of the genset and all of the label and nameplate shall be checked

2.Warranty
12 months or 1000 running hours from shipment date.If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons.(Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance;After the warranty period, we can supply the required spare parts for you under cost prices.

Technical Data:
Manufacturer: Phases: Connection: Bearing numbers: Power Factor: Protection Class: Altitude Condition: Excitation: Insulation class/Temp.Rise class: Tel.Influence Factor TIF: Tel.Harmonic Factor THF: Steady State Voltage Regulation: Alternator Capacity: Efficiency: Cooling Air Flow:	Stamford, Leory Somer, Marathon, etc 3 3 phase 4 wire, Y type 1 0.8 IP23 <=1000M Brushless, self-excitation H / H <50 <2% <=±1% 45KVA 88.8% 0.216m³/s
