China Weichai Marine Engine Generator 24kw 33HP Marine Generator Set

Product Description

Product Overview

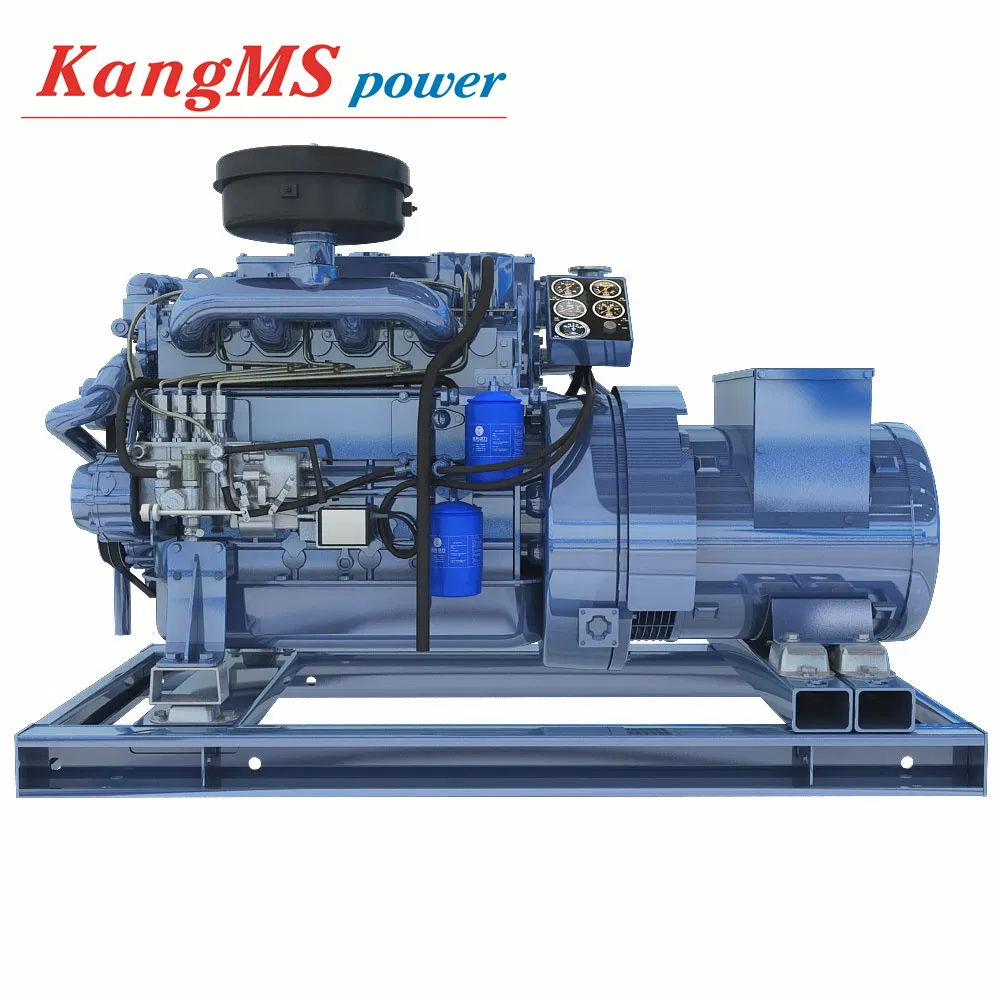

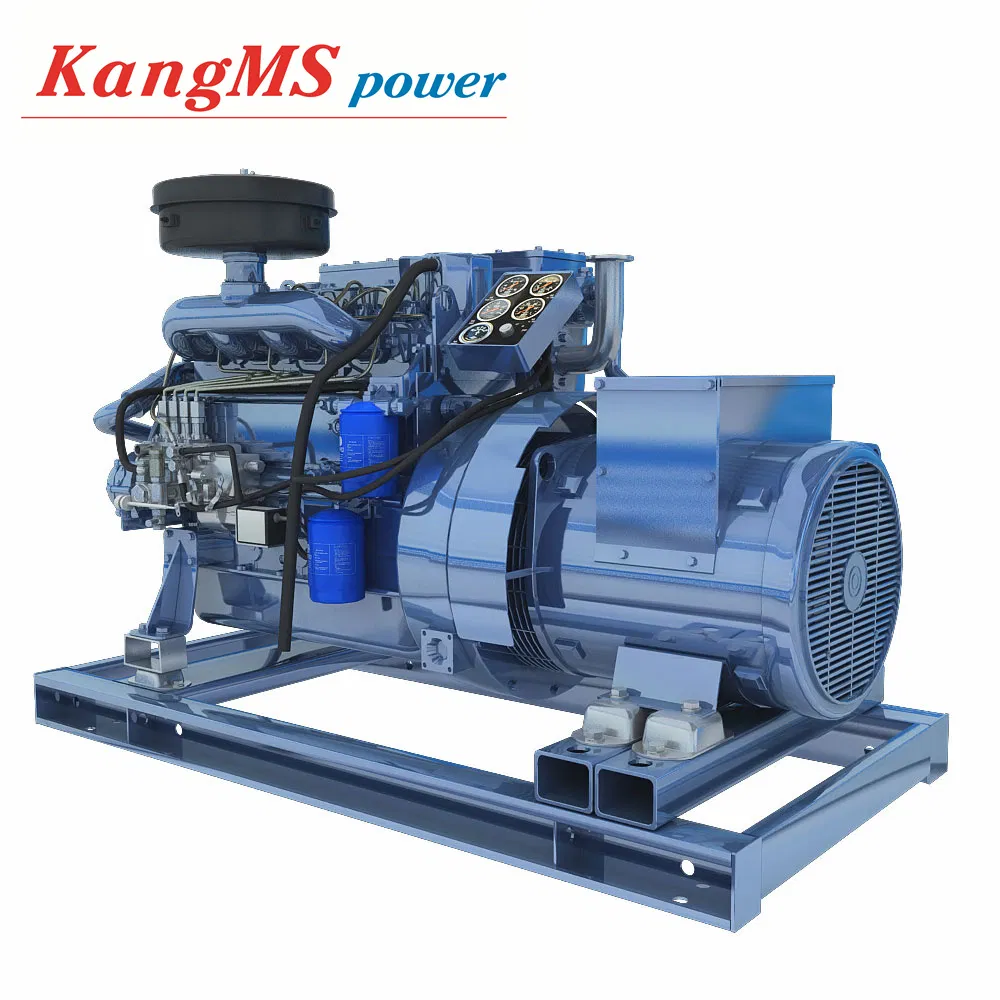

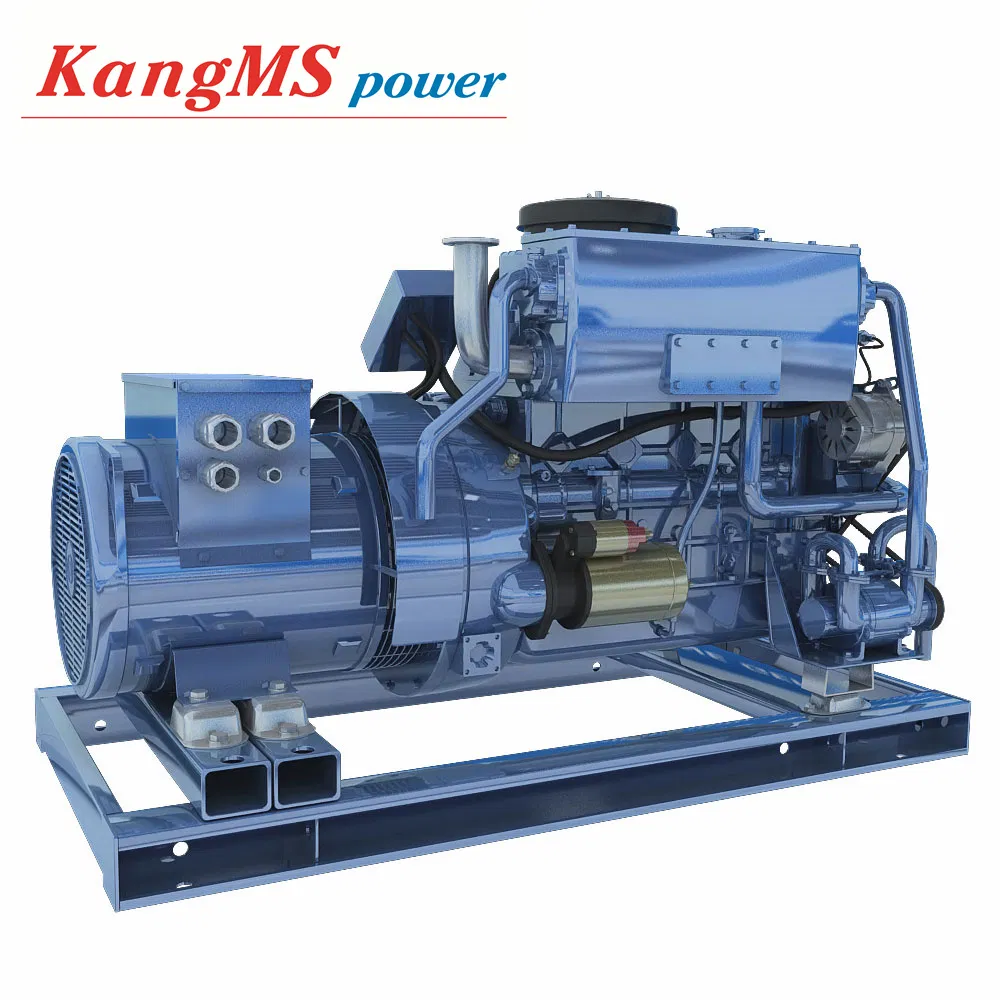

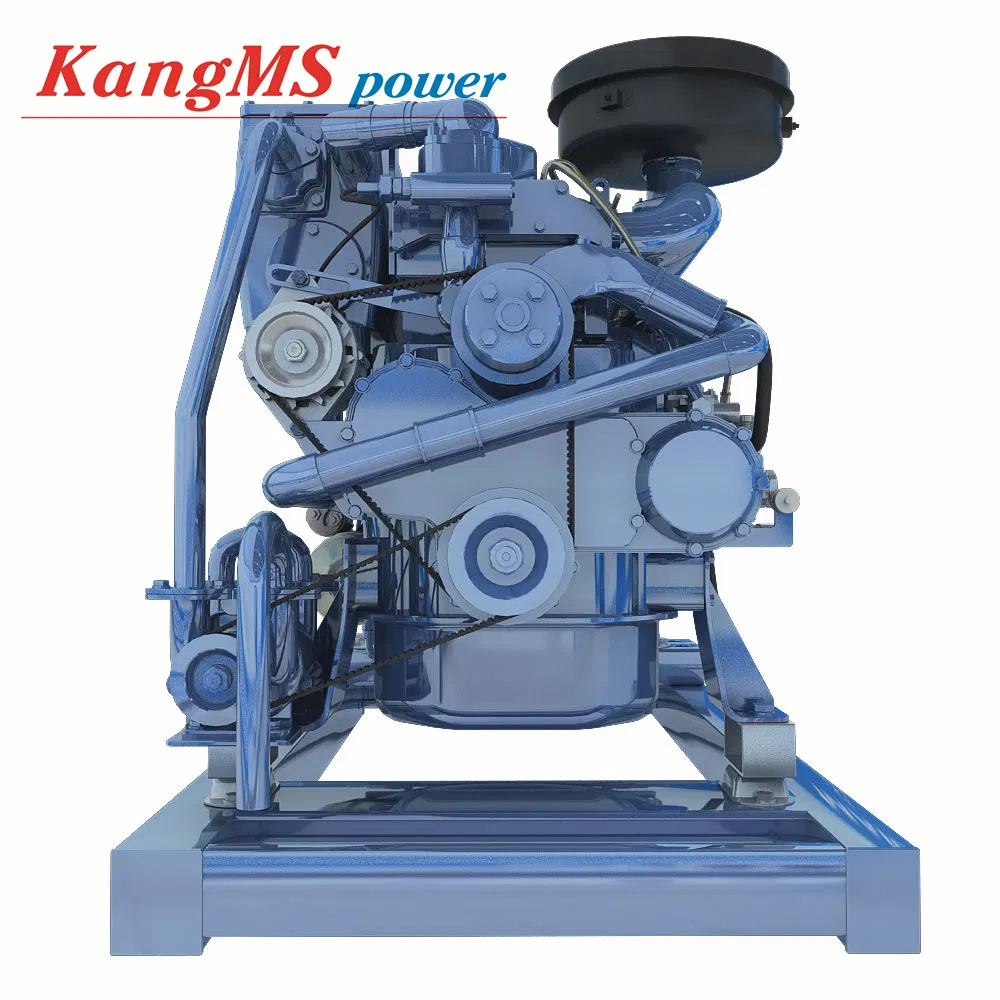

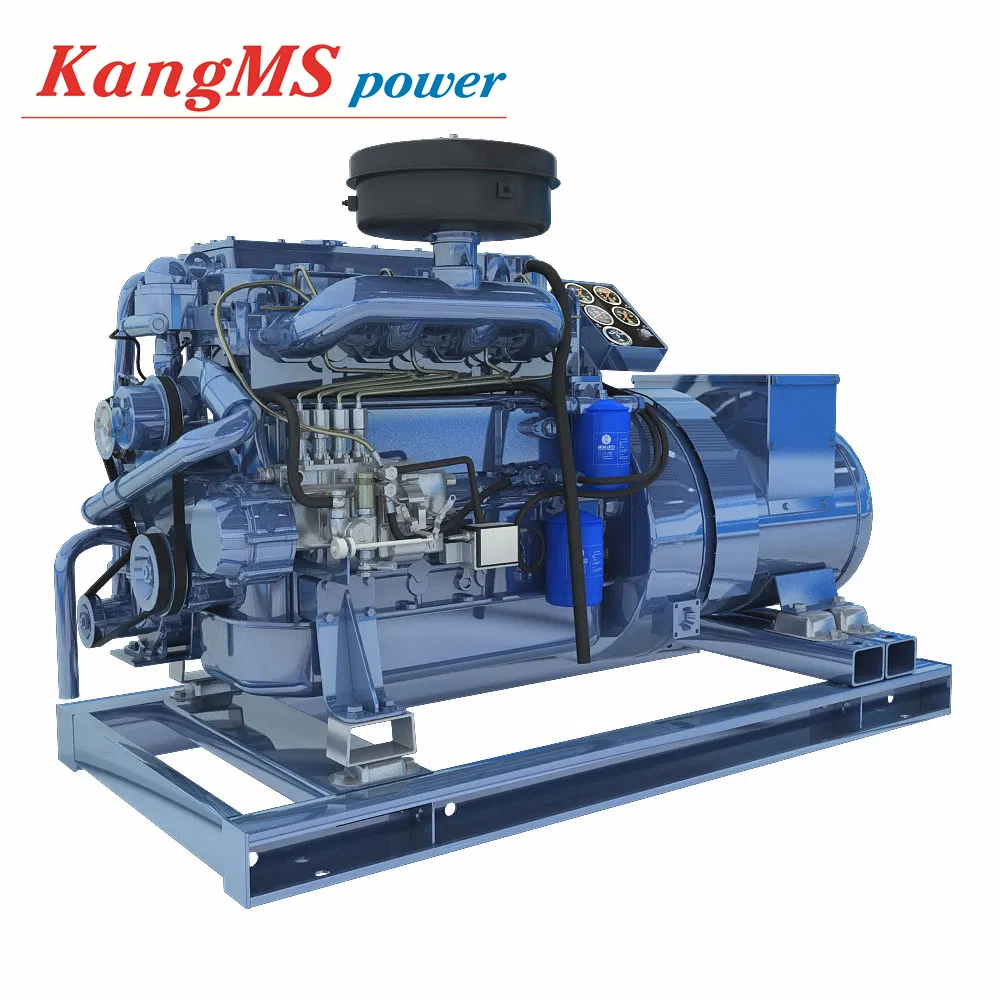

Weichai Marine Engine Generator 24kw 33hp Marine Generator Set

Weichai marine generator sets are mainly divided into primary and emergency generator sets according to their uses. The power range of primary generator sets is 16-8170kW, and the power range of emergency generator sets is 30-900kW. The primary generator sets include diesel and gas generator sets according to their fuel. The diesel generator sets include Yangchai series, Deutz series, Steyr series, Landking series, Baudouin series,170 series and CW200/250 series products. The gas generator sets mainly includes Deutz series. The manufacture and test of the generator sets comply with the general technical conditions of GB/T13032-2010 Marine Diesel Generator Set.
Weichai Marine Engine Generator 24kw 33HP Marine Generator Set

PRODUCT SPECIFICATIONS

Series	Yangchai	Start Method	Electric Start/Pneumatic Start
Model	CCFJ24J-W*	Speed Mode	Machinery & Electronics
Rated Power(kw)	24	Frequency	50HZ
Diesel Engine Model	WP3.9CD33E1	Rated Fuel Consumption(L/h)	6.5
Rated current(A)	43.2	Net Weight(kg)	720
Dimensions	13797191157

Series	Model	Primary power/kW	Continuous power/kW	Diesel generator model	Generat or Brand	Starting system	Mode of speed regulation	Dimensions /mm	Net weight/kg
Yangchai	CCFJ16J-W*	16	16	WP2.3CD25E200	Siemens Marathon Kang Fu	electric starter	Electronics	12667601145	438
	CCFJ20J-W*	20	20	WP2.3CD33E200		electric starter	Electronics	12667601145	473
	CCFJ24J-W*	24	24	WP2.3CD33E200		electric starter	Electronics	12667601145	488
	CCFJ30J-W*	30	24	WP2.3CD40E200		electric starter	Electronics	12667601145	523
	CCFJ40J-W*	40	40	WP4.1CD66E200		electric starter	Mechanical/electronic	15439361122	729
	CCFJ50J-W*	50	50	WP4.1CD66E200		electric starter	Mechanical/electronic	15439361122	761
	CCFJ64J-W*	64	50	WP4.1CD83E200		electric starter	Mechanical/electronic	16339361122	805

Remark:
I.Definition of power:
Primary power of the generator set
1.The average load rate exceeding 24 hours of running does not exceed 70%. 2.Within every 12h, with an overload by 10%, the engine can run for 1h. 3.The annual running time does not exceed 3000h.
Continuous power of the generator set:
1.The annual running time is not limited. 2.Run under constant 100% load. 3.The capacity of 10% overload.
II.The requirements of power matching:
1.For ship types with annual running time exceeding 3000h or large impact load, such as seine fishing with light, refrigerating, rake and prick, floating crane, sand suction boat and wind power installation, the model shall be selected according to the continuous power of the generator set.
2.For ship types such as inland river transport ships, coastal fishing boats and high-speed boats with domestic electricity or auxiliary pumps as the main load, the model can be selected according to the normal power of the generator set.
III.Dimensions and weight are for reference only For specific product parameters and generator set model selection, please make specific docking with relevant personnel.
The delivery date of products marked with * shall be subject to the reply of the manufacturer. Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.
