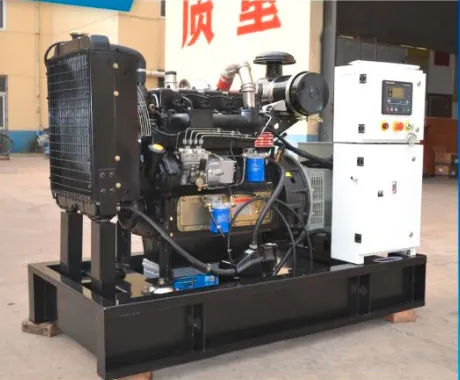

Weichai Industrial 90kVA/ 72kw Diesel Genset for Sale
Weichai Industrial 90KVA/72KW Diesel Genset, certificated by CE and ISO , it including :1) Engine model is R6105ZD2) Radiator and fan , can with safety guard according to client demand3) Single bearing alternator IP 23-22, Insulation Class H.4) Heavy duty steel as base frame or 8hrs operation base f......
Send Inquiry
Product Description
Weichai Industrial 90KVA/72KW Diesel Genset, certificated by CE and ISO , it including :
1) Engine model is R6105ZD
2) Radiator and fan , can with safety guard according to client demand
3) Single bearing alternator IP 23-22, Insulation Class H.

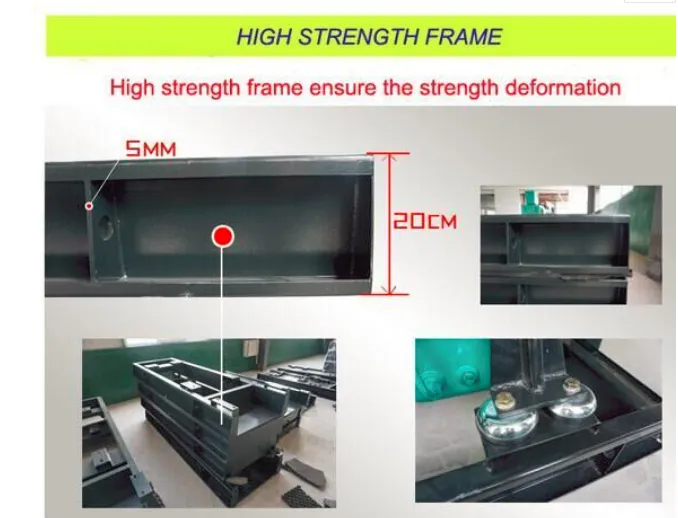

4) Heavy duty steel as base frame or 8hrs operation base fuel tank.

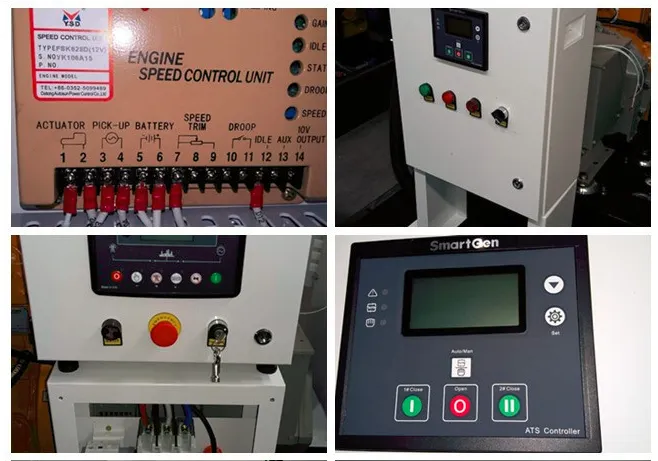

5) Automatic control panel and 3 poles circuit breaker, internal cable.
6) 24V battery
7) Battery charger and float battery charger as standard supply scope.
| R6105ZD with KHI brushless alternator | ||
| Voltage: 400V | ||
| Frequency: 50HZ | ||
| Power factor: 0.8 Lagging | ||
| Phase: 3 phase | ||
| Engine passed ISO CE certificate | ||
| Alternator passed ISO certificate | ||
| Generator set passed ISO CE certificate | ||
| Contact:Jilly Sun | ||
| MAIN SPECIFICATIONS OF GENSET | ||
| GENERATOR SET MODEL | HF 90 GF | |
| Prime Output | 90 KVA | |
| Standby Power | 99 KVA | |
| TECHNICAL DATA OF DIESEL ENGINE | ||
| DIESEL ENGINE MODEL | R6105ZD | |
| Engine Characters | four stroke , water cooling , in line , direct injection | |
| Rated Power | 112.5 KVA | |
| Aspiration | Turbocharged | |
| No of Cylinders | 6 | |
| Rated speed (rpm) | 1500 | |
| Arrange of Cyls(inline/vee) | in line | |
| Displacement of Piston (L) | 6.49 | |
| Fuel Consumption (g/kw.h) | At rated output | ≤ 231 |
| At 75% load | ≤ 242.6 | |
| At 50% load | ≤ 258.7 | |
| Bore(mm) X Stroke(mm) | 105*130 | |
| Exhaust temperature (ºC) | ≤600 | |
| Oil temperature(ºC) | ≤95 | |
| Cooling water temperature(ºC) | 75-95 | |
| Oil pressure (Mpa) at rated output | 0.30 - 0.60 | |
| Steady adjust speed rate % | ≤5.0 | |
| Oil Consumption (g/kw.h) | ≤1.63 | |
| Exhaust smoke BSU | ≤3.80 | |
| Mix idling steady speed r/min | ≤600 | |
| Oil pressure (Mpa) at idling | ≥0.10 | |
| Firing order | 1-5-3-6-2-4 | |
| Starting mode | electric starting | |
| TECHNICAL DATA OF ALTERNATOR | ||
| ALTERNATOR MODEL | KHI72-14 | |
| Continuous Output | 90 KVA | |
| Voltage Regulation | YES | |
| Excitation Type | Brushless | |
OUR ADVANTAGES
1. Professional diesel engine manufacturer, not simply assembler or trader
2. 18 years of manufacturing and exporting experience
3. Adopt International quality standards, to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
