Super Silent Diesel Generators (ZC22-ZC1000)

Product Description

20KW~1000KW Super Silent Diesel Power Generator with Cummins Engine (CE/Ciq/Soncap Approval)

Cummins Silent Diesel Generators is a set of complete equipment for electrical power supply. Cummins engines, high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.

Cummins Diesel Generator Features:

1. High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.

2. The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.

3. Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.

4. Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.

5. Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.

6. Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.

7.Big enough free maintenance battery, world famous brand.

8.Packing with Strong and thick enough WOOD CASE to protect the gensets during long transporation.

9.Every spare parts suppliers are choosed extremely stricted to control the quality well.

10.From engine to whole genset, we test every link of each product.

Service:

BEFORE SERVICE: According to the clients' requirement and actual situation, we will furnish the technology consultation and kinds of information.

AFTER SERVICE: Guarantee for one year or 1000 running hours (accord to whichever reach first) from arrival date of destination port. During the guarantee period, we will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare-parts maintenance for gensets.

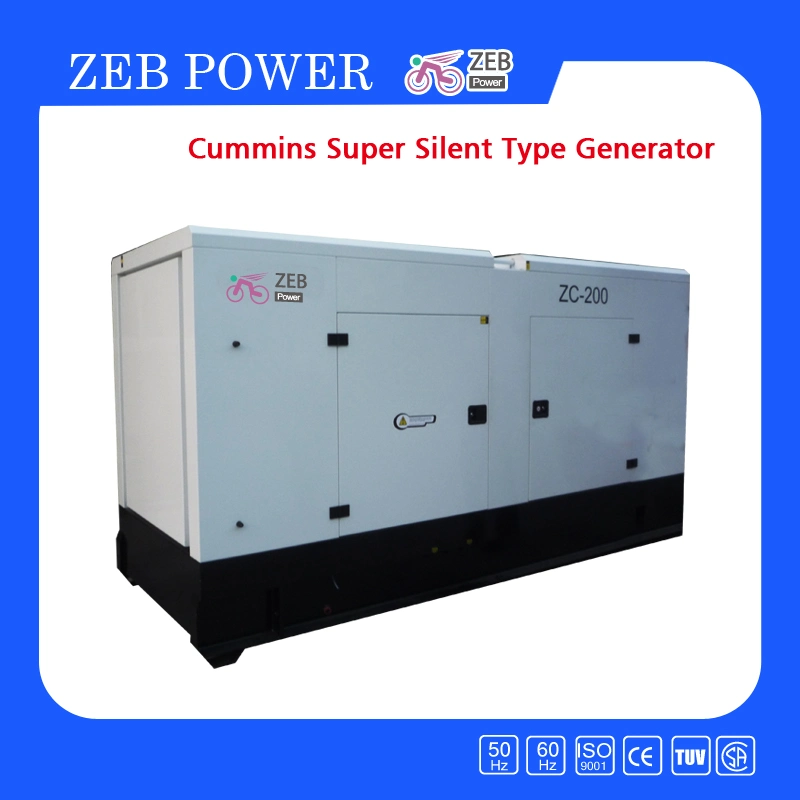

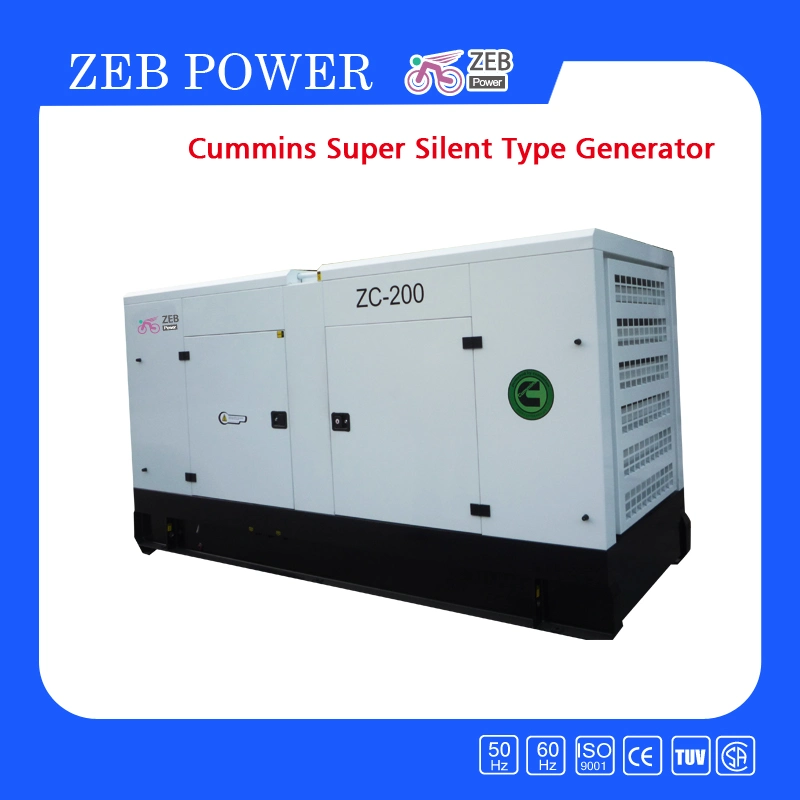

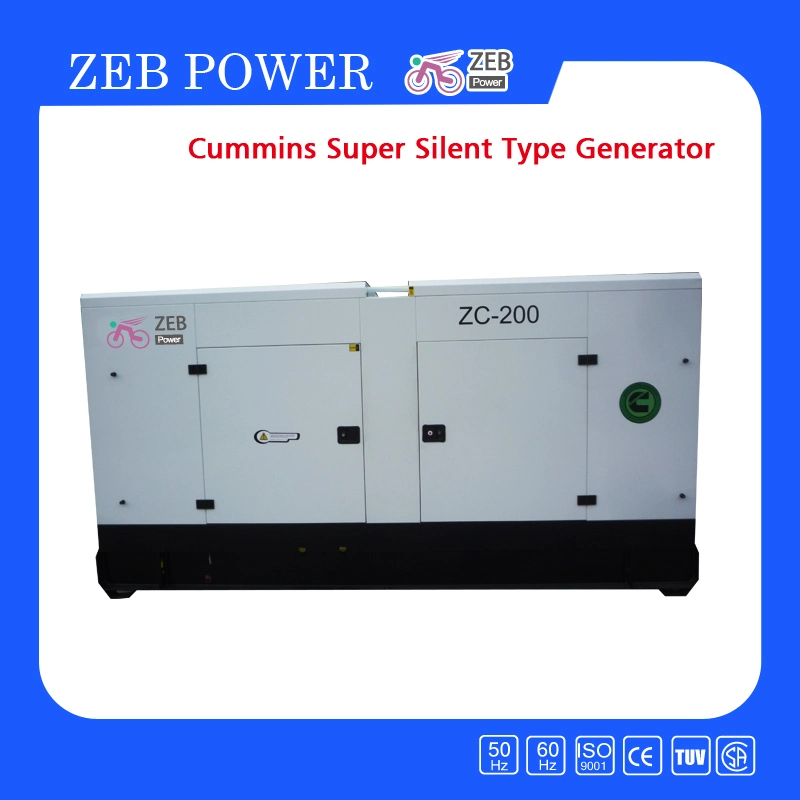

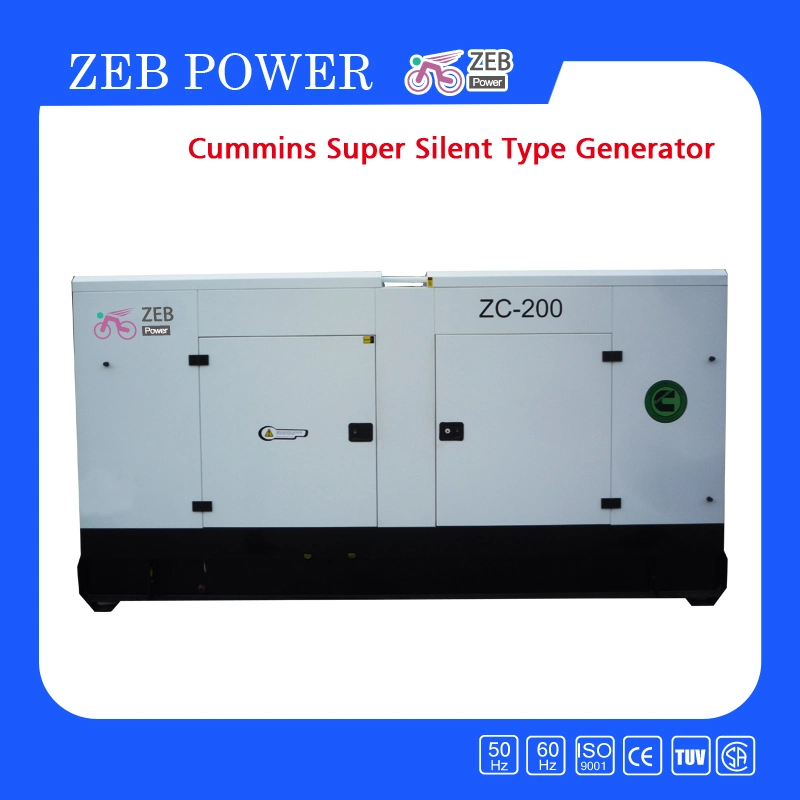

Detailed Picture Showing:

Super Silent Diesel Generators (ZC22-ZC1000)

Super Silent Diesel Generators (ZC22-ZC1000)

Model Configuration:

CUMMINS configuration and technical data
50HZ, 3 Phases, 400V
No.	GENSET Model	OUTPUT POWER 1500RPM 50HZ				Engine Model	Alternator Model		Net Weight	Dimension (LWH in mm)		Cyl.	Disp.	Bore*Stroke (mm)	Fuel Cons.
No.	GENSET Model	Standby KVA	standby KW	Prime KVA	Prime KW	CUMMINS	Stamford	Leroy somer	KGS	Open type	Silent type	Nos	(L)	Bore*Stroke (mm)	g/kw.h
1	ZC22	30	24	28	22	4B3.9-G1	PI144F	LSA42.2 M7	850	2100x730x1600	233011001850	4	3.9	102*120	215
2	ZC30	41	33	38	30	4BT3.9-G1	PI144J	LSA43.2 S15	1100	2100x730x1600	233011001850	4	3.9	102*120	215
3	ZC34	48	38	43	34	4BTA3.9-G2	PI144K	LSA43.2 S25	1150	2100x730x1600	233011001850	4	3.9	102*120	215
4	ZC40	55	44	50	40	4BTA3.9-G2	UCI224D	LSA43.2 S35	1170	2100x730x1600	248011101850	4	3.9	102*120	215
5	ZC45	63	50	57	45	4BTA3.9-G2	UCI224E	LSA43.2 M45	1190	2100x730x1600	248011101850	4	3.9	102*120	215
6	ZC68	94	75	85	68	6BT5.9-G1	UCI224G	LSA44.2 VS3	1250	24908301750	293011101950	6	5.9	102*120	215
7	ZC77	106	85	96	77	6BT5.9-G2	UCI274C	LSA44.2 VS45	1280	24908301750	293011101950	6	5.9	102*120	215
8	ZC91	125	100	114	91	6BTA5.9-G2	UCI274D	LSA44.2 S7	1450	24908301750	293011101950	6	5.9	102*120	215
9	ZC104	143	114	130	104	6BTAA5.9-G2	UCI274E	LSA44.2 S75	1550	24908301750	293011101950	6	5.9	102*120	215
10	ZC128	175	140	160	128	6CTA8.3-G2	UCI274F	LSA44.2 L12	1650	26808601750	315011101950	6	5.9	102*120	215
11	ZC145	200	160	181	145	6CTA8.3-G2	UCI274G	LSA46.2 M3	1710	26808601750	315011101950	6	5.9	102*120	215
12	ZC160	220	176	200	160	6CTAA8.3-G2	UCI274H	LSA46.2 M5	1760	28009001750	345011102050	6	5.9	102*120	215
13	ZC173	238	190	216	173	6CTAA8.3-G2	UCD274J	LSA46.2 L6	1860	28009001750	345011102050	6	5.9	102*120	215
14	ZC180	250	200	225	180	6LTAA8.9-G2	UCD274J	LSA46.2 L6	1980	280011001750	395011502100	6	5.9	102*120	215
15	ZC200	275	220	250	200	6LTAA8.9-G2	UCD274K	LSA46.2 L6	1980	280011001750	395011502100	6	8.3	114*135	210
16	ZC200	275	220	250	200	NT855-GA	UCD274K	LSA46.2 L6	3350	331511001650	448011502250	6	8.3	114*135	210
17	ZC228	313	250	285	228	NTA855-G1A	HCI444D	LSA46.2 L9	3350	331511001650	448011502250	6	8.3	114*135	210
18	ZC255	350	280	319	255	NTA855-G1B	HCI444ES	LSA46.2 VL12	3350	331511001650	448011502250	6	8.3	114*135	210
19	ZC273	375	300	341	273	NTA855-G2A	HCI444E	N/A	3380	331511001650	448011502250	6	8.9	114*135	197
20	ZC284	390	312	355	284	NTA855-G4	HCI444FS	LSA47.2 VS2	3520	331511001650	448011502250	6	8.9	114*135	197
21	ZC300	413	330	375	300	NTAA855-G7	HCI444FS	LSA47.2 VS2	3600	350011551650	503014002260	6
22	ZC320	440	352	400	320	NTAA855-G7A	HCI444F	LSA47.2 S4	3870	350011551650	503014002260	6	10.8	125*147	200
23	ZC303	416	333	379	303	KTA19-G2	HCI444FS	LSA47.2 VS2	3900	360013551910	503014002260	6	10.8	125*147	188
24	ZC360	500	400	450	360	KTA19-G3	HCI544C	LSA47.2 S5	3970	360013551910	503014002260	6	10.8	125*147	188
25	ZC400	550	440	500	400	KTA19-G4	HCI544D	LSA47.2 M7	4100	360013551910	503014002260	6	14.0	140*152	200.2
26	ZC455	625	500	568	455	KTAA19-G5	HCI544E	LSA47.2 L9	4400	372016502050	20GP	6	14.0	140*152	200.2
27	ZC480	650	520	600	480	KTAA19-G6A	HCI544E	LSA47.2 L9	4420	372016502050	20GP	6	14.0	140*152	205.4
28	ZC500	688	550	625	500	KTAA19-G6A	HCI544F-S	LSA49.1 S4A	4650	372016502050	20GP	6	14.0	159*159	205.4
29	ZC512	706	565	640	512	KTA38-G	HCI544F	LSA49.1 S4	6650	435017102300	20GP	12	18.9	159*159	200.7
30	ZC600	825	660	750	600	KTA38-G2	LVI634B	LSA49.1 M65	6950	435017102300	20GP	12	18.9	159*159	200.5
31	ZC640	880	704	800	640	KTA38-G2B	HCI634G	LSA49.1 M75	7000	435017102300	20GP	12	18.9	159*159	200.5
32	ZC648	890	712	810	648	KA38-G2A	HCI634G	LSA49.1 M75	7150	450020502200	20GP	12	18.9	159*159	208
33	ZC734	1010	808	918	734	KTA38-G2A	HCI634H	LSA49.1 L10	7340	450020502200	20GP	12	18.9	159*159	202
34	ZC752	1034	827	940	752	KTA38-G5	HCI634H	N/A	7380	450020502200	20GP	12	37.8	159*159	213
35	ZC823	1133	906	1029	823	KTA38-G5	HCI634J	LSA50.2 S4	7550	450020502200	20GP	12	37.8	159*159	209
36	ZC1000	1375	1100	1250	1000	KTAA38-G9A	LVI634G	LSA50.2 M6	7900	470021002300	20GP	12	37.8	159*159	196
60HZ, 3 Phases, 230/400V or 240v/415v
No.	GENSET Model	OUTPUT POWER 1800RPM 60HZ				Engine Model	Alternator Model		Net Weight	Dimensions (LWH in mm)		Cyl.	Disp.	Bore*Stroke (mm)	Fuel Cons.
No.	GENSET Model	Standby KVA	standby KW	Prime KVA	Prime KW	CUMMINS	Stamford	Leroy somer	KGS	Open type	Silent type	Nos	(L)	Bore*Stroke (mm)	g/kw.h
1	ZC22	30	24	28	22	4B3.9-G1/G2	PI144E	LSA42.2 M6	830	2100x730x1600	233011001850	4	3.9	102*120	215
2	ZC24	33	26	30	24	4B3.9-G1/G2	PI144F	LSA42.2 M6	845	2100x730x1600	233011001850	4	3.9	102*120	215
3	ZC30	41	33	38	30	4BT3.9-G1/G2	PI144H	LSA42.2 L9	1080	2100x730x1600	233011001850	4	3.9	102*120	215
4	ZC34	46	37	43	34	4BT3.9-G1/G2	PI144J	LSA43.2 S1	1100	2100x730x1600	233011001850	4	3.9	102*120	215
5	ZC37	50	40	46	37	4BTA3.9-G2	PI144J	LSA43.2 S15	1150	2100x730x1600	233011001850	4	3.9	102*120	215
6	ZC40	55	44	50	40	4BTA3.9-G2	PI144K	LSA43.2 S15	1160	2100x730x1600	233011001850	4	3.9	102*120	215
7	ZC48	67	53	60	48	4BTA3.9-G2	UCI224D	LSA43.2 S35	1220	2100x730x1600	248011101850	4	3.9	102*120	215
8	ZC78	108	86	98	78	6BT5.9-G1/G2	UCI224G	LSA44.2 VS3	1250	24908301620	293011101950	6	5.9	102*120	215
9	ZC82	113	90	103	82	6BT5.9-G2	UCI274C	LSA44.2 VS3	1300	24908301620	293011101950	6	5.9	102*120	215
10	ZC104	143	114	130	104	6BTA5.9-G2	UCI274D	LSA44.2 S7	1500	24908301620	293011101950	6	5.9	102*120	215
11	ZC118	162	130	148	118	6BTAA5.9-G2	UCI274E	LSA44.2 S75	1550	24908301620	293011101950	6	5.9	102*120	215
12	ZC134	184	147	168	134	6CTA8.3-G2	UCI274E	LSA44.2 M95	1650	26808601600	313011101950	6	8.3	114*135	210
13	ZC160	220	176	200	160	6CTA8.3-G2	UCI274G	LSA46.2 M3	1750	26808601600	313011101950	6	8.3	114*135	210
14	ZC182	250	200	228	182	6CTAA8.3-G2	UCI274H	LSA46.2 M5	1800	26808601600	343011102060	6	8.3	114*135	210
15	ZC225	310	248	281	225	6LTAA8.9-G2	UCD274J	LSA46.2 L6	2000	280011001750	393011202100	6	8.9	114*135	197
16	ZC196	270	216	245	196	NTA855-G1	UCI274H	N/A	3200	331511001650	448011302270	6	14.0	140*152	195
17	ZC240	330	264	300	240	NTA855-G1	UCD274K	LSA46.2 L9	3350	331511001650	448011302270	6	14.0	140*152	200
18	ZC275	378	302	344	275	NTA855-G1B	HCI444D	LSA46.2 VL12	3500	331511001650	448011302270	6	14.0	140*152	205
19	ZC320	440	352	400	320	NTA855-G3	HCI444E	N/A	3350	331511001650	448011302270	6	14.0	140*152	208
20	ZC352	484	387	440	352	KTA19-G2	HCI444FS	LSA47.2 VS2	3950	359013551910	503013852260	6	18.9	159*159	201
21	ZC384	528	422	480	384	KTA19-G3	HCI444F	LSA47.2 S4	3950	356013551910	503013852260	6	18.9	159*159	202
22	ZC420	578	462	525	420	KTA19-G3	HCI544C	LSA47.2 S5	4100	356013551910	503013852260	6	18.9	159*159	201
23	ZC460	633	506	575	460	KTA19-G4	HCI544D	LSA47.2 M7	4200	356013551910	503013852260	6	18.9	159*159	201
24	ZC474	653	522	594	474	KTAA19-G5	HCI544D	LSA47.2 M7	4250	372016402040	20GP	6	18.9	159*159	205
25	ZC550	756	605	685	550	KTAA19-G6A	HCI544E	N/A	4650	372016402040	20GP	6	18.9	159*159	202
26	ZC620	853	682	775	620	KT38-G	HCI544F	LSA49.1 M6	6700	434517102300	20GP	12	37.8	159*159	209
27	ZC700	963	770	875	700	KTA38-G2	HCI634G	LSA49.1 M75	7200	453017102300	20GP	12	37.8	159*159	209
28	ZC740	1,013	810	925	740	KTA38-G2	HCI634G	LSA49.1 M75	7250	453017102300	20GP	12	37.8	159*159	209
29	ZC850	1,169	935	1,063	850	KTA38-G4	HCI634H	LSA49.1 L10	7400	449020602165	20GP	12	37.8	159*159	207
30	ZC910	1,250	1,000	1,138	910	KTA38-G4	HCI634J	LSA50.2 S4	7600	449020602165	20GP	12	37.8	159*159	207
