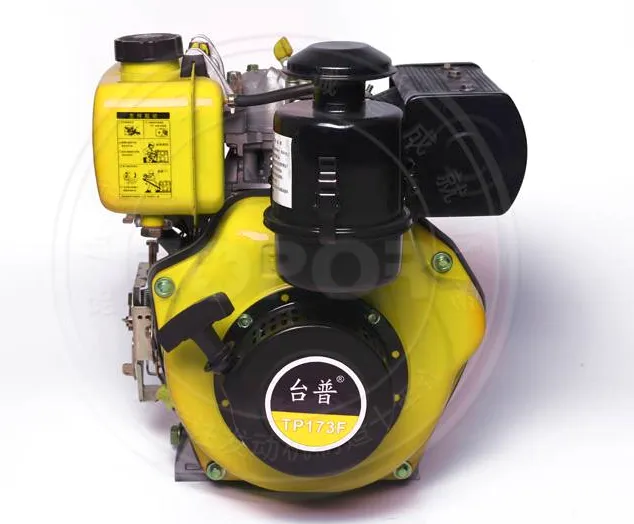

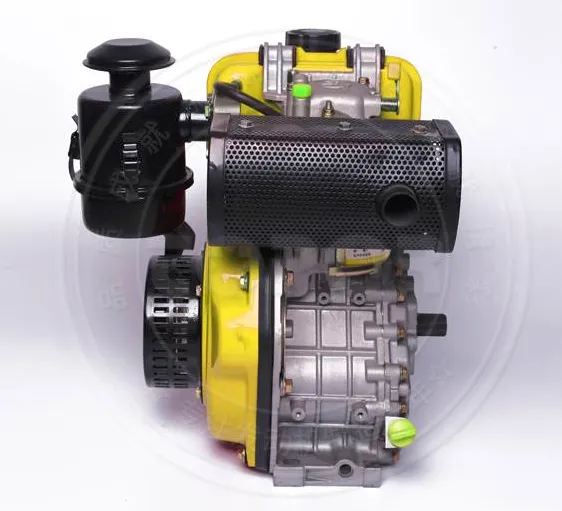

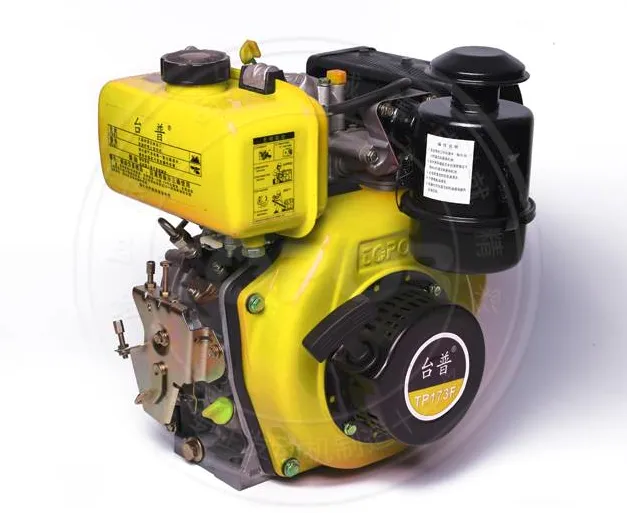

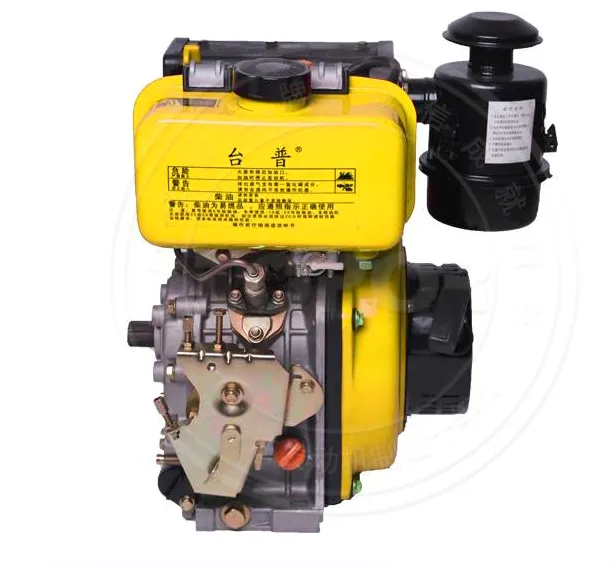

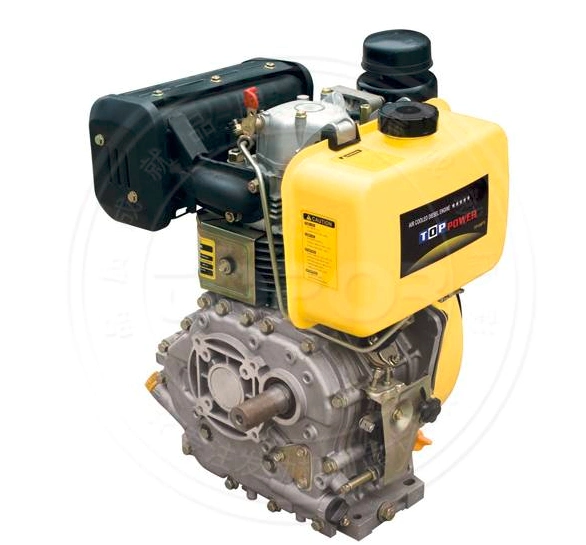

Small 6HP 1/2 Rpm Compact Diesel Engine Tp186fs
MODEL NO: TP178FSDiesel Engine TypeSingle-cylinder,Vertical,4-stroke,direct injectionBore×Stroke 78×62Displacement(cc) 296Rated speed(rpm)15001800Rated power/kw3.74Rated power/HP5.05.4Piston running speed(m/s)6.27.44Fuel consumption(g./kw.h)278/3000287/3600Fuel tank cap......
Send Inquiry
Product Description
| MODEL NO: TP178FS | ||
| Diesel Engine Type | Single-cylinder,Vertical,4-stroke,direct injection | |
| Bore×Stroke | 78×62 | |
| Displacement(cc) | 296 | |
| Rated speed(rpm) | 1500 | 1800 |
| Rated power/kw | 3.7 | 4 |
| Rated power/HP | 5.0 | 5.4 |
| Piston running speed(m/s) | 6.2 | 7.44 |
| Fuel consumption(g./kw.h) | 278/3000 | 287/3600 |
| Fuel tank capacity(L) | 3.5 | |
| Lube oil capacity(L) | 1.1 | |
| Rotation direction | Flywheel Anticlockwise | |
| Compression ratio | 20:1 | |
| Cooling Type | Air-cooled | |
| Lubricating system | Pressure splashed | |
| Net Weight(kg) | 33 | |
| Gross Weight(kg) | 35 | |
| Overall dimension(mm) | 480×460×520 | |
our VANTAGES
1. Professional diesel engine manufacturer, not simply assembler or trader
2. 18 years of manufacturing and exporting experience
3. Adopt International quality standards, to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
