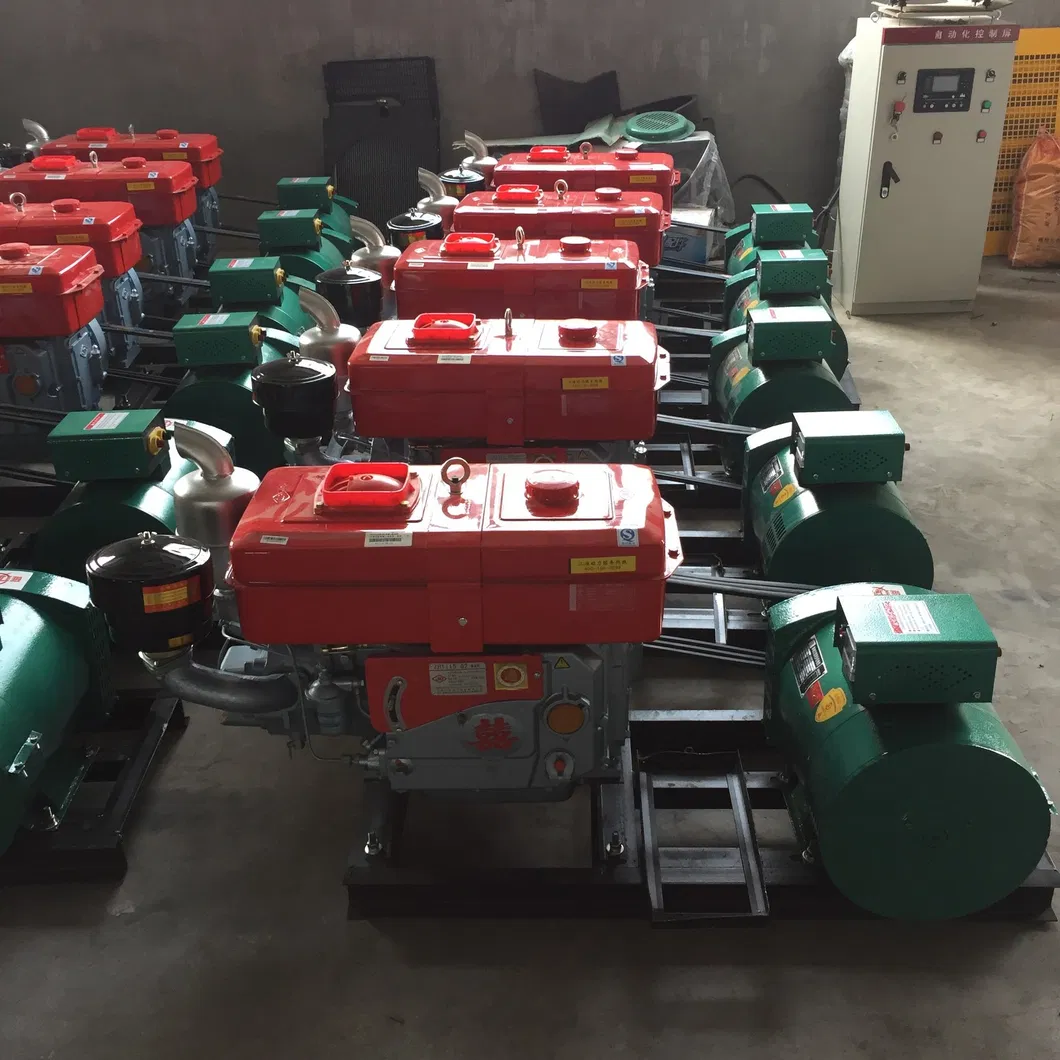

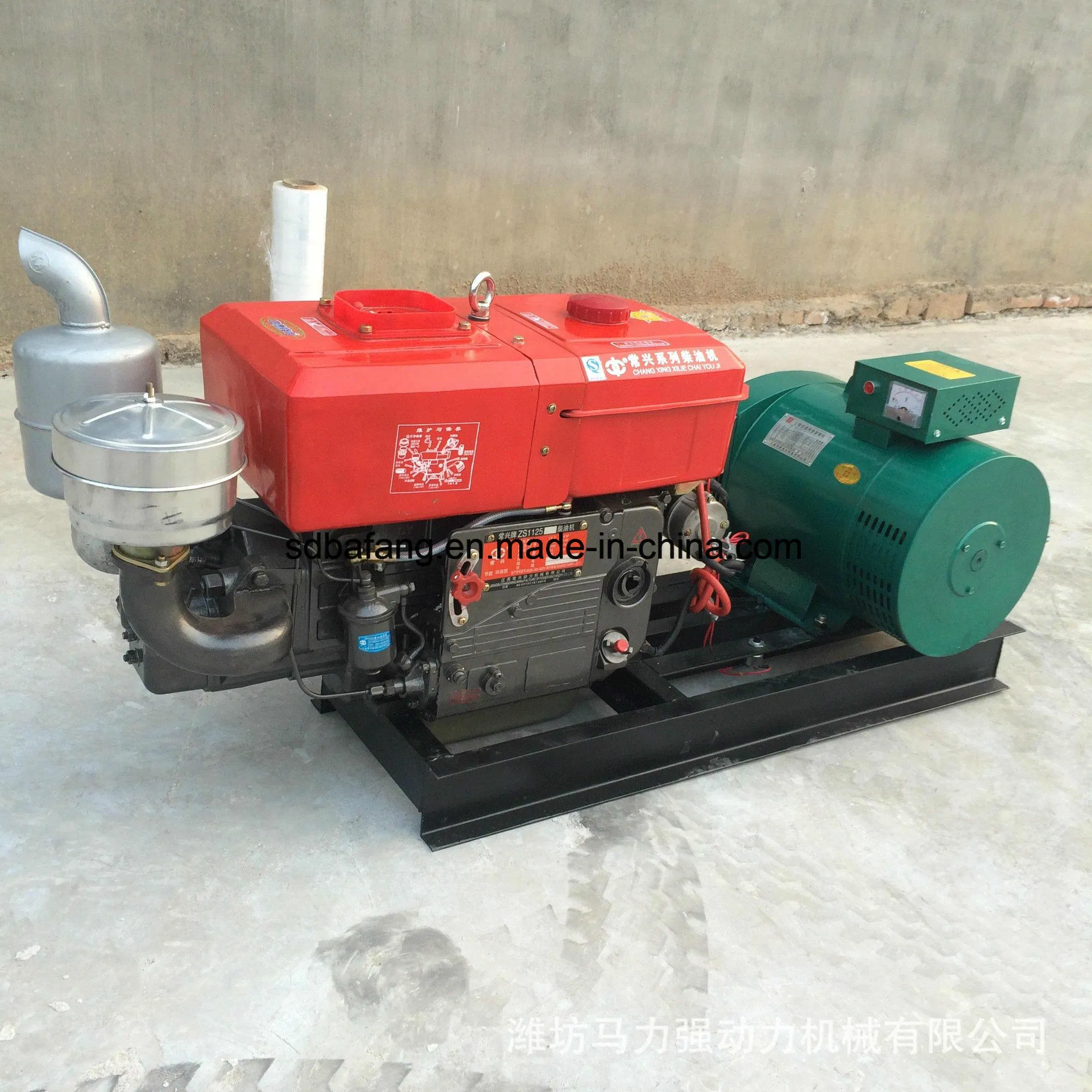

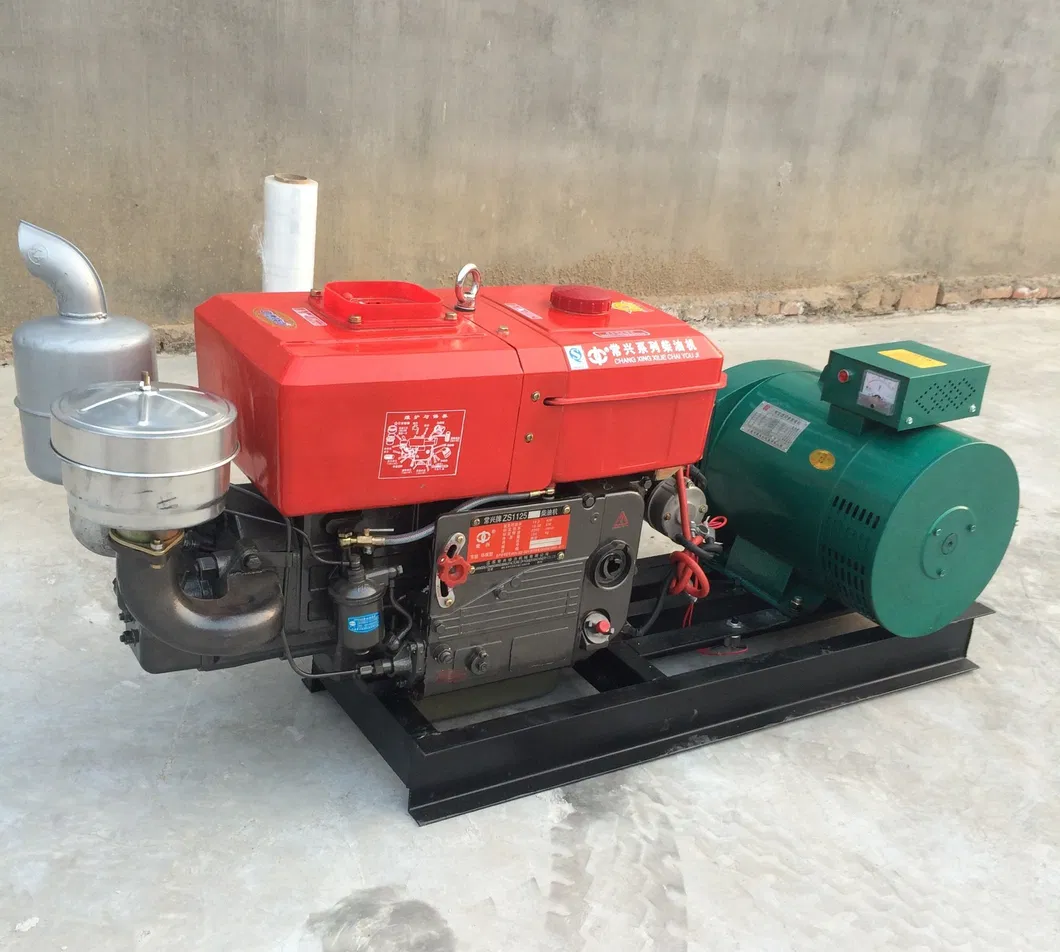

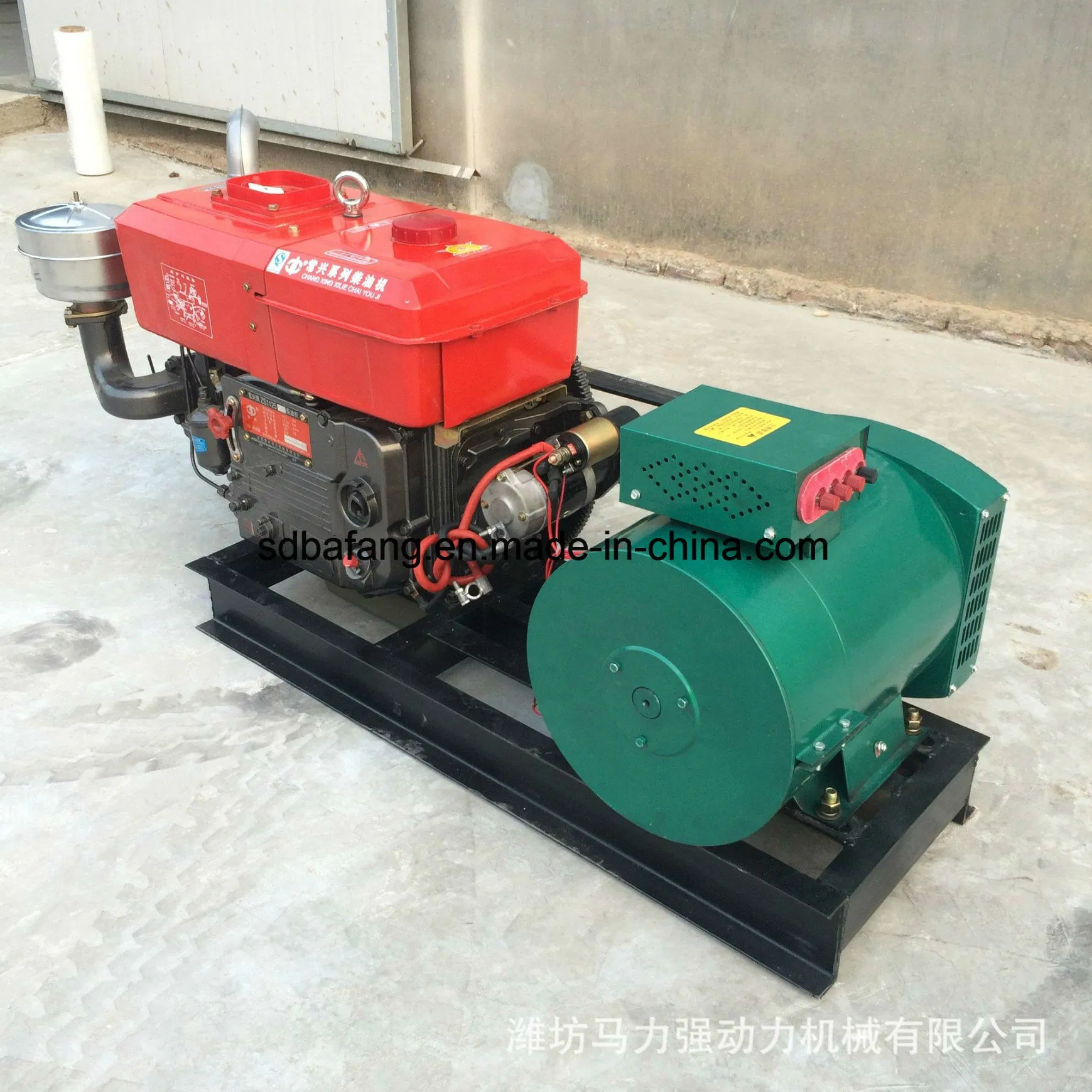

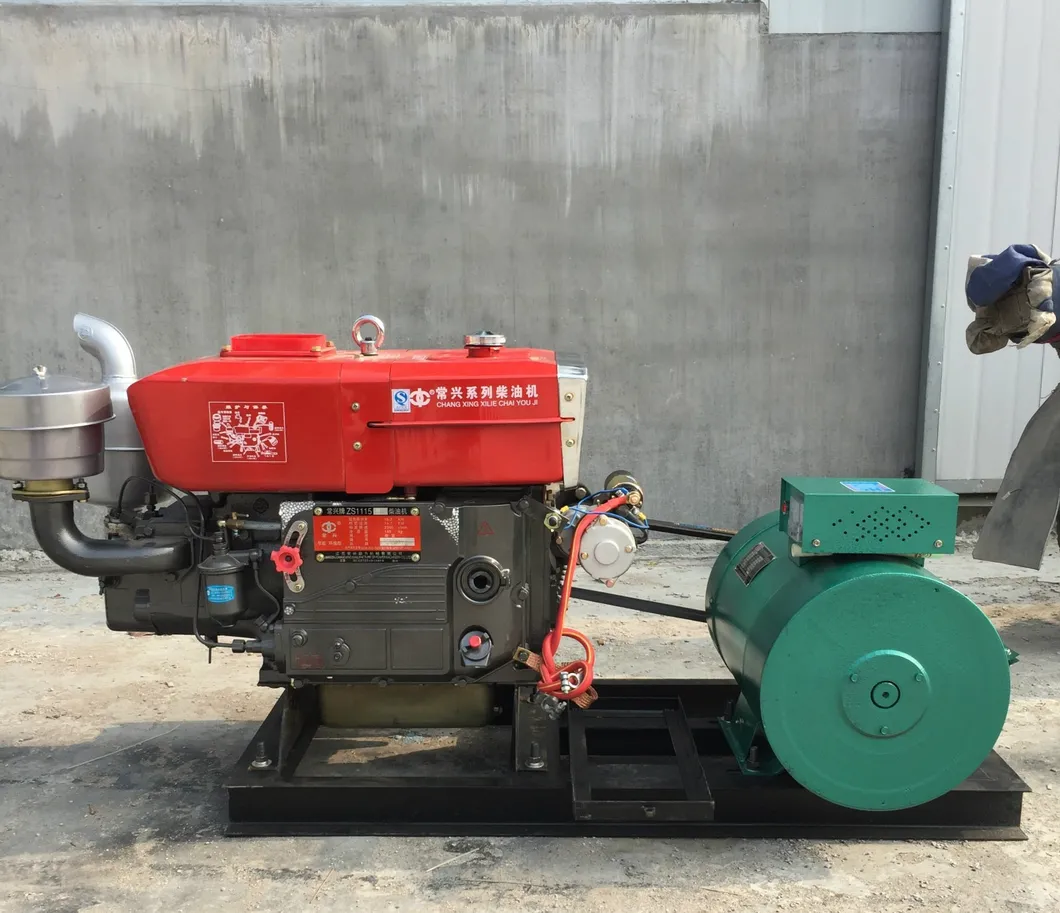

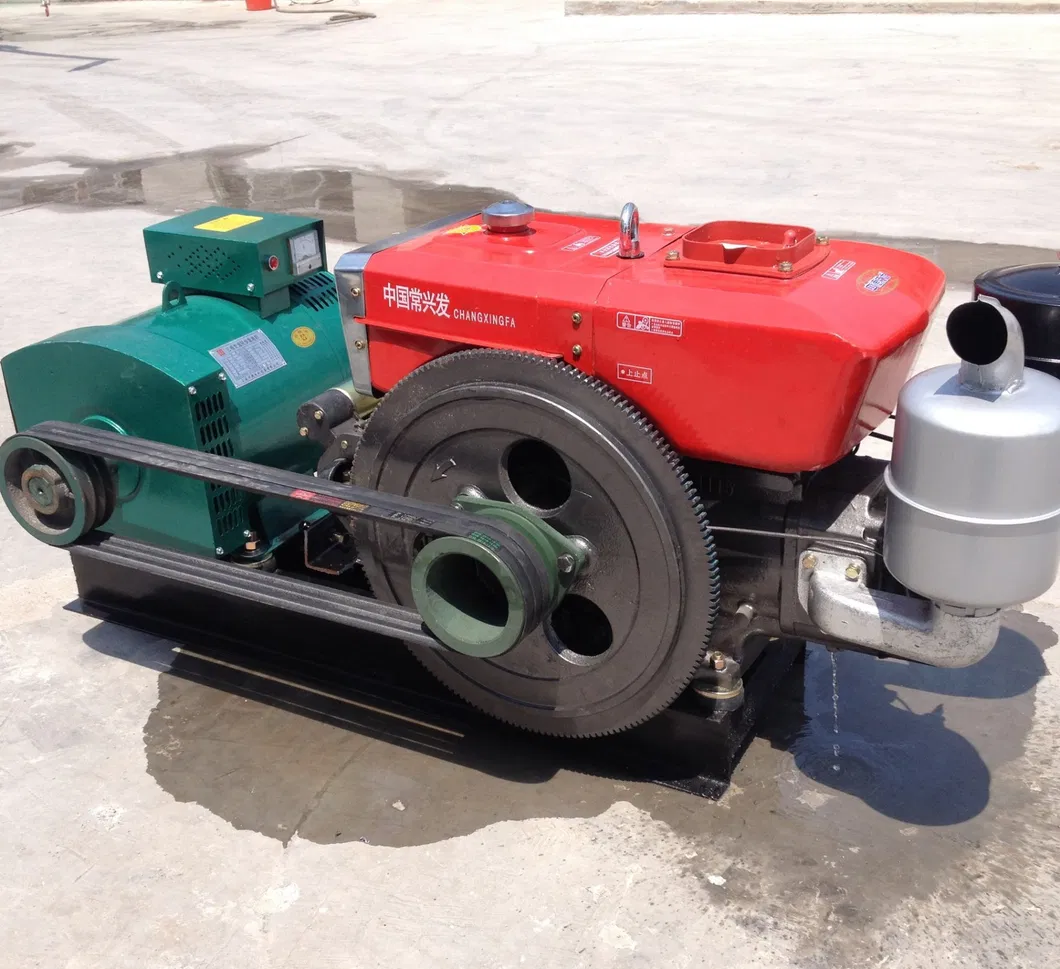

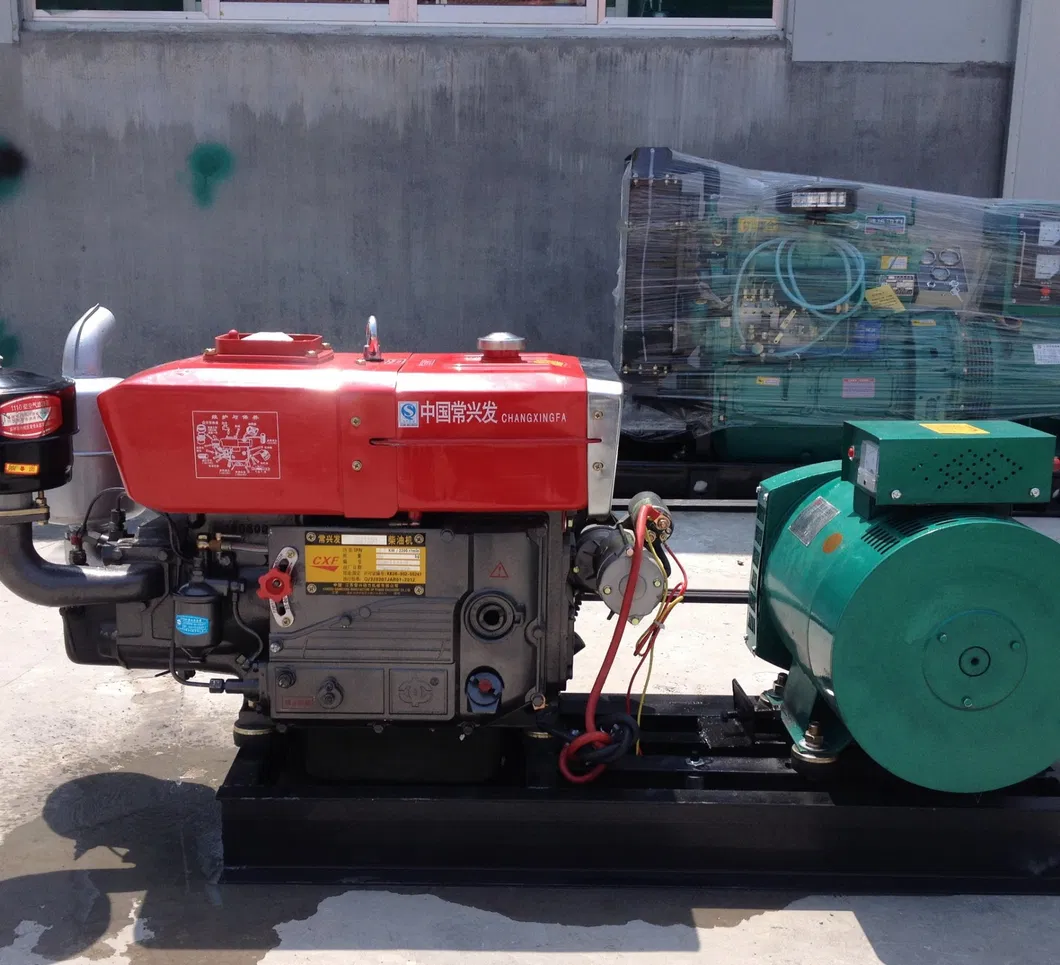

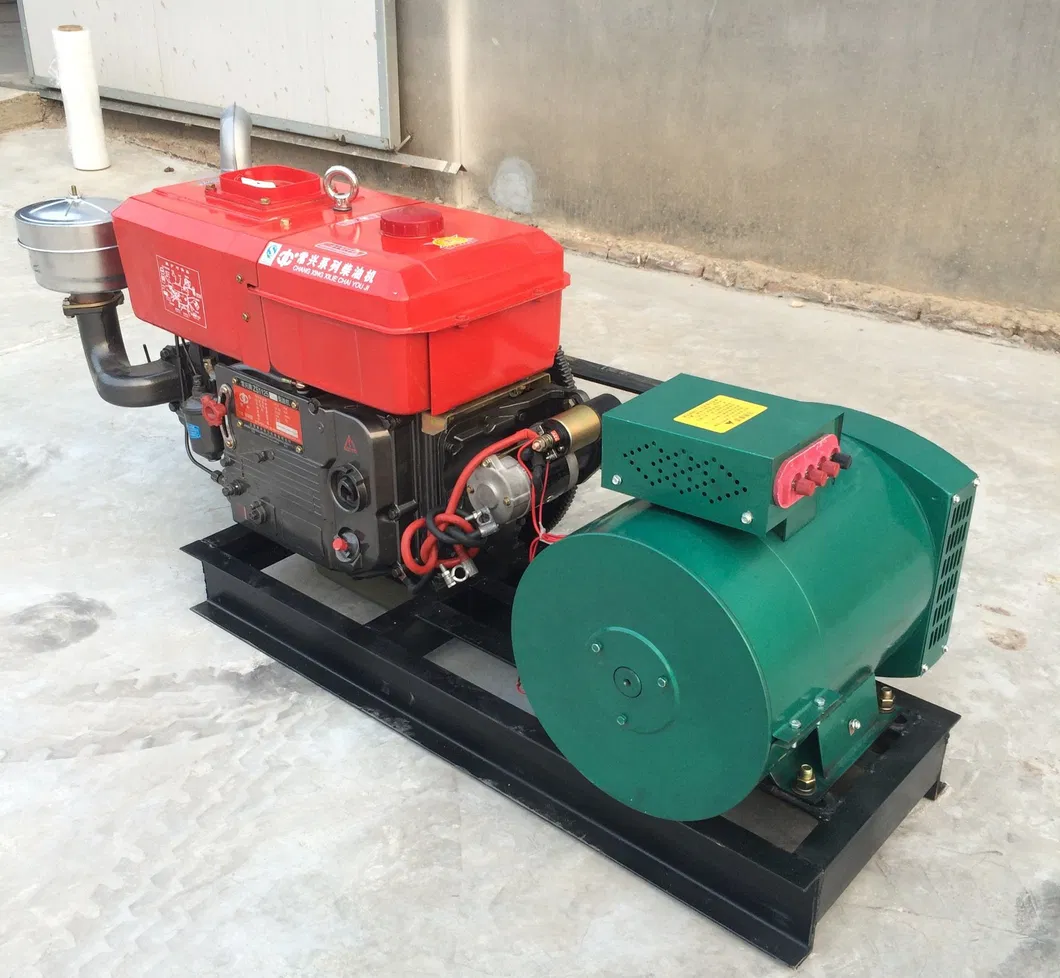

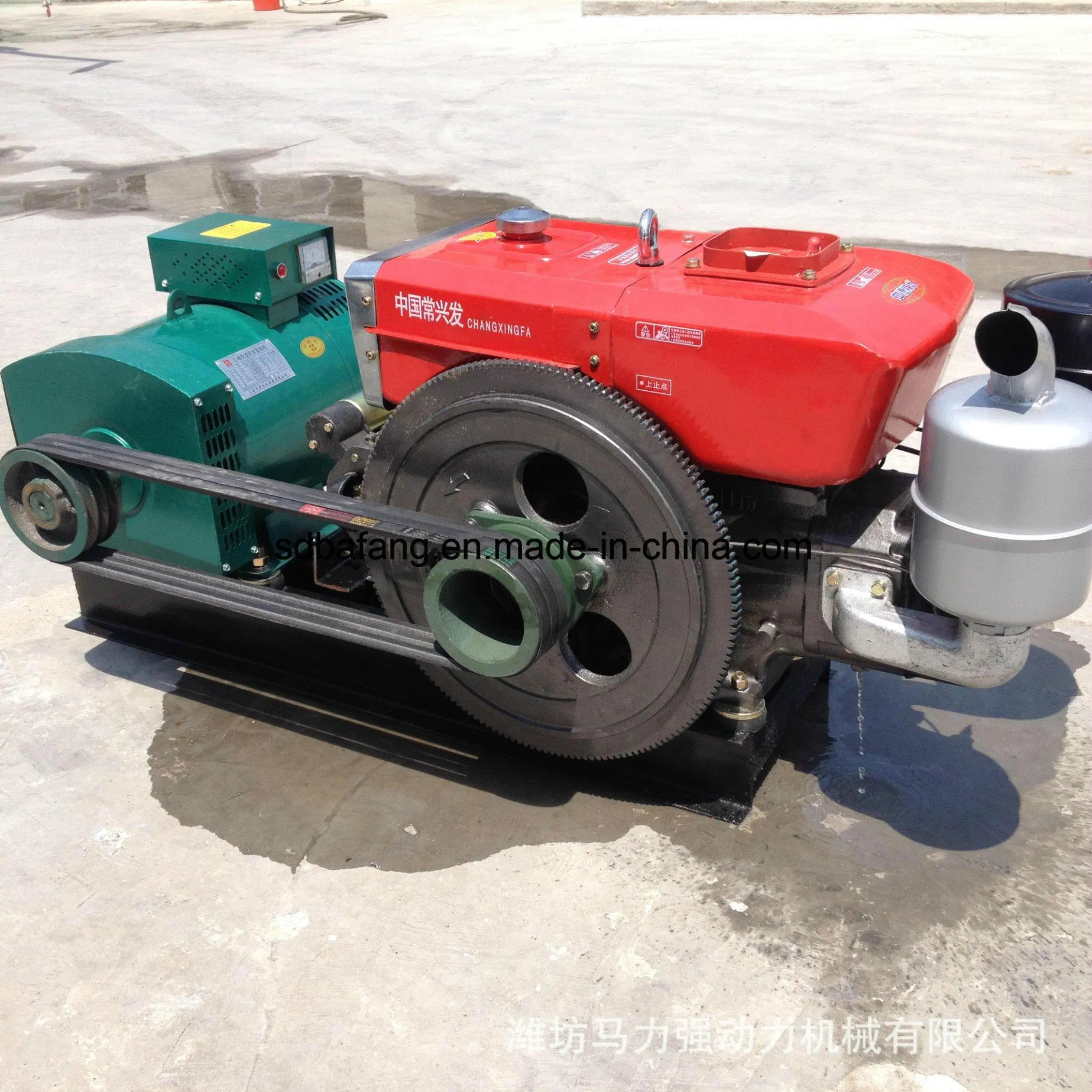

Small 10kw Single Cylinder Water Cooled Electric Start Diesel Generator
Small 10KW single cylinder water cooled electric start diesel generatorProduct Description:Diesel generators power throughout the 3KW to 1500KW, a common type, automatic type, low noise type, mobile power plant type, automatic grid-FM and other specifications. 250KW the following independent researc......
Send Inquiry
Product Description
Small 10KW single cylinder water cooled electric start diesel generator
Product Description:
Diesel generators power throughout the 3KW to 1500KW, a common type, automatic type, low noise type, mobile power plant type, automatic grid-FM and other specifications. 250KW the following independent research and development, more than 300KW power on the use of wood, diesel, Weichai, Yuchai, Cummins, Daewoo, Volvo and other well-known domestic and foreign manufacturers of diesel engines, generators Stamford, Shanghai Qiang, Guangzhou Inge, Marathon The product quality and performance. Widely used in mining, oil fields, enterprises, residential quarters, office buildings, mining islands, farms, factories, forest mines and hospitals, communications, fire, roads, railways, ships, airports, bridges and other units of industry; Power supply, can also be used as an emergency backup power supply.
Technical Parameter:
Diesel generators power throughout the 3KW to 1500KW, a common type, automatic type, low noise type, mobile power plant type, automatic grid-FM and other specifications. 250KW the following independent research and development, more than 300KW power on the use of wood, diesel, Weichai, Yuchai, Cummins, Daewoo, Volvo and other well-known domestic and foreign manufacturers of diesel engines, generators Stamford, Shanghai Qiang, Guangzhou Inge, Marathon The product quality and performance. Widely used in mining, oil fields, enterprises, residential quarters, office buildings, mining islands, farms, factories, forest mines and hospitals, communications, fire, roads, railways, ships, airports, bridges and other units of industry; Power supply, can also be used as an emergency backup power supply.
Technical Parameter:
| Generating sets technical parameters | |
| Unit Model | YM-10GF |
| Output voltage | 230V / 400V |
| Output power | 10KW |
| Rated frequency | 50Hz |
| Rated speed | 1500rpm |
| Fuel grade | 0 # light diesel oil (room temperature) |
| Power factor | COSΦ = 0.8 |
| Noise (LP7m) | 100dB (A) |
| Output current | 18A |
| Technical Parameters of Diesel Engine | |
| Start way | DC12V electrical start |
| Diesel Engine Model | CJ16 |
| Cylinders | single cylinder |
| Rated frequency | 50Hz |
| Rated speed | 1500rpm |
| Cooling | water cooling |
| Speed control | mechanical speed |
| Intake mode | naturally aspirated |
| Generator technical parameters | |
| Generator movement Material | copper brush |
| Protection class | IP21 |
| Excitation mode | 3rd harmonic |
| Insulation class | H level |
| Output frequency | 50Hz |
