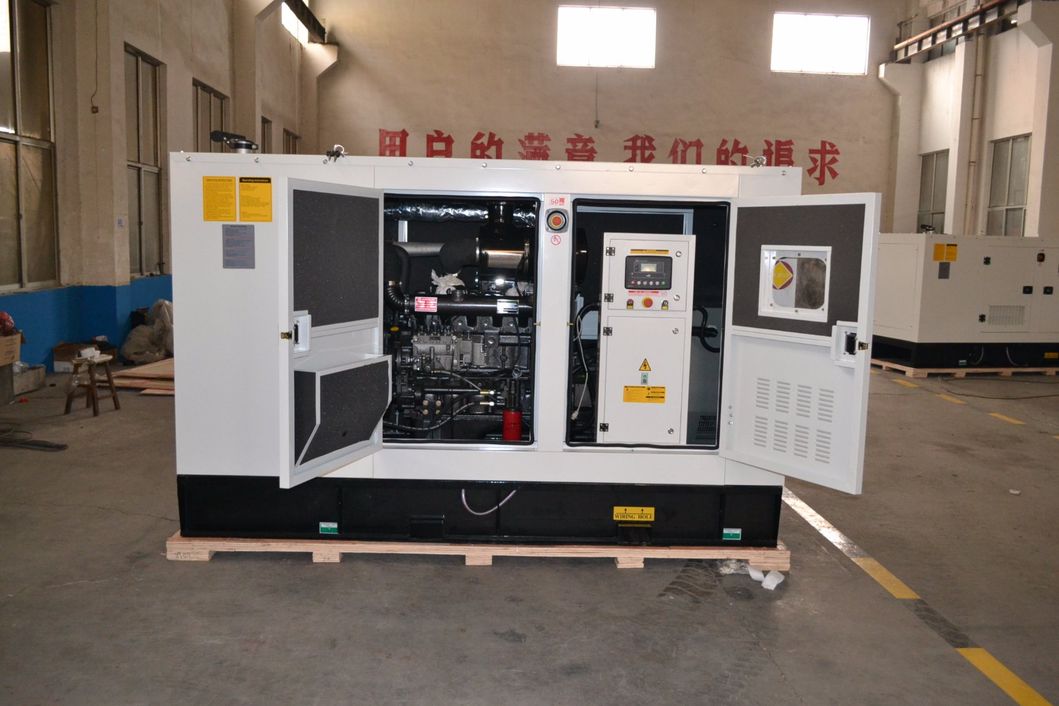

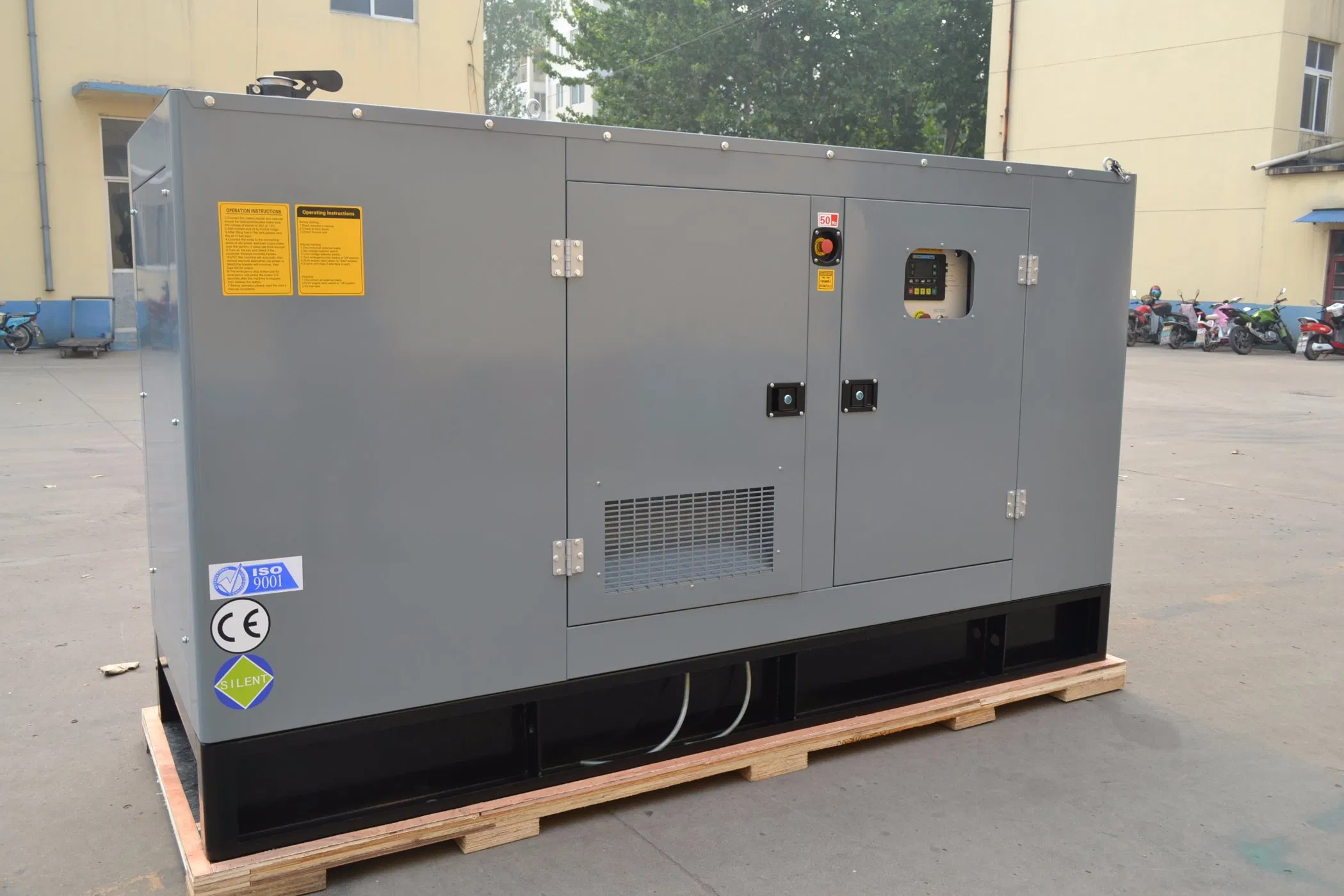

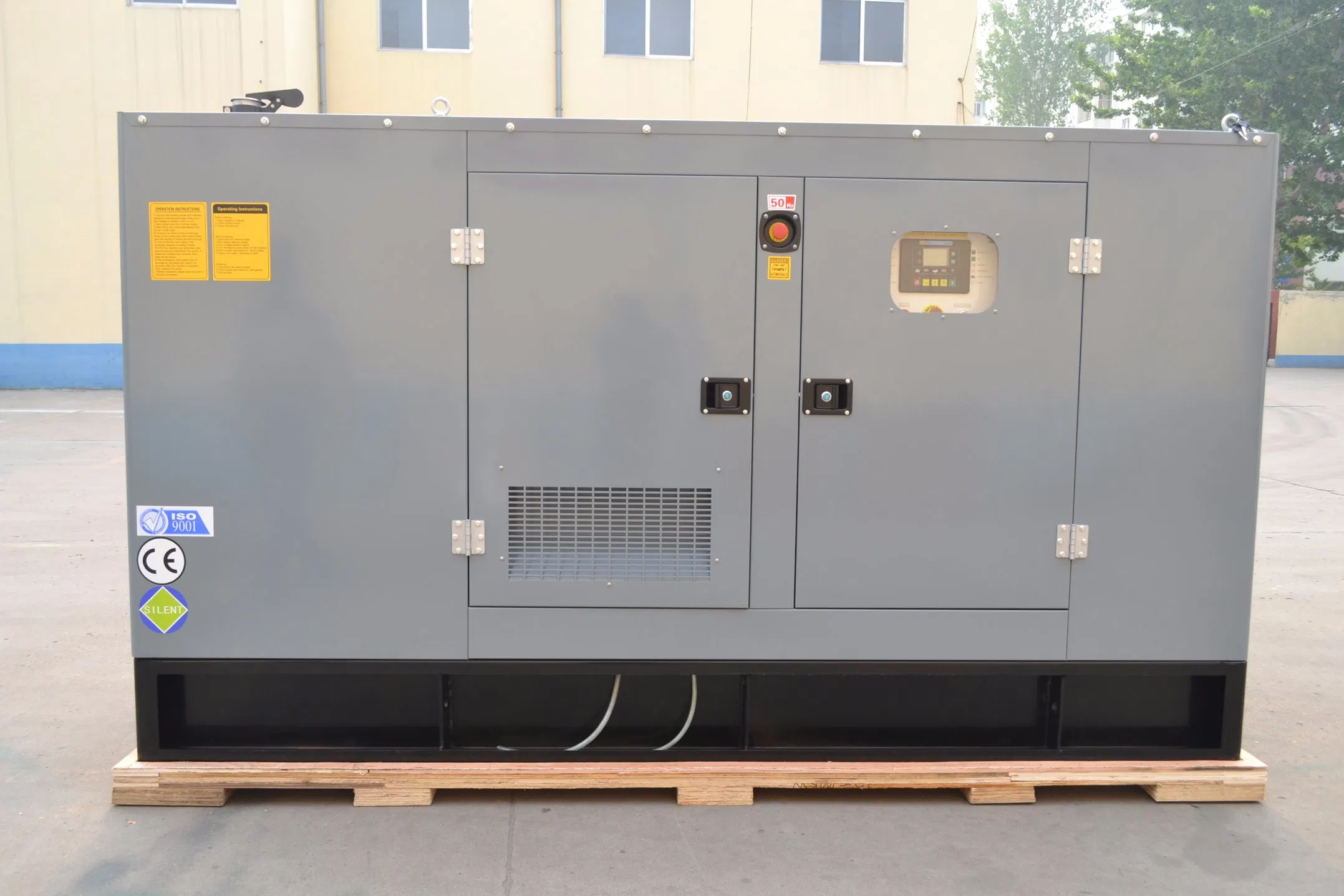

Silent Type Diesel Generator 100kVA 50Hz 380V 1500rpm
CE certificated 80KW/100KVA perkins Generator Set ,* Composed of perkins diesel engine and Stamford , Leroy Somer .... alternator* 24V DC starter motor and storage battery* Brushless, self-excited, insulation F alternator* Engine cooling system: water cooled* Controller: Smartgen digital auto-start......
Send Inquiry
Product Description
CE certificated 80KW/100KVA perkins Generator Set ,
* Composed of perkins diesel engine and Stamford , Leroy Somer .... alternator
* 24V DC starter motor and storage battery
* Brushless, self-excited, insulation F alternator
* Engine cooling system: water cooled
* Controller: Smartgen digital auto-start panel
* 8 hours operation base fuel tank
* Open type
* Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load,110% and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
* Cortication: ISO9001:2000, CE (ESC/070119)
80kw/100kVA Perkins Generator Set with
| Weifang Huayuan Series Diesel Generator | ||
| 1104C-44TAG2 with stamford alternator | ||
| Voltage: 400V | ||
| Frequency: 50HZ | ||
| Power factor: 0.8 Lagging | ||
| Phase: 3 phase | ||
| Engine passed ISO certificate | ||
| Alternator passed ISO certificate | ||
| Generator set passed ISO CE certificate | ||
| MAIN SPECIFICATIONS OF GENSET | ||
| GENERATOR SET MODEL | HF-80GF | |
| Prime Output | 80KW | |
| Standby Power | 88KW | |
| Currency | 135A | |
| TECHNICAL DATA OF DIESEL ENGINE | ||
| DIESEL ENGINE MODEL | 1104C-44TAG2 | |
| Engine Characters | four stroke , water cooling , in line , direct injection | |
| Rated Power | 90KW | |
| Aspiration | Turbocharged | |
| No of Cylinders | 6 | |
| Rated speed (rpm) | 1500 | |
| Arrange of Cyls(inline/vee) | in line | |
| Displacement of Piston (L) | 6.23 | |
| Bore(mm) X Stroke(mm) | 105*120 | |
| Fuel Consumption(g/kw.h) | 209 | |
| Starting mode | electric starting | |
| TECHNICAL DATA OF ALTERNATOR | ||
| ALTERNATOR MODEL | UCI 274C | |
| Continuous Output | 80KW | |
| Voltage Regulation | YES | |
| Excitation Type | Brushless | |
| Voltage Regulation | ±1.0% with 4% engine governing | |
| Waveform Distortion | No load <1.5% and non-distorting balanced linear load <5% | |
| * Composed of Deutz brand diesel engine and copy stamford alternator | ||
| * Diesel Engine with electrical fuel pump and governor | ||
| * Radiator and fan with safety guard. | ||
| * Muffler | ||
| * Single bearing alternator IP 23-22, Insulation Class H. | ||
| * 8hrs operation base fuel tank. | ||
| * 2 unit 24V battery, battery wires. | ||
| * Controller panel and system : Can be Smartgen or Harsen brand according to client requirement . | ||
OUR ADVANTAGES
1. Professional diesel engine manufacturer, not simply assembler or trader
2. 18 years of manufacturing and exporting experience
3. Adopt International quality standards, to meet high quality requirement
4. Good reputation for Reliable quality & Reasonable price
5. Strong technical support
6. Advanced production line with skilled workers
