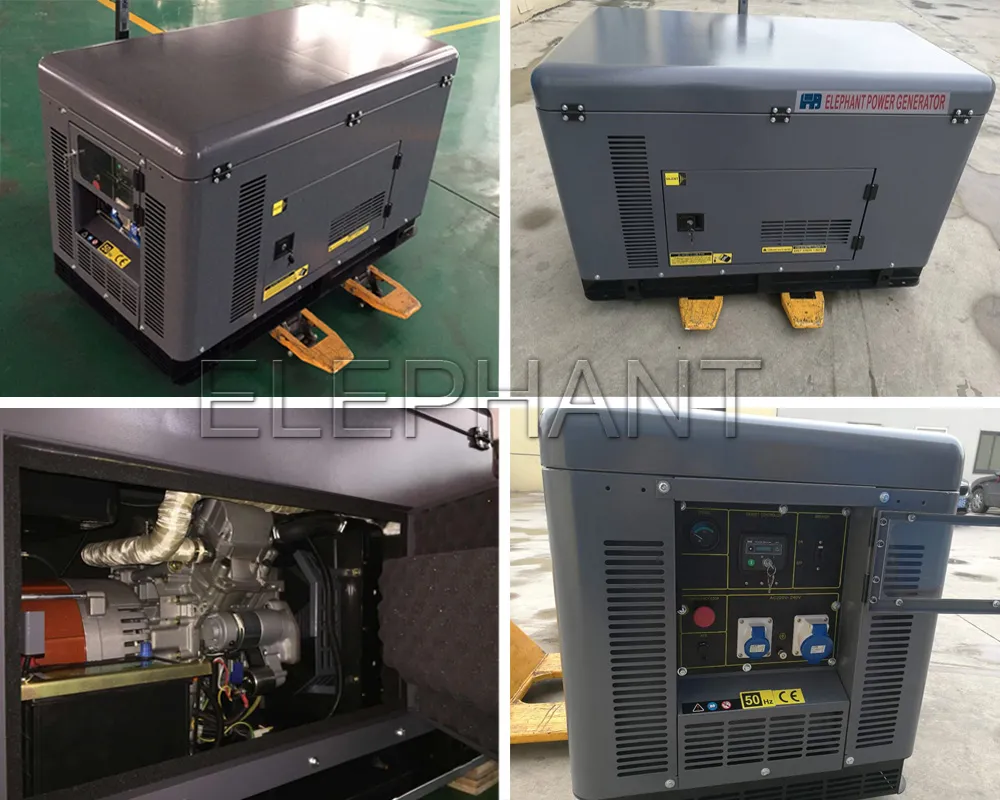

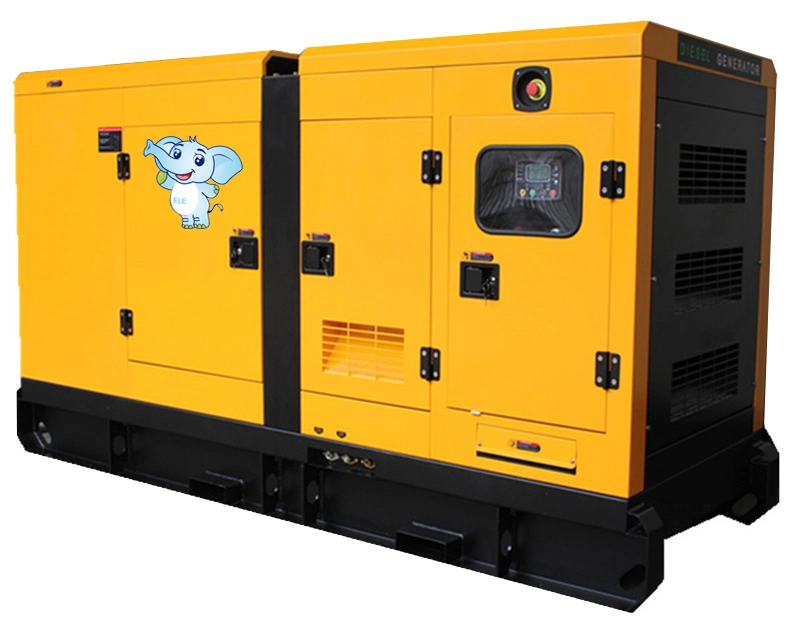

Silent Type Cheap Price 40kw/50kVA Quiet Silent AC Three Phase Diesele Generator
Silent type cheap price 40kw/50kva quiet silent AC three Phase diesele generatorProduct DescriptionProduct ParametersProduct Overview 1) Brand-new engine,w/start motor. 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.3) Auto control panel with LCD display. 4......
Send Inquiry
Product Description
Silent type cheap price 40kw/50kva quiet silent AC three Phase diesele generator
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| Genset Specification | |
| Genset Model | BYC-50 |
| Prime Power(Kva/Kw) | 40KW/50KVA |
| Structure type | Open/Silent |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | YC4D85Z-D20 |
| Alternator Model | STG224D |
| DimensionL*W*H(mm) | |
| Open Type | 1982*850*1250 |
| Weight | 920 |
| Silent Type | 2082*950*1350 |
| Weight(Kg) | 1070 |
| Engine Detail | |
| Engine Brand | Yuchai Diesel engine |
| Model | YC4D85Z-D20 |
| Engine speed | 1500rpm |
| Engine power | |
| ......Standby power | 55KW |
| ......Prime power | 50KW |
| Type | 4cycle,in-line,4-cylinder |
| Aspiration | Turbocharged, |
| Governor | electrical |
| Bore*Stroke | 108*115mm |
| Displacement | 4.214 Litres |
| Compression ratio | 17.5:1 |
| Alternator Detail | |
| Manufacturer | Stamford Poweronly |
| Model | STG224D |
| Output power | 40KW |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Altitude | ≤1000m |
| Overspeed | 2250rpm |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ±0.5% |
| Sustained short circuit current | 300%(3IN):10s |
| Total haarmonics (TGH/THC) | <4% |
| Wave form:Nema=TIF | <50 |
| Wave form:I.E.C=THF | <2% |
| Bearing | single |
| Coupling | Direct |
