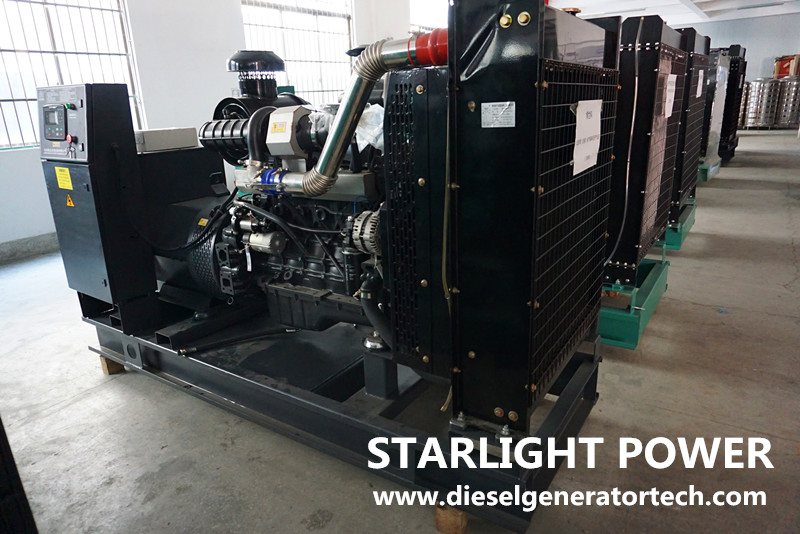

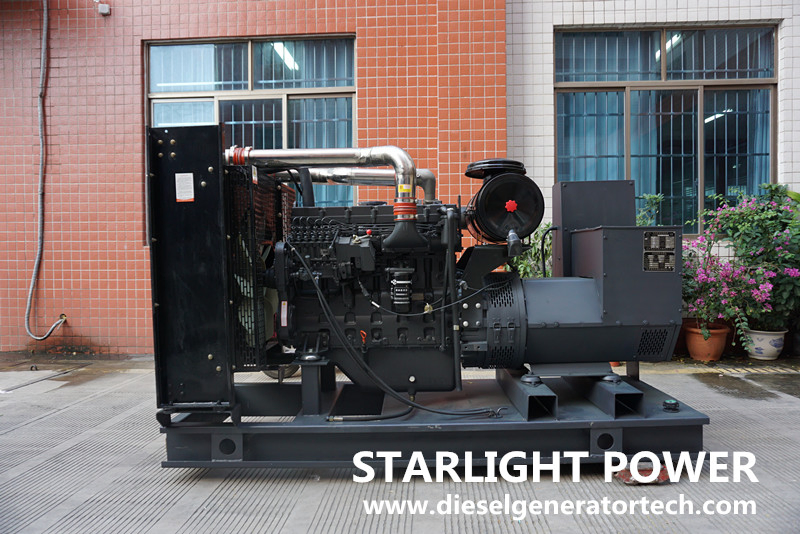

Shangchai Generator/Shangchai Diesel Generators 180kw/ 225kVA
Diesel Generator Set DataManufacturer:Jiangsu Starlight Generating Equipments Co.,LtdSet Type:XG-180GF Prime Output:180KW/225KVARated Current:324(A)Rated Frequency:50(Hz)Start-up time:5~6(s)Power Factor:0.8(Lag)Rated Voltage:400/230(V)Diesel Engine DataManufacturer: Shanghai EngineModel:SC8D280D2S......
Send Inquiry
Product Description
| Diesel Generator Set Data | |
| Manufacturer: | Jiangsu Starlight Generating Equipments Co.,Ltd |
| Set Type: | XG-180GF |
| Prime Output: | 180KW/225KVA |
| Rated Current: | 324(A) |
| Rated Frequency: | 50(Hz) |
| Start-up time: | 5~6(s) |
| Power Factor: | 0.8(Lag) |
| Rated Voltage: | 400/230(V) |
| Diesel Engine Data | |
| Manufacturer: | Shanghai Engine |
| Model: | SC8D280D2 |
| Standby/Prime Power: | 204KW/255KW |
| Rated Speed: | 1500(r/min) |
| Cycle: | 4 stroke |
| Cylinder Arrangement: | 6 in line |
| Displacement: | 12.9L |
| Bore and Stroke: | 114*135(mm) |
| Compression Ratio: | 16:1 |
| Governor Type: | Mechanical |
| Start battery voltage: | 24V DC |
| Alternator Data | |
| Manufacturer: | STARLIGHT KEPU/ STAMFORD/ SIEMENS/ MARATHON/ ENGGA |
| Excitation Mode: | Brushless and self- exciting |
| Number of phase and Access Act: | 3-phase 4-wire |
| Connecting Type: | "Y" type connecting |
| Alternator Capacity: | 247.5KVA |
| Alternator Efficiencies: | 95% |
| Overload: | (PRP)110% load can run 1h |
| Protection Level: | IP22-IP23 |
| Insulation Class, Temperature Rise: | H/H |
| Telephone Influence Factor (TIF): | <50 |
| THF: | <2% |
| Voltage Regulation, Steady State: | ≤±1% |
| Altitude: | ≤1000m |

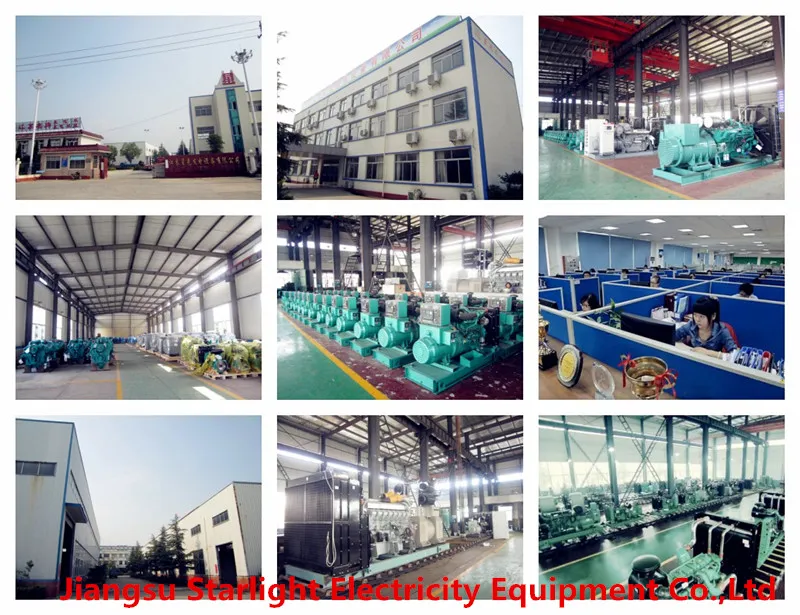

Brief Introduction of Startlight
Jiangsu Startlight Electricity Equipment CO.,LTD. was founded in 1974. As the the wholly-owned subsidiary of Jiangsu Startlight Group, it is one of earlier manufactures in China. Our company covers an area of 86,000 square meter, building area of 56,000 square meters, and has more than 120 million yuan of fixed assets, and the registered capital is 151.88 million yuan. Currently, the company has a total staff of 668, including 456 professional and technical personnel 106 senior technician, 45 sales and service department all over the country. We are the only one who can provide customers with one-stop service of design, supply, commissioning and maintenance. We believe that we can build a first-class enterprise and manufacture first-class products.
Our company has been an accredited manufacture who obtained the authentication of National Inspection and Supervision Center of Gas Engine and Generating Sets since 1992, and passed the CE Certificate, the quality system certification of ISO1400:2008. We have been certified for the three certification systems of ISO 9001-2008 Quality, ISO 1400-2004 Environment and GBIT28001-2001 occupation health & safety management. In addition, we are authorized self-import and export qualifications. We are the cooperative partner of the Ministry of Information Industry Network, the Ministry of Radio Film and Television Network, CNP and China Mobile.
Our company has advanced detection equipment, modern production technology, professional manufacturing technology and perfect quality management system with a strong R&D and technological strength. We can provide a variety of specifications common from 3KW to 2500KW, automated, four-protection, automatic, automatic cut over, low noise and mobile and so on with high quality and low energy consumption power set that can satisfy the customer all electric power demand. We can also satisfy the user different demands of different voltage, frequency and multi-unit parallel grid power supply system.

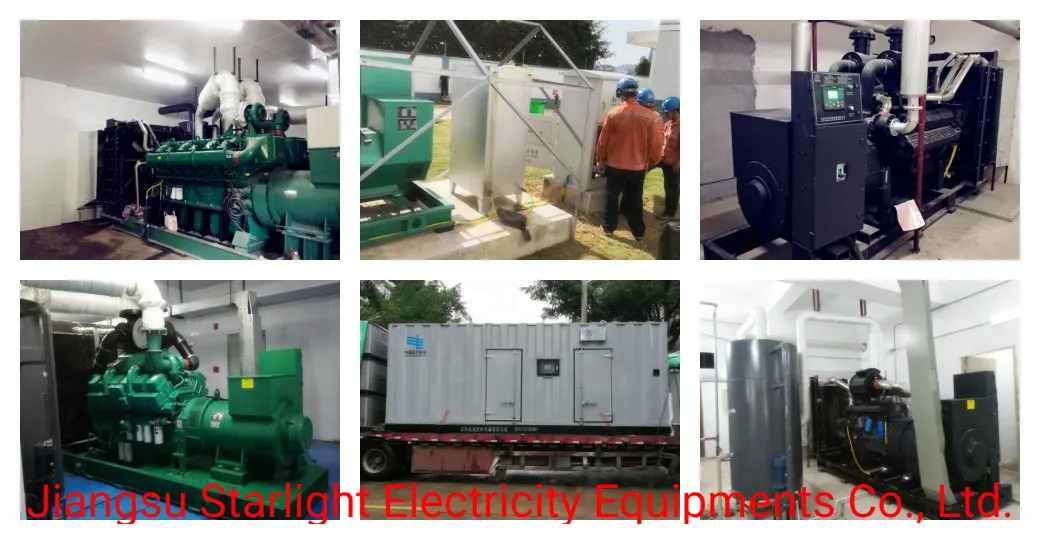

Project Case
Our company depends upon high quality product, good service and good prestige, and we will continue spirit of developing "solidify, work hard, expand, innovation". we will run flexible sales strategy and create new brilliancy together with you. Relying on the company's advantage and strength, our company gradually move towards economies of scale and expand global market.
Our company has a consciousness in advance, in the prime of life, service familiarity management troop, they establish one modern enterprise's goal to embark, in line with "high beginning, high tech, service pursue goal superiority", collects positively absorbs the domestic and foreign vanguard technologies, advanced product, unceasingly to product renewal. Our company has built broad cooperation with Sweden Volvo, USA/Chongqing Cummins, German Deutz, South Korea Daewoo, German MTU and so many other companies and become (OEM) component supplier and the technology center which lays the solid foundation for the development international market.
The tenet of our company's business is "Pursuing super excellence, Continuous Innovation". Our goal is to create the world-famous brand. We will try our best to achieve it with co-partners all over the world.
Why Us?
At present, thousands of Startlight generator sets are being reliably operated in fields like telecommunications, banking, security industry, airports, hospital, transportation, oil fields, military industry and the clients have been distributed around the globe. All staff in Startlight are sparing no efforts to make the Startlight brand a symbol for reliable quality, advanced technology, first-class performance, an environment friend, and long operating life.
We believe that the consideration is as important as innovative technology. The leading product is always based on the leading supporting services. We shall follow the philosophy to meet customer's demands and offer customers the genuine spare parts, technical consulting and installation guide, make equipment commissioning free of charge, rebuild generation set and train the person.
Services:
Before service
Our professional engineer will give you some consultation of technology and related planning before sale, such as selection of equipment, supporting facilities, the design of equipment room. We can also answer and solve the using problem you faced.
After sale service
- free guide to install and debugging
- Free training and consult
- Guiding how to protect your equipment
- We will set up clients' document, tracking service, regular inspection, maintenance for life
- We offers pure perennial spare parts and maintenance engineers will be ready to provide.
★ FAQ
1.
Q.:What is your warranty period?
A.:Our warranty is 1 year or 1000running hours whichever comes first. But based on some special project, we can extended our warranty period.
2.
Q.:Does your generator have global warranty?
A.:Yes, We supply the warranty.Also most of our products like Deutz,Cummins, Doosan,Yuchai,Weichai etc.power generator enjoy the global warranty service. And the alternator we use like Stamford and marathon also enjoy the global warranty service, so you do not need to worry about the after-sales service.
3.
Q.:Can you accept OEM?
A.:Yes, we can accept OEM.
4.
Q.:What is your payment terms?
A.:We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight. But based on some special project and special order,we can do something on payment item.
5.
Q.:What is your delivery time?
A.:Our normal delivery time is 2 to 3 weeks. But if your order is using special engine and alternator, then the delivery time is longer.

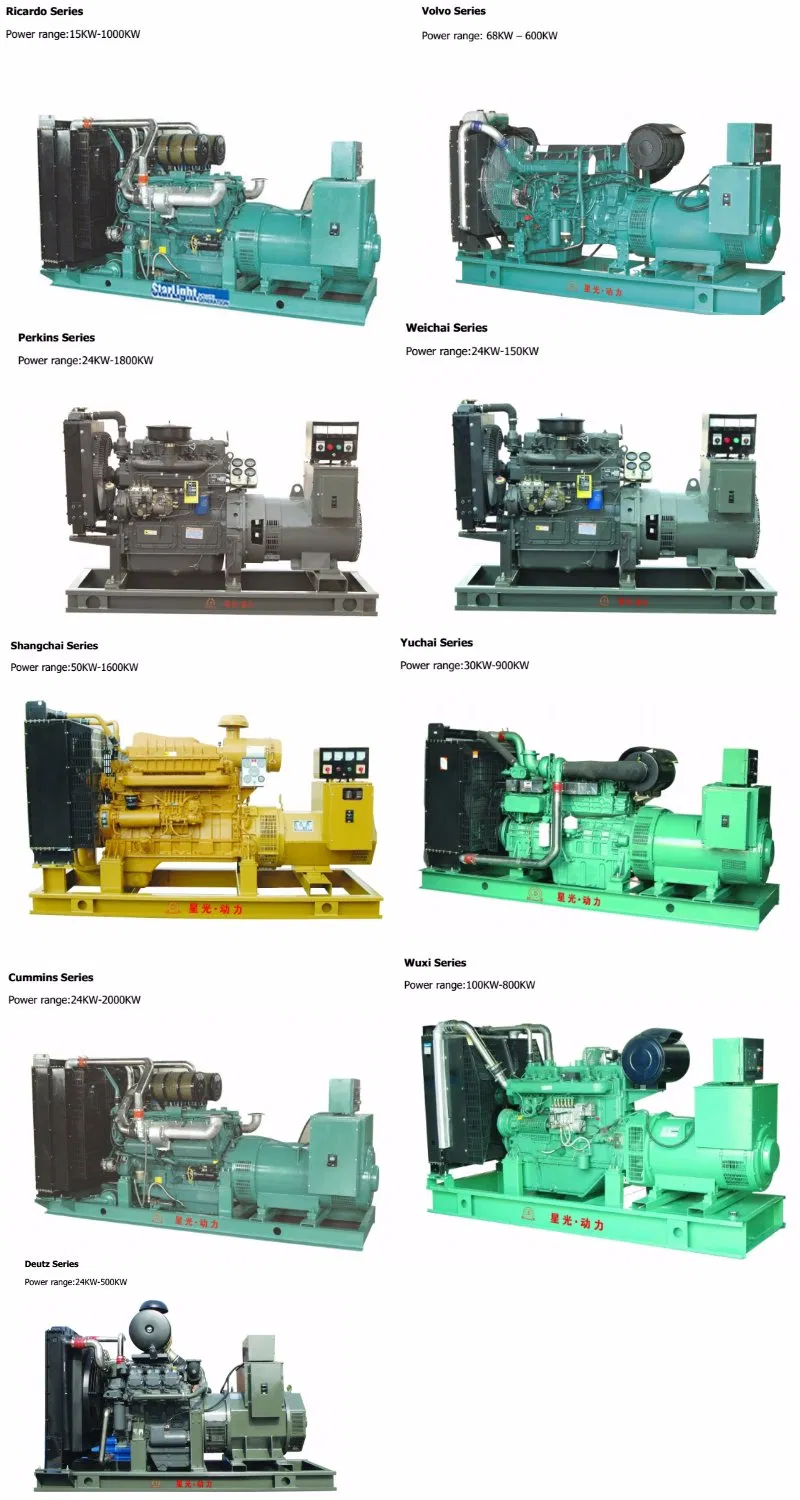

Latest Catalogue

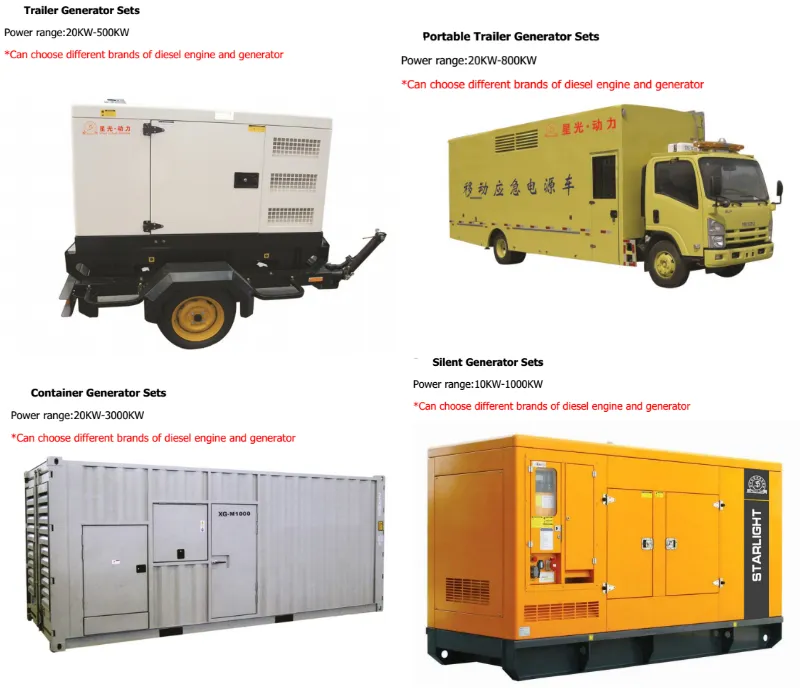

We supply multiple brands of generator set, such as: Cummins, Volvo, Deutz, Doosan Daewoo, MTU, Ricardo, Perkins, Shangchai, Weichai, Yuchai etc. The style of genset is varied, such as: container genset, trailer genset, portable trailer genset, soundproof genset, low noise genset, and silent genset, etc. Besides, we also supply design and construction of the noise reduction project up to the customer's requirements.
