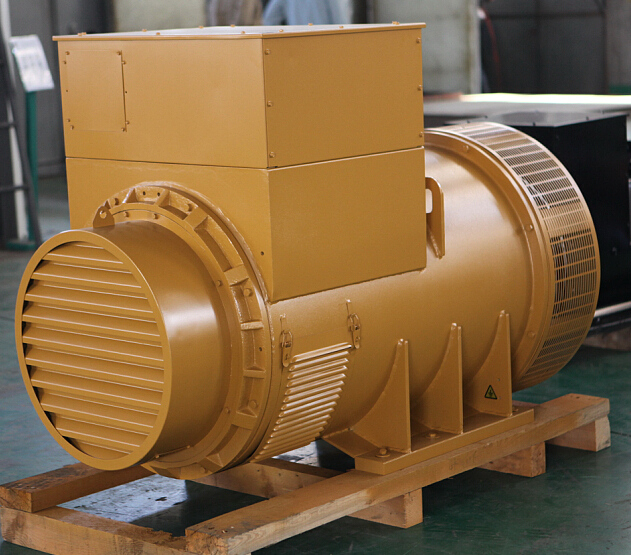

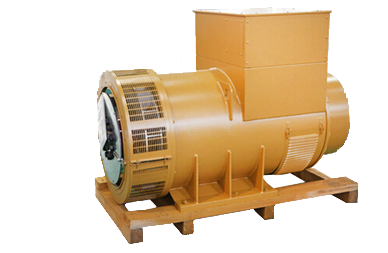

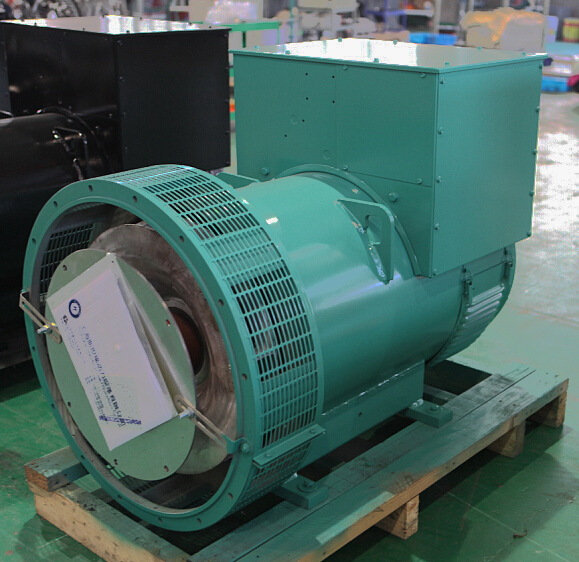

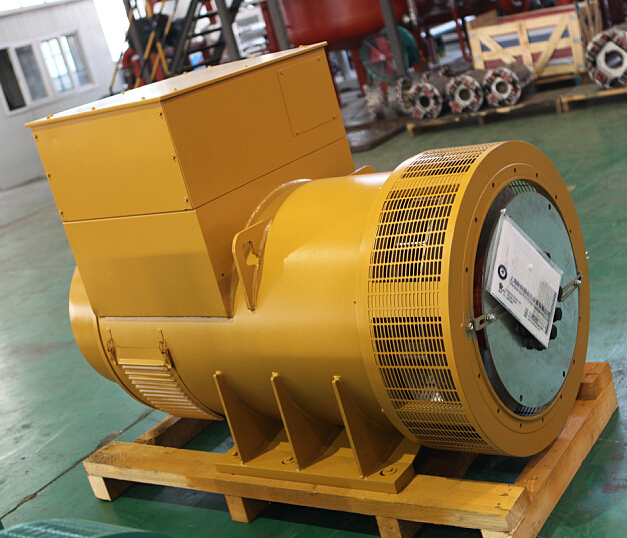

China Sdec Style Shanghai Stamford 41.3kVA 50Hz 60Hz Single Bearing Double Bearing Gr180h Alternator for Generator

Product Description

Shanghai Stanford Power another brand, Gloria, the brushless AC synchronous alternator, is completely in accordance with the UK design, process standard and quality control system. The products are widely applied in diesel engines such as Cummins, Perkins, Doosan, Deutz,Volvo,MTU,MAN,Shangchai, Yuchai,Weichai and so on for compatible using. Covering power from 6.5kw to 1720kw. The products are used in important areas of communication,railway,petroleum,airport,hospital,field exploration etc.

No.	GR160				GR160-2
Item	GR160A	GR160B	GR160C	GR160D	GR160-2D	GR160-2E	GR160-2F
Rated Voltage(v)	380/480	380/480	380/480	380/480	380/480	380/480	380/480
Rated Power(kw)	6.5/8.2	8.8/11	10.8/13.5	12.8/16	10/12.5	12/15	14/17.5
Rated Capacity(KvA)	8.1/10.2	11/13.8	13.5/16.9	16/20	12.5/15.6	15/18.8	17.5/21.9
Frequency	50HZ/60HZ	50HZ/60HZ	50HZ/60HZ	50HZ/60HZ	50HZ/60HZ	50HZ/60HZ	50HZ/60HZ
Speed(rmp)	1500/1800	1500/1800	1500/1800	1500/1800	3000/3600	3000/3600	3000/3600
Temperature rise(≤)	125K	125K	125K	125K	125K	125K	125K
Efficiency(%)	75.6/77.4	78.8/80.5	80/81.7	81/82.7	72.4/73.5	76.3/77	78.5/79.2
Voltage Range	110V~600V				110V~600V
Rated Capacity Range(KVA)	5.4KVA-20KVA				8.4KVA-31.3KVA
Phase	3 Phase/ Single Phase
Winding Pitch	2/3	2/3	2/3	2/3	2/3	2/3	2/3
Pole	4	4	4	4	2	2	2
AVR	SX460	SX460	SX460	SX460	SX460	SX460	SX460
Bearing Arrangement	Single/Double	Single/Double	Single/Double	Single/Double	Single/Double	Single/Double	Single/Double
SAE	2/3/4/5	2/3/4/5	2/3/4/5	2/3/4/5	2/3/4/5	2/3/4/5	2/3/4/5
Terminals	12/2	12/2	12/2	12/2	12/2	12/2	12/2
Material Insulation Class	H	H	H	H	H	H	H
Excitation System	self-excitation	self-excitation	self-excitation	self-excitation	self-excitation	self-excitation	self-excitation
Connection Ways	Y/Series	Y/Series	Y/Series	Y/Series	Y/Series	Y/Series	Y/Series
Protection Level	IP22/23	IP22/23	IP22/23	IP22/23	IP22/23	IP22/23	IP22/23
