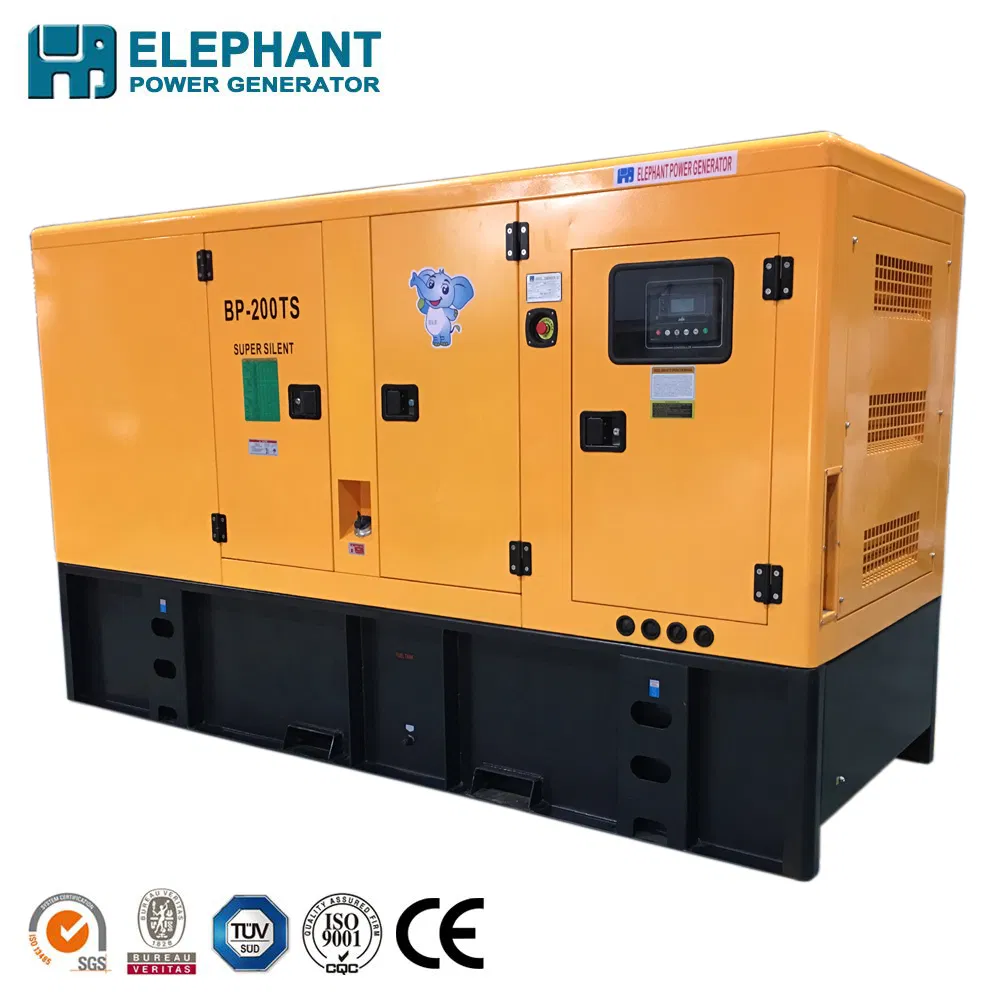

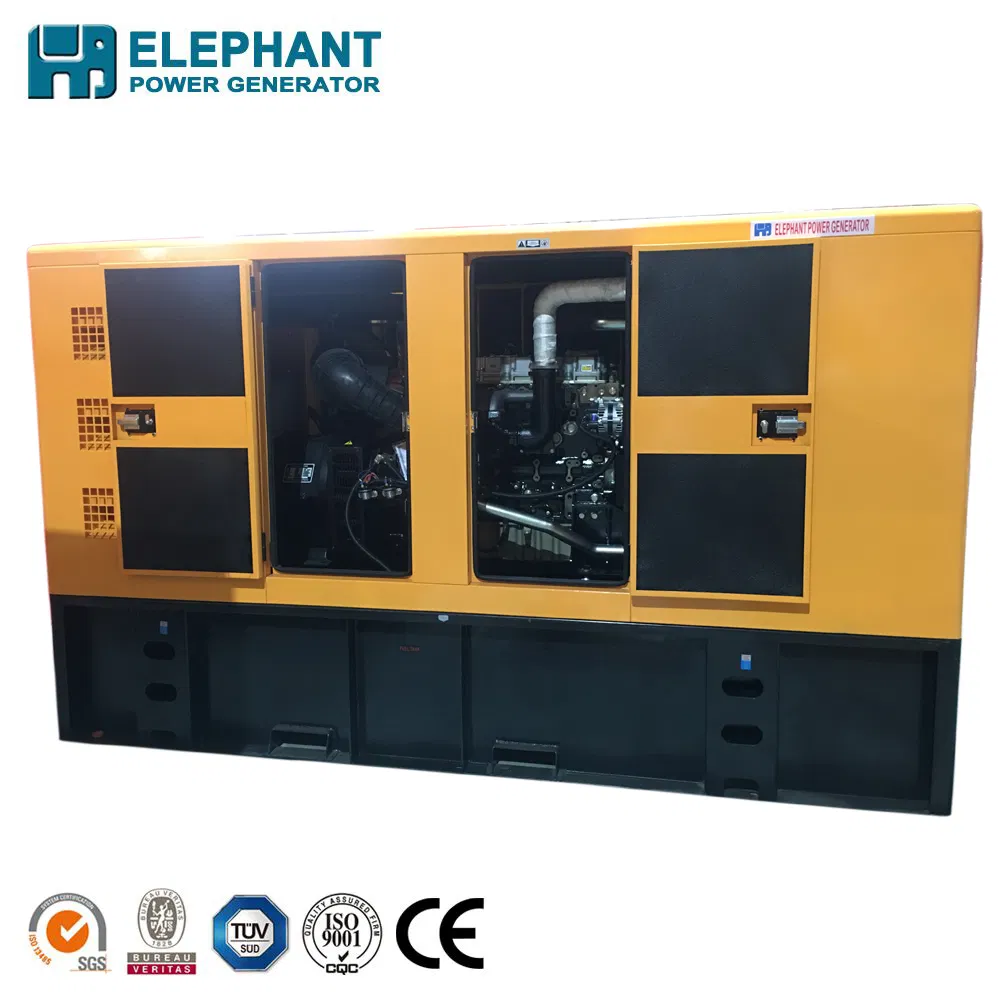

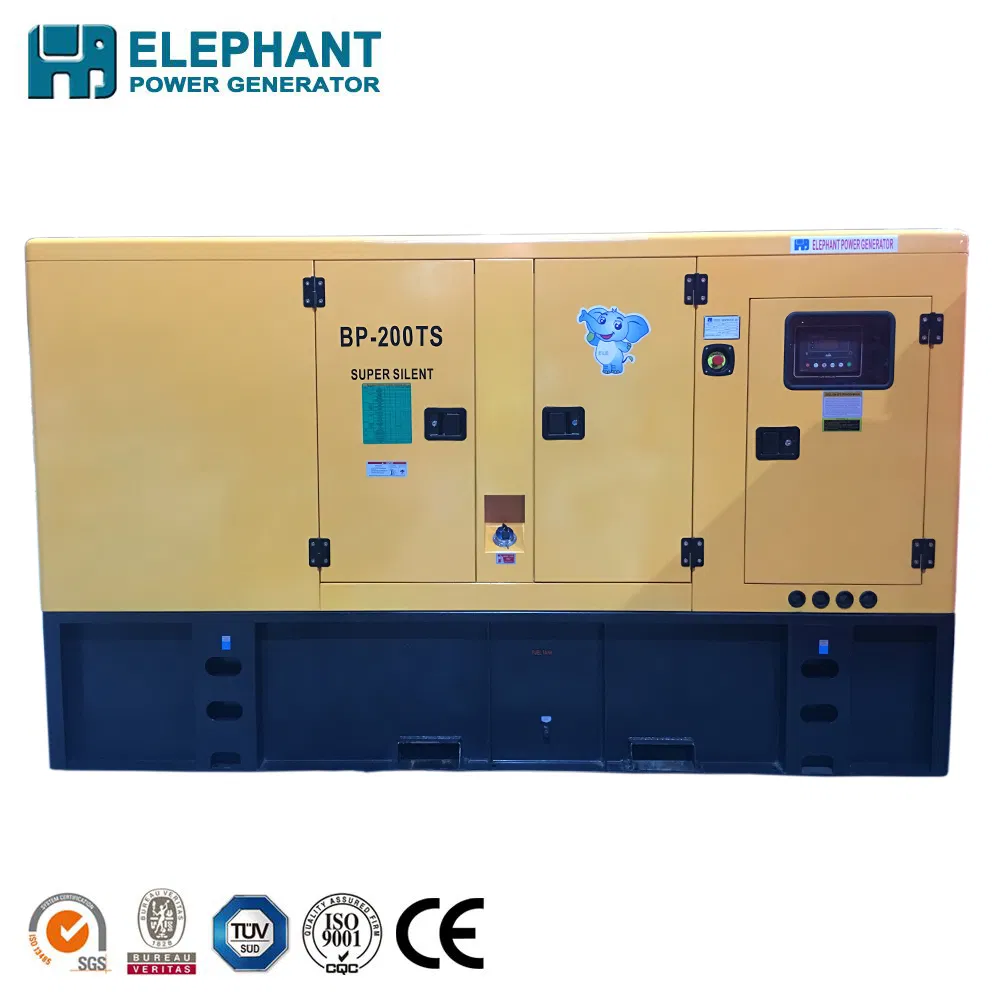

Power by UK Engine 160kw 200kVA Open or Soundproof Type Generator
Three Phase 100kva Perkins Engine Electric Motor GeneratorProduct DescriptionProduct ParametersProduct Overview 1) Brand-new engine,w/start motor. 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.3) Auto control panel with LCD display. 4) Engine mounted batte......
Send Inquiry
Product Description
Three Phase 100kva Perkins Engine Electric Motor Generator
Product Description
Product Parameters
Packing & Shipping
Company Information
Product Description
Product Parameters
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| Genset Specification | |
| Genset Model | BP-200 |
| Prime Power(Kva/Kw) | 160/200 |
| Structure type | Open |
| Dba"@7m | 75-98 dba @7m |
| Engine Model | 1306C-E87TAG3 |
| Alternator Model | LSA46.2 M5 |
| DimensionL*W*H(mm) | 2500*850*1400 |
| Weight(Kg) | 1500 |
| Engine Detail | |
| Engine Brand | Perkins Engine |
| Model | 1306C-E87TAG3 |
| Engine speed | 1800rpm |
| Engine power | |
| ......Standby power | 205KWm/275bhp |
| ......Prime power | 187KWm/250bhp |
| Type | 4cycle,in-line,6-cylinder |
| Aspiration | Turbocharged, |
| Governor | electrical |
| Bore*Stroke | 116.6*135.9mm |
| Displacement | 8.7 Litres |
| Compression ratio | 16.9:1 |
| Alternator Detail | |
| Brand | Leroy-somer |
| Model | LSA46.2 M5 |
| Output power | 160KW |
| AVR model | R250 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Altitude | ≤1000m |
| Overspeed | 2250rpm |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ±0.5% |
| Sustained short circuit current | 300%(3IN):10s |
| Total haarmonics (TGH/THC) | <4% |
| Wave form:Nema=TIF | <50 |
| Wave form:I.E.C=THF | <2% |
| Bearing | single |
| Coupling | Direct |
