Home > Products > Diesel Generator > Open Type Silent Type 3 Phase 6.5kVA 7kVA Diesel Generator Set with Full Power on The Single Phase Outlet

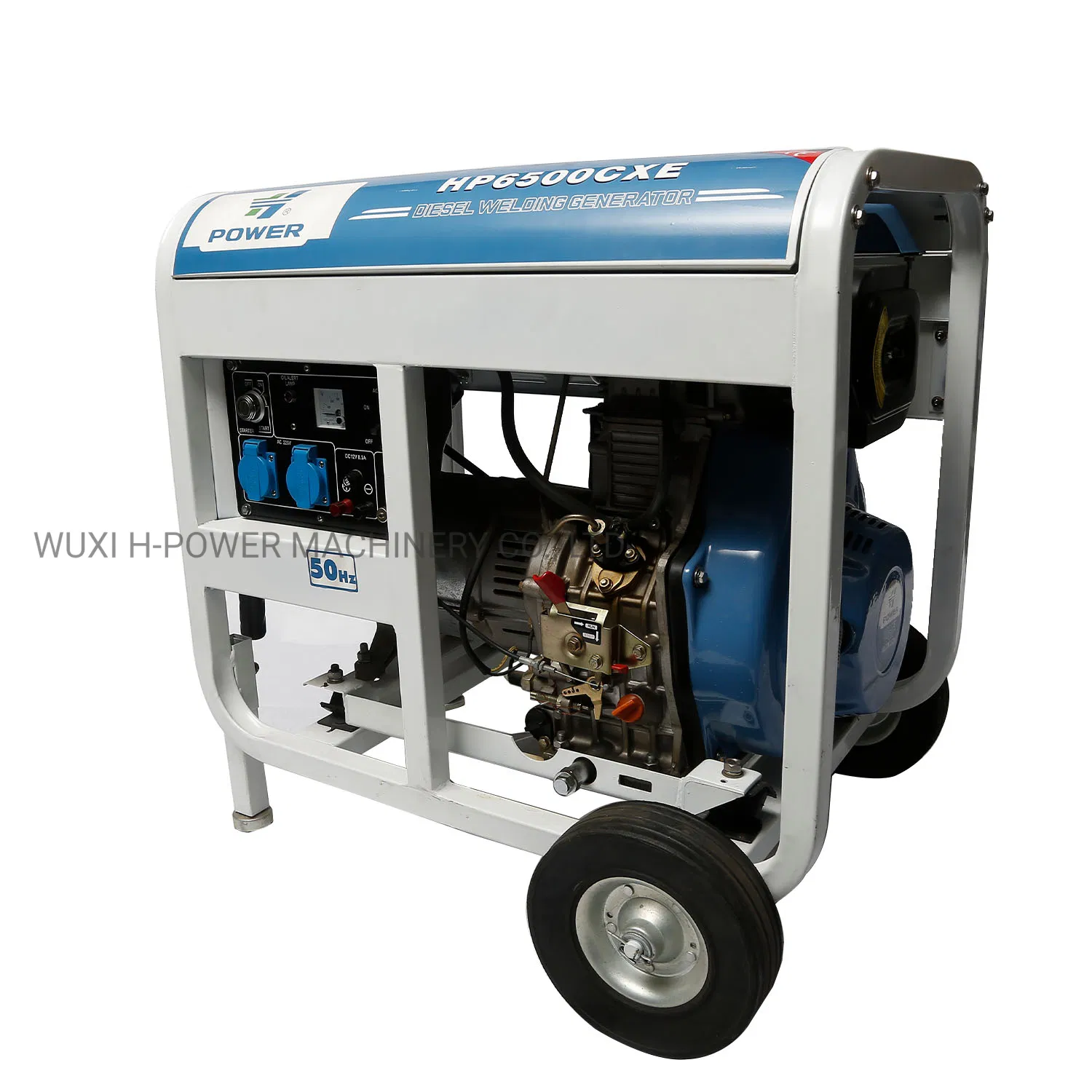

Open Type Silent Type 3 Phase 6.5kVA 7kVA Diesel Generator Set with Full Power on The Single Phase Outlet
Company BriefWuxi H-Power Machinery Co., Ltd. Was founded in 2003, which is a manufacturer and an import & export company. We are professional in producing engine powered equipment, such as generator sets, pump sets, and construction equipment. We have CE, EPA and CSA certificates. Our company i......
Send Inquiry
Product Description
Company Brief
Wuxi H-Power Machinery Co., Ltd. Was founded in 2003, which is a manufacturer and an import & export company. We are professional in producing engine powered equipment, such as generator sets, pump sets, and construction equipment. We have CE, EPA and CSA certificates. Our company is located in Wuxi City, near Shanghai. Many of our subsidiary factories are around us. In 2012, we moved the light construction machinery to a new factory called Anhui H-Power Machinery Co., Ltd. Based in Meizhu industry zone, Anhui province. We adopt advanced technology in product development. In addition, we can develop products according to our clients' demands, which ensures our products be widely applied and accepted for the developing markets in the world. We welcome friends all over the world to cooperate with us and expand both sides in near future. We are looking forward to receiving your inquiries.
Production Spec
Generator Set
Engine Model
FAQ
Q: What's your power range of Generators?
A: H-Power provides the range from 5kva-15kva.
Q: What's your lead time?
A: H-Power can deliver within 15-30 working days after we get the deposit usually.
Q: What's your payment?
A: H-Power can accept T/T 30% in advance, and the balance 70% shall be paid defore shipment or L/C at sight. But based on some special project and order, we can adjust payment item.
Q: What's your warranty?
A: H-Power can offer one year or 1000hours (according to whichever reach first) from Ex-Factory date. However, the warranty for some special projects will be extended.
Q: How can I get the sample to check your quality?
A: After price is confirmed, you can get samples to check our product's quality and design. We will provide sample as long as you afford the express freight and sample cost.
Q: How can I get the price?
A: We can usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call or email us directly.
Q: What's your MOQ?
A: H-Power can accept samll power generator MOQ for 10 or 20 sets. Others for 1 sets.
Contact us
Wuxi H-Power Machinery Co., Ltd
No. 130 Yangshan West Road, Yangshan Town, Huishan Zone, Wuxi City, Jiangsu, China 214155
Anhui H-Power Machinery Co., Ltd
Meizhu Industria park, Meizhu Town, Langxi County, Anhui, China 242115
Wuxi H-Power Machinery Co., Ltd. Was founded in 2003, which is a manufacturer and an import & export company. We are professional in producing engine powered equipment, such as generator sets, pump sets, and construction equipment. We have CE, EPA and CSA certificates. Our company is located in Wuxi City, near Shanghai. Many of our subsidiary factories are around us. In 2012, we moved the light construction machinery to a new factory called Anhui H-Power Machinery Co., Ltd. Based in Meizhu industry zone, Anhui province. We adopt advanced technology in product development. In addition, we can develop products according to our clients' demands, which ensures our products be widely applied and accepted for the developing markets in the world. We welcome friends all over the world to cooperate with us and expand both sides in near future. We are looking forward to receiving your inquiries.
Production Spec
| Model Number: | HP7500CXE-3 | Brand Name: | H-POWER |
| Output Type: | DC | Rated Power: | 6.5kva/7.2kva |
| Rated Current: | Depend | Rated Voltage: | 220/380,230/400 |
| Frequency: | 50HZ/60HZ | Speed: | 3000RPM/3600RPM |
| Use: | Generate electricity | Certifiacte: | EPA, CE,CSA |
| Engine: | HP188FE | Color: | Optinal |
| Battery: | 30AH DF Maintenance Battery | Fuel Tank Capacity: | 12.5L |
| Alternator: | 100% Copper | Starting Fashion: | Electric/Manual Start |
| Place of Origin: | Jiangsu, China | Warranty: | one year |
| Supply Ability: | 2000 Sets per month | Packing Details: | Carton |
| Port: | Shanghai | Lead Time: | in 30 days after confirmation of the PI |
Generator Set
| Type | HP6500CXE-3 | HP7500CXE-3 | HP8000CXE-3 | HP8500CXE-3 | HP9000CXE-3 | ||||||
| Alternator | Rated frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated output(kva) | 5.5 | 6.0 | 5.2 | 5.7 | 6.0 | 6.2 | 7 | 7.5 | 8 | 8.5 | |
| Max output(kva) | 6.0 | 6.5 | 5.7 | 6.2 | 6.4 | 6.7 | 7.5 | 8 | 8.5 | 9 | |
| Rated voltage(V) | 220/380,230/400 | ||||||||||
| Power factor(cosφ) | 0.8 | ||||||||||
| Engine | Model | HP186FAE | HP188FE | HP192EE | HP195FE | HP1100FE | |||||
| Type | Single-cylinder,4-stroke,vertical,air-cooled,diesel engine | ||||||||||
| Starting fashion | Electric start | ||||||||||
| Generator Set | Fuel tank capacity | 12.5 | |||||||||
| Continuour running time(h) | 7.5 | 6.3 | 6.5 | 5.5 | 6.5 | 5.5 | 7.5 | 6.3 | 6.5 | 5.5 | |
| N.W./G.W.(kg) | 115/118 | 116/119 | 121/124 | 210/220 | 250/260 | ||||||
| Dimension L*W*H(mm) | 720*480*585 | 720*480*585 | 720*480*585 | 720*480*700 | 930*970*930 | ||||||
| Package size L*W*H(mm) | 740*495*600 | 740*495*600 | 740*495*600 | 740*495*740 | 950*990*1040 | ||||||
Engine Model
| Model | HP170F(E) | HP173F(E) | HP178F(E) | HP186F(E) | HP186FA(E) | HP188F(E) | HP192F(E) | HP195F(E) | ||||||||
| Type | Single-cylinder, Vertical, 4-stroke, air-cooled, Diesel engine | |||||||||||||||
| Bore x Stroke(mm) | 70*55 | 73*59 | 78*62 | 86*70 | 86*72 | 88*75 | 92*75 | 95*75 | ||||||||
| Displacement(ml) | 211 | 247 | 296 | 406 | 418 | 456 | 498 | 531 | ||||||||
| Compression ratio | 19:1 | |||||||||||||||
| Rated speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Rated output(kw) | 2.5 | 2.8 | 3.6 | 3.9 | 3.68 | 4.0 | 5.7 | 6.3 | 5.9 | 6.5 | 6.7 | 7.5 | 7.5 | 8.2 | 8.0 | 8.5 |
| Max. output(kw) | 2.8 | 3.1 | 3.9 | 4.2 | 4.0 | 4.4 | 6.3 | 6.8 | 6.5 | 7.0 | 7.5 | 8.2 | 8.2 | 9.0 | 8.5 | 9.2 |
| Fuel consumption(G/kw.h) | <295 | <280 | <270 | |||||||||||||
| Starting fashion | Manual or Electric Start | |||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 5.5 | ||||||||||||
| Oil capacity(L) | 0.75 | 1.1 | 1.65 | 1.7 | ||||||||||||
| Fuel type | 0#(Summer),-10#(Winter)Diesel | |||||||||||||||
| Oil type | 10W/30SAE | |||||||||||||||
| Continuous running time(h) | 3.0 | 2.5 | 3.0 | 2.5 | 2.5 | 2.0 | 2.5 | 2.0 | 2.5 | 2.0 | 2.5 | 2.0 | 2.5 | 2.0 | 2.5 | 2.0 |
| Dimension L*W*h(mm) | 415*385*470 | 480*465*525 | 510*475*565 | 510*475*565 | 510*475*565 | |||||||||||
| N.W./G.W.(kg) | 25/30 | 31/36 | 50/55 | 51/56 | 51/56 | |||||||||||
| Model | HP1100F(E) | HP1105F(E) | ||
| Type | Single-cylinder, Vertical, 4-stroke, air-cooled, Diesel engine | |||
| Bore x Stroke(mm) | 100*84 | 105*88 | ||
| Displacement(ml) | 660 | 762 | ||
| Compression ratio | 19:1 | |||
| Rated speed(rpm) | 3000 | 3600 | 3000 | 3600 |
| Rated output(kw) | 9.1 | 9.8 | 10.2 | 11 |
| Max. output(kw) | 9.8 | 10.5 | 11 | 11.8 |
| Fuel consumption(G/kw.h) | <270 | |||
| Starting fashion | Manual or Electric Start | |||
| Fuel tank capacity(L) | - | - | ||
| Oil capacity(L) | 2.5 | 2.5 | ||
| Fuel type | 0#(Summer),-10#(Winter)Diesel | |||
| Oil type | 10W/30SAE | |||
| Continuous running time(h) | - | |||
| Dimension L*W*h(mm) | 510*550*590 | |||
| N.W./G.W.(kg) | 60/65 | |||
Model | HP292FE | HPEV80 | ||||
Type | V-twin,4-stroke, air-cooled ,diesel engine | V-twin,4-stroke, air-cooled ,diesel engine | ||||
Bore x stroke(mm) | 2-92X75 | 2-80x79 | ||||
Displacement(mi) | 997 | 794 | ||||
Compression Ratio | 20:1 | 20:1 | ||||
Rated speed(rpm) | 3000 | 3600 | 3000 | 3600 | ||
Rated output(KW) | 13.0 | 14.0 | 12.0 | 14.0 | ||
MAX.output(KW) | 14.0 | 15.0 | 13.2 | 15.4 | ||
Fuel consumption(g/KW.h) | 260 | 280 | 285 | 320 | ||
Starting fashion | Electric Start | Electric Start | ||||
Fuel tank capacity(L) | / | / | ||||
Oil capacity( L) | 2.5 | 2.3 | ||||
Fuel type | 0#(Summer),-10#(Winter)diesel | 0#(Summer),-10#(Winter)diesel | ||||
Oil type | 10W/30SAE | 10W/30SAE | ||||
Continuous running time(h) | 8 | 7 | 6.5 | 6 | ||
Dimension LxWxH(mm) | 590x540x700 | 616x486x528 | ||||
N.W./G.W.(kg) | 65/75 | 58/68 | ||||
FAQ
Q: What's your power range of Generators?
A: H-Power provides the range from 5kva-15kva.
Q: What's your lead time?
A: H-Power can deliver within 15-30 working days after we get the deposit usually.
Q: What's your payment?
A: H-Power can accept T/T 30% in advance, and the balance 70% shall be paid defore shipment or L/C at sight. But based on some special project and order, we can adjust payment item.
Q: What's your warranty?
A: H-Power can offer one year or 1000hours (according to whichever reach first) from Ex-Factory date. However, the warranty for some special projects will be extended.
Q: How can I get the sample to check your quality?
A: After price is confirmed, you can get samples to check our product's quality and design. We will provide sample as long as you afford the express freight and sample cost.
Q: How can I get the price?
A: We can usually quote within 24 hours after we get your inquiry. If you are very urgent, pls call or email us directly.
Q: What's your MOQ?
A: H-Power can accept samll power generator MOQ for 10 or 20 sets. Others for 1 sets.
Contact us
Wuxi H-Power Machinery Co., Ltd
No. 130 Yangshan West Road, Yangshan Town, Huishan Zone, Wuxi City, Jiangsu, China 214155
Anhui H-Power Machinery Co., Ltd
Meizhu Industria park, Meizhu Town, Langxi County, Anhui, China 242115
