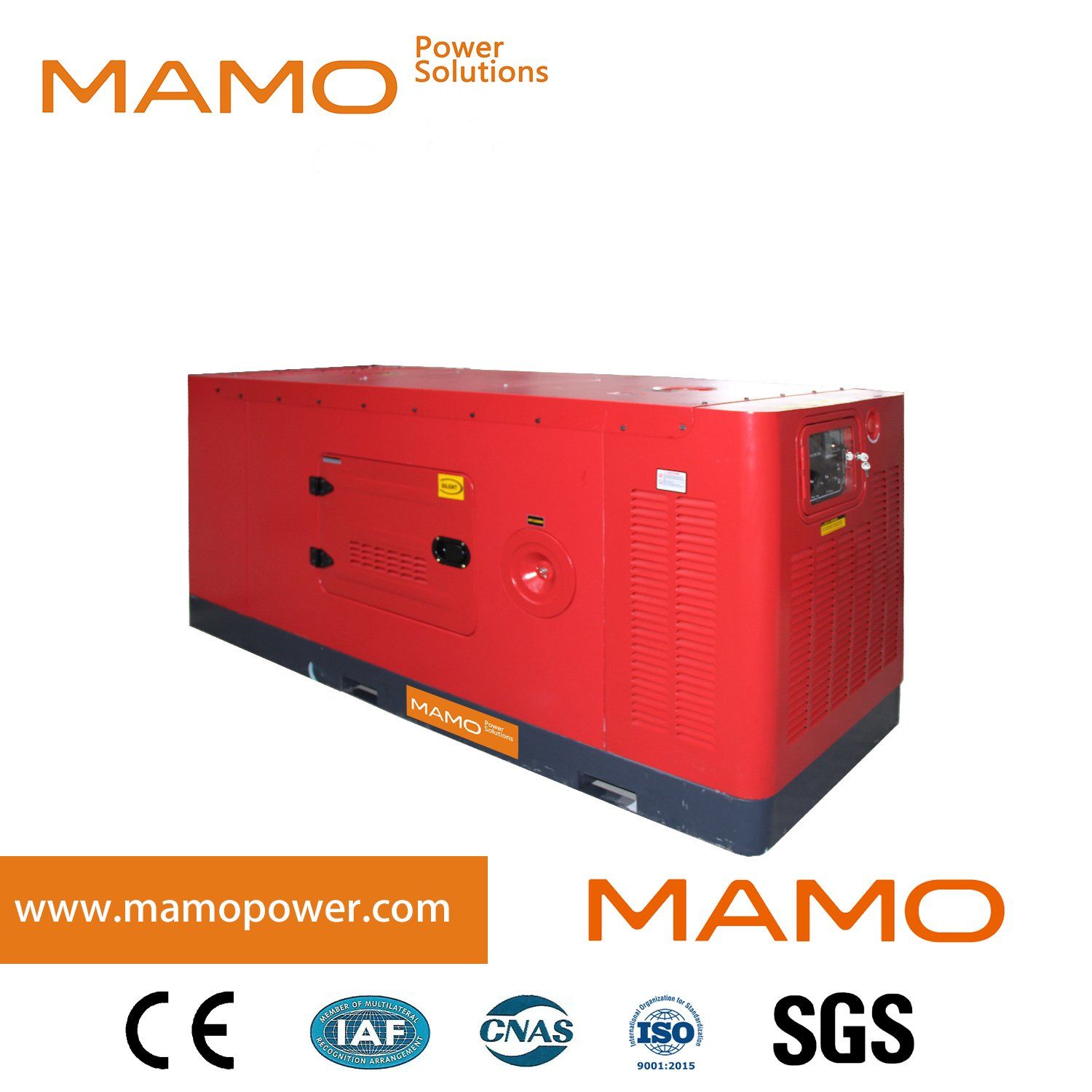

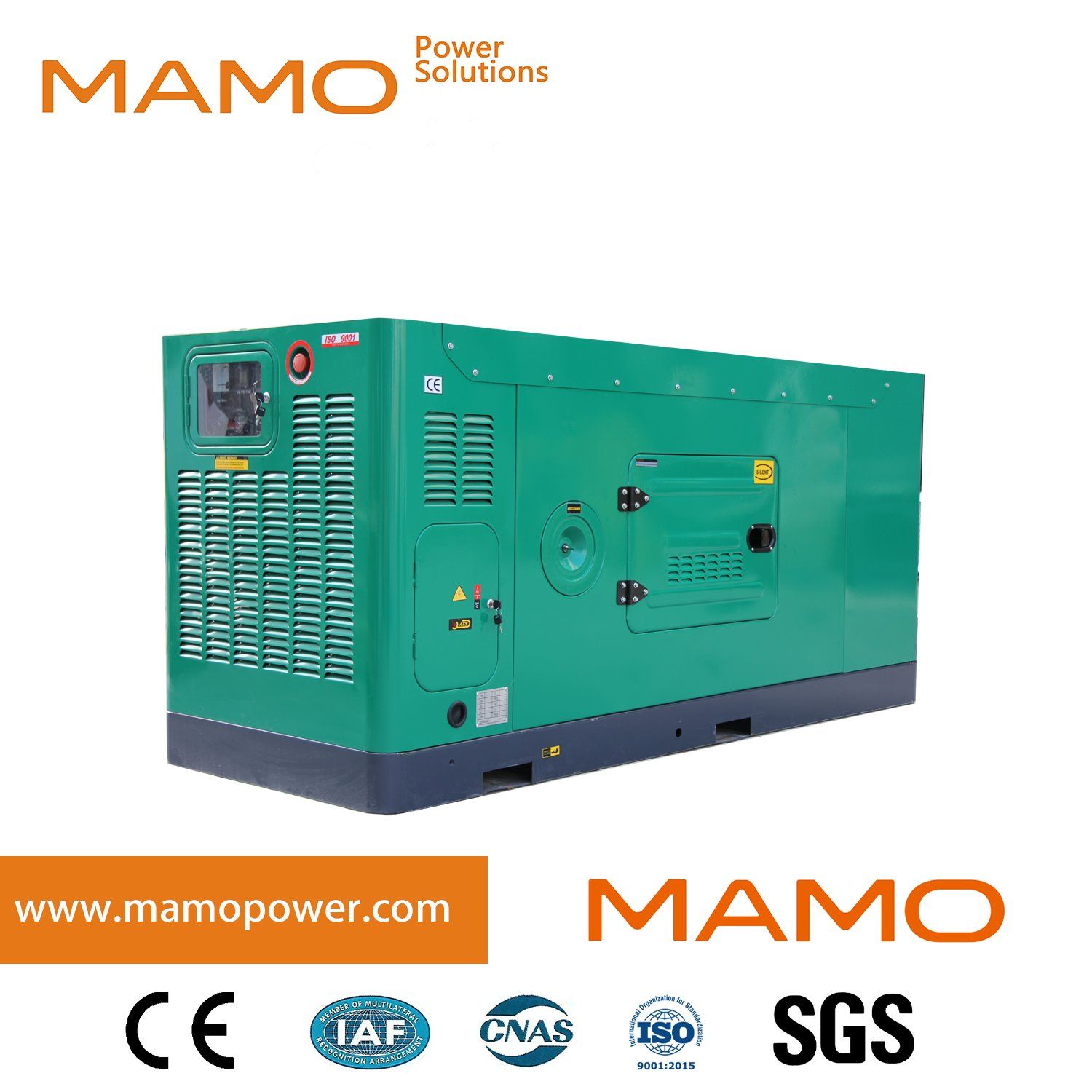

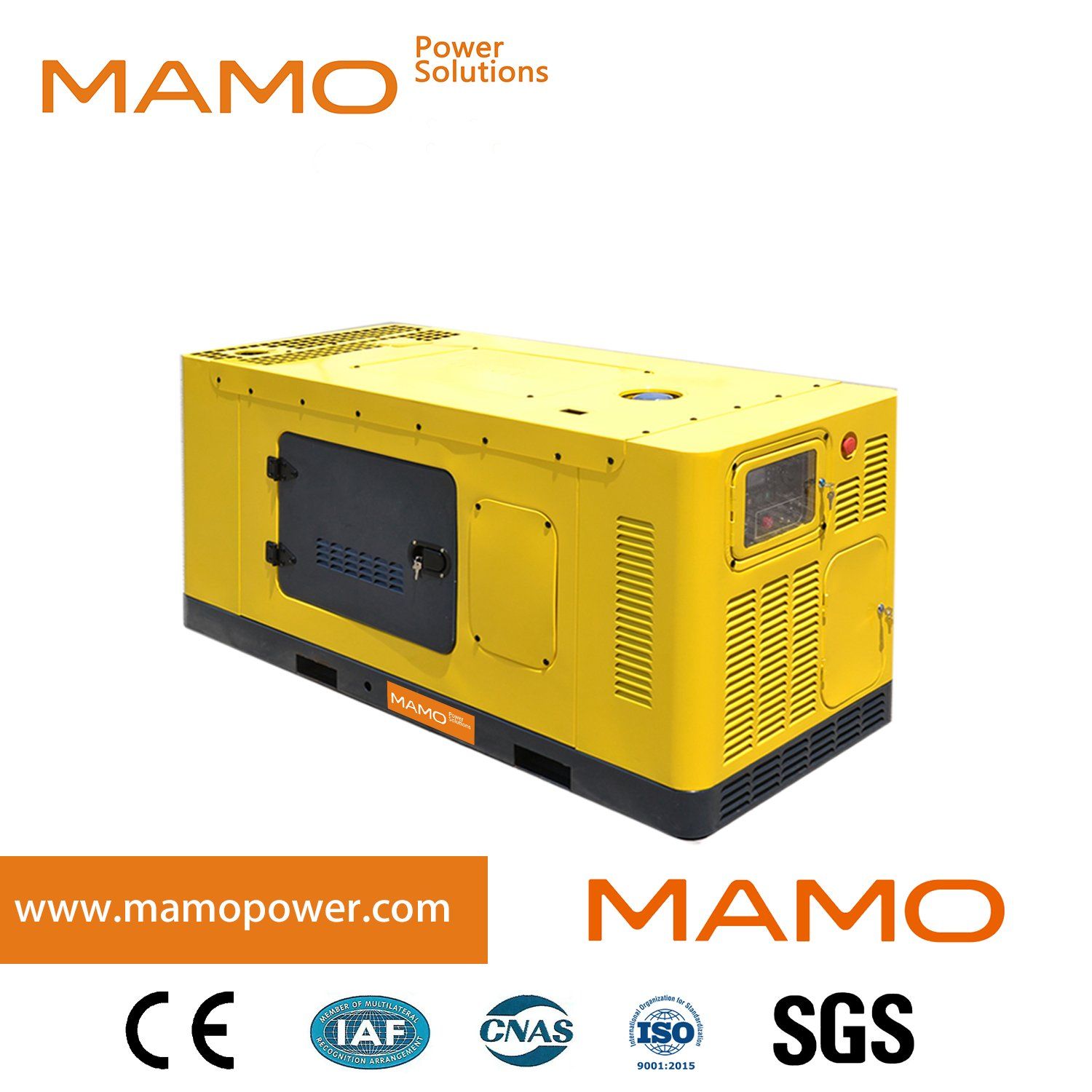

Open/Silent Aircooled Diesel Engine 32kw F4l912 33kVA 26kw Prime 30kVA 24kw Standby Power Electric Diesel Genset Generator Set
MAMO series products are widely used in hospital, shipping, finance, communication, hotel, commerce, real estate, factory and many other important fields.The main supporting products include DEUTZ, Shangchai, Volvo, Doosan, Isuzu, Kubota, Yanmar, Jichai , Yuchai, Mecc Alte, Marathon and Stamford, e......
Send Inquiry
Product Description
MAMO series products are widely used in hospital, shipping, finance, communication, hotel, commerce, real estate, factory and many other important fields.The main supporting products include DEUTZ, Shangchai, Volvo, Doosan, Isuzu, Kubota, Yanmar, Jichai , Yuchai, Mecc Alte, Marathon and Stamford, etc.

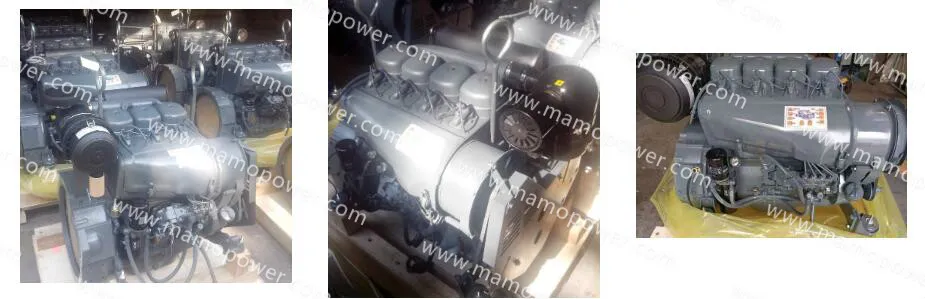

MAMO supplying aircooled diesel generator drive engines, covers 11kva-113kva aircooled engines, with standard cooling pack. We also supply engine accessories including air intake system, air exhaust system, control system.
Beijing BeiNei Diesel Engine Co., Ltd. is a modern large enterprise with standard management and integration of science, industry and trade, specialized in manufacturing B/FL912/913/914C series air cooled diesel engines and accessories. passed ISO9001:2000 quality system authentication and ISO14001:2004 environmental management system certification. The B/FL912/913/914/C series air cooled diesel engines Beinei produced have passed CHINA III of diesel engines for non-road mobile machinery. By the means of technical importation, Beinei bought the production permit license of B/FL912/913/C series air cooled diesel engine from KHD DEUTZ in German (1980-1997) and have manufactured air cooled engines for 35 years.
| GENSET MODEL | PRIME POWER | PRIME POWER | STANDBY POWER | STANDBY POWER | ENGINE MODEL | Engine | OPEN | SOUNDPROOF | TRAILER |
| PRIME POWER | |||||||||
| (KW) | (KVA) | (KW) | (KVA) | (KW) | |||||
| TB16 | 12 | 15 | 13.2 | 16 | F2L912 | 14 | O | O | O |
| TB28 | 20 | 25 | 22 | 28 | F3L912 | 24 | O | O | O |
| TB33 | 24 | 30 | 26 | 33 | F4L912 | 32 | O | O | O |
| TB39 | 28 | 35 | 31 | 39 | F4L913 | 34 | O | O | O |
| TB44 | 32 | 40 | 35 | 44 | F4L912T | 41 | O | O | O |
| TB50 | 36 | 45 | 40 | 50 | F6L912 | 48 | O | O | O |
| TB55 | 40 | 50 | 44 | 55 | F6L913 | 51 | O | O | O |
| TB66 | 48 | 60 | 53 | 66 | F6L912T | 61 | O | O | O |
| TB62 | 45 | 56 | 50 | 62 | BF4L913 | 56 | O | O | O |
| TB100 | 72 | 90 | 80 | 100 | BF6L913ADG | 88 | O | O | O |
| TB125 | 90 | 113 | 100 | 125 | BF6L913CADG | 114 | O | O | O |
| Genset Main Technical Data: | |||||||||||||||||||||||
| Genset Model | TB33 | ||||||||||||||||||||||
| Prime Power(50HZ) | 24KW / 30KVA | ||||||||||||||||||||||
| Standby Power(50HZ) | 26KW / 33KVA | ||||||||||||||||||||||
| Frequency/Speed | 50Hz/1500rpm | ||||||||||||||||||||||
| Standard Voltage | 400V/230V | ||||||||||||||||||||||
| Phases | Three phases, four wires | ||||||||||||||||||||||
| Manufacturer | MAMO POWER TECHNOLOGY CO., LTD. | ||||||||||||||||||||||

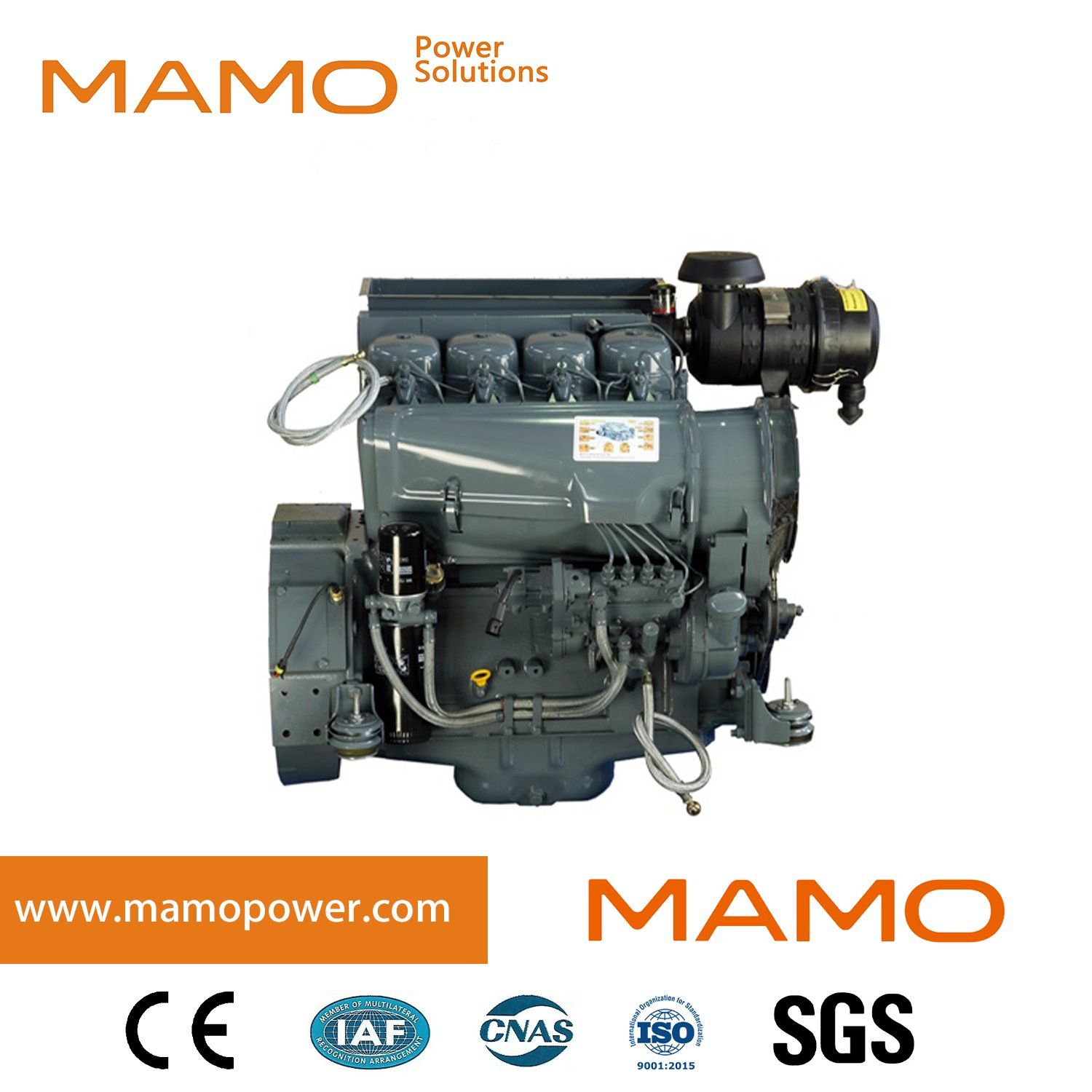

| Aircooled Diesel Engine Data: | |||||||||||||||||||||||
| Manufacturer | BEIJING BEINEI DIESEL ENGINE CO.,LTD | ||||||||||||||||||||||
| Model | F4L912 | ||||||||||||||||||||||
| Engine speed | 1500rpm | ||||||||||||||||||||||
| Engine power | |||||||||||||||||||||||
| --------------------Standby power | 35kw | ||||||||||||||||||||||
| --------------------Prime power | 32kw | ||||||||||||||||||||||
| Type | 4 cycle, In-line, 3-cylinder | ||||||||||||||||||||||
| Aspiration | Naturally Aspirated | ||||||||||||||||||||||
| Governor | Mechanical | ||||||||||||||||||||||
| Bore * Stroke | 100*120 mm | ||||||||||||||||||||||
| Displacement | 3.77L | ||||||||||||||||||||||
| Compression ratio | 17:01 | ||||||||||||||||||||||
| ALTERNATOR Specifications: | |||||||||||||||||||||||
| Stamford | |||||||||||||||||||||||
| Model | PI 044H | ||||||||||||||||||||||
| Output power | Prime:14kW 17.5kVA / Standby:15.4kW 19.3kVA | ||||||||||||||||||||||
| AVR model | AS480 | ||||||||||||||||||||||
| Number of phase | 3 | ||||||||||||||||||||||
| Power factor (Cos Phi) | 0.8 | ||||||||||||||||||||||
| Altitude | ≤ 1000 m | ||||||||||||||||||||||
| Overspeed | 2250RPM | ||||||||||||||||||||||
| Number of Pole | 4 | ||||||||||||||||||||||
| Exciter type | Self exciting | ||||||||||||||||||||||
| Insulation class | H | ||||||||||||||||||||||
| Protection | IP23 | ||||||||||||||||||||||
| Voltage regulation | ±1% | ||||||||||||||||||||||
| Waveform distortion | no load < 1.5% non-distorting balanced linear load < 5.0% | ||||||||||||||||||||||
| Telephone interference | THF< 2% | ||||||||||||||||||||||
| Bearing | single | ||||||||||||||||||||||
| Coupling | Direct | ||||||||||||||||||||||
Mamo POWER provides a full line of completely brand new and high quality products.
Each and every unit is strictly factory tested before shipment.
√ 1 Hour Testing
√ Fuel tank pressure testing
√ Parts faults testing
√ Bolt tightening torque testing
√ Painting thickness testing
√ Frequency & Voltage Testing
√ Automatic Start Testing
√ Routine Fault Alarm Testing
√ Downtime test
√ Noise testing
√ Loading Testing: 25%, 50%, 75%, 100%, 110% loading to check verify that all control systems, alarm and shut-down protection.
Standard Packing: Film plastic
Optional: Plywood Case
Delivery:
Approximately 2-4 weeks upon order confirmation

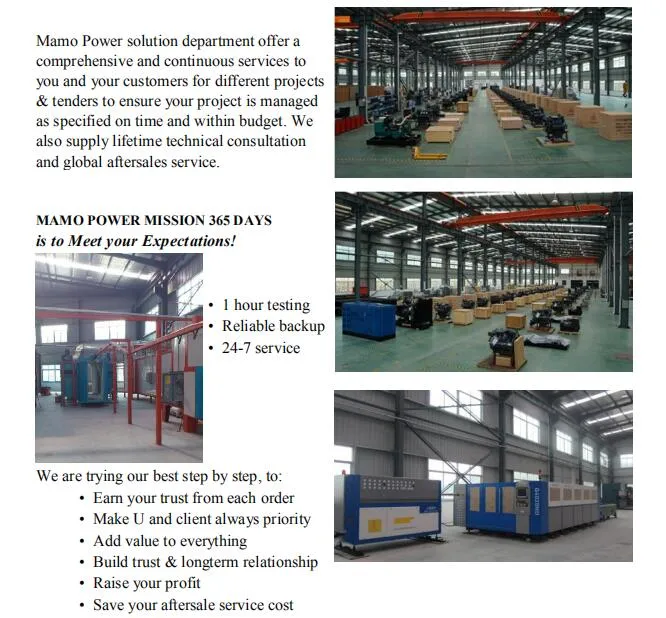

Mamo Power Technology Co.,Ltd (Mamo Power for short), High-Tech Enterprise, was established in 2004 and is located in forefront of West Strait Economic Zone, Fujian Province. Manufacturing base covers an area of 62000 square meters. Our power products cover diesel and gas gensets range from 5kva to 3300kva which are widely used in Ships, Financials, Telecom, Hospitals, Hotels, Real estates, Factories, Minings, Tunnels, High-ways and so on.

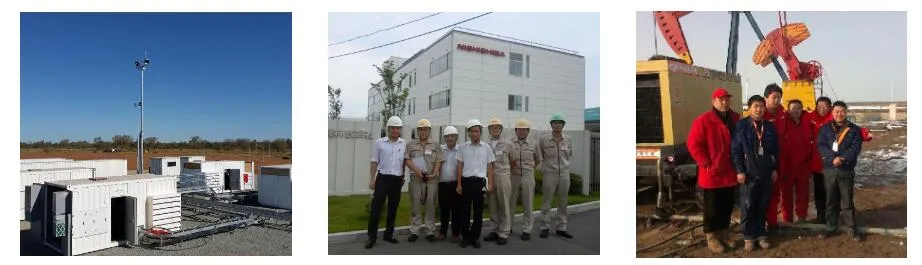

Container Genset in Austrailia Cooperating with Nishishiba Gensets used in Oil rig with Volvo Engines

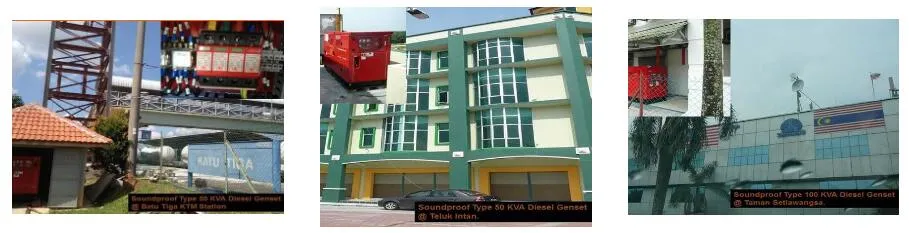

Customized Generator for Malaysian Telecom
