Product Description

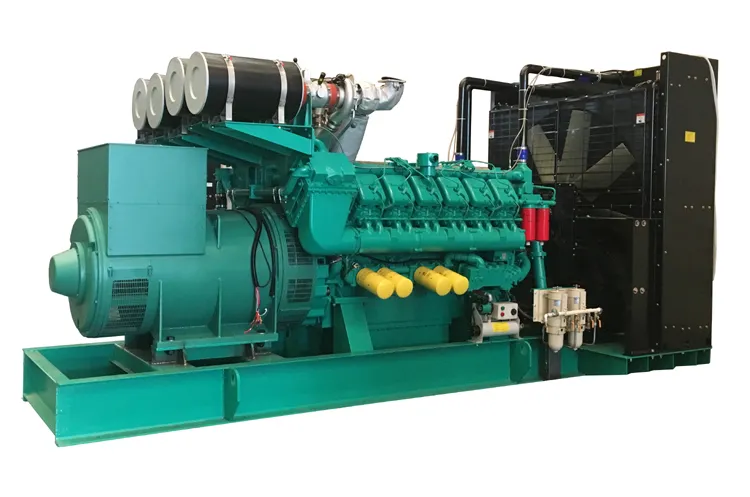

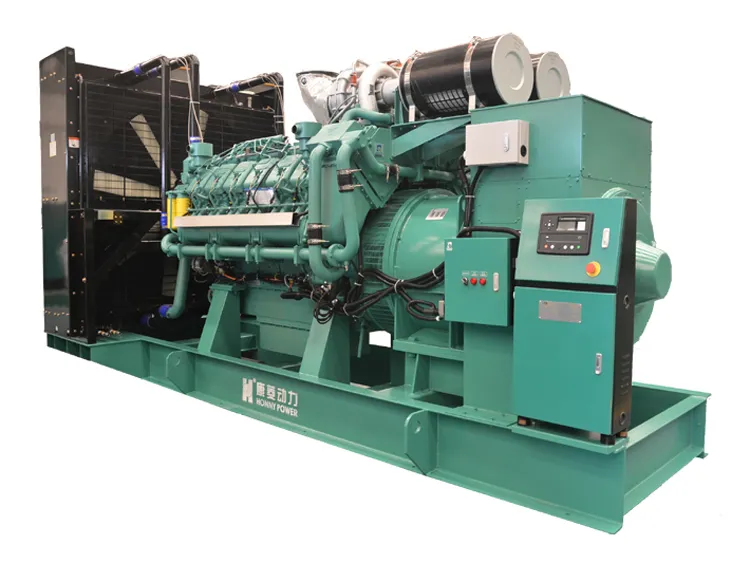

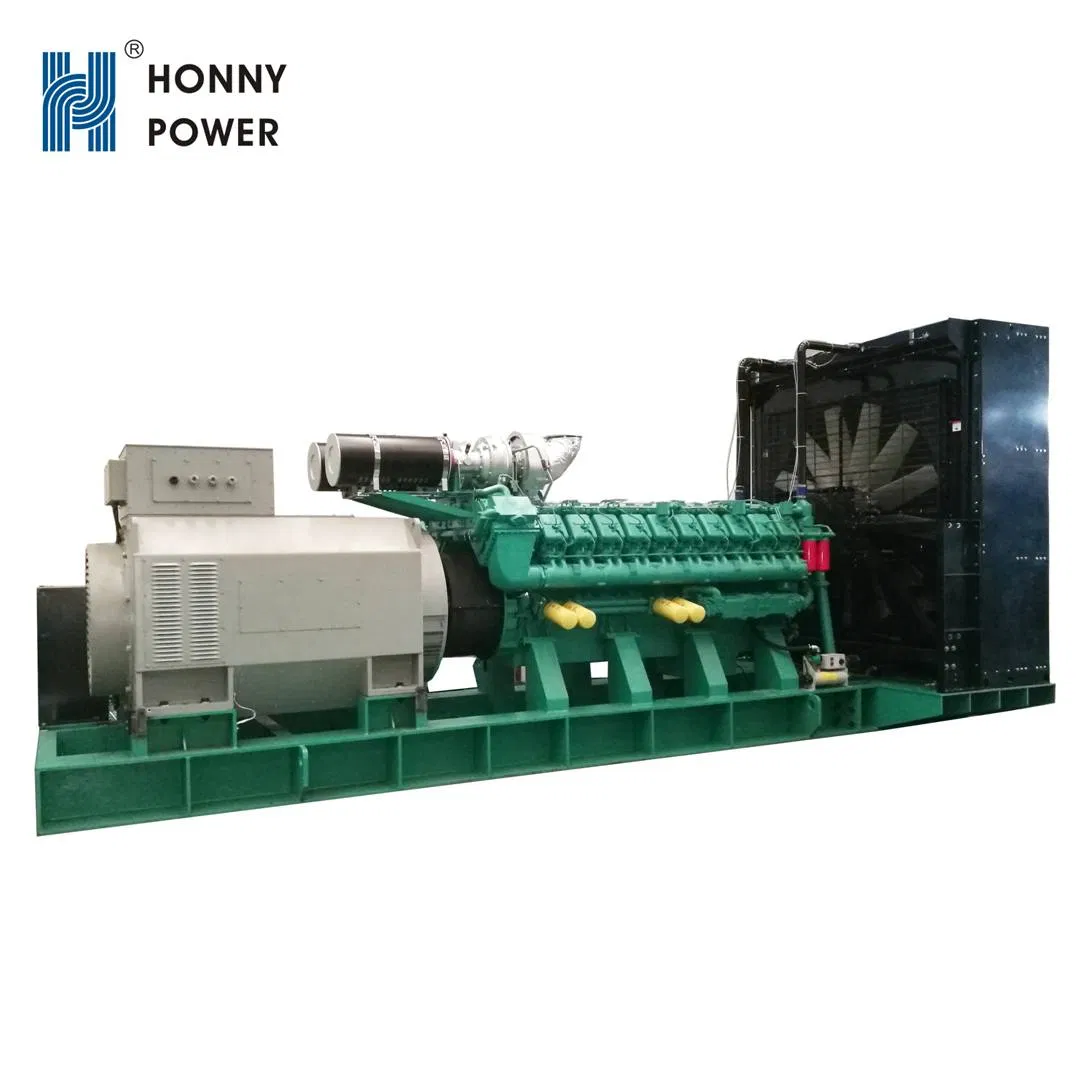

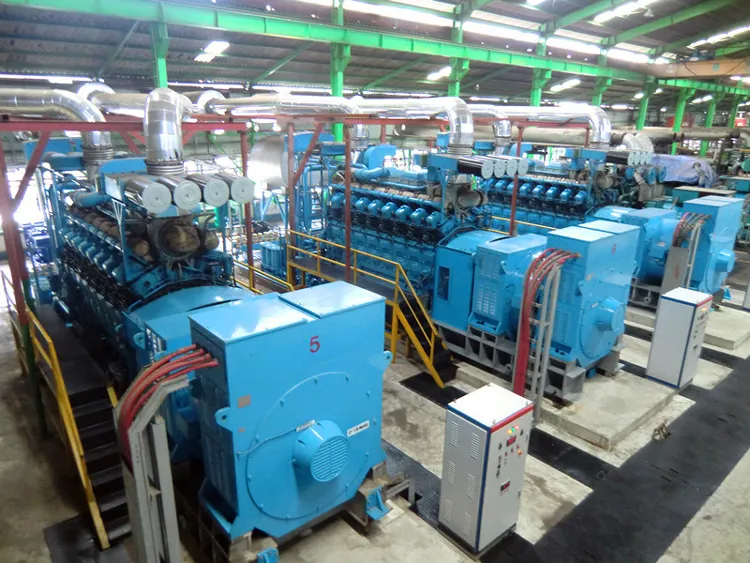

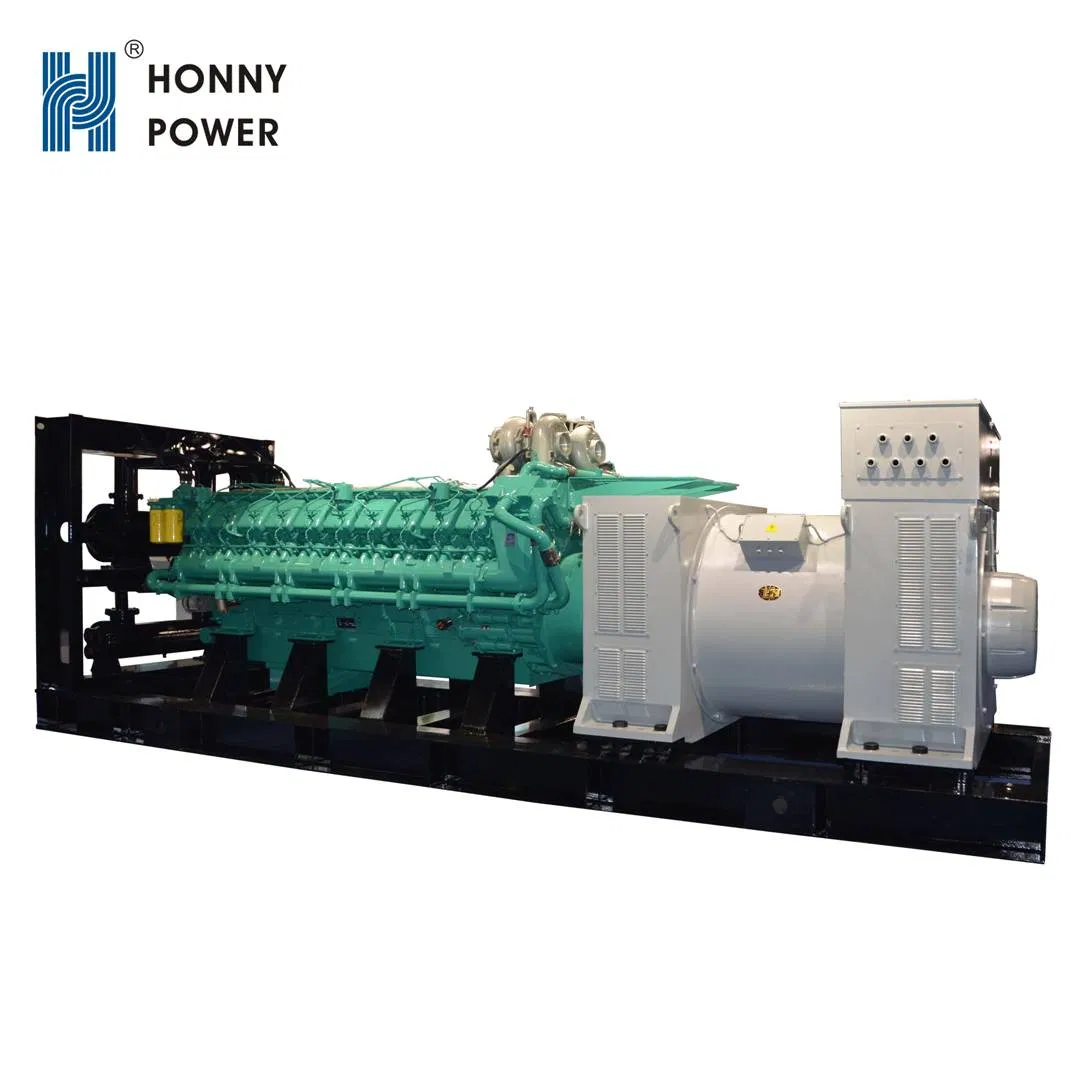

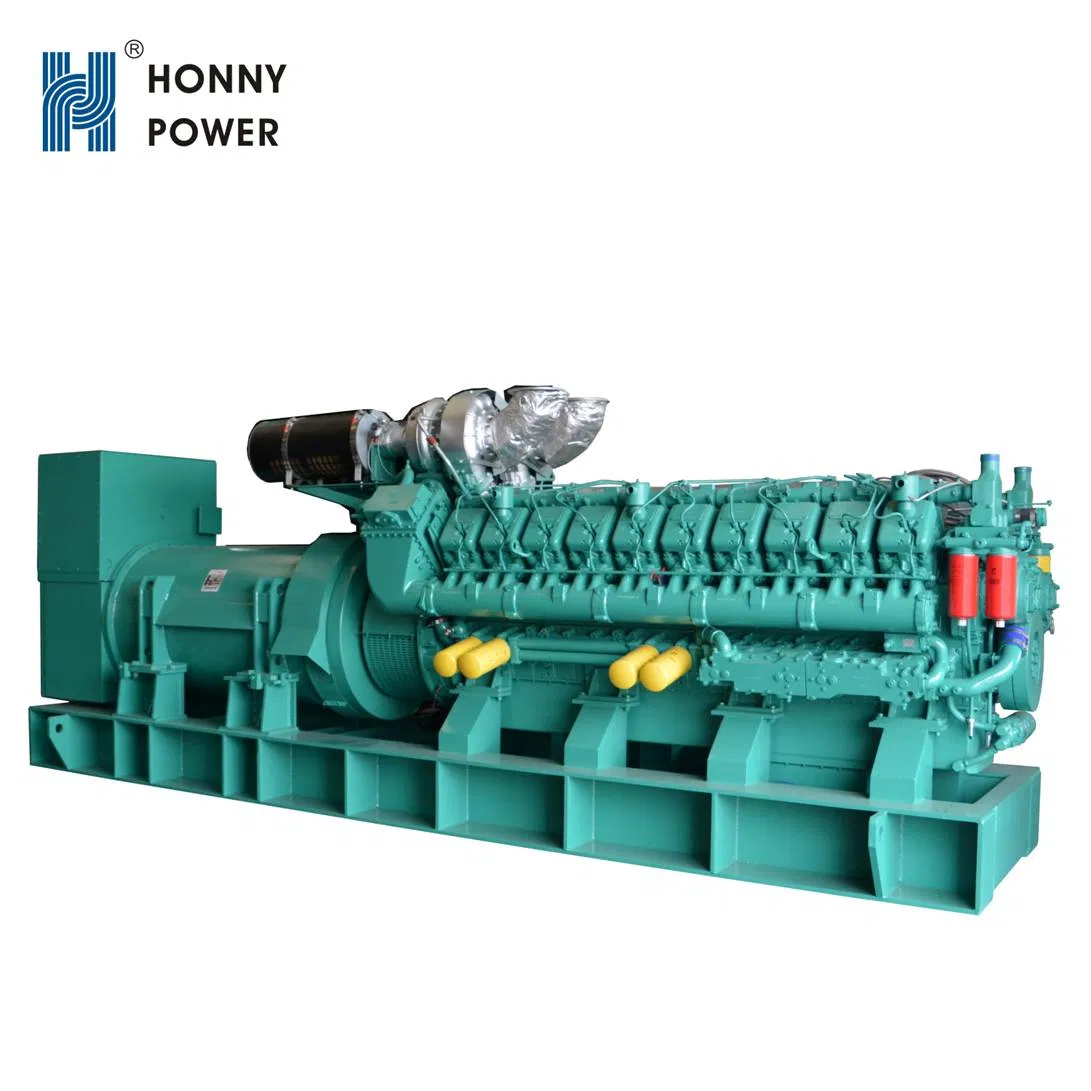

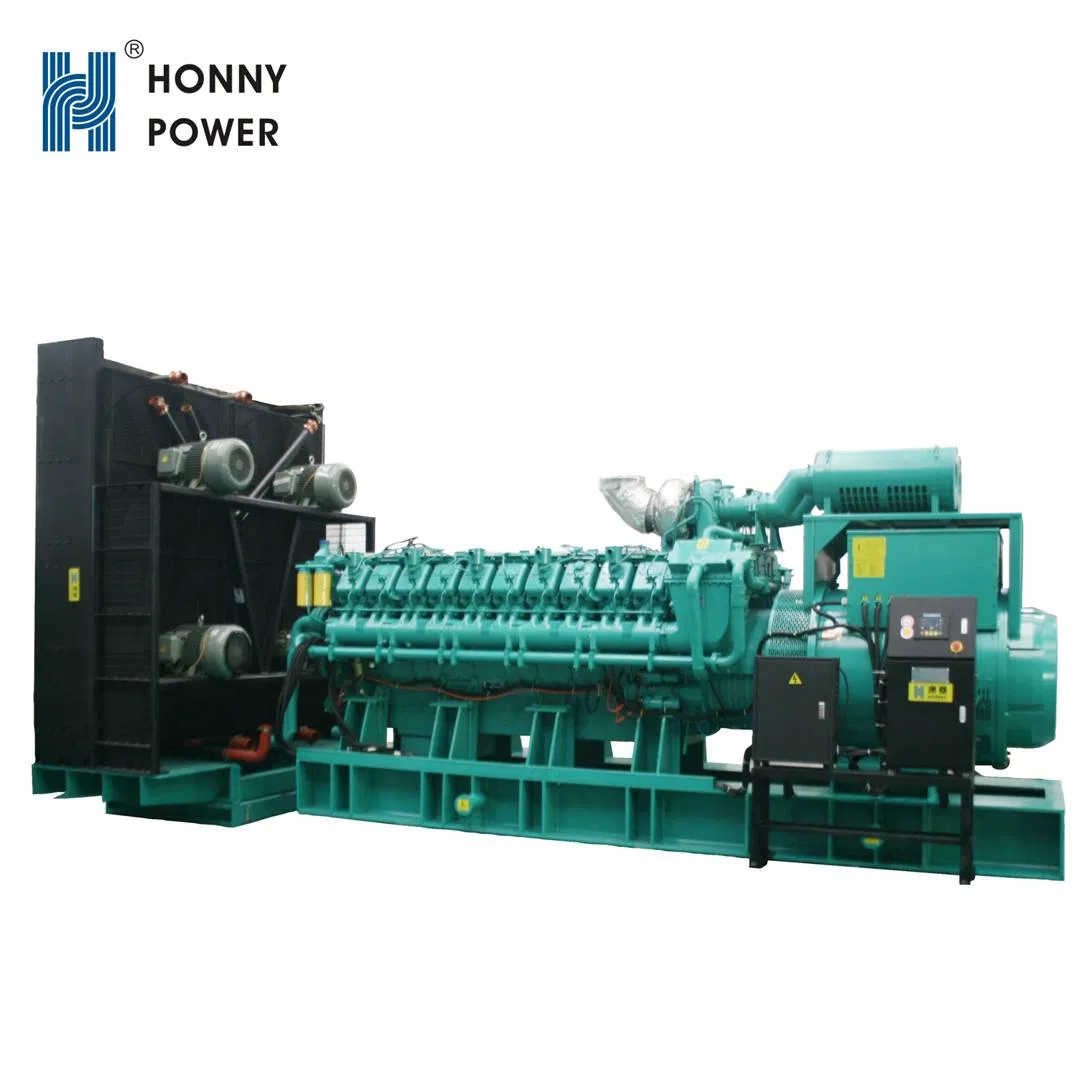

MW Power Plant Use Googol 2MW Diesel Generator

Performance Feature:

Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
World most famous brand diesel engine.
World famous brand AC alternator.
Advanced and reliable control module
Full range protection function and alarm shutdown feature.

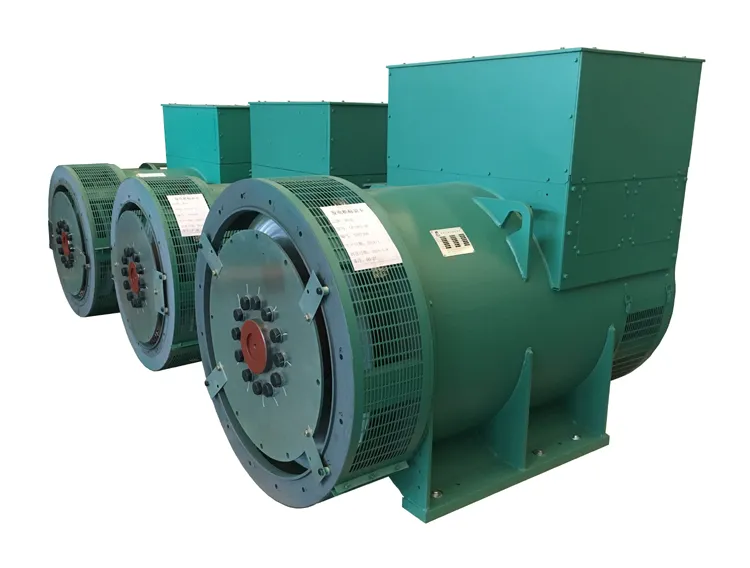

Alternator Feature:

Brush-less, 4 poles, rotation magnet.
IP21-23(NEMA1) enclosure is standard for all industrial alternators.
The insulation system is Class H
Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
Wide range of flange adaptors and single bearing disc coupling.
Standard 2/3 pitch windings avoid excessive neutral currents
AVR auto voltage regulator, auto exciter, auto adjustment

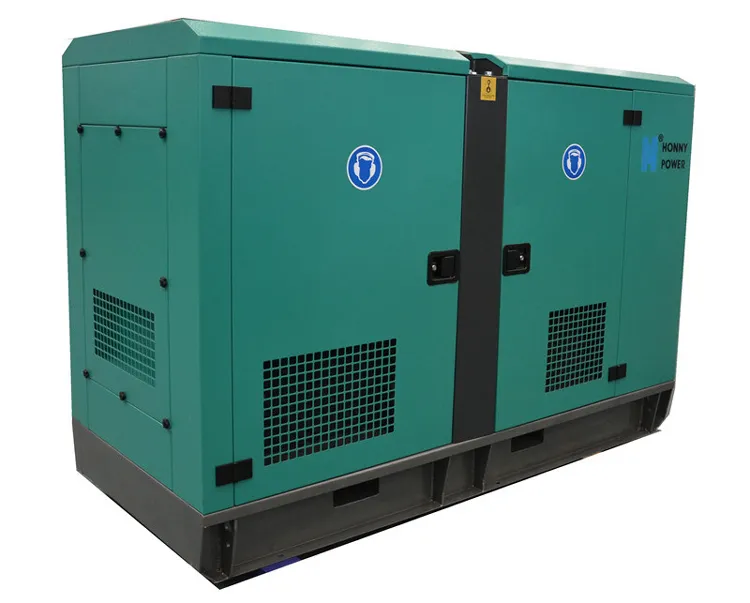

Silent Canopy Description:

Standard Accessory:
Steel Weatherproof Canopy
Built In Fuel Tank For 8 Hours Running
Built In Control Panel
Built In Start Battery
Power Output Rapid Insert
Windows for Looking
Air Louver for Intake & Exhaust
Exhaust Gas Silencer
Soundproof Type

Standard Accessory:

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.

Optional Accessory:

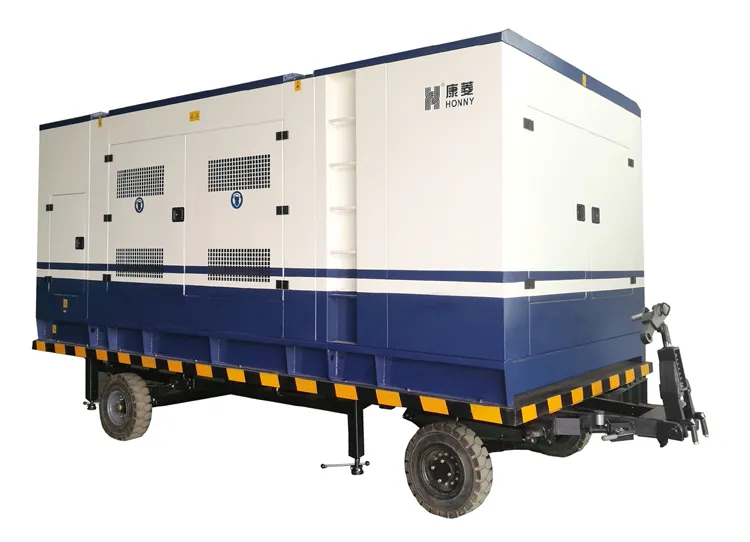

Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.

Company Introduction:

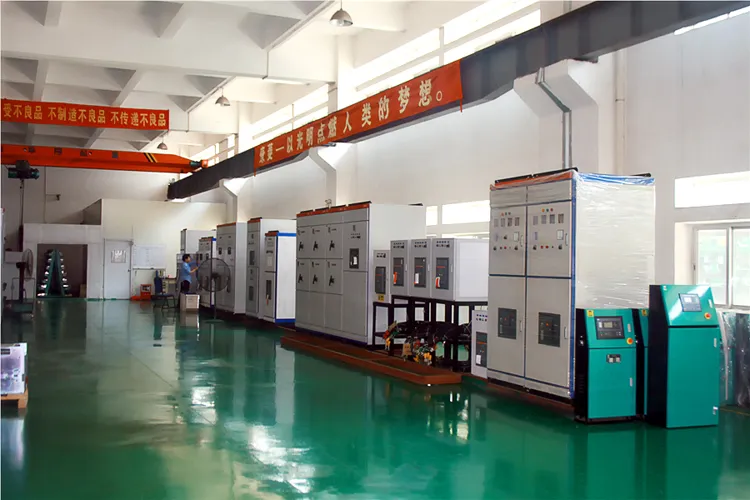

Guangdong Honny Power-tech Co., Ltd was founded in year 1992, and has been the leading power generation solution and manufacturer in China. We specialize in assembly, design, sale, installation, maintenance, and service of Power Generation, Diesel and Gas Engines, Power Plant & Transformer Station, Emergency Generator Truck. We supply generators from 20 to 5000 kVA, and produce engines from 240 to 2955kW, 3MW to 500MW power plant & transformer station. Honny own 2 manufacturing factories, 3 R & D centers at Dongguan, Chongqing and USA Los Angeles, 43 sale and service offices in China area. The total business area is up to 160, 000 square meters, Honny now owns over 600 employees.

Address: North Road 2, Songshan Lake, Dongguan city, Guangdong Province, CHINA

Generator	Genset Model	HGM2750
Set	Rating Power (KW/KVA)	2000/2500
	Standby Power(KW/KVA)	2200/2750
	rating Ammeter(A)	3608

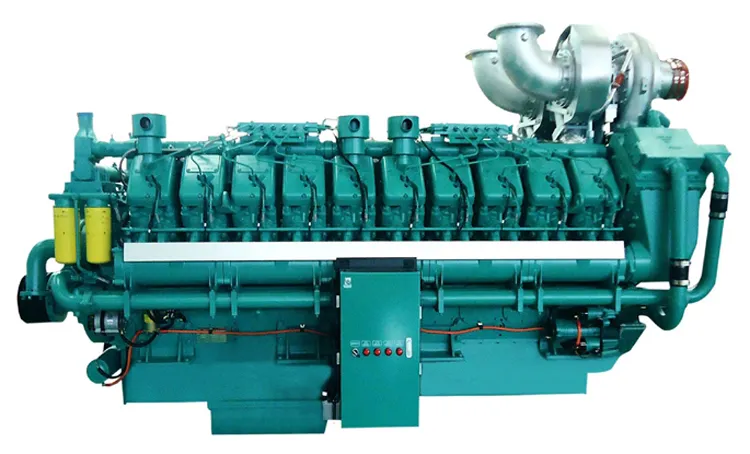

	Engine Model	QTA4320-G7
Diesel	Prime Power(KW)	2169
Engine	Standby Power(KW)	2379
	Bore X Stroke (mm)	170X195
	number of Cylinder & Configuration	16 V
	Displacement(l)	70.8
	Compression Ratio	13.5:1
	Aspiration	Turbocharged & Aftercooled
	Max. intake depression(kPa)	6
	Combustion air Volume(m³/min)	158
	Max. Exhaust back Pressure(kPa)	10
	Exhaust Gas Flow(m³/min)	412
	Max. Exhaust Gas Temperature (ºC)	450
	Cooling	Water cooled with Radiator
	Fan cooling air flow(m³/min)	2000
	Engine Coolant capacity(l)	260
	Max. temperature of coolant (ºC)	100
	Max. permissible oil temp (ºC)	100
	Total oil capacity(l)	240
	Rating Fuel Consumption(l/h)	426
	Governing Type	Electrical
	Rating Voltage(V)	400/230 adjustable
Alternator	Alternator Model	EN500L-2000N ENGGA
	Rating Capacity(KW/KVA)	2000/2500
	Eff.%	96.0%
	Power Factor	0.8 lagged
	Exciting type	Brushless, PMG exciter, AVR
	Voltage regulation	±0.5%
	No. of Phase	3 phase 4 wire
	Enclosure Class	IP21
	Class of Insulation	H
Battery	Rating Capacity(AH)	4X200AH 12V
Dimension	Generator set dimension (LXWXH)	6500X2300X3000 mm
Weight	Generator set Net Weight (kg)	15500
