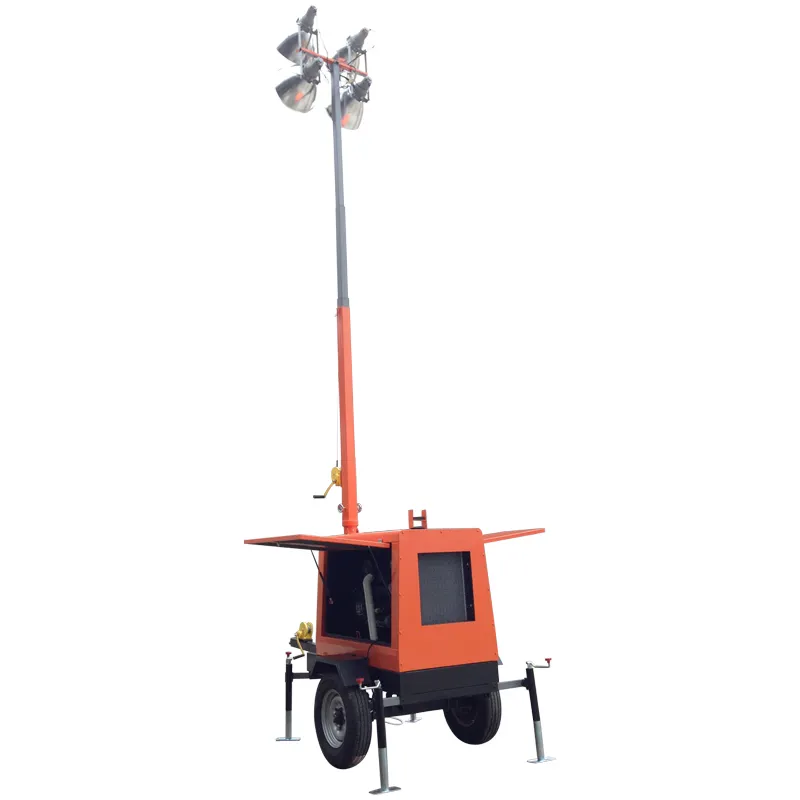

Mobile Lighting Tower Genset with Wheels

Product Description

Light Tower Genset Specification Data:

	Model	XYB6700T	XYB6700T	LT-10.8KW	LT-10.8KW	LT-12.8KW	LT-12.8KW
Light & Tower	Height of Mast (M)	4.5M	4.5M	8M	8M	8M	8M
	Type of Mast	Stainless stee,Manual mast
	Rotation of Mast	360 degree	360 degree	360 degree	360 degree	360 degree	360 degree
	Total power of lamps	4*1000W	4*1000W	4*1000W	4*1000W	4*1000W	4*1000W
	Type of lamps	Halogen lamp	Metal halide lamp	Halogen lamp	Metal halide lamp	Halogen lamp	Metal halide lamp
	Luminous Flux (lm)	4*5000	4*8500	4*5000	4*8500	4*5000	4*8500
	Lifetime of lamp(h)	2000	3000	2000	3000	2000	3000
	Windproof Ability	≤6	≤6	≤8	≤8	≤8	≤8
	Tire	Tire Diameter(mm) :200mm		Tire Model:185R14LT
Generator	Rated Power	5KW	5KW	10.8KW	10.8KW	12.8KW	12.8KW
	Standby Power	5.5KW	5.5KW	11.9KW	11.9KW	14.1KW	14.1KW
	Phase & Voltage	Signle phase,230V	Signle phase,230V	Signle phase,230V	Signle phase,230V	Signle phase,230V	Signle phase,230V
	Frequency	50HZ	50HZ	50HZ	50HZ	50HZ	50HZ
	Speed	3000RPM	3000RPM	1500RPM	1500RPM	1500RPM	1500RPM
	Start method	Electric starting	Electric starting	Electric starting	Electric starting	Electric starting	Electric starting
	Engine model and power	186FA/5.5KW	186FA/5.5KW	480D/13KW	480D/13KW	SL2100ABD/16KW	SL2100ABD/16KW
	Type of engine	single-cylinder, Vertical in-line,4-stroke air-cooled diesel engine		Four-cylinder, Vertical in-line,4-stroke water-cooled diesel engine		Two-cylinder, Vertical in-line,4-stroke water-cooled diesel engine
	Fuel tank capacity	16L	16L	65L	65L	65L	65L
	Prime fuel consumption	1.5L/h	1.5L/h	3.5L/h	3.5L/h	5L/h	5L/h
	Cooling method l	Air cooled	Air cooled	Water-cooled	Water-cooled	Water-cooled	Water-cooled
	Alternator model and power	SY-5KW	SY-5KW	LSG164C/10.8KW	LSG164C/10.8KW	LSG164D/12.8KW	LSG164C/12.8KW
Price including tax(RMB)		9300 (Halogen lamp	10500 (Metal halide lamp	21730(Halogen lamp	23000(Metal halide lamp	20928(Halogen lamp	22188(Metal halide lamp

Engine Feature
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals
Alternator Feature
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)
Control System:
1. Protection: Automatic start/stop, load transfer and alarming of generator;
2. Three channel analog inputs, may joint with Resistive-type temperature/ pressure/ fuel level
3. sensors, Several temperature and pressure sensors can be used directly (ie. VDO, DATCON, CUMMINS), also may select "user defined" sensor via entering 8 point curves;
4. Display of generator cumulated electric energy;
5. Security password-protected programming levels.
6. Several crank success conditions are optional;
7. Power supply range is wide, accommodating to different starting battery voltage environments;
8. All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased;
9. Built-in watch dog can never be dead halt, ensuring smooth program execution;

STANDARD CONFIGURATION
----------------------------------------------------------------------------------------------------------------------------------------------
√ High-efficiency light fixtures provide uniform light pattern
√ Durable fixtures resist shock and last longer
√ Unique lamp design increases filament life and keeps maximum light on the job longer, increasing productivity while saving time and money
√ Rotating tower allows 360-degree rotation, reducing the need to frequently move the light tower trailer
√ Compact design with removable tow bar allows efficient transport and storage
√ Lockable, weather-resistant, steel cabinet protects components from the elements
√ One outrigger and four leveling jacks provide stability
√ Control panel features running hour meter, receptacles for powering external equipment, and circuit breakers for on/off functionality and protection
√ Automatic engine shutdown system protects engine from damage due to low oil pressure and high coolant temperature
√ Exclusive hinged top panel provides unimpeded access to engine, generator and electrical components
√ Fuel capacity of 30 gallons provides extended run times of 60 to 70 hours between refueling, depending on environmental influences
√ Translucent polyethylene fuel tank provides instant view of fuel level, eliminating the need for a fuel gauge
√ 6,000 Watts of lights from 4 x 1500 Watt Metal Halide Lamps
√ Reliable Kubota engine and 6kW rated power generator
√ Quiet 71dBA sound levels at 7m away
√ Durable 9m galvanized hydraulic mast
√ 359° non-continuous tower rotation and retractable mast cable
√ Standard engine protection includes high water temperature and low oil shutdowns

PRP: Prime power is available for an unlimited number of annual operating hours in variable
Load applications, in accordance with ISO8528-1.A 10% overload capability is available for a period of 1 hour within 12-hours period of operation

ESP: The Standby power rating is applicable for supplying emergency power in variable load applications for up to 200 hours per year in accordance with ISO8528-1. Overload is not allowed
