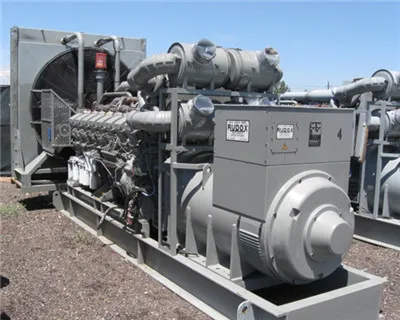

Mitsubishi Engine Powered Diesel Generator

Product Description

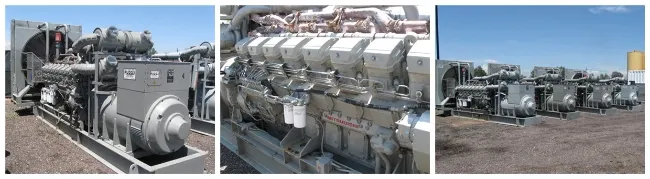

Mitsubishi Engine Powered Diesel Generator

Brief descriptions of Mitsubishi Diesel Generator

Super-above Mitsubishi silent generators have a wide power range from 700~2250kVA. The generators are widely used in industrial,commercial, backup, primary power source and outdoors project work and so on.

Shanghai Mitsubishi heavy engine co., LTD. is a joint venture between Japan's Mitsubishi heavy industry co., LTD and Shanghai diesel engine co., LTD. The company mainly produce Mitsubishi heavy industries of large and medium-sized engine and the every technology, production, and quality standard is synchronize with Mitsubishi Japan heavy industries.

Lees cooperate with Mitsubishi (Shanghai), manufacturing LSSM series diesel generating sets, with its excellent quality and price, Lees Mitsubishi Generator sold vastly overseas. This series of diesel engines meet with U.S. EPA2 emissions standard of diesel engine power station. Power coverage from 500 kw to 1800 kw.
Mitsubishi Engine Powered Diesel Generator

Benefits of Mitsubishi Diesel Generator

Typical color match "yellow with black", which is bright and attractive
Cover of canopy use the design of a slight angle, which is unique and modern.
Higher "panzer base frame" design is strong and durable, which has high industrial traits.
Intelligent control panel is located in the same side of maintenance door, which is more convenien for customer to check and maintain.
The rainproof canopy is used 2 mm thickness cold rolled steel, strong and durable, which sound insulation effect is good.
The surface of the canopy is used powder painting, which production workmanship is rigorous.
Adopt two-step silencing technology with high density sound-absor
bing cotton to reduce running noise.
Humanized design fully consider the customer experience and improve its service satisfaction.

Mitsubishi Engine Powered Diesel Generator

Specifications of Mitsubishi Diesel Generator

Model	Power		Engine					Oil	Fuel Con.	Weight	Size mm
	KVA	KW	Model	Cylin	Bore	Stroke	Dis.	(L)	(g/kwh)	(kg)
	KVA	KW	Model	Cylin	(mm)	(mm)	(L)	(L)	(g/kwh)	(kg)
SL540	675	540	S6R2-PTA	6	170	220	29.96	100	205	4750	3750×1410×2200
SL600	750	600	S6R2-PTAA	6	170	220	29.96	94	211	5600	3950×1600×2000
SL800	1000	800	S12H-PTA	12	150	175	37.11	200	197	8090	4600×1750×2500
SL1000	1250	1000	S12R-PTA	12	170	180	49.03	180	197	9320	4570×2100×2460
SL1100	1375	1100	S12R-PTA2	12	170	180	49.03	180	207	10500	4650×2100×2630
SL1200	1500	1200	S12R-PTAA2	12	170	180	49.03	180	199	11200	5000×2200×3000
SL1320	1687	1350	S16R-PTA	16	170	180	65.37	230	200	12300	5500×1850×2760
SL1500	1875	1500	S16R-PTA2	16	170	180	65.37	230	208	12540	5450×2600×3100
SL1600	2000	1600	S16R-PTAA2	16	170	180	65.37	230	199	14500	5850×2450×3430
SL1800	2000	1800	S16R2PTAW	16	170	220	79.9	260	205	15000	6200×2830×3500

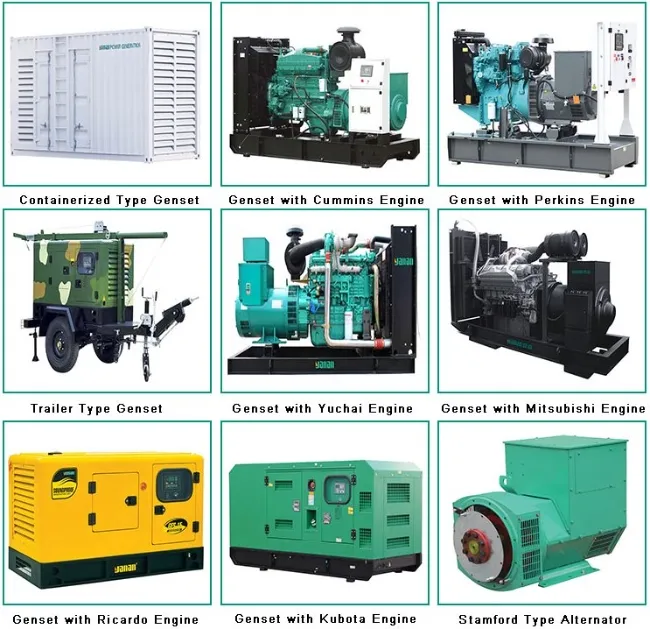

Other Options
The following engine brands, alternator brands and Control panel for optional

Rated power	Engine	Alternator	Control panel
24kw~1560kw	Cummins	Stamford Leroy somer Marathon Chinese alternators	Deepsea ComAp Harsen Smartgen
8kw~2000kw	PKS
68kw~544kw	Volvo
20kw~500kw	Deutz
220kw-2400kw	MTU
280kw-800kw	MAN
600kw-1800kw	Mitsubishi
50kw-650kw	Doosan Daewoo
2kw~2500kw	Chinese engines

Mitsubishi Engine Powered Diesel Generator

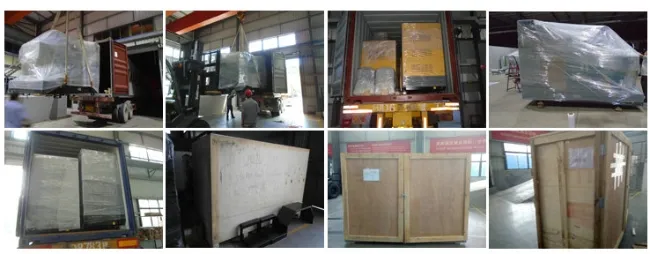

Packing&Delivery
1) Wrap the generator set by stretch film, and put some drying agent.
2) Adopt steel plate or wood rib to make it stronger, can afford rough handling.
3) Design for forklift truck working in 4 directions. Fastened by 8cm length galvanized nail.
4) Load the case into container by forklift truck.
Mitsubishi Engine Powered Diesel Generator

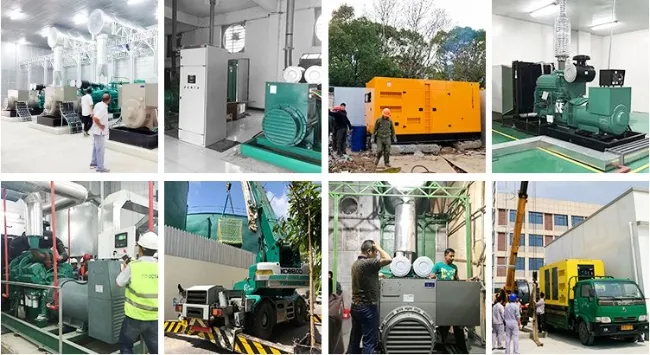

Applications fileds and working sites of gensets
Diesel generator sets are widely used in telecommunications, finance, hospitals, schools, commercial and other sectors, industrial and mining enterprises. Mitsubishi Engine Powered Diesel Generator
