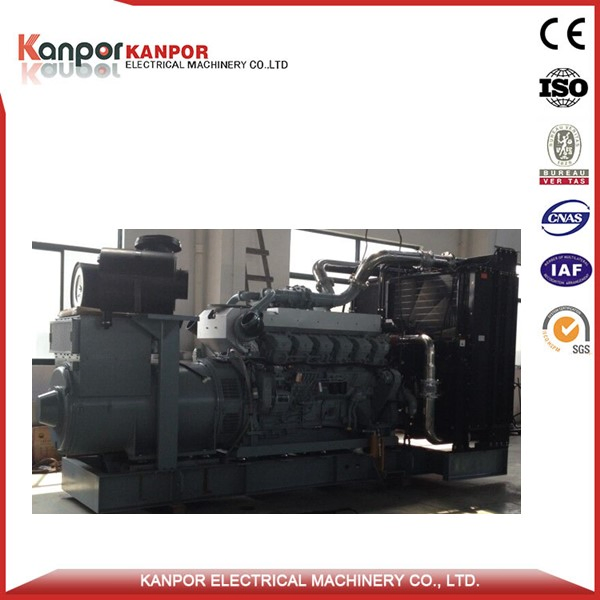

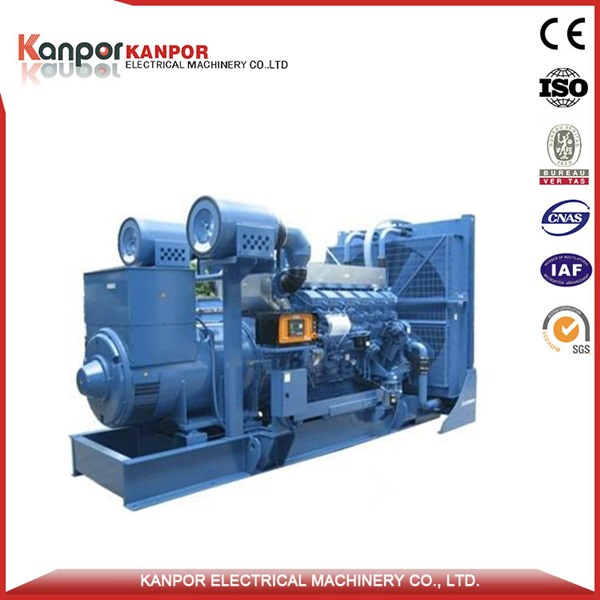

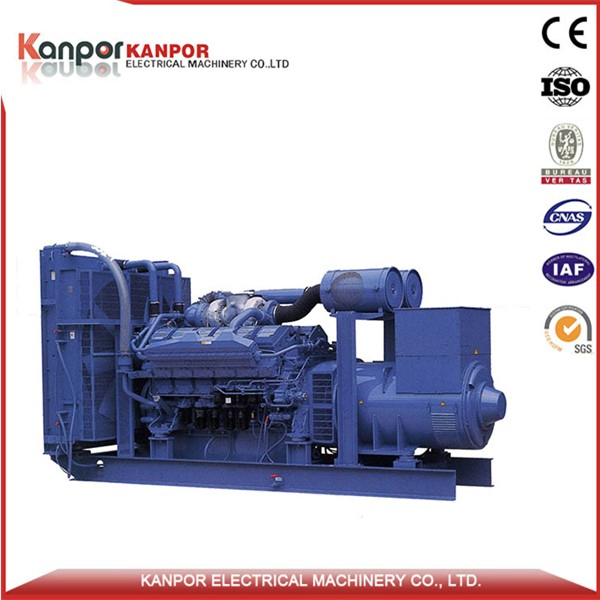

Mitsubishi 1164kw 1455kVA (1280kw 1600kVA) Quality Reliable Diesel Generator
1. GENERATOR DATA Voltage Available: 50Hz: 380-400-415V/220-230-240V;60Hz: 220-380-416-440-480V/110-208-220-240VAny special voltage is also available as client's requestPrime Power: Comply with GB/T2820-97(eqv.ISO8528). Genset can run unlimitedly under certain power......
Send Inquiry
Product Description
1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION
| Genset Model | KPM1600 | KPM1800 | KPM2000 | KPM2200 | |
| Rated Power | KW/KVA | 1164/1455 | 1318/1650 | 1455/1818 | 1600/2000 |
| Standby Power | KW/KVA | 1280/1600 | 1440/1800 | 1600/2000 | 1760/2200 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | |||
| Speed | RPM | 1500/1800 | |||
| Rated frequency | Hz | 50/60 | |||
| Engine Model | S12R-PTAA2 | S16R-PTA | S16R-PTA2 | S16R-PTAA2 | |
| Engine Power | KW | 1404 | 1620 | 1790 | 1939 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 12 | 16 | 16 | 16 |
| Bore*Stroke | mm*mm | 170×180 | 170×180 | 170×180 | 170×180 |
| Displacement | L | 49.03 | 65.37 | 65.37 | 65.37 |
| Fuel Consumption | g/kw.h | 235 | 235 | 235 | 235 |
| Compression Ratio | 13.5:1 | 14:1 | 13.5:1 | 14:1 | |
| Alternator Model | STF-734D | STF-734D | STF-734E | STF-734F | |
| Voltage Regulation | AVR | ||||
| Excitation Method | Brushless | ||||
| Open Type Size | mm | 5200x2200x2350 | 5800x2200x2230 | 5800x2200x2230 | 5900x2200x2300 |
| Open Type Weight | kg | 9500 | 11500 | 12800 | 15500 |
| Soundproof Size | mm | 7000x2200x2350 | 8000x2200x2300 | 8000x2200x2300 | 8000x2200x2300 |
| Soundproof Weight | kg | 12300 | 15600 | 16900 | 21000 |
3. PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
