Low Price Silent 700kw Diesel Generator
700kW/ 900kVA Silent Diesel GeneratorProduct Description 1) Powered by brand new original water cooled diesel engine.2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.3) Original 50ºC radiator with engine driven fan mounted on ......
Send Inquiry
Product Description
700kW/ 900kVA Silent Diesel Generator
Product Description
1) Powered by brand new original water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
Tech. Data
2) Brand new STAMFORD, LEROY SOMER or GENLITEC single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
9) 12/24V DC electric start system with free maintain battery & smartgen brand battery charger.
10) Set mounted automatic control panel, with SMARTGEN brand AMF controller module for automatic start & stop.
11) Test report of generator, set of drawings and manuals.
12) CE, ISO9001 approved
Tech. Data
| Engine Data | |
| Model | KTA38-G2B |
| Type | 12 Cylinder in V,4 cycle |
| Displacement | 38 L |
| Aspiration | Turbocharged |
| Bore*Stroke | 159X159 mm |
| Governor Type | Electrical |
| Starting Voltage | 24V |
| Lubricant Capacity | 135 L |
| Fuel Consumption | 0.23 L/Kw.h |
| Generator Data | |
| Model | SACTG-404D |
| Optional | Stamford,Leroysomer,MeccAlte,Marathon |
| Excited Type | Brushless,Self-Excited |
| Power Factor | 0.8 |
| Voltage Adjust range | >5% |
| Voltage Regulation | <±1% |
| Insulation Class | H |
| Protection Class | IP23 |
| Control Panel | |
| Model | Smartgen,Comap or Deepsea |
| Protection | High/Low Voltage,High/Low Temperaturer,High/Low Frequency,Low fuel,Low Oil,Low coolant |
| Function | AMF,Synchronizing |
| Support | RS232,RS485,USB |

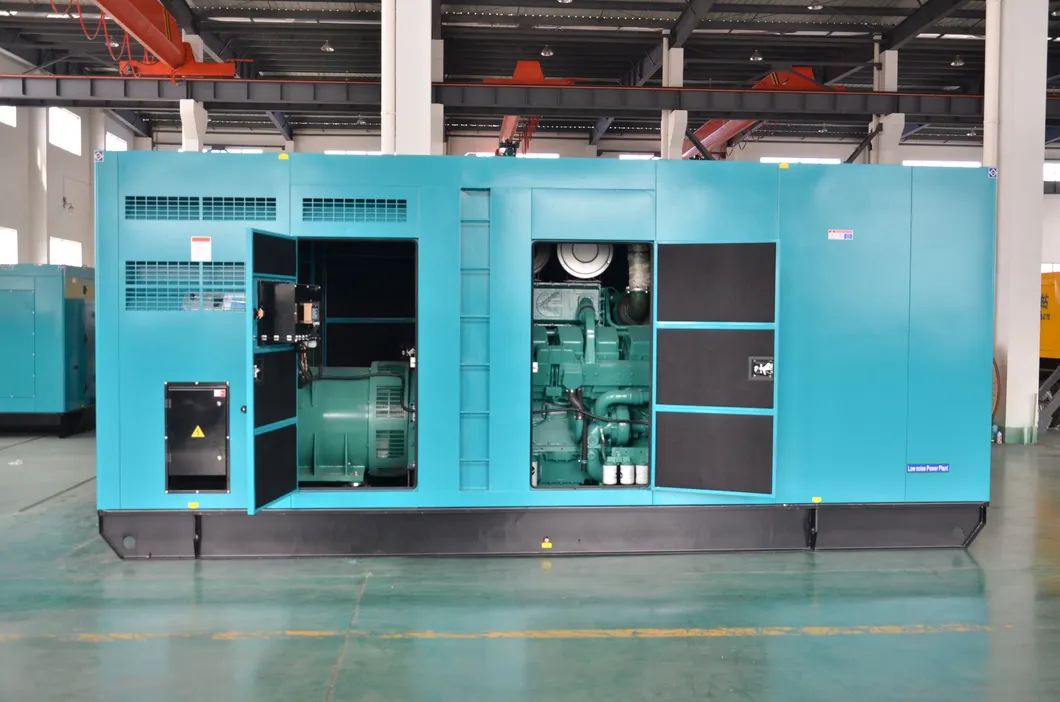

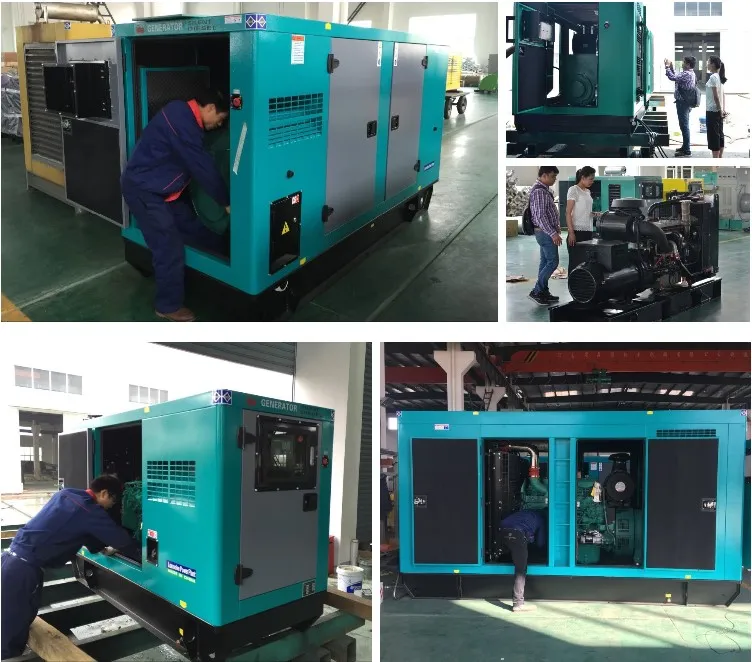

More Pictures

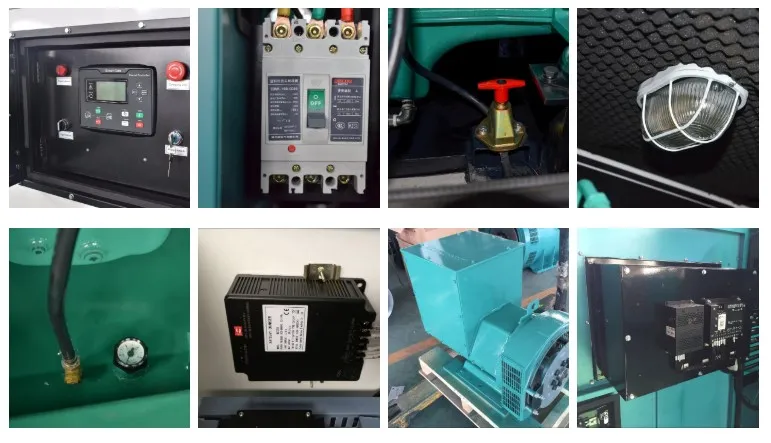

Details

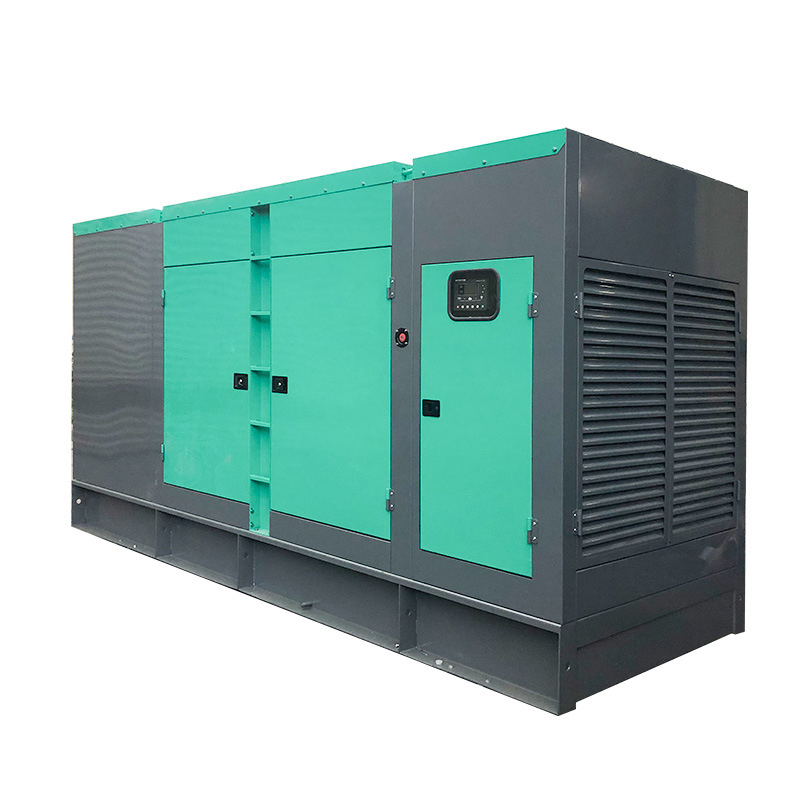

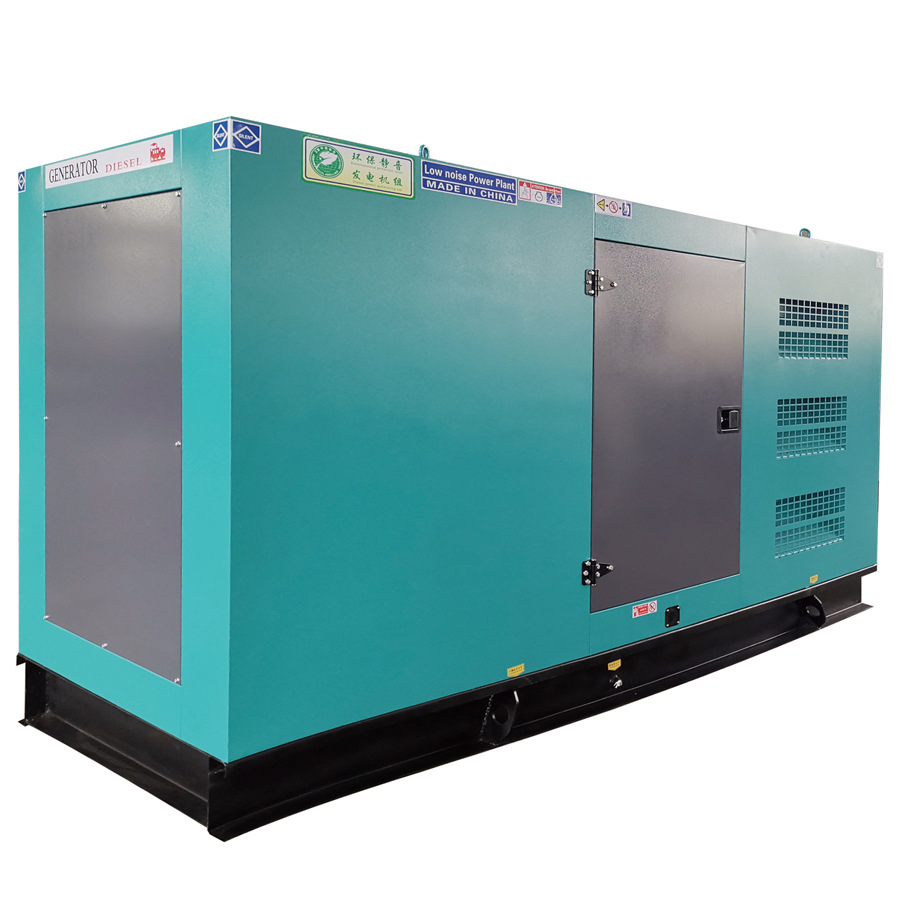

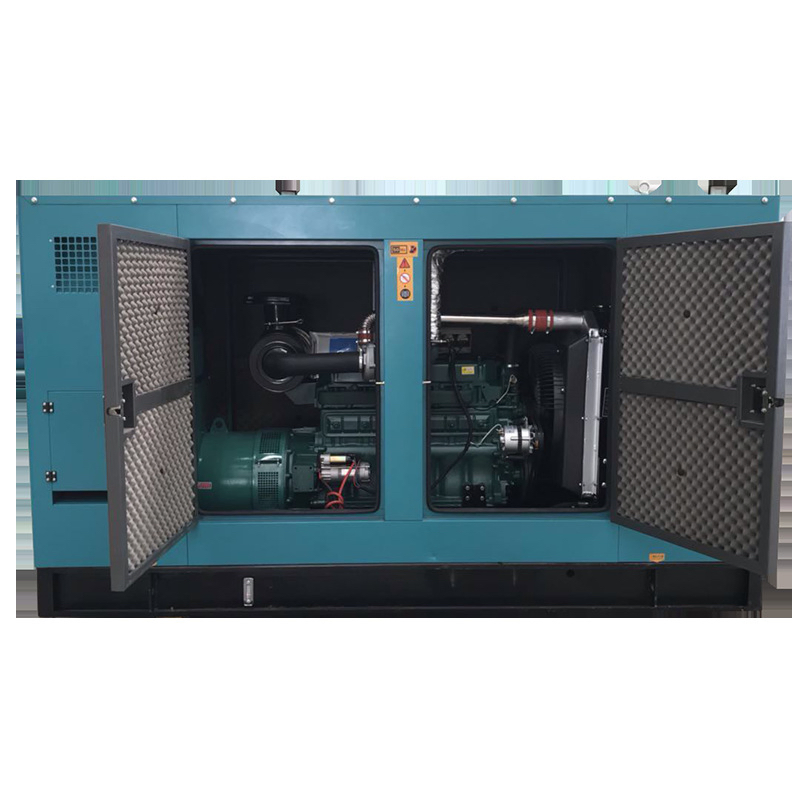

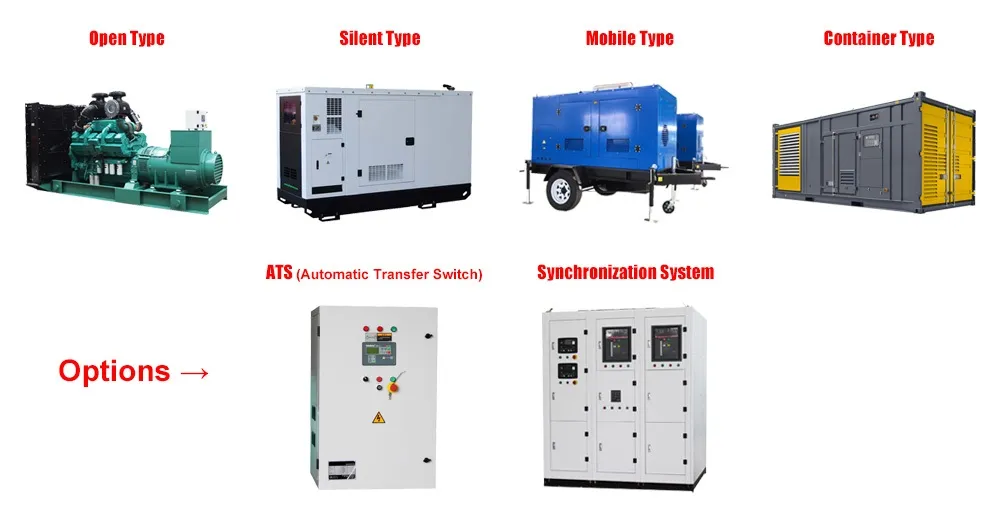

Types you can choose
All design for Open, Silent, Trailer, container type generator
Partners

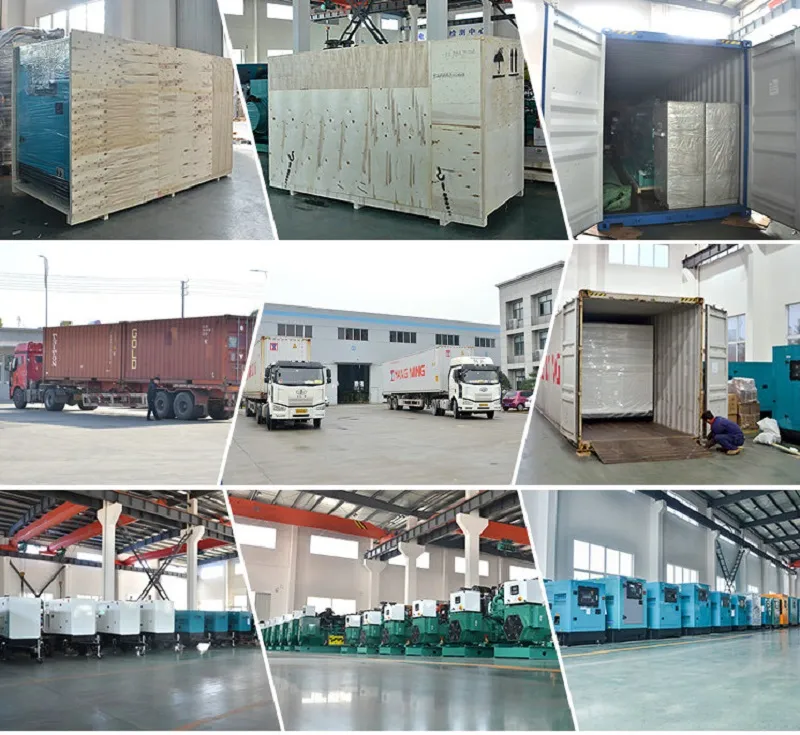

Packing & Delivery
1) Wrap the generator set by stretch film, and put some drying agent.
2) Adopt steel plate or wood rib to make it stronger, can afford rough handling.
3) Design for forklift truck working in 4 directions. Fastened by 8cm length galvanized nail.
4) Load the case into container by forklift truck.
2) Adopt steel plate or wood rib to make it stronger, can afford rough handling.
3) Design for forklift truck working in 4 directions. Fastened by 8cm length galvanized nail.
4) Load the case into container by forklift truck.
