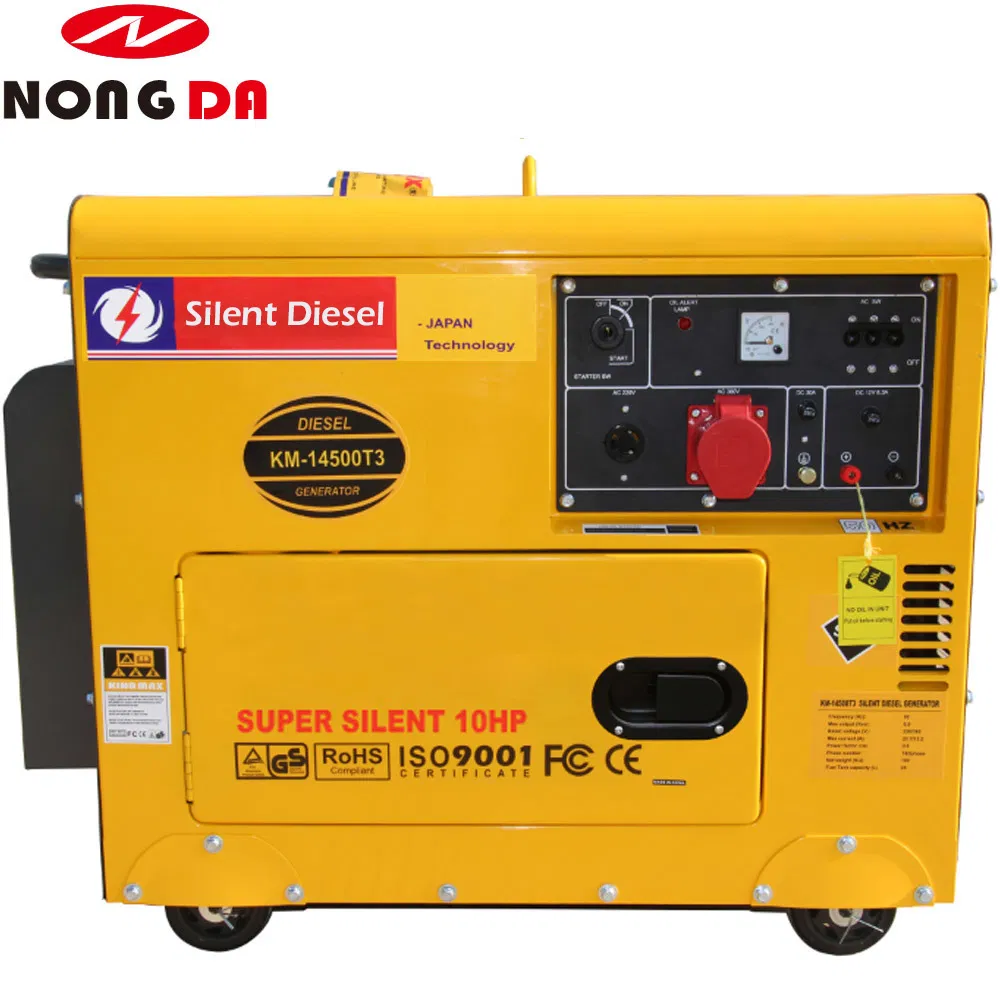

Kh8000t3 Km14500t3 7kVA 10HP Silent King Power Diesel Generator
ITEMDiesel GeneratorTypeRevolving Magnetic Field, Self-exciting, 2 Poles, Single-phase(or 3-phase)Rating frequency(Hz)50/6050/6050/6050/6050/60Rated AC Output(kVA)5.0 / 5.56.5/7.07.5/8.09/9.512/13Max. AC Output(kVA)5.5 / 6.07.0/7.58.0/8.510/10.513/14Voltage(V)110/220/380/400Voltage RegulatorAuto Reg......
Send Inquiry
Product Description
| ITEM | Diesel Generator | ||||
| Type | Revolving Magnetic Field, Self-exciting, 2 Poles, Single-phase(or 3-phase) | ||||
| Rating frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated AC Output(kVA) | 5.0 / 5.5 | 6.5/7.0 | 7.5/8.0 | 9/9.5 | 12/13 |
| Max. AC Output(kVA) | 5.5 / 6.0 | 7.0/7.5 | 8.0/8.5 | 10/10.5 | 13/14 |
| Voltage(V) | 110/220/380/400 | ||||
| Voltage Regulator | Auto Regulating System | ||||
| Power factor(cos) | 0.8/1.0 | ||||
| Model | 186FA | 188F | 192 | 198F | 2V92 |
| Type | Air-cooled, Single-cylinder, 4-stroke, Direct-injection, Diesel Engine | ||||
| Bore X Stroke(mm) | 86X72 | 88X75 | 92X75 | 98X84 | 92X75 |
| Diaplacement(CC) | 418 | 456 | 498 | 618 | 996 |
| Recommended Fuel | Light Diesel | ||||
| Fuel tank capacity(L) | 16 | 16 | 16 | 30 | 30 |
| Engine Oil Capactiy(L) | 1.65 | ||||
| Lube Oil | SAE 10-30W | ||||
| Start System | Electric Start | ||||
| Operating Hour for 1 Tank Fuel(Hrs) | 9 | 9 | 9 | 12 | 12 |
| Noise level(7m)dB(A) | 70-72 | ||||
| Packing Dimension Lx Wx H(mm) | 955X565X780 | 955X565X780 | 955X565X780 | 1100X760X860 | 1210X820X930 |
| Gross Weight/Net Weight(kg) | 175/170 | 177/172 | 179/174 | 205/210 | 310/325 |
