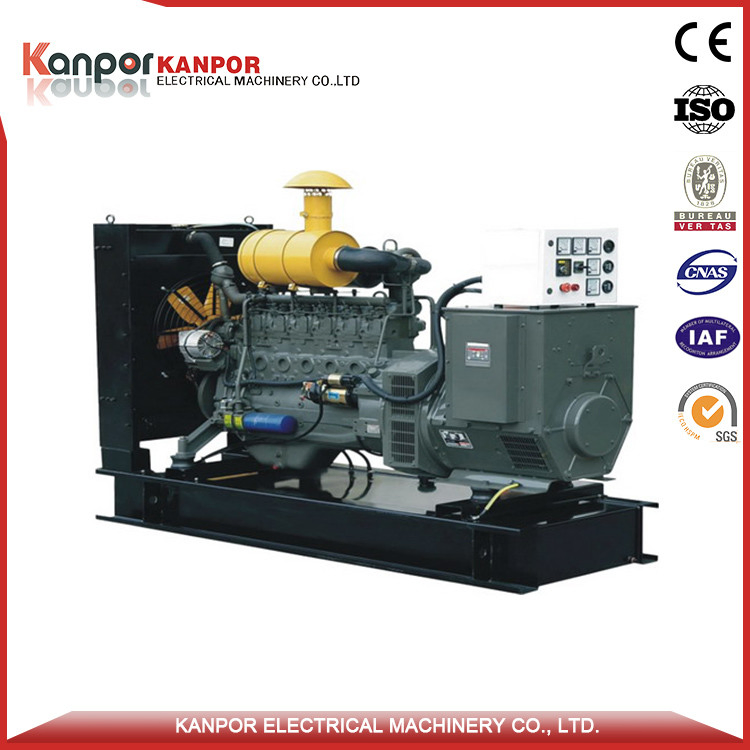

Huachai Deutz 450kw Diesel Generating Set for Crematory
1. GENERATOR DATA Voltage Available: 50Hz: 380-400-415V/220-230-240V;60Hz: 220-380-416-440-480V/110-208-220-240VAny special voltage is also available as client's requestPrime Power: Comply with GB/T2820-97(eqv.ISO8528). Genset can run unlimitedly under certain power......
Send Inquiry
Product Description
1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION
| Genset Model | KPD500 | KPD550 | KPD625 | KPD660 | |
| Rated Power | KW/KVA | 360/450 | 400/500 | 450/563 | 480/600 |
| Standby Power | KW/KVA | 400/500 | 440/550 | 500/625 | 528/660 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | |||
| Speed | RPM | 1500/1800 | |||
| Rated frequency | Hz | 50/60 | |||
| Engine Model | BF8M1015C-G2 | BF8M1015CP-G2 | BF8M1015CP-G4 | BF8M1015CP-G5 | |
| Engine Power | KW | 440 | 490 | 530 | 560 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 8 | 8 | 8 | 8 |
| Bore*Stroke | mm*mm | 132×145 | 132×145 | 132×145 | 132×145 |
| Displacement | L | 15.874 | 15.874 | 15.874 | 15.874 |
| Fuel Consumption | g/kw.h | 205 | 208 | 209 | 209 |
| Compression Ratio | 16.5:1 | 16.5:1 | 16.5:1 | 16.5:1 | |
| Alternator Model | STF-354C | STF-354D | STF-354E | STF-354E | |
| Voltage Regulation | AVR | ||||
| Excitation Method | Brushless | ||||
| Open Type Size | mm | 3000x1800x2100 | 3100x1900x2100 | 3200x1900x2100 | 3200x1900x2100 |
| Open Type Weight | kg | 3300 | 3380 | 3700 | 3800 |
| Soundproof Size | mm | 3600x1900x2200 | 3600x2000x2200 | 4000x2000x2200 | 4000x2000x2200 |
| Soundproof Weight | kg | 4650 | 4800 | 5200 | 5350 |
3. PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
