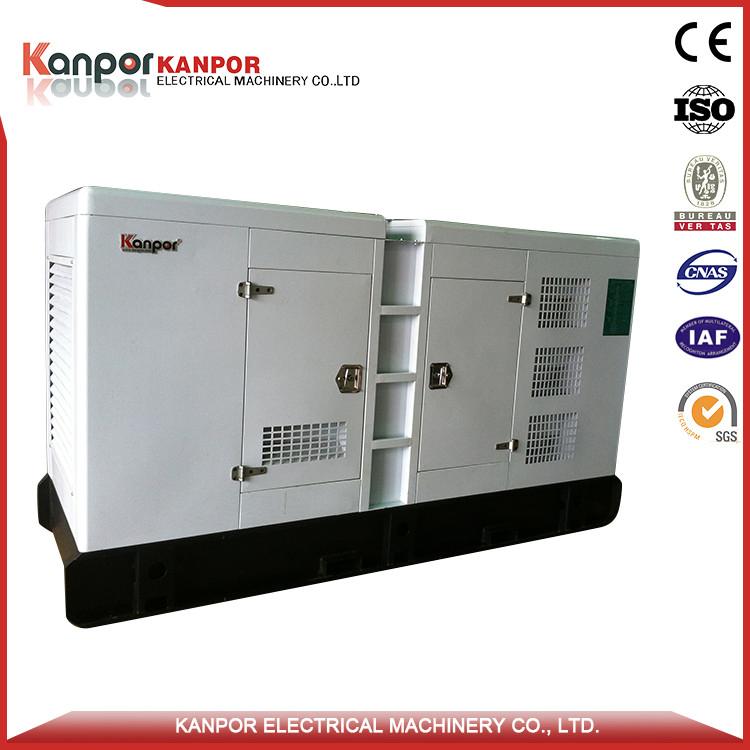

Huachai Deutz 180kw 225kVA Electric Diesel Generator with Reliable Quality
1. GENERATOR DATA Voltage Available: 50Hz: 380-400-415V/220-230-240V;60Hz: 220-380-416-440-480V/110-208-220-240VAny special voltage is also available as client's requestPrime Power: Comply with GB/T2820-97(eqv.ISO8528). Genset can run unlimitedly under certain power......
Send Inquiry
Product Description
1. GENERATOR DATA
Voltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION
| Genset Model | KPD250 | KPD275 | KPD300 | KPD330 | |
| Rated Power | KW/KVA | 180/225 | 200/250 | 220/275 | 240/300 |
| Standby Power | KW/KVA | 200/250 | 220/275 | 240/300 | 264/330 |
| Rated Voltage | V | 220V/127V 380V/220V 400V/230V 415V/240V 480V/277V 600V/346V | |||
| Speed | RPM | 1500/1800 | |||
| Rated frequency | Hz | 50/60 | |||
| Engine Model | BF6M1013FCG3 | BF6M1015-GA | BF6M1015C-G1A | BF6M1015C-G2A | |
| Engine Power | KW | 201 | 231 | 250 | 285 |
| Air intake way | Turbo | Turbo | Turbo | Turbo | |
| Governor | Electronic | Electronic | Electronic | Electronic | |
| Cylinder | QTY | 6 | 6 | 6 | 6 |
| Bore*Stroke | mm*mm | 108×130 | 132×145 | 132×145 | 132×145 |
| Displacement | L | 7.146 | 11.906 | 11.906 | 11.906 |
| Fuel Consumption | g/kw.h | 196 | 205 | 203 | 203 |
| Compression Ratio | 18:01 | 16.5:1 | 16.5:1 | 16.5:1 | |
| Alternator Model | STF-274J | STF-274K | STF-314C | STF-314D | |
| Voltage Regulation | AVR | ||||
| Excitation Method | Brushless | ||||
| Open Type Size | mm | 2800x900x1600 | 2800x900x1600 | 2800x1100x2000 | 2900x1100x2100 |
| Open Type Weight | kg | 2180 | 2300 | 2400 | 2520 |
| Soundproof Size | mm | 3300x1150x1850 | 3300x1150x1850 | 3400x1300x2000 | 3400x1400x2100 |
| Soundproof Weight | kg | 3160 | 3300 | 3450 | 3600 |
3. PRODUCT FEATURES
(1).Full control panel with power indicator light and oil light.
(2).Emergency shutdown for low oil pressure and high water temperature.
(3).Large fuel tank ensure continuous running.
(4).Low noise & vibration.
(5).Compact structure.
(6).Reliable performance.
(7).Easy for installation and maintenance.
(8).50Hz and 60Hz both are available for choice
