Hot Sale 250kw 313kVA Diesel Generating Sets Standby Power 350kVA 280kw Diesel Generator 50Hz 1500rpm From Gtl
YCW-313T5 powered by:Yuchai YC6MK420L-D20Diesel Genset Features P.F=0.8 3PhaseGenerating Set Performance 50HzService P.R.PStandbyStandbyRated outputkVA313 350 350 Active power outputkW2......
Send Inquiry
Product Description

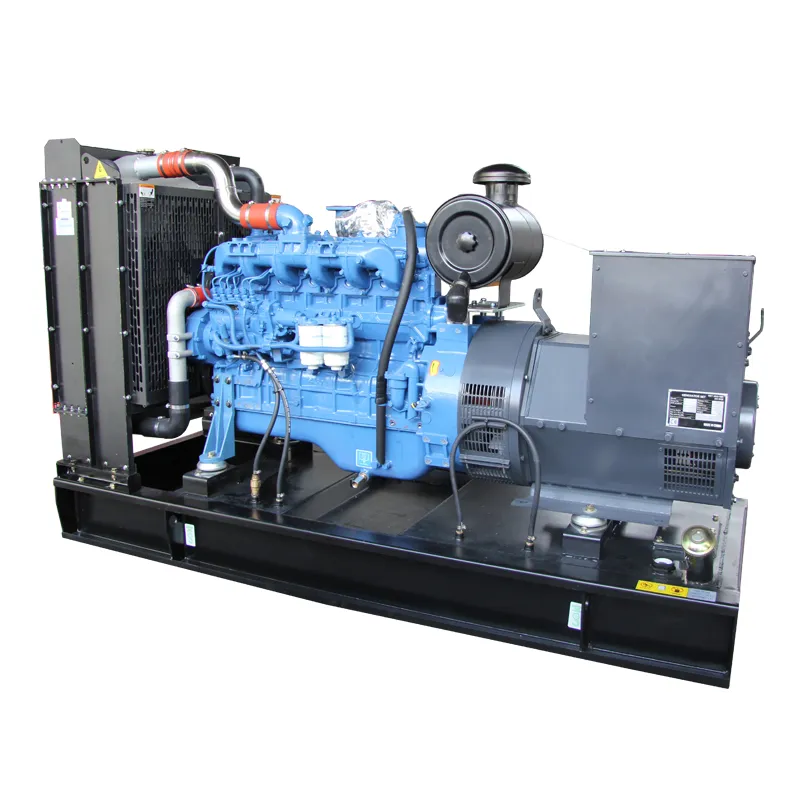

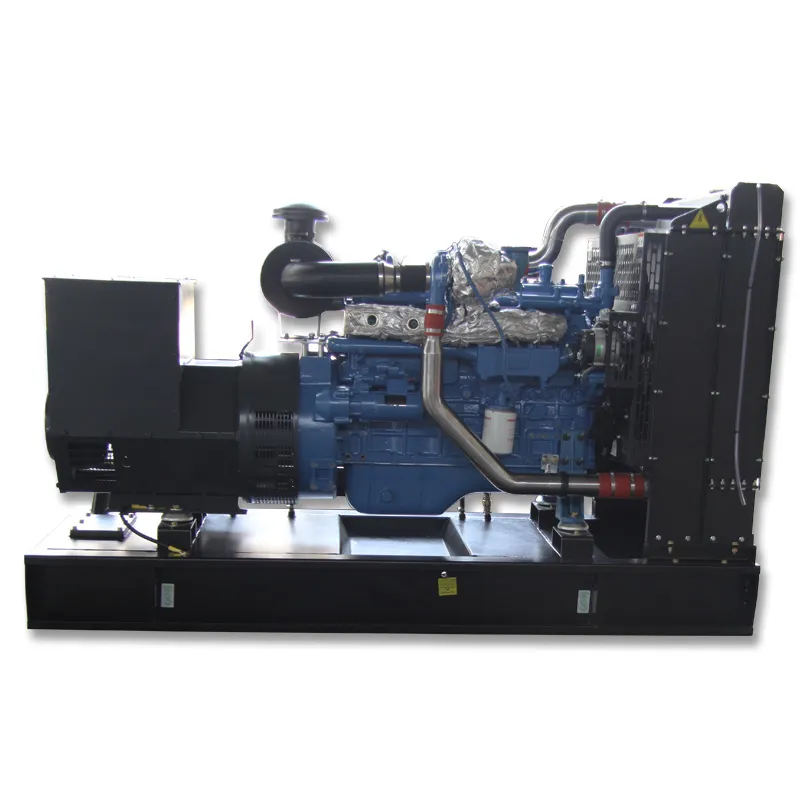

YCW-313T5 powered by:Yuchai YC6MK420L-D20| Diesel Genset Features P.F=0.8 3Phase | |||||||||||||
| Generating Set Performance | 50Hz | ||||||||||||
| Service | P.R.P | Standby | Standby | ||||||||||
| Rated output | kVA | 313 | 350 | 350 | |||||||||
| Active power output | kW | 250 | 280 | 280 | |||||||||
| Rated Speed | r.p.m | 1500 | |||||||||||
| Standard Voltage | V | 400/230 | |||||||||||
| Voltage available | V | 380/220 - 415/240 | |||||||||||
| Prime Mover Performance 1500 r.p.m | |||||||||||||
| SERVICE | P.R.P | Standby | Standby | ||||||||||
| Rated output | KW | 281 | 309 | 309 | |||||||||
| Manufacturer | Yuchai | ||||||||||||
| 4 stroke Diesel Engine - Injection type | Direct | ||||||||||||
| Aspiration type | Turbocharged &Air-to-air charge cooling | ||||||||||||
| Cylinders,number and arrangement | 6 -L | ||||||||||||
| Bore×Stroke | mm | 123X145 | |||||||||||
| Total Displacement | L | 10,34 | |||||||||||
| Cooling system | Water | ||||||||||||
| Lube oil specifications | SAE 15 W 40 | ||||||||||||
| Compression ratio | 16.8:1 | ||||||||||||
| Specific fuel consumption(P.R.P) | L/h | 69,1 | |||||||||||
| Oil-fuel consumption ratio | % | <0.1 | |||||||||||
| Total coolant capacity | L | 65 | |||||||||||
| Fuel System | Type | Mechanical pump + Electronic governor | |||||||||||

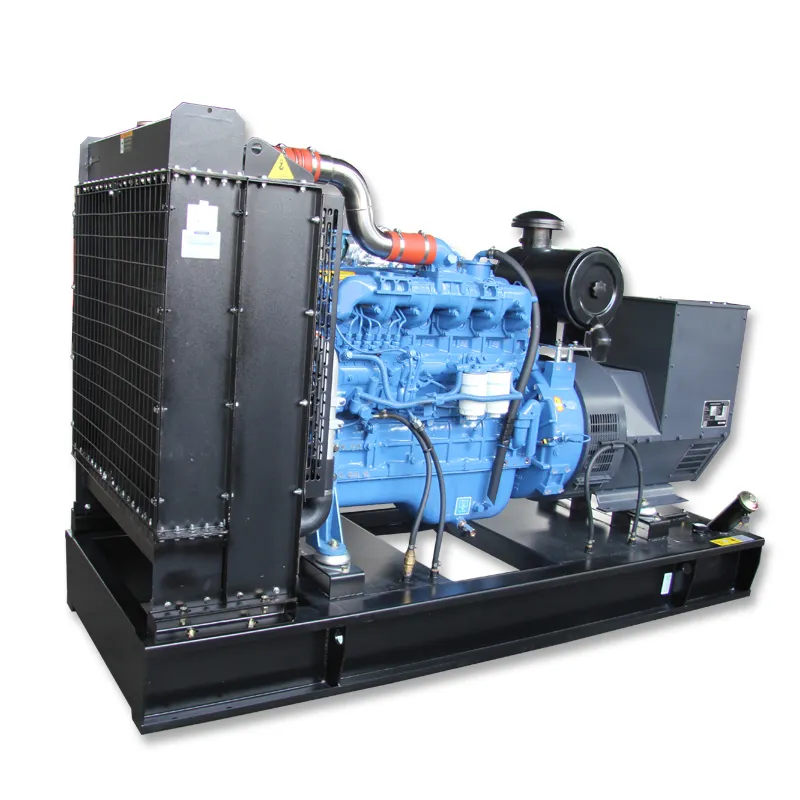

| GTL Generator configuration | ||||||||||
| Engine: | Brand new genuine in warranty | |||||||||
| Alternator: | Brand new brushless alternator, IP23, H insulation class. | |||||||||
| Base Frame: | Heavy-duty steel channel base frame. | |||||||||
| Radiator: | With safety guard. | |||||||||
| Vibration Damper | Vibration damper between Engine/Alternator and base frame | |||||||||
| Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for option | |||||||||
| Controller: | Comap AMF9, AMF20, AMF25 for option.DSE702,DSE6020 DSE6120 DSE7320 DSE7420 and other deepsea models, | |||||||||
| Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. | |||||||||
| Battery: | Varta Brand, high capacity sealed maintenance-free battery c/w battery cables. | |||||||||
| Fuel Tank: | 8 hours base fuel tank, External Daily Fuel Tank for option | |||||||||
| Accessory: | Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. | |||||||||
| Inquiry Items | ||||||||||
| Before we talk about diesel generators and make an offer for you, and in order to make a good choice for you, please kindly allow me to ask you the following issues and kindly fill in the blanks: | ||||||||||
| Genset parameter | ||||||||||
| Prime power | Standby power | Voltage | Frequency | Phase | Quantity | Another requirement | ||||
| kva | kw | kva | kw | V | 50Hz or 60hz | 1 or 3 phase | set | |||
| Voltage&Frequency | 50hz 380-440/ 190-220/ 220-254 | |||||||||
| 60hz 416-480/ 380-416/ 240-277/ 208-240 | ||||||||||

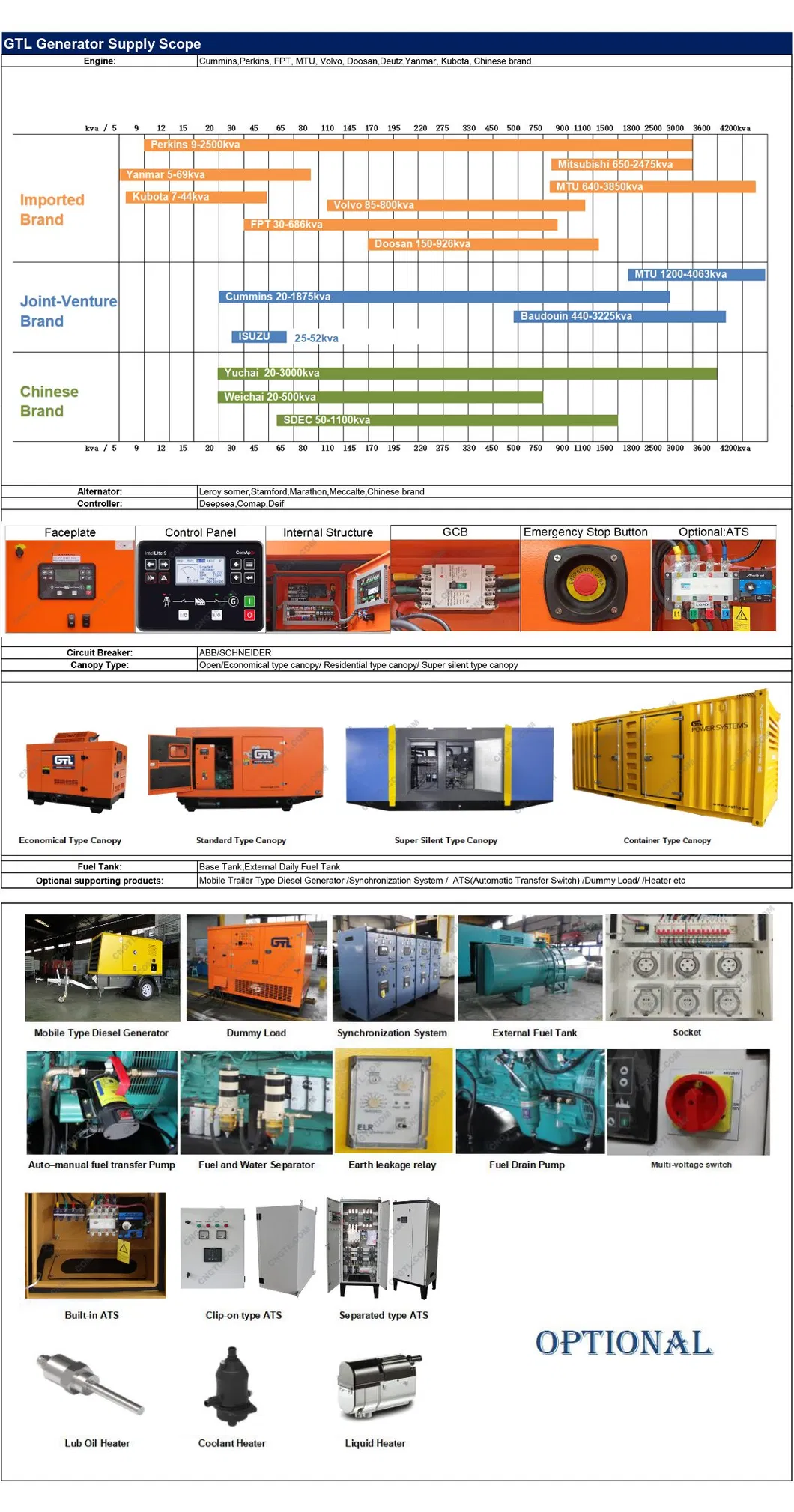

| Requirement of brand | ||||||||||
| Engine | Alternator | Control Module | ATS(Include or not) | |||||||
| Engine: | Cummins,Perkins, FPT, MTU, Volvo, Doosan,Deutz,Yanmar, Kubota, Chinese brand | |||||||||
| Alternator: | Leroy Somer, Stamford, Marathon, Meccalte, Chinese brand | |||||||||
| Controller: | Deepsea, Comap, Deif | |||||||||
| Circuit Breaker: | ABB/SCHNEIDER | |||||||||
| Physical conditions | ||||||||||
| Ambient temperature | Sea level height | Relative Humidity | ||||||||
| (ºC) | (m) | (%) | ||||||||
Xiamen GTL Power System Co., Ltd established in 2009, is a professional power generation solutions and supplier located in Xiamen of China, we engaged in the research, development, production, sales, and service of industrial diesel generators, Mobile diesel generators, Pump diesel generator, Gas generator, Air Compressor, and Light towers.

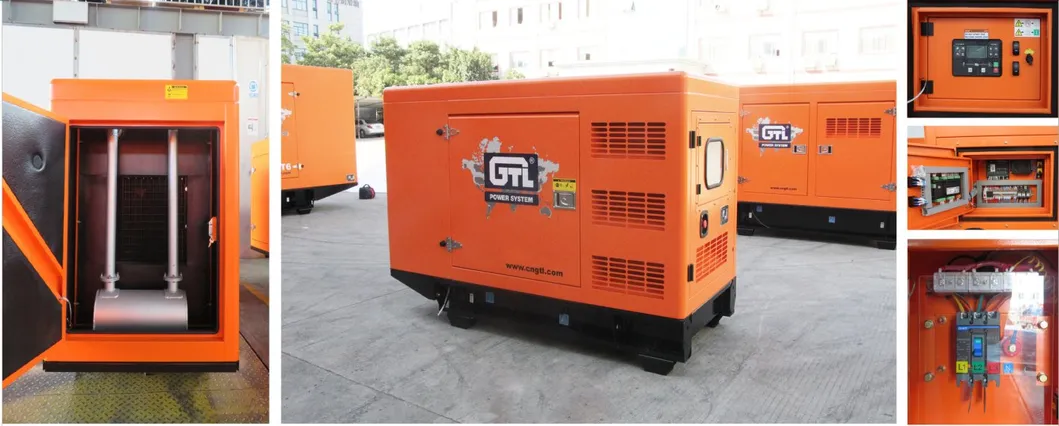

The Generators we provide can be both in Open skid, weatherproof and Soundproof, power range from 5 kW to 4000 kW;
The Gas generator can range from 12 kW to 1500 kW;
The Air Compressor range from 55 CFM to 1600 CFM, maximum 34.5 bar;
The Light towers were designed to offer the widest choice, multiple solutions of lamps with metal halide floodlight and LED lamp to satisfy different application, additionally, it is totally customizable.
