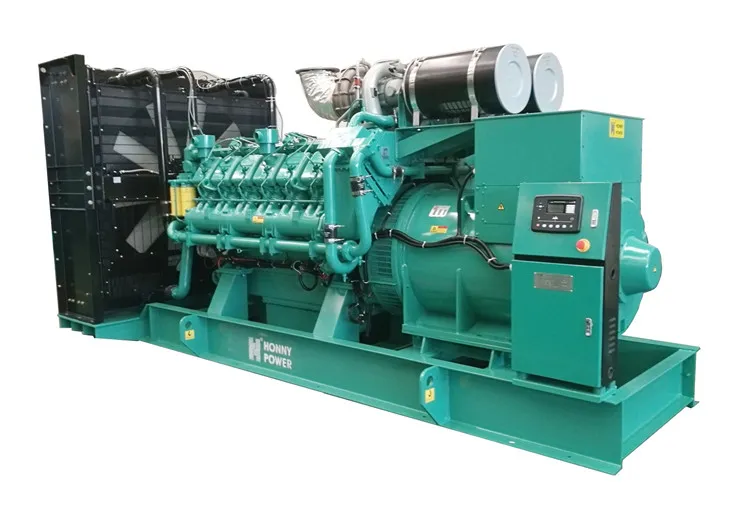

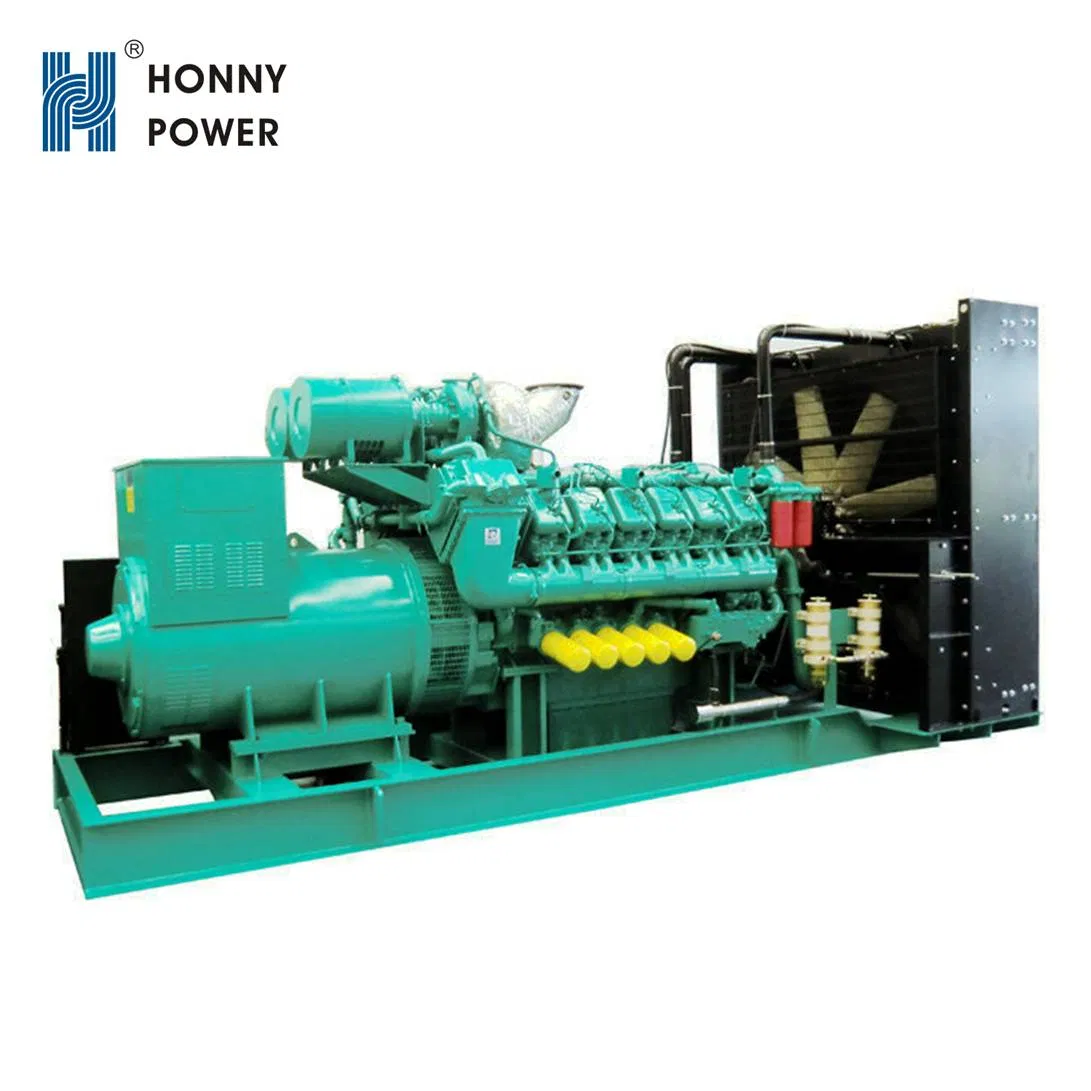

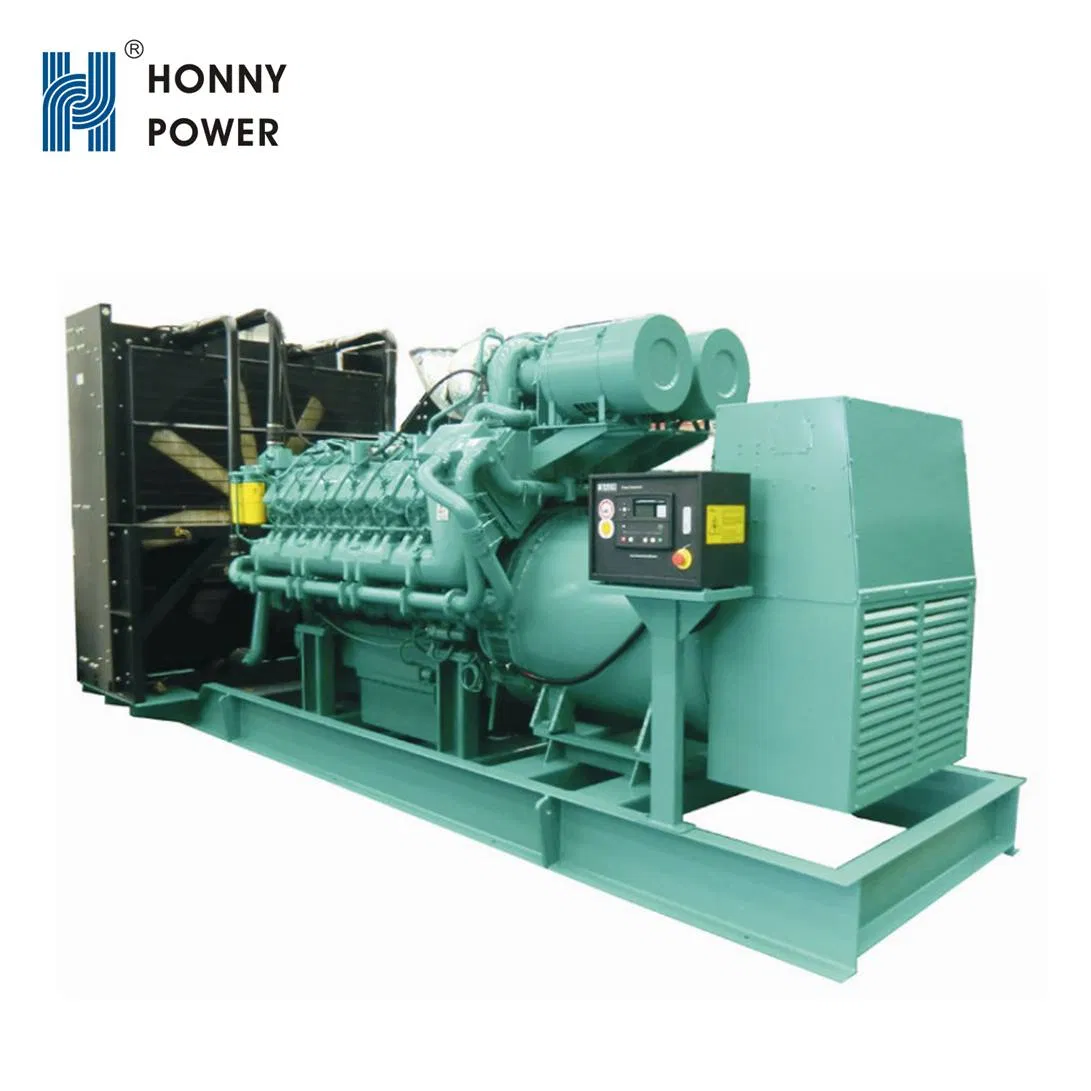

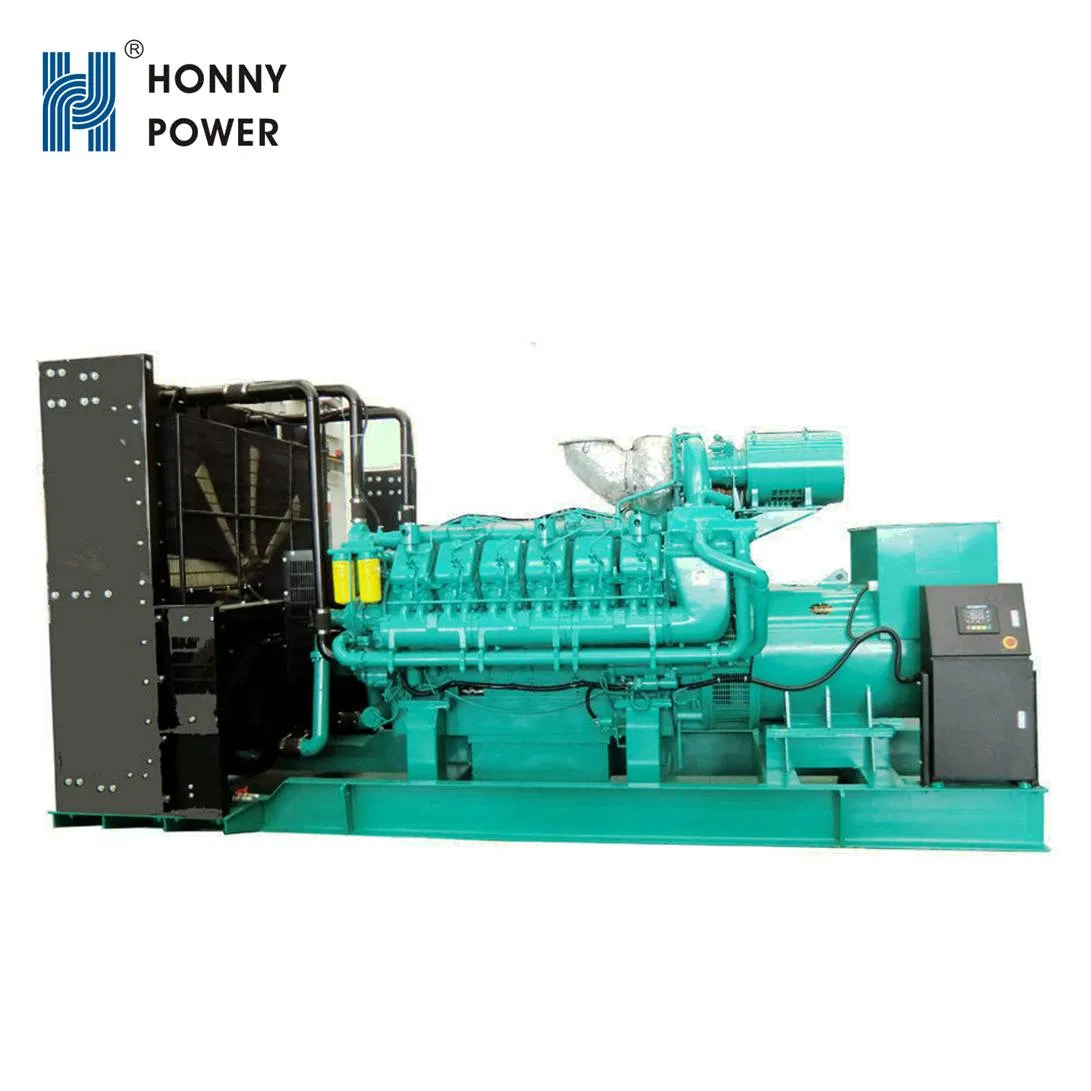

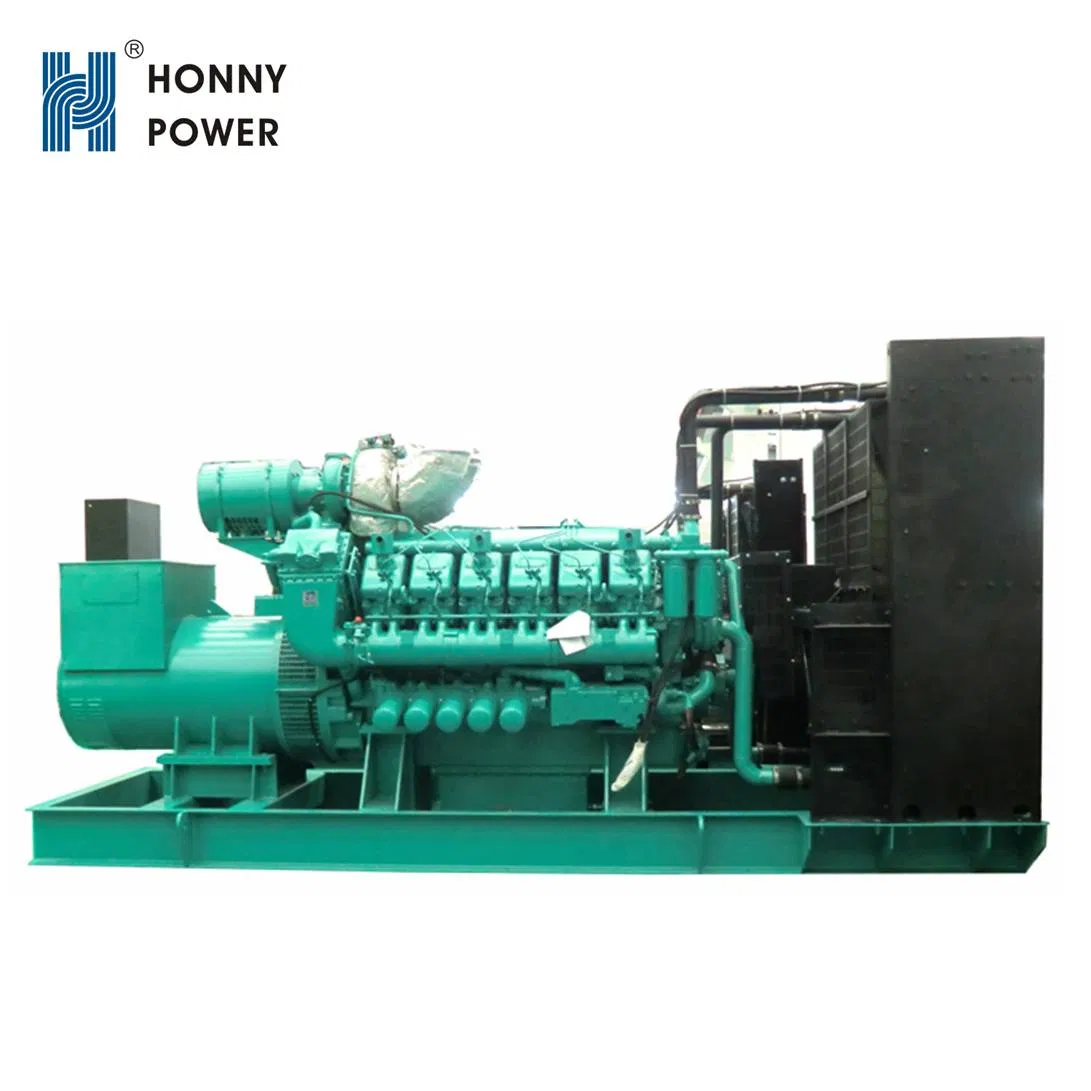

Honny Power 1200kw / 1500 kVA Diesel Generator Set
Genset Model HGM1675 Genset Prime Output kW/kVA 1200/1500 Genset Standby Output kW/kVA 1340/1675 Rating Power Factor 0.8 Rating Speed rpm 1500 Rating Frequency Hz 50 Rating Voltage V 400 Engine Model QTA3240-G5 Displacement l 53.1 Configuration ......
Send Inquiry
Product Description
| Genset Model | HGM1675 | |
| Genset Prime Output | kW/kVA | 1200/1500 |
| Genset Standby Output | kW/kVA | 1340/1675 |
| Rating Power Factor | 0.8 | |
| Rating Speed | rpm | 1500 |
| Rating Frequency | Hz | 50 |
| Rating Voltage | V | 400 |
| Engine Model | QTA3240-G5 | |
| Displacement | l | 53.1 |
| Configuration | 12V | |
| Genset Size-Open Type (LxWxH) | mm | 5200x2220x2800 |
| Genset Weight | kg | 10500 |
| Engine Model | QTA3240-G5 | |
| Engine Standby Output (LTP) | kW | 1466 |
| Engine Prime Output (PRP) | kW | 1332 |
| Engine Continuous Power (COP) | kW | 1135 |
| Typical Alternator Efficiency | 95.3% | |
| Speed droop (static) elect. Gov. | 0-5% | |
| Governing standards to ISO 8528 | G3 | |
| Max. step load acceptance, 1st step(% PRP) | 50% | |
| Engine Data in General | ||
| Aspiration Type | Turbocharger, air-water aftercooler | |
| Injection Type | Direct Injection | |
| Configuration | Vee | |
| No. of Cylinders | 12 | |
| Displacement | l | 53.1 |
| Bore | mm | 170 |
| Stroke | mm | 195 |
| Compression Ratio | 13.5:1 | |
| Piston Speed | m/s | 9.75 |
| Rotation Direction (from flywheel) | Counter Clockwise | |
| Number of Flywheel Teeth | 218 | |
| Flywheel House Size | SAE00-21 | |
| Lubrication System | ||
| Lube Oil Specification | AFI-CG4 | |
| Oil Capacity | l | 180 |
| Max. Permissible Oil Temperature | °C | 110 |
| Oil Pressure Warning | kPa | 300 |
| Oil Pressure Shutdown | kPa | 200 |
| Oil Consumption (as % of fuel consumption ) | % | ≤0.5 |
| Cooling System | ||
| Coolant Capacity for Engine | l | 100 |
| Max. Permissible Temperature | °C | 90 |
| Max. Coolant Warning Temperature | °C | 95 |
| Max. Coolant Shutdown Temperature | °C | 98 |
| Thermostat Open Temperature | °C | 71 |
| Radiator Cooling Flow | m³/min | 2400 |
| Flow of Cylinder liner Coolant pump | m³/h | 50 |
| Flow of aftercooler Coolant pump | m³/h | 65 |
| Heat dissipation (engine radiator) | kW | 492 |
| Heat dissipation (CAC) | kW | 295 |
| Heat dissipation (convection) | kW | 82 |
| Fuel System | ||
| Governor Type | Electrical | |
| Fuel Consumption at 25% of genset prime output | l/h | 98 |
| Fuel Consumption at 50% of genset prime output | l/h | 165 |
| Fuel Consumption at 75% of genset prime output | l/h | 235 |
| Fuel Consumption at 100% of genset prime output | l/h | 309 |
| Lowest Fuel Consumption Ratio | g/kW.hr | 195 |
| Intake & Exhaust System (On Standby Output) | ||
| Combustion Air Consumption | m³/min | 137 |
| Max. Intake Restriction | KPa | 5 |
| Exhaust Temperature (Before Turbo) | °C | 620 |
| Exhaust Temperature (After Turbo) | °C | 520 |
| Max. Exhaust Back Pressure | Kpa | 5 |
| Exhaust Gas Flow | m³/min | 343 |
| Turbo Bellows Diameter | mm | DN250 |
| Exhaust Flange Diameter | mm | DN250 |
| Electrical System | ||
| Charging Alternator Voltage | V | 28 |
| Charging Alternator Capacity | A | 55 |
| Starting Voltage | V | 24 |
| Starting Motor Capacity | kW | 1*13 |
| Minimum Battery Capacity | Ah | 4*150 |
| Generator-Googol Power | ||
| Generator Model | GP1563-4P | |
| Capacity @ 0.8PF, H Rise Class | kW | 1250 |
| Efficiency @ 0.8PF | % | 95.3 |
| Duty | S1 | |
| Bearing | Single | |
| Insulation | H | |
| Rise Temperature | H | |
| Enclosure | IP23 | |
| Over speed | rpm | 2250 |
| Excitation System | AVR | |
| AVR Model | MX321 | |
| Poles | 4 |
