High Quality 10kw 12kw 15kw 20kw 25kw 30kw 35kw 40kw on-Board Diesel Generator for Prime Power Use
10kw 12kw 15kw 20kw 25kw 30kw 35kw 40kw On-board diesel generator Company Information:Qingdao Hengfeng Generator, Ltd which is one of the largest diesel generator set manufacturers in China mainland.Our production capacity amounts to 9000 sets per year. Professional Quality, Trust Worthy.Accordin......
Send Inquiry
Product Description

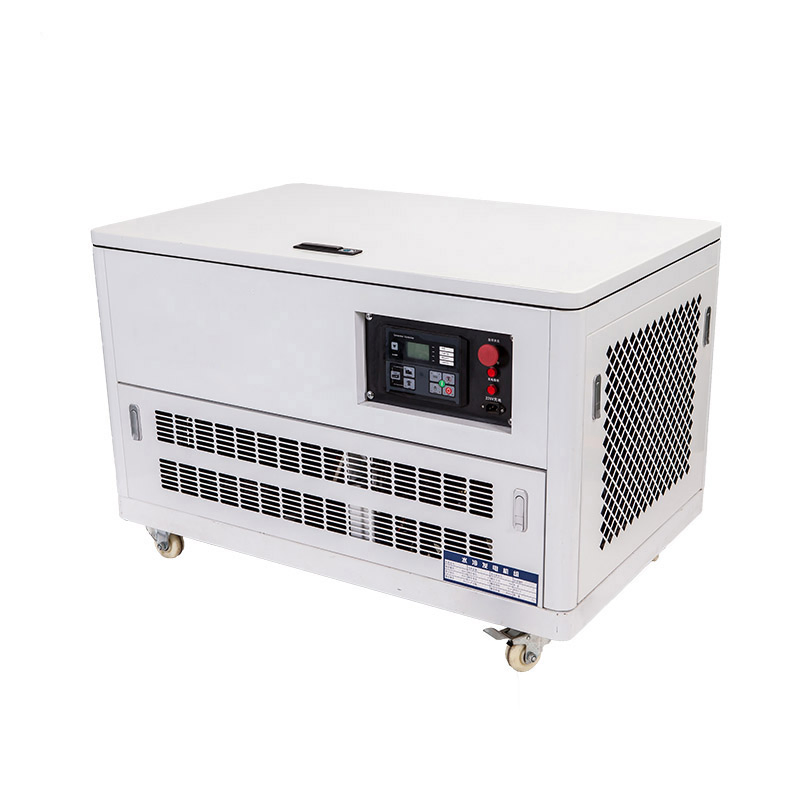

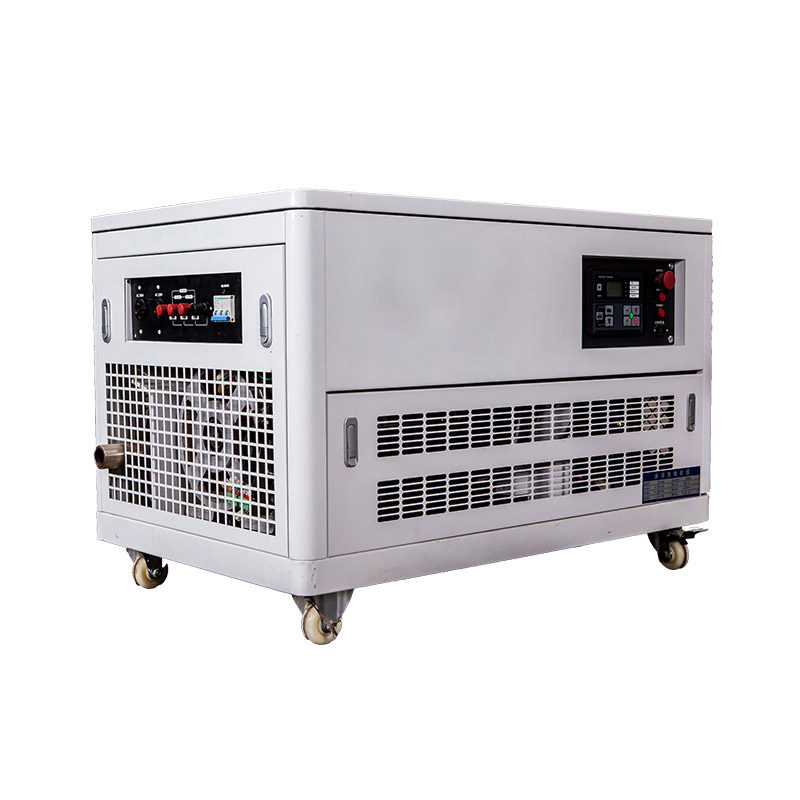

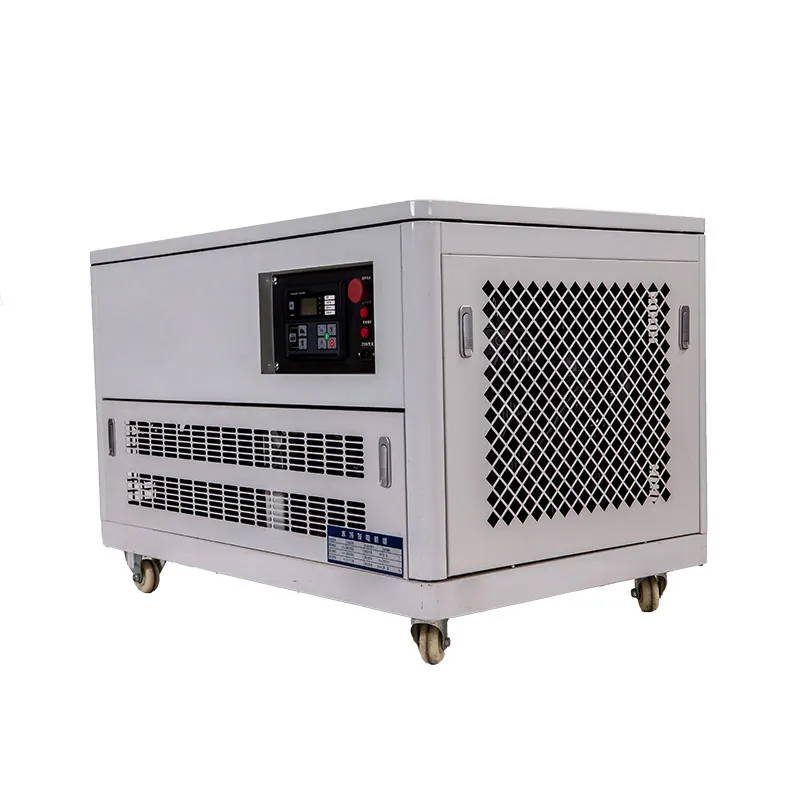

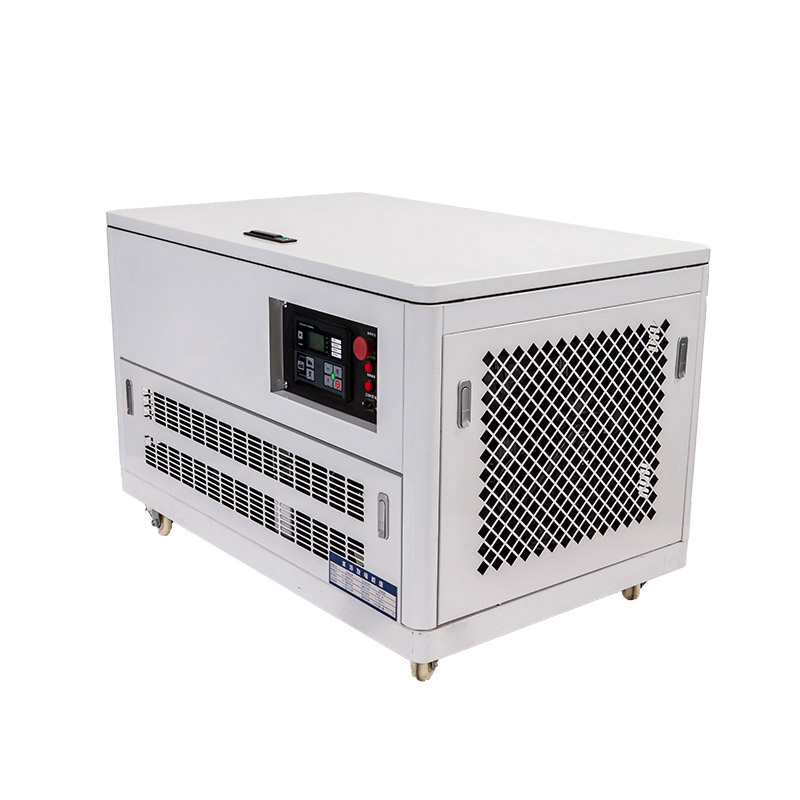

10kw 12kw 15kw 20kw 25kw 30kw 35kw 40kw On-board diesel generator
Company Information:
Qingdao Hengfeng Generator, Ltd which is one of the largest diesel generator set manufacturers in China mainland.
Our production capacity amounts to 9000 sets per year.
Professional Quality, Trust Worthy.
According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
Specifications
| mode | TO14000ETX | TO16000ETX | TO18000ETX | TO22000ETX | TO25000ETX | TO30000ET | TO35000ETX | TO40000TSI-T | ||||||
Generator Data | Rated power(KW) | 10KW | 12KVA | 15KW | 20KW | 25KW | 30KW | 35KVA | 40KVA | |||||
| Max power(KW) | 11KW | 12.5KVA | 16KW | 22KW | 27KW | 32KW | 37KVA | 42KVA | ||||||
| Insulation class | F | F | H | H | H | H | H | H | ||||||
| Generator type | Excitation motor | Excitation motor | Permanent Magnet motor | Permanent Magnet motor | Permanent Magnet motor | Permanent Magnet motor | Permanent Magnet motor | Permanent Magnet motor | ||||||
| Rated frequency (HZ) | 50 | |||||||||||||
| Rated voltage(V) | 220/380 | |||||||||||||
| Generator type | silent | |||||||||||||
| Power factor | 0.8/1.0 | 0.8 | 0.8/1.0 | 0.8/1.0 | 0.8/1.0 | 0.8/1.0 | 0.8 | 0.8 | ||||||
| Phrase | single/three phrase | |||||||||||||
| Start way | Electric start (optional fully automatic) | |||||||||||||
| Fuel type | 0#,-10# diesel | |||||||||||||
Generator data | Engine oil model | Two-cylinder, V-type, water-cooled, four-stroke, eddy current | Direct injection, four-cylinder, in-line, water-cooled engine | |||||||||||
| engine model | TO2V80 | TO2V80 | YOTO2200 | YOTO2200 | YOTO3200 | YOTO3200 | YOTO4200 | YOTO4200 | ||||||
| Air intake method | inhale naturally | inhale naturally | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | Turbocharged | ||||||
| Speed mode | Mechanical debugging | Mechanical debugging | Mechanical debugging | Mechanical debugging | Mechanical debugging | Mechanical debugging | Mechanical debugging | Mechanical debugging | ||||||
| Silencer | Industrial silencer | Industrial silencer | Industrial silencer | Industrial silencer | Industrial silencer | Industrial silencer | Industrial silencer | Industrial silencer | ||||||
| Rated rpm | 3000r/min | 3000r/min | 1500r/min | 1500r/min | 1500r/min | 1500r/min | 1500r/min | 1500r/min | ||||||
| Fuel consumption | 206 g/kw.h | |||||||||||||
| Engine oil model | SAE10W30(or CD) | |||||||||||||
| Fuel tank capacity (L) | 28L | 28L | 50L | 50L | 50L | 50L | 50L | 50L | ||||||
Machine parameters | Noise db/7M | 68-75 | 68-75 | 68-75 | 68-75 | 68-75 | 68-75 | 68-75 | 68-75 | |||||
| Working time | 8-12h | 8-12h | 8-12h | 8-12h | 8-12h | 8-12h | 8-12h | 8-12h | ||||||
| Engine oil alarm | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||||||
| Automatic pressure regulation | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||||||
| L*W*H(mm) | 1250*650*760 | 1250*650*760 | 1280*900*1205 | 1280*900*1205 | 1280*900*1205 | 1280*900*1205 | 1280*900*1205 | 1300*900*1205 | ||||||
| N(kg) | 310kg | 310kg | 550/680 | 550/680 | 550/680 | 550/680 | 620/680 | 680/720 | ||||||
Advantage of our diesel generator
FAQ:
1.Q: What is your MOQ of this item?
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Qingdao
5.Q: What are your payment terms?
A:50% TT as deposit,50% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
