China GPC313m5, 250kw 313kVA Marine Diesel Generator with Cummins Engine N855-Dm

Product Description

CUMMINS marine diesel generator set components are Donfeng CUMMINS (DCEC) and Chongqing CUMMINS (CCEC). Dongfeng CUMMINS (DCEC) is mainly committed to low-power units, and its power range from 24 to 419KW, while Chongqing CUMMINS (CCEC) focuses on the engines with coverage from 254 to 1429KW.

Cummins Marine Diesel Generator from 40KW to 1000KW
1) Powered by genuine CUMMINS marine engines.
2) Equipped with heat exchanger and sea water pump for marine application.
3) Brand new marine alternator with 100% copper wires, Three Phase, 50/60Hz, 1500/1800RPM, H insulation class, IP23 protection grade.
4) Digital control panel with emergency stop and alarm system.
5) Heavy-duty fabricated steel based frame.
6) Complete set mounted on the based frame with anti-vibration mounting pads.
7) 24V DC electric start system with maintain-free batteries.
8) Full set of drawings, manuals and test reports.
9) Equipped with silencer and blexible connects and elbows.
10) CCS certified (Including diesel engine, alternator and control box)

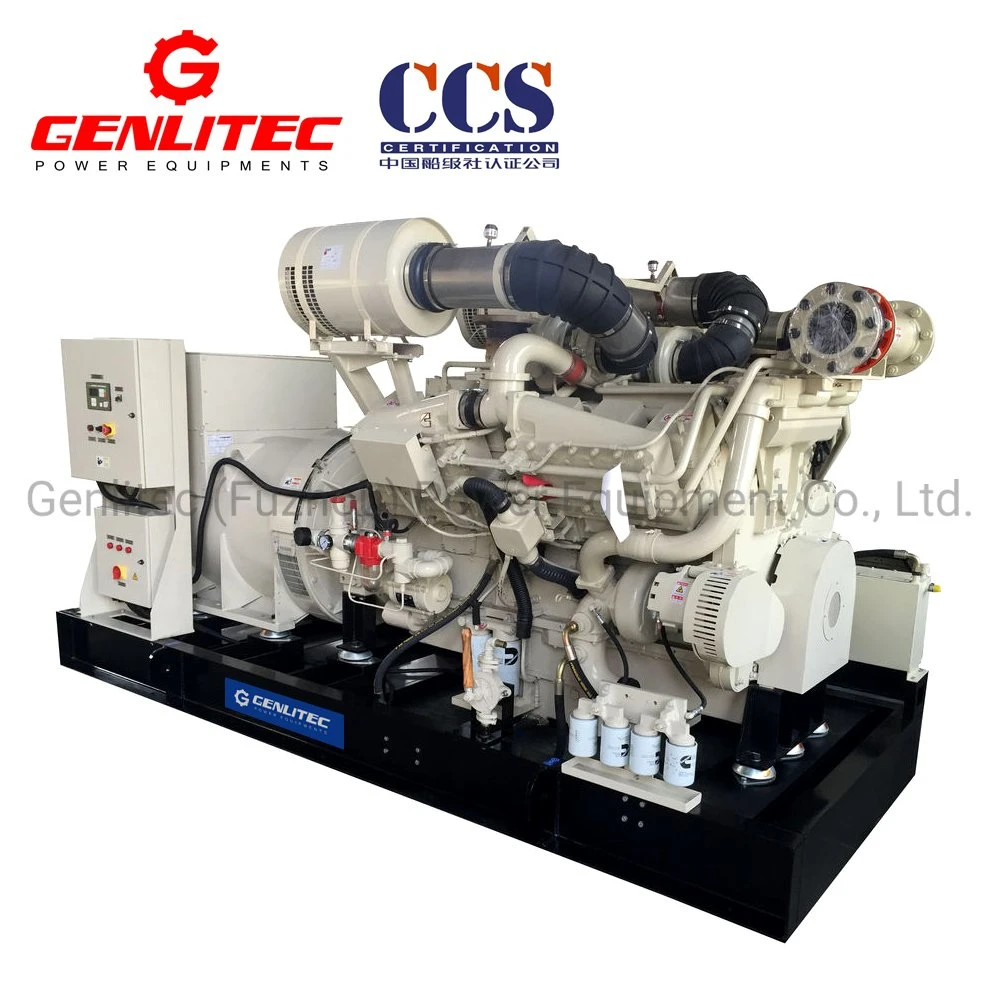

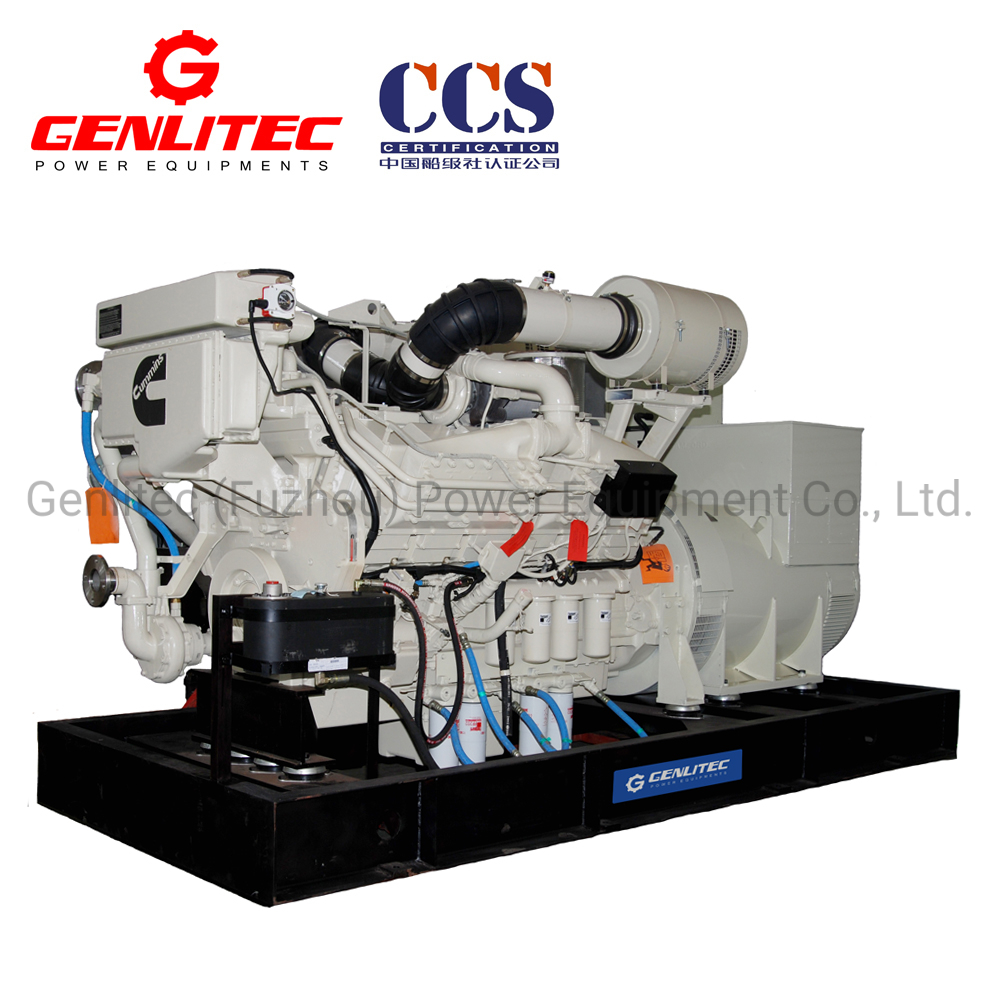

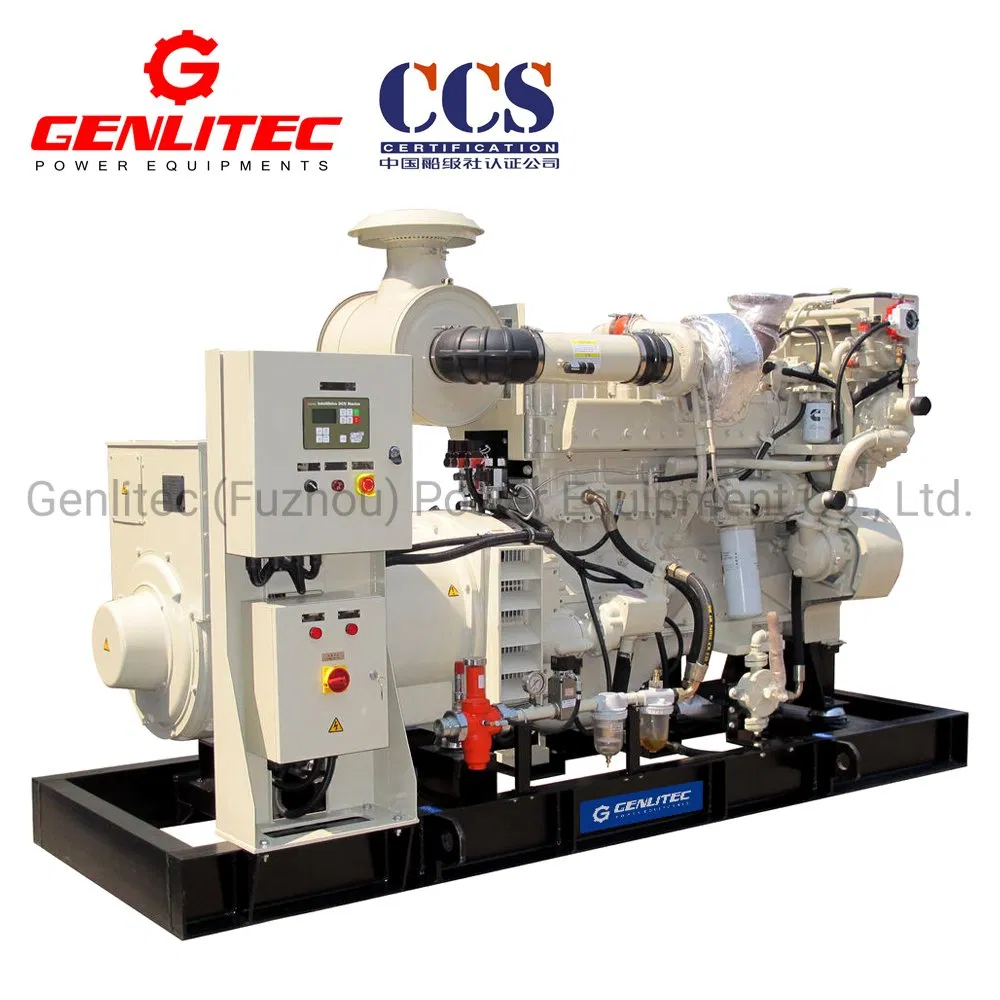

GPC313m5, 250kw 313kVA Marine Diesel Generator with Cummins Engine N855-Dm

GENERATOR SET				CUMMINS ENGINE		DIMENSION	WEIGHT
MODEL	PRIME POWER		FREQUENCY	MODEL	POWER/SPEED	DIMENSION	WEIGHT
MODEL	kW	kVA	Hz	MODEL	kW/RPM	L×W×H(mm)	(kg)
GPC50M5	40	50	50	4BTA3.9-GM47	47/1500	16708501270	800
GPC63M5	50	62.5	50	6BT5.9-GM83	83/1500	19009001300	1000
GPC80M5	64	80	50	6BT5.9-GM83	83/1500	19009001300	1100
GPC94M5	75	93.8	50	6BTA5.9-GM100	100/1500	19009001300	1250
GPC113M5	90	112.5	50	6BTA5.9-GM100	100/1500	20209001300	1300
GPC125M5	100	125	50	6CT8.3-GM115	115/1500	20809001360	1650
GPC150M5	120	150	50	6CT8.3-GM115	115/1500	21209001360	1700
GPC188M5	150	187.5	50	6CTA8.3-GM155	155/1500	222010001790	1720
GPC200M5	160	200	50	6LTAA8.9-GM200	200/1500	225010001790	1750
GPC250M5	200	250	50	N855-DM	240/1500	276010001790	2700
GPC313M5	250	312.5	50	N855-DM	284/1500	276010001790	2800
GPC350M5	280	350	50	N855-DM	317/1500	299810001790	2950
GPC375M5	300	375	50	K19-DM	358/1500	299810001790	3360
GPC438M5	350	437.5	50	K19-DM	410/1500	317010001920	3480
GPC500M5	400	500	50	K19-DM	448/1500	317010001920	3650
GPC850M5	680	850	50	K38-DM	746/1500	405015002480	7200
GPC1000M5	800	1000	50	K38-DM	880/1500	410015002480	7350
GPC1250M5	1000	1250	50	K50-DM	1097/1500	450015002480	9500
GPC50M6	40	50	60	4BTA3.9-GM65	65/1800	16708501270	700
GPC63M6	50	62.5	60	4BTA5.9-GM65	65/1800	17609001300	720
GPC80M6	64	80	60	6BT5.9-GM100	100/1800	20209001300	950
GPC94M6	75	93.8	60	6BT5.9-GM100	100/1800	19809001300	980
GPC113M6	90	112.5	60	6BTA5.9-GM120	120/1800	19809001300	1000
GPC125M6	100	125	60	6BTA5.9-GM120	120/1800	21008101360	1080
GPC150M6	120	150	60	6CTA8.3-GM175	175/1800	21209001360	1350
GPC188M6	150	187.5	60	6CTA8.3-GM175	175/1800	21809001360	1420
GPC313M6	250	312.5	60	N855-DM	287/1800	288010001790	2560
GPC350M6	280	350	60	N855-DM	313/1800	288010001790	2650
GPC438M6	350	437.5	60	K19-DM	425/1800	336010001920	3350
GPC500M6	400	500	60	K19-DM	485/1800	336010001920	3400
GPC563M6	450	562.5	60	K19-DM	507/1800	336011002480	3520
GPC875M6	700	875	60	K38-DM	821/1800	376015002480	6950
GPC1000M6	800	1000	60	K38-DM	970/1800	376015002480	7100
GPC1438M6	1150	1438	60	K50-DM	1291/1800	450015002480	9200
