Product Description

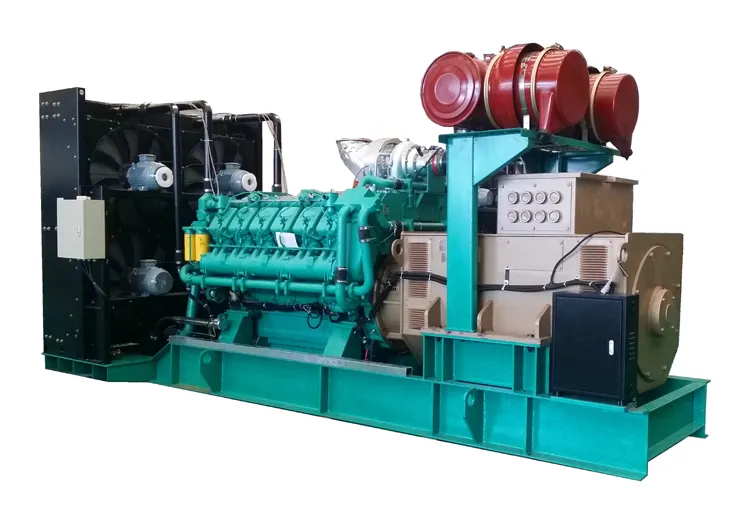

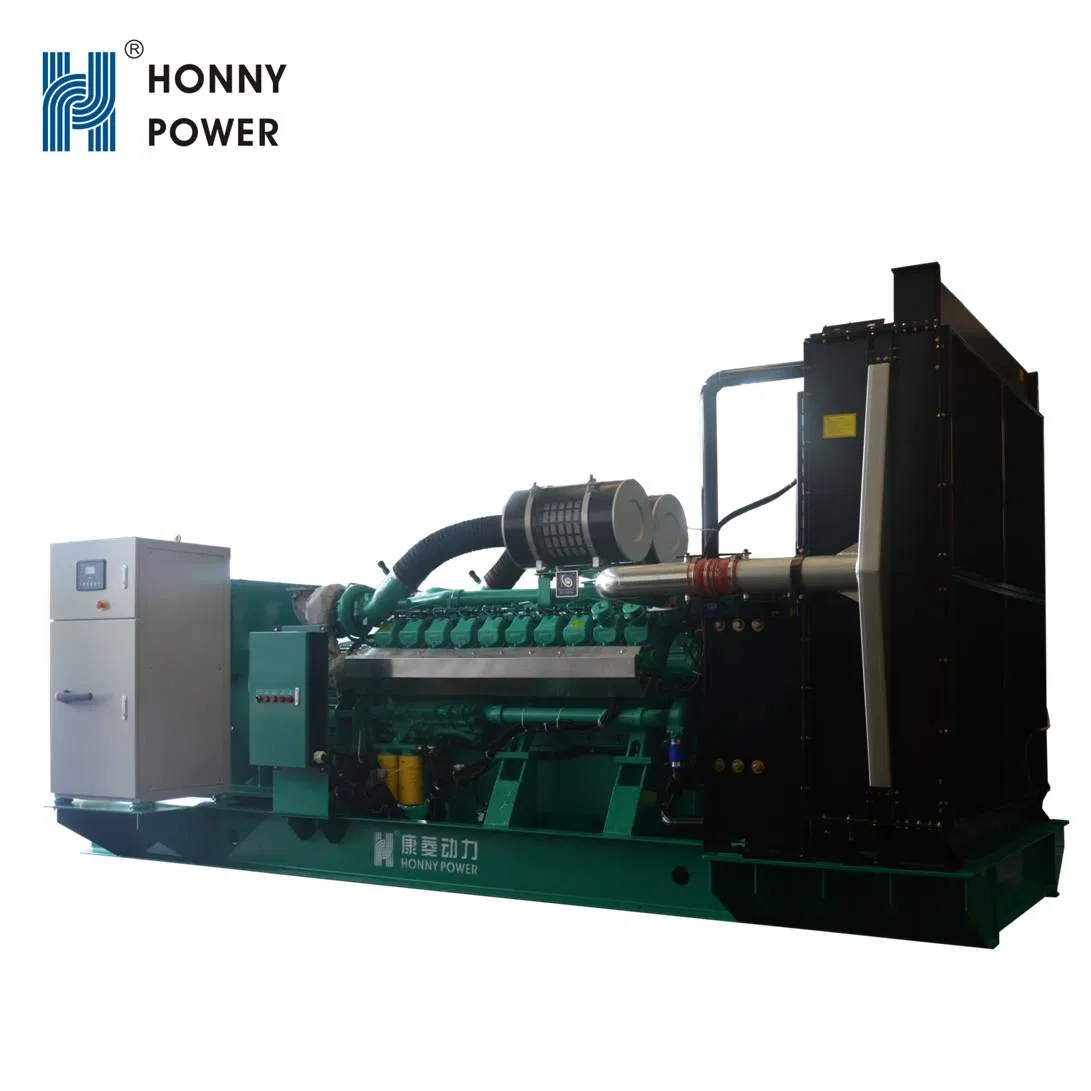

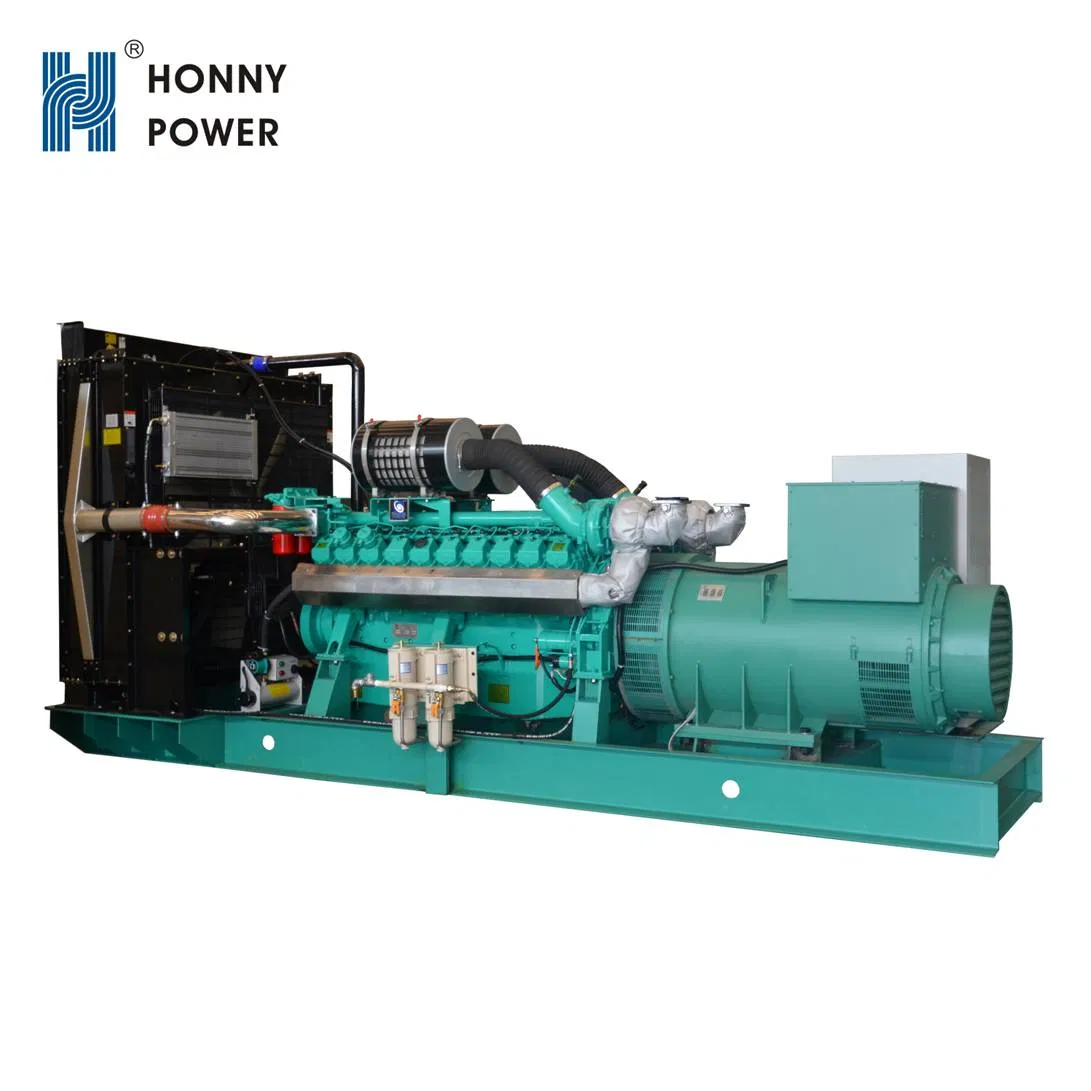

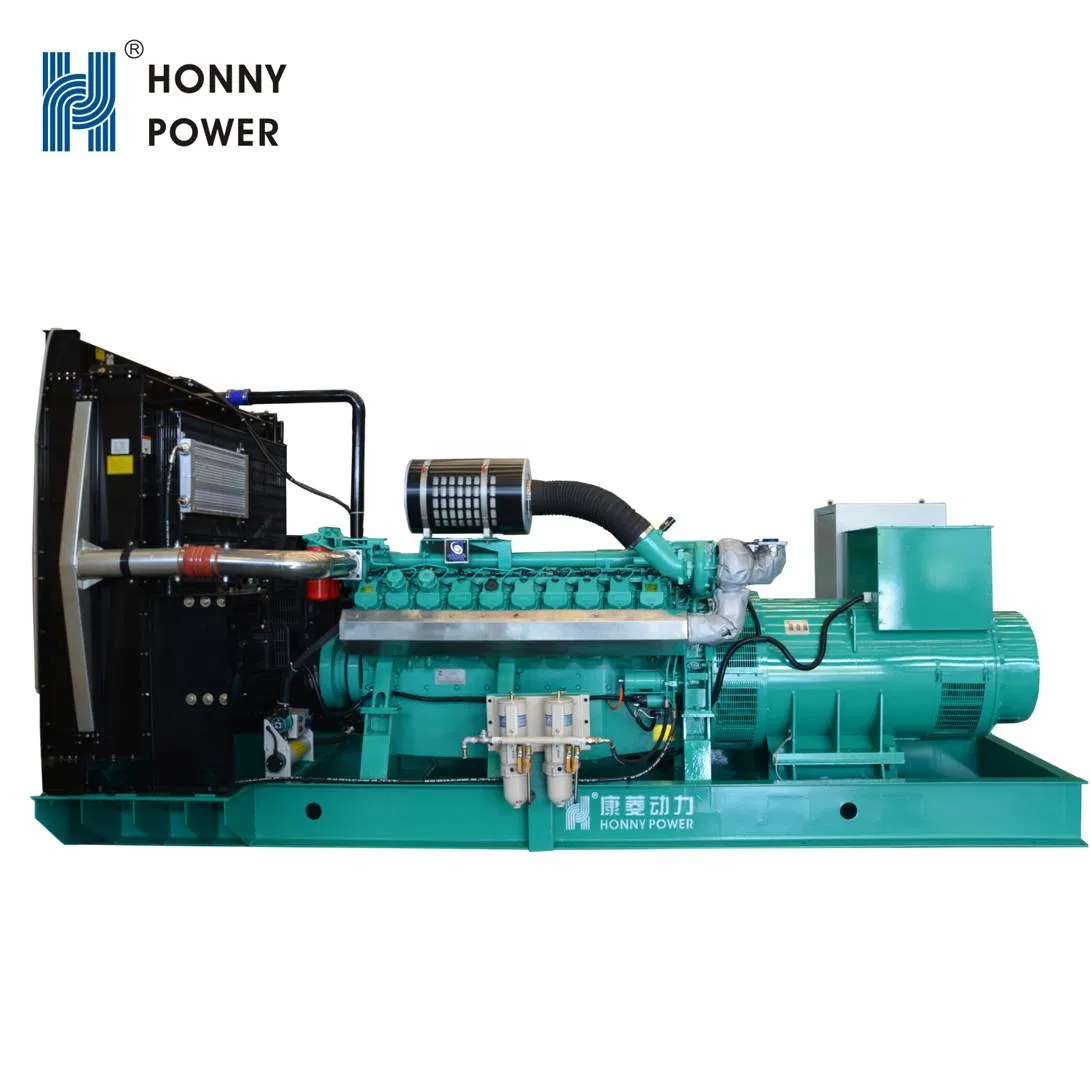

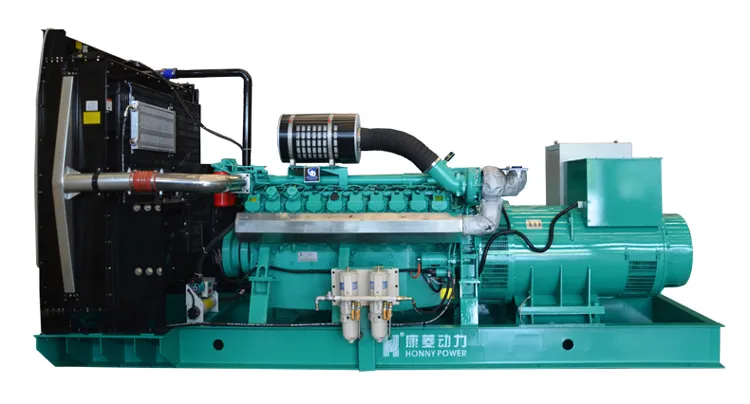

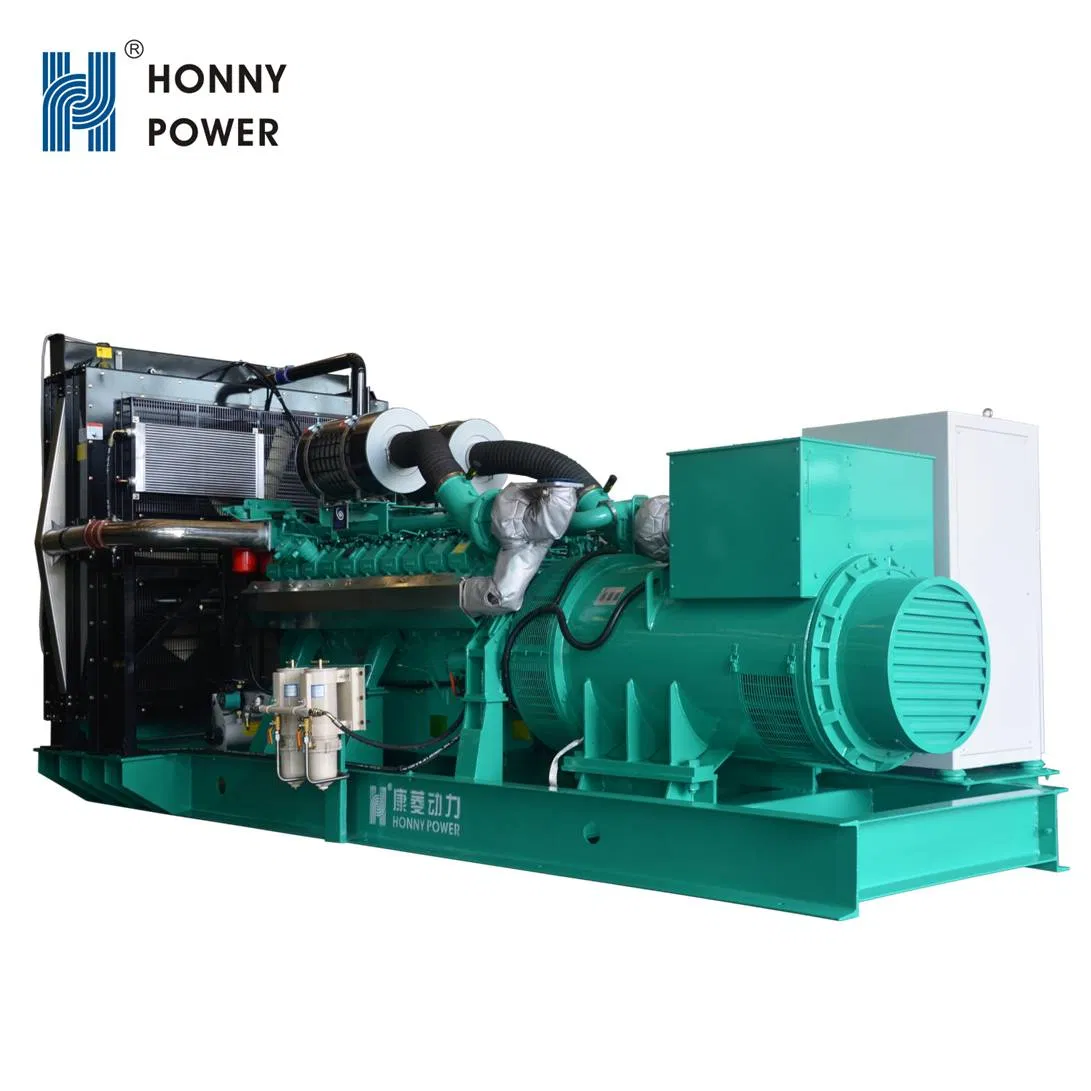

Googol Engine 1MW Power Diesel Generator set

Performance Feature:

Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
World most famous brand diesel engine.
World famous brand AC alternator.
Advanced and reliable control module
Full range protection function and alarm shutdown feature.

Alternator Feature:

Brush-less, 4 poles, rotation magnet.
IP21-23(NEMA1) enclosure is standard for all industrial alternators.
The insulation system is Class H
Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
Wide range of flange adaptors and single bearing disc coupling.
Standard 2/3 pitch windings avoid excessive neutral currents
AVR auto voltage regulator, auto exciter, auto adjustment

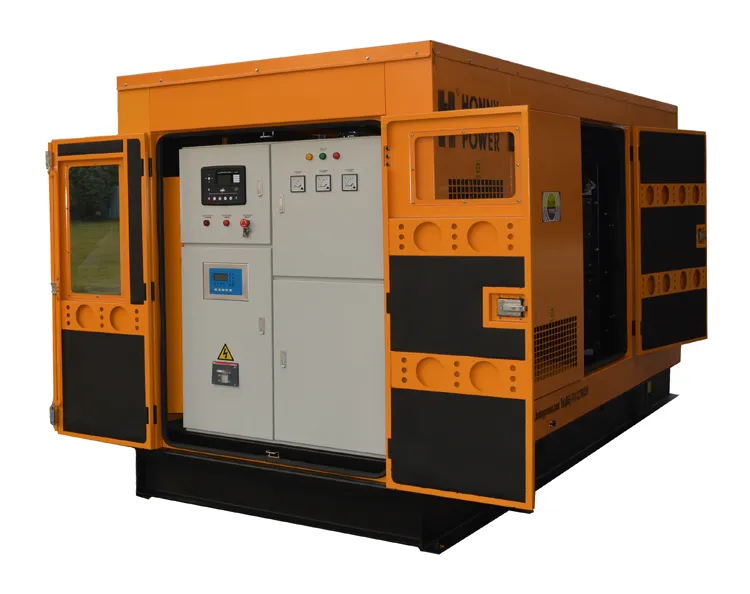

Silent Canopy Description:

Standard Accessory:
Steel Weatherproof Canopy
Built In Fuel Tank For 8 Hours Running
Built In Control Panel
Built In Start Battery
Power Output Rapid Insert
Windows for Looking
Air Louver for Intake & Exhaust
Exhaust Gas Silencer
Soundproof Type

Standard Accessory:

Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.

Optional Accessory:

Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.

Company Introduction:

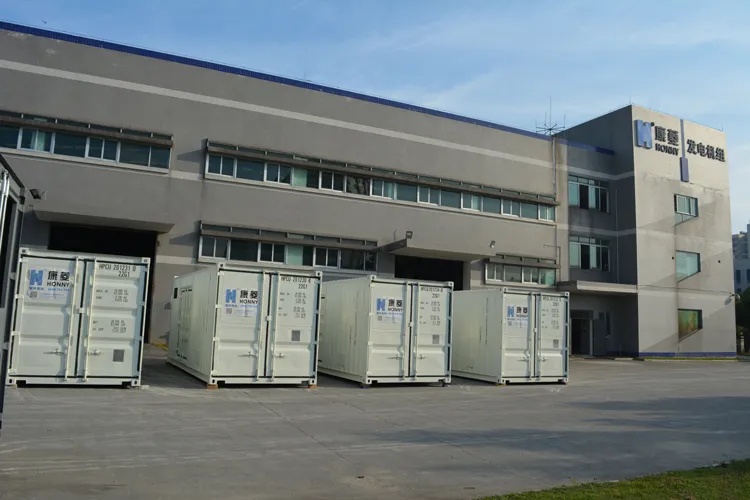

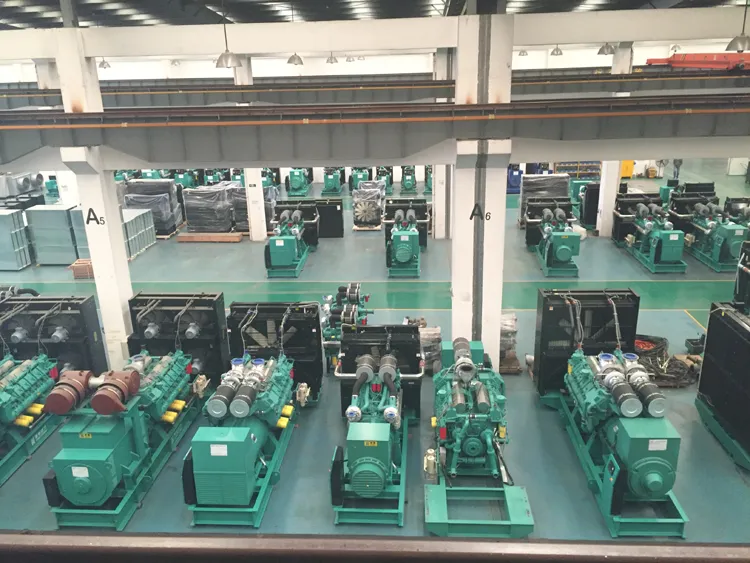

Guangdong Honny Power-tech Co., Ltd was founded in year 1992, and has been the leading power generation solution and manufacturer in China. We specialize in assembly, design, sale, installation, maintenance, and service of Power Generation, Diesel and Gas Engines, Power Plant & Transformer Station, Emergency Generator Truck. We supply generators from 20 to 5000 kVA, and produce engines from 240 to 2955kW, 3MW to 500MW power plant & transformer station. Honny own 2 manufacturing factories, 3 R & D centers at Dongguan, Chongqing and USA Los Angeles, 43 sale and service offices in China area. The total business area is up to 160, 000 square meters, Honny now owns over 600 employees.

Address: North Road 2, Songshan Lake, Dongguan city, Guangdong Province, CHINA

Generator set		Genset Model	HGM1400
		Rating Power (kW/kVA)	1000/1250
		Standby Power(kW/kVA)	1120/1400
		System Voltage	400/230
		Rating Ammeter(A)	1804

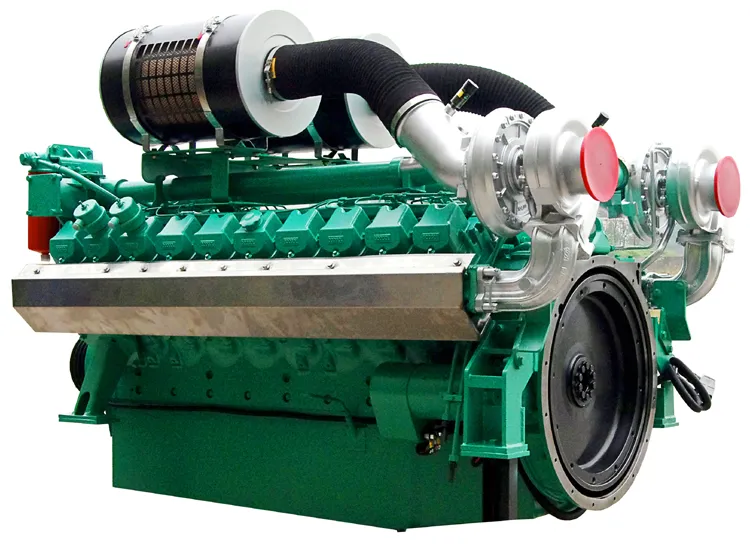

Diesel engine	General data	Engine model	QTA3240-G1
		Prime Power(kW)	1103
		Standby Power(kW)	1229
		number of Cylinder & Configuration	12 cylinders V-type
		Bore X Stroke (mm)	170X195
		Displacement(l)	53.1
		Compression Ratio	13.5:1
		Governor type	Electronic governor
		Rated speed(rpm)	1500
	Exhaust system	Exhaust gas flow(m³/min)	224
		Exhaust gas temperature (ºC)	450
		Max. exhaust back pressure(kPa)	10
	Air intake system	Aspiration Type	Turbocharged & After cooled
		Max. intake depression(mbar)	6
		Combustion air Volume(m³/min)	85
	Fuel system	Rating Fuel Consumption(l/h)	246
	Fuel system	75% full Fuel Consumption(l/h)	185
	Lubrication system	Total oil capacity(l)	180
		Max permissible oil temp (ºC)	100
		Oil pressure at rated rpm(KPA)	300-450
	Cooling system	Total Coolant capacity(l)	220
		Max. temperature of coolant (ºC)	100
		Fan cooling air flow(m³/min)	1900
Alternator		Alternator model	MGA400-1000-4S
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	1000/1250
		Eff.%	95.6%
		Power Factor	0.8
		Exciting type	Brushless self-exciter AVR
		Voltage regulation	±1%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP21
		Class of Insulation	H
Battery		Rating Capacity(AH)	4X150AH 12V
Dimension		Generator set dimension (LXWXH)	4850x2000x2550
Weight		Generator set Net Weight (kg)	9980
