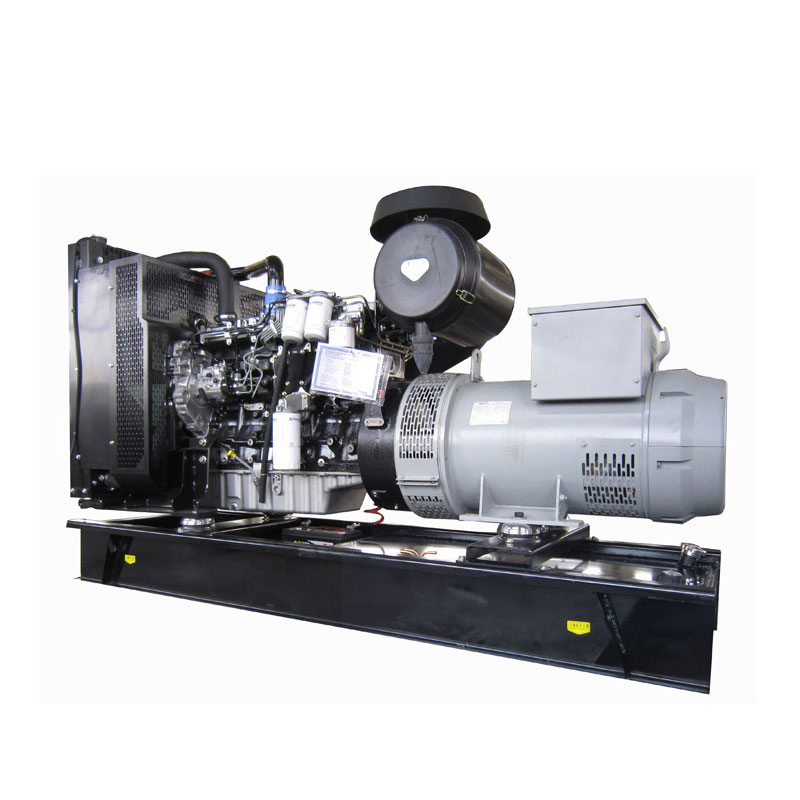

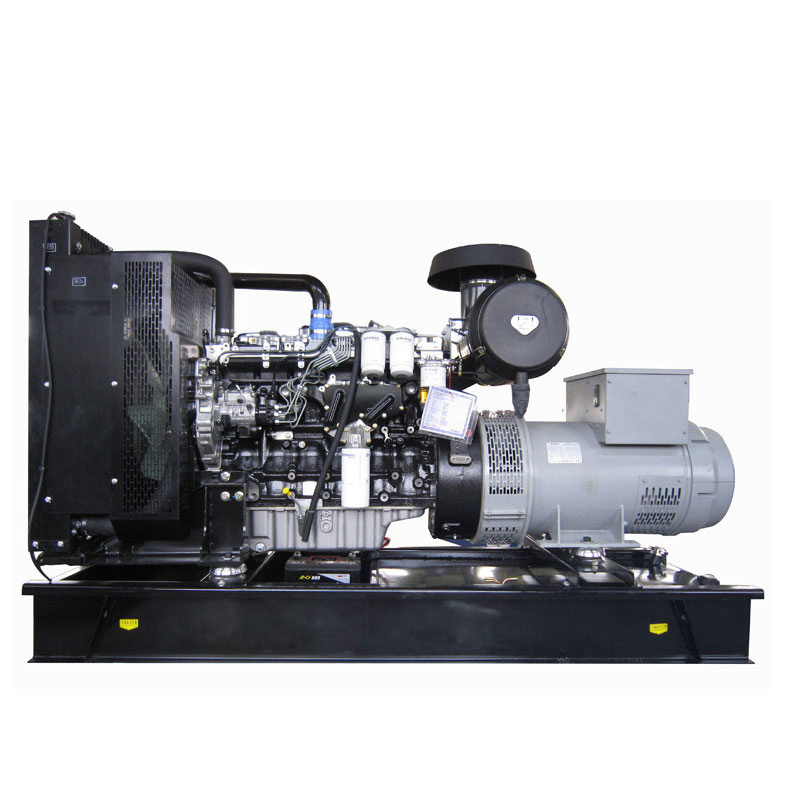

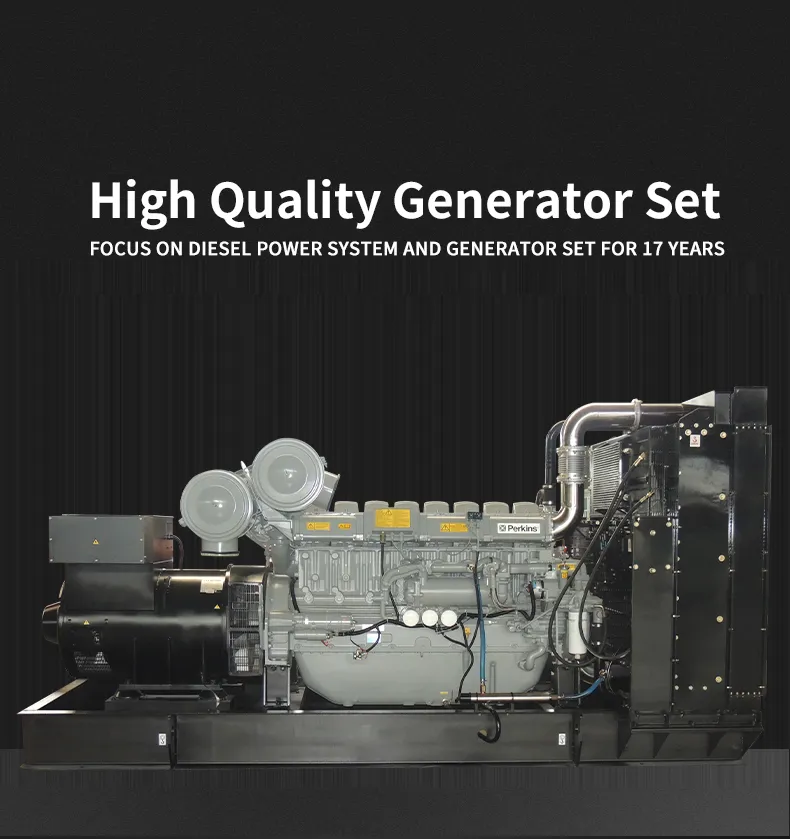

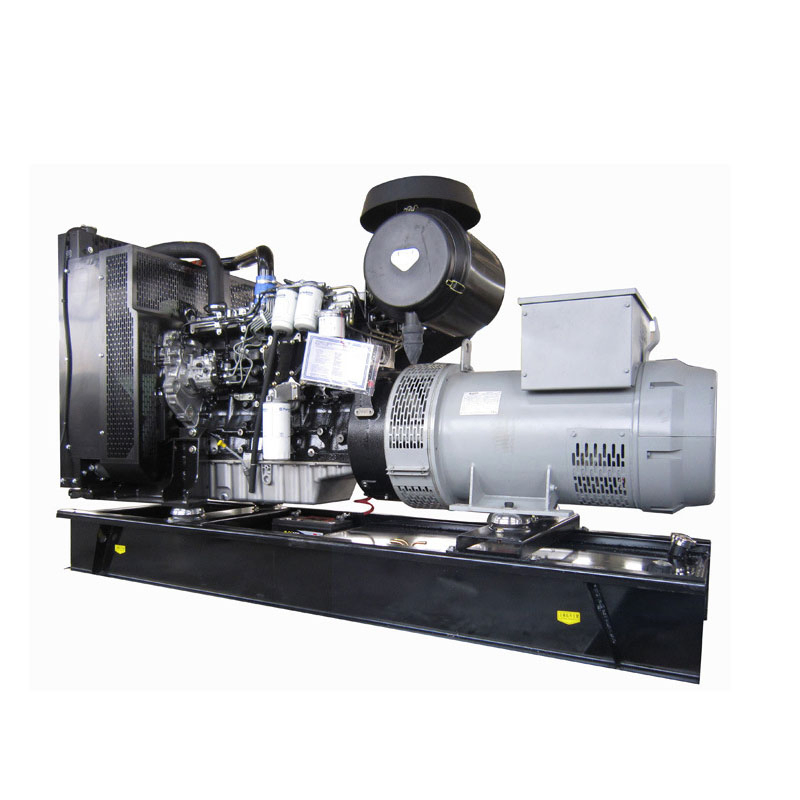

Factory Price Backup Power 108kw 110kVA with 1106A -70tg1 Engine Three Phase Generator
Factory price backup power 108kw 110kva with 1106A-70TG1engine three phase generator Genset ModelRated PowerMotor capacityEngine ModelFuel consumptionEngineRated currentGross WeightDimensions1H powerCylindersBore * StrokeDisplacementKWKVA≤ g/kw.hKWmmLAKGL*W*H mmYX8GF810403D-11G2489.5L377*811......
Send Inquiry
Product Description
Factory price backup power 108kw 110kva with 1106A-70TG1
engine three phase generator
Genset Model | Rated Power | Motor capacity | Engine Model | Fuel consumption | Engine | Rated current | Gross Weight | Dimensions | |||
1H power | Cylinders | Bore * Stroke | Displacement | ||||||||
| KW | KVA | ≤ g/kw.h | KW | mm | L | A | KG | L*W*H mm | |||
| YX8GF | 8 | 10 | 403D-11G | 248 | 9.5 | L3 | 77*81 | 1.13 | 14.4 | 380 | 1580*810*930 |
| YX10GF | 10 | 12.5 | 403A-15G1 | 250 | 13 | L3 | 84*90 | 1.5 | 18 | 540 | 1580*810*930 |
| YX10GF | 10 | 12.5 | 403D-15G | 248 | 13 | L3 | 84*90 | 1.5 | 18 | 500 | 1580*810*930 |
| YX12GF | 12 | 15 | 403A-15G2 | 250 | 15 | L3 | 84*90 | 1.5 | 21.6 | 540 | 1580*810*930 |
| YX16GF | 16 | 20 | 404A-22G1 | 237 | 20 | L4 | 84*100 | 2.2 | 28.8 | 540 | 1580*810*990 |
| YX16GF | 16 | 20 | 404D-22G | 246 | 20 | L4 | 84*100 | 2.2 | 28.8 | 540 | 1580*810*990 |
| YX24GF | 24 | 30 | 1103A-33G | 214 | 30 | L3 | 105*127 | 3.3 | 43.2 | 660 | 1580*810*1165 |
| YX36GF | 36 | 45 | 1103A-33TG1 | 215 | 46 | L3 | 105*127 | 3.3 | 64.8 | 730 | 1595*810*1150 |
| YX50GF | 50 | 62.5 | 1103A-33TG2 | 215 | 59 | L3 | 105*127 | 3.3 | 90 | 780 | 1580*810*1165 |
| YX50GF | 50 | 62.5 | 1104D-44TG2 | 240 | 59 | L4 | 105*127 | 4.4 | 90 | 780 | 1760*810*1165 |
| YX52GF | 52 | 65 | 1104A-44TG1 | 240 | 64 | L4 | 105*127 | 4.4 | 93.6 | 780 | 1760*810*1165 |
| YX64GF | 64 | 80 | 1104A-44TG2 | 216 | 79 | L4 | 105*127 | 4.4 | 115.2 | 800 | 1760*810*1165 |
| YX80GF | 80 | 100 | 1104C-44TAG2 | 205 | 100 | L6 | 105*127 | 4.4 | 144 | 1030 | 2240*960*1315 |
| YX100GF | 100 | 125 | 1106A-70TG1 | 203 | 131 | L6 | 105*135 | 7 | 180 | 1030 | 2240*960*1315 |
| YX120GF | 120 | 150 | 1106D-E70TAG2 | 203 | 139 | L6 | 105*135 | 7 | 216 | 1300 | 2240*960*1315 |
| YX120GF | 120 | 150 | 1106A-70TAG2 | 203 | 144 | L6 | 105*135 | 7 | 216 | 1300 | 2240*960*1315 |
| YX150GF | 150 | 187.5 | 1106A-70TAG3 | 203 | 175 | L6 | 105*135 | 7 | 270 | 1300 | 2345*810*1365 |
| YX160GF | 160 | 200 | 1106A-70TAG4 | 213 | 191 | L6 | 105*135 | 7 | 288 | 1300 | 2240*960*1590 |
| YX180GF | 180 | 225 | 1206A-E70TTAG2 | 213 | 217 | L6 | 105*135 | 7 | 324 | 2170 | 2430*960*1590 |
| YX200GF | 200 | 250 | 1206A-E70TTAG3 | 213 | 238 | L6 | 105*135 | 7 | 360 | 2170 | 2430*960*1590 |
| YX240GF | 240 | 300 | 1506A-E88TAG5 | 199 | 293 | L6 | 112*149 | 8.8 | 432 | 2500 | 3030*1120*1800 |
| YX280GF | 280 | 350 | 2206C-E13TAG2 | 209 | 349 | L6 | 130*157 | 12.5 | 504 | 2700 | 3030*1120*1800 |
| YX320GF | 320 | 400 | 2206C-E13TAG3 | 206 | 392 | L6 | 130*157 | 12.5 | 576 | 3300 | 3280*1130*1950 |
| YX360GF | 360 | 450 | 2506C-E15TAG1 | 216 | 435 | L6 | 137*171 | 15 | 648 | 3800 | 3280*1130*1950 |
| YX400GF | 400 | 500 | 2506C-E15TAG2 | 211 | 478 | L6 | 137*171 | 15 | 720 | 3940 | 3310*1180*1950 |
| YX480GF | 480 | 600 | 2806C-E18TAG1A | 216 | 565 | L6 | 145*183 | 18 | 864 | 3940 | 3310*1180*1950 |
| YX500GF | 500 | 625 | 2806A-E18TAG2 | 202 | 609 | L6 | 145*183 | 18 | 900 | 3940 | 3310*1180*1950 |
| YX600GF | 600 | 750 | 4006-23TAG2A | 209 | 691 | L6 | 160*190 | 23 | 1080 | 4700 | 4450*1750*2350 |
| YX640GF | 640 | 800 | 4006-23TAG3A | 210 | 756 | L6 | 160*190 | 23 | 1152 | 4700 | 4450*1750*2350 |
| YX700GF | 700 | 875 | 4008TAG1A | 206 | 844 | L8 | 160*190 | 30.5 | 1260 | 7600 | 4850*1870*2350 |
| YX800GF | 800 | 1000 | 4008TAG2 | 206 | 947 | L8 | 160*190 | 30.5 | 1440 | 7600 | 4850*1870*2350 |
| YX900GF | 900 | 1125 | 4008-30TAG3 | 206 | 1055 | L8 | 160*190 | 30.5 | 1620 | 7600 | 4850*1995*2330 |
| YX1000GF | 1000 | 1250 | 4012-46TWG2A | 212 | 1158 | V12 | 160*190 | 46 | 1800 | 9160 | 4900*1860*2350 |
| YX1100GF | 1100 | 1375 | 4012-46TWG3A | 209 | 1263 | V12 | 160*190 | 46 | 1980 | 9160 | 4900*1860*2350 |
| YX1200GF | 1200 | 1500 | 4012-46TAG2A | 200 | 1395 | V12 | 160*190 | 46 | 2160 | 11580 | 4900*1860*2350 |
| YX1400GF | 1400 | 1750 | 4012-46TAG3A | 208 | 1583 | V12 | 160*190 | 46 | 2520 | 11580 | 4900*1860*2350 |
| YX1500GF | 1500 | 1875 | 4016TAG1A | 208 | 1690 | V16 | 160*190 | 61 | 2700 | 12000 | 6800*2780*3500 |
| YX1600GF | 1600 | 2000 | 4016TAG2A | 208 | 1886 | V16 | 160*190 | 61 | 2880 | 12000 | 6800*2780*3500 |
| YX1800GF | 1800 | 2250 | 4016-61TRG3 | 205 | 2083 | V16 | 160*190 | 61 | 3240 | 13400 | 8000*3120*4400 |
