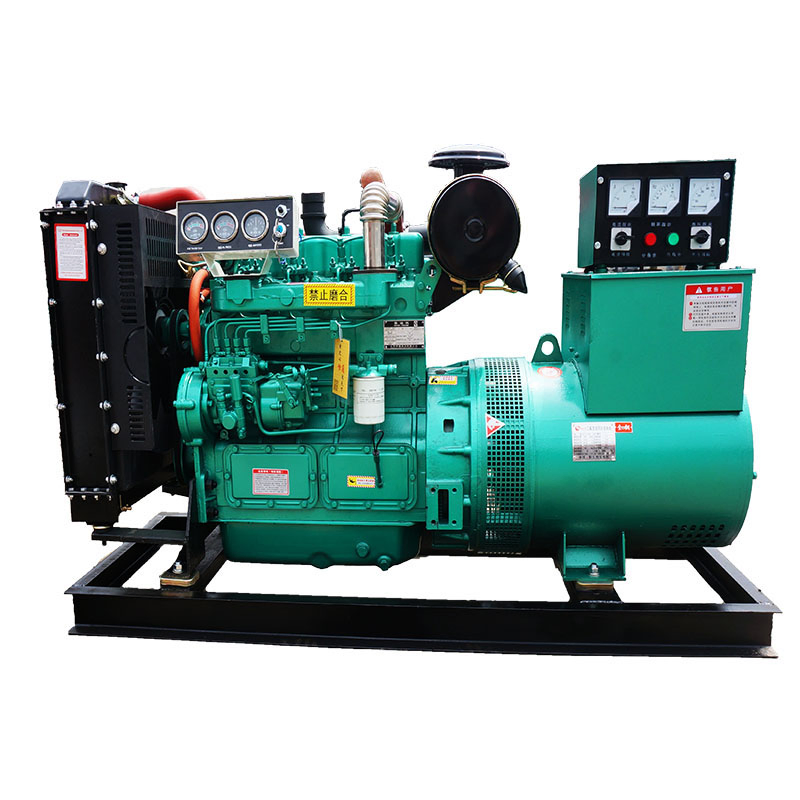

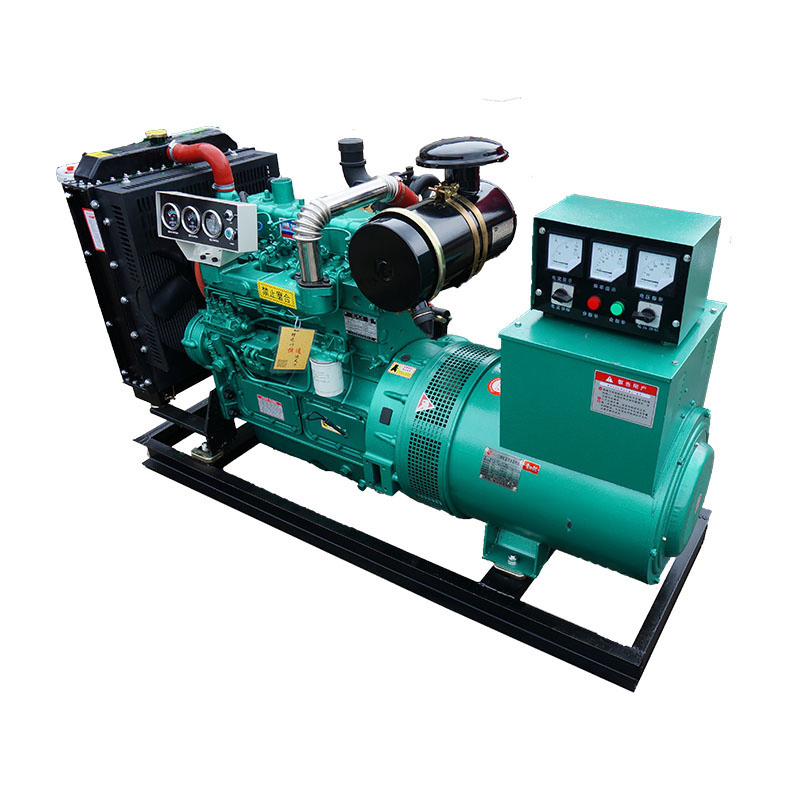

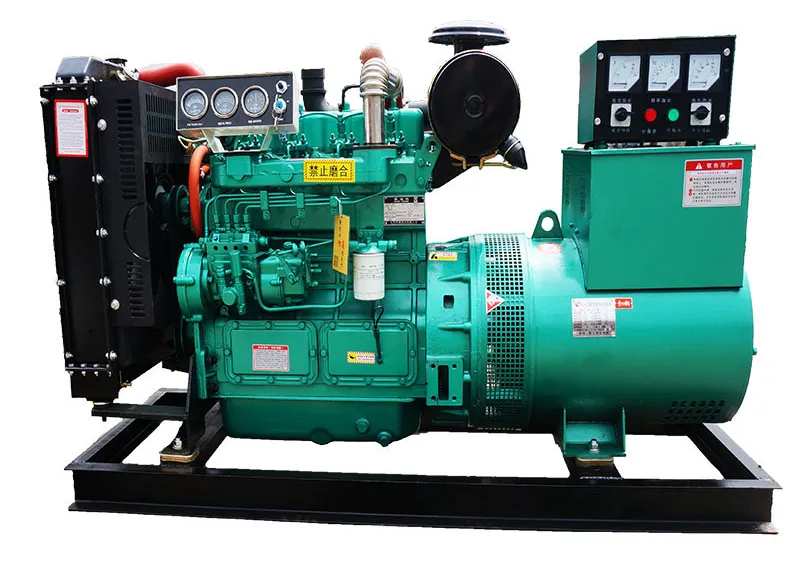

Factory Direct Sales of 50kw Diesel Generator Sets with Low Price
Product DescriptionGENSET SPECIFICATIONModelYN-50-1GFRated Power50 KWRated Voltage400 V / 230 VRated Current90 APower Factor0.8Rated Frequency50 HZRated Revolution Speed1500 RPMStarting ModeDC24V Electic StartOverall dimensions1800*700*1200 (L*W*H mm)Net Weight620 KGConnection ModeThree Phase Four W......
Send Inquiry
Product Description
| GENSET SPECIFICATION | |
| Model | YN-50-1GF |
| Rated Power | 50 KW |
| Rated Voltage | 400 V / 230 V |
| Rated Current | 90 A |
| Power Factor | 0.8 |
| Rated Frequency | 50 HZ |
| Rated Revolution Speed | 1500 RPM |
| Starting Mode | DC24V Electic Start |
| Overall dimensions | 1800*700*1200 (L*W*H mm) |
| Net Weight | 620 KG |
| Connection Mode | Three Phase Four Wire Y Type Connection |
| ENGINE SPECIFICATION GENERAL PERFORMANCE | |
| Engine Brand | Ricardo |
| Power | 56 KW |
| Engine Mode | ZH4105ZD |
| Cylinder | 4 l |
| Bore*Stroke | 105*115 mm |
| Intake Type | Turbocharged |
| Compression Ratio | 16:1 |
| Displacement | 4.33 L |
| Direction Of Rotation | Anticlockwise |
| Cooling Type | Water Cooling |
| Rated Revolution Speed | 1500 RPM |
| ALTERNATOR DATA | |
| Alternator Brand | Shanghai Yujie / Stamford |
| Alternator Mode | STC-50-1 |
| Rated Power | 50 KW |
| Rated Voltage | 400 V / 230 V |
| Power Factor | 0.8 |
| Insulation Class | H |
| Voltage Regulation | ≥ ± 5% |
| Protection Grade | IP21 |
| Connection Mode | Three Phase Four Wire Y Type Connection |
| Accommodation Mode | AVR |
| Output Frequency | 50 HZ |
Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours

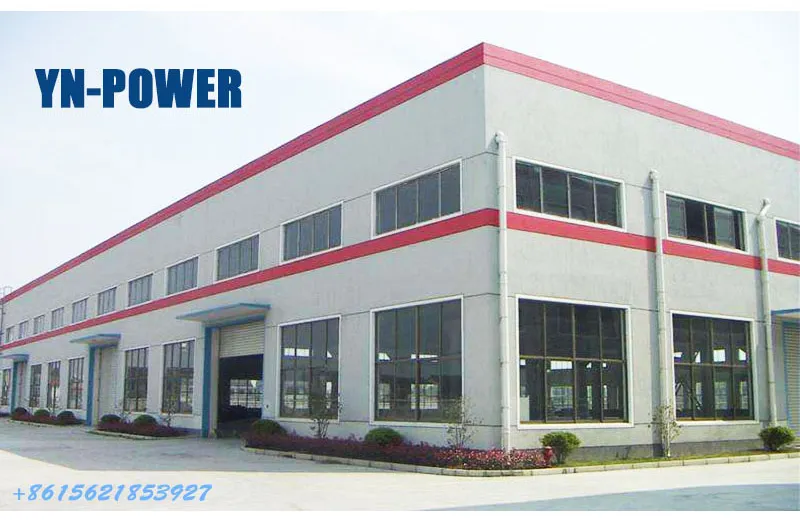

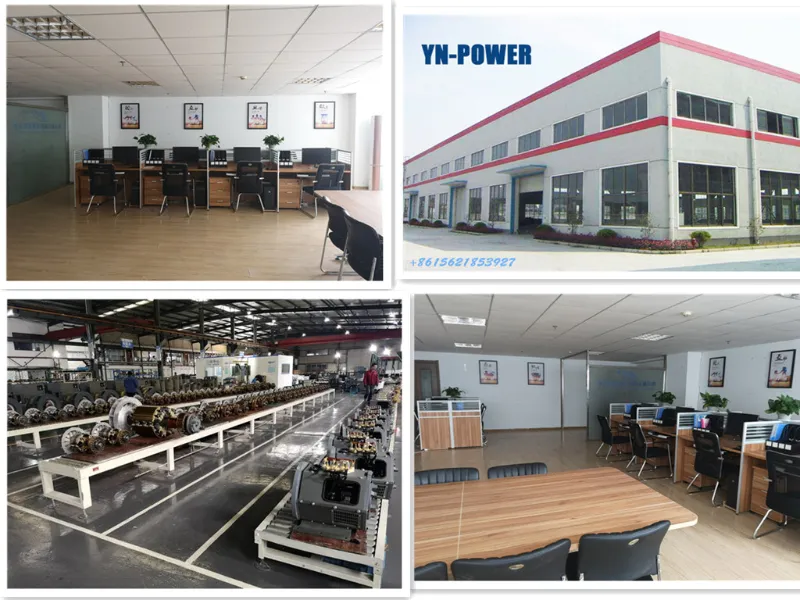

Located in The Power Capital -Weifang, Weifang Convey International Trading Co., Ltd. specializes in sales of generator sets, generators, diesel generator sets, portable generators, mobile generator sets, marine generator sets, silent generator sets, generator parts, pumps, sand pumping units, mud pumps, dredger and supporting equipment, with a technical team composed of senior professionals, to provide the most reasonable solutions.
1. What certificate do you have for generator diesel ?
There are ISO 9001,ISO 14001,CE etc.
2. What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering,or use trade assurance and L/C.
Delivery period normally will be 7~15 days after receiving customers' deposit.
3. Which port do you often use when export?
Qingdao,Tianjin,Shanghai,Guangzhou or as customer request.
4. Is there any spare parts you can provide along with generators to make the maintenance convenient?
We can provide regular engine's air filter, fuel filter, oil filter to customers for self-maintenance.
