Electric Portable Power Generator Cummin Silent Canopy Diesel
  • Electric Portable Power Generator Cummin Silent Canopy DieselElectric Portable Power Generator Cummin Silent Canopy Diesel
  • Electric Portable Power Generator Cummin Silent Canopy DieselElectric Portable Power Generator Cummin Silent Canopy Diesel
  • Electric Portable Power Generator Cummin Silent Canopy DieselElectric Portable Power Generator Cummin Silent Canopy Diesel
  • Electric Portable Power Generator Cummin Silent Canopy DieselElectric Portable Power Generator Cummin Silent Canopy Diesel

Electric Portable Power Generator Cummin Silent Canopy Diesel

Δ STANDARD CONFIGURATION1. High-efficiency light fixtures provide uniform light pattern2. Durable fixtures resist shock and last longer3. Unique lamp design increases filament life and keeps maximum light on the job longer, increasing productivity while saving time and mon4. Rotating tower......

Send Inquiry

Product Description

Δ STANDARD CONFIGURATION
1. High-efficiency light fixtures provide uniform light pattern
2. Durable fixtures resist shock and last longer
3. Unique lamp design increases filament life and keeps maximum light on the job longer, increasing productivity while saving time and mon
4. Rotating tower allows 360-degree rotation, reducing the need to frequently move the light tower trailer
5. Compact design with removable tow bar allows efficient transport and storage
6. Lockable, weather-resistant, steel cabinet protects components from the elements
7. One outrigger and four leveling jacks provide stability
8. Control panel features running hour meter, receptacles for powering external equipment, and circuit breakers for on/off functionality and protection
9. Automatic engine shutdown system protects engine from damage due to low oil pressure and high coolant temperature
10.Exclusive hinged top panel provides unimpeded access to engine, generator and electrical components
11.Fuel capacity of 30 gallons provides extended run times of 60 to 70 hours between refueling, depending on environmental influences
12.Translucent polyethylene fuel tank provides instant view of fuel level, eliminating the need for a fuel gauge
13. 6,000 Watts of lights from 4 x 1500 Watt Metal Halide Lamps
14.Reliable Kubota engine and 6kW rated power generator
15. Quiet 71dBA sound levels at 7m away
16.Durable 9m galvanized hydraulic mast
17. 359° non-continuous tower rotation and retractable mast cable
18.Standard engine protection includes high water temperature and low oil shutdowns

Δ OUR PARTNER
Electric Portable Power Generator Cummin Silent Canopy Diesel

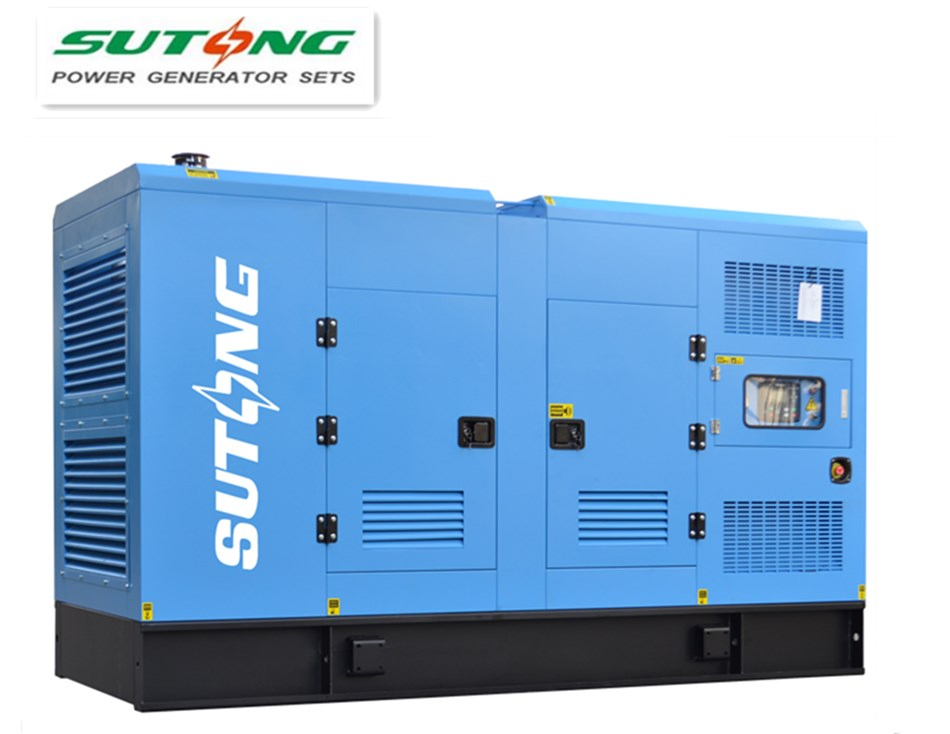

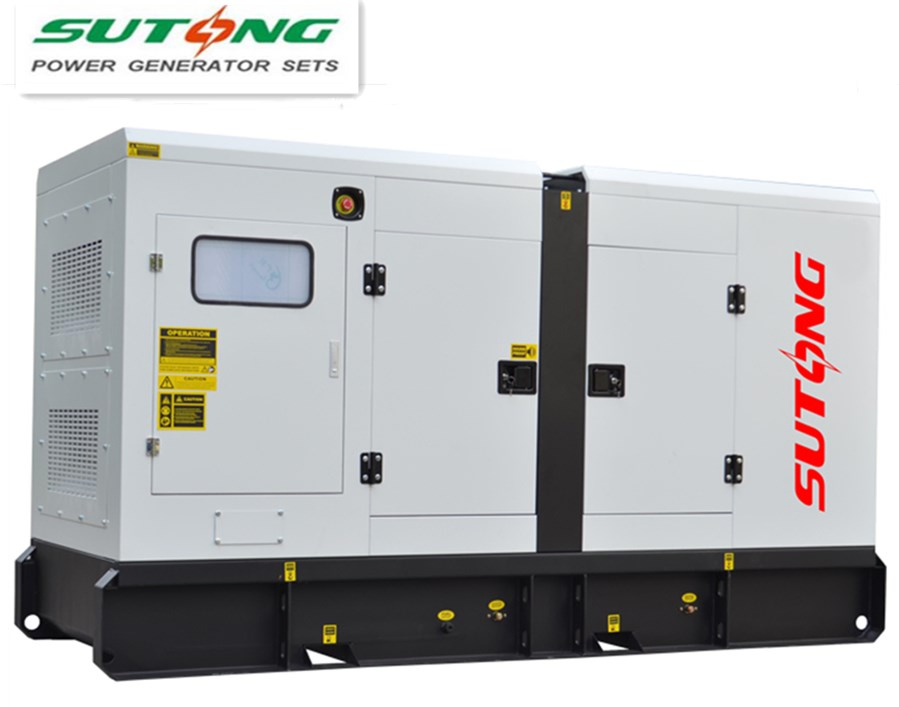

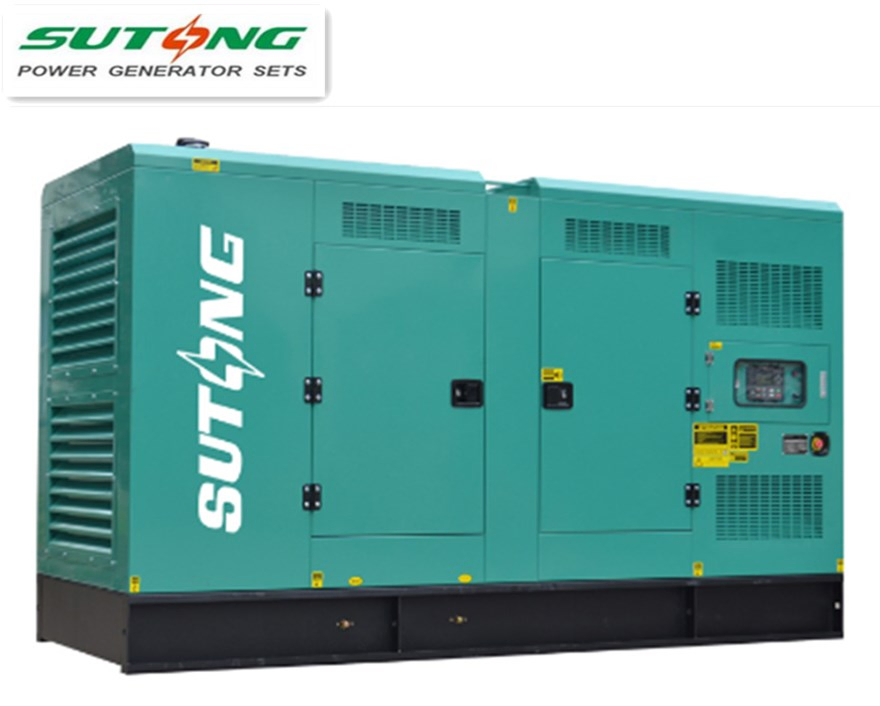

Δ PRODUCT PHOTO
Electric Portable Power Generator Cummin Silent Canopy Diesel

Δ TECHINICAL DATA
GENSET MODELST-C150(S)
Prime power (50Hz)120KW/150KVA
Standby power (50Hz)132KW/165KMVA
Frequency/Speed50Hz/1500rpm
Voltage220V/380V
PhaseThree phase, Four wires
ManufacturerFujian Sutong Power System Co.,Ltd
ModelDCEC 6BTAA5.9-G12
Engine speed1500rpm
Engine power (Gross)155KW/207HP
Number of cylinders6
Cylinder arrangementVertical in-line
Cycle4-troke
AspirationNatural
Combustion systemDirect injection
Compression ratio17.3:1
Bore and Stroke102 x 120mm
Displacement5.9 Liters
Fuel systemPump
Cooling systemWater cooled
Speed-droop0.05
Starting systemDC24V
ModelSutong 120kW Three Phase
Output power120KW/150KVA
AVR modelSX460
Number of phase3
Power factor (Cos Phi)0.8
Altitude≤1000m
Over speed2250RPM
Number of pole4
Exciter typeShunt
Insulation classH
Voltage regulation±0.5%
Wave form: NEMA = TIF<50
Wave form: I.E.C = THF<2%
BearingSingle
CouplingDirect

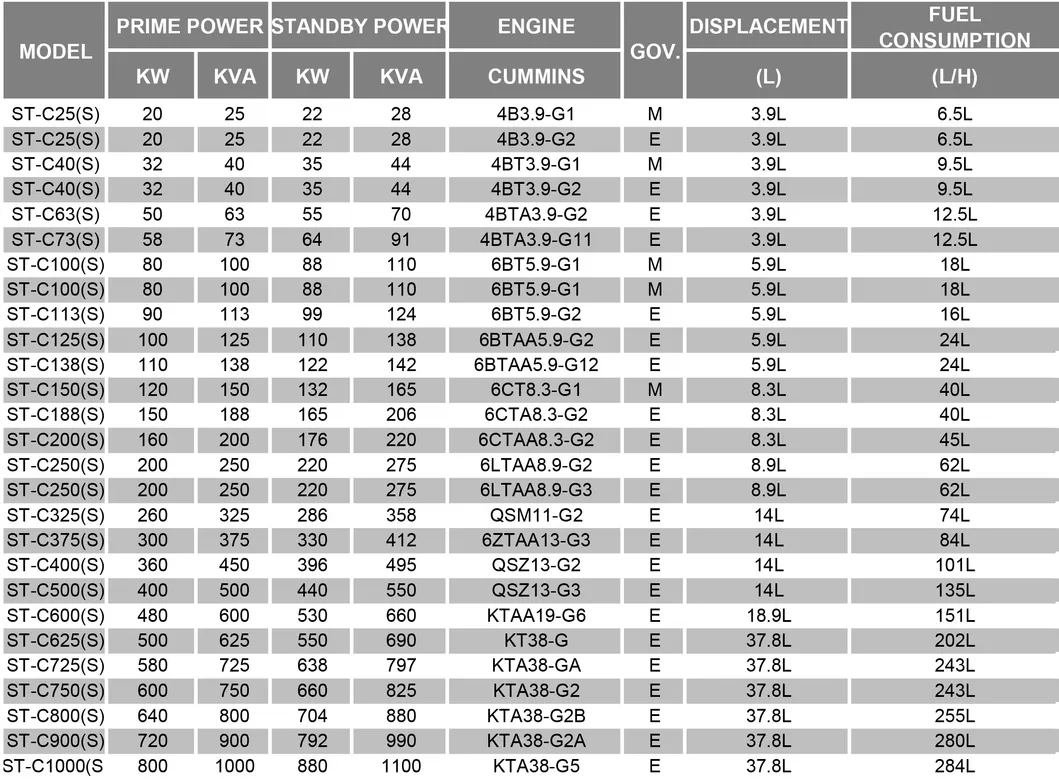

Δ POWER RANGE
Electric Portable Power Generator Cummin Silent Canopy Diesel


Δ OVERSEA PROJECT
Electric Portable Power Generator Cummin Silent Canopy Diesel

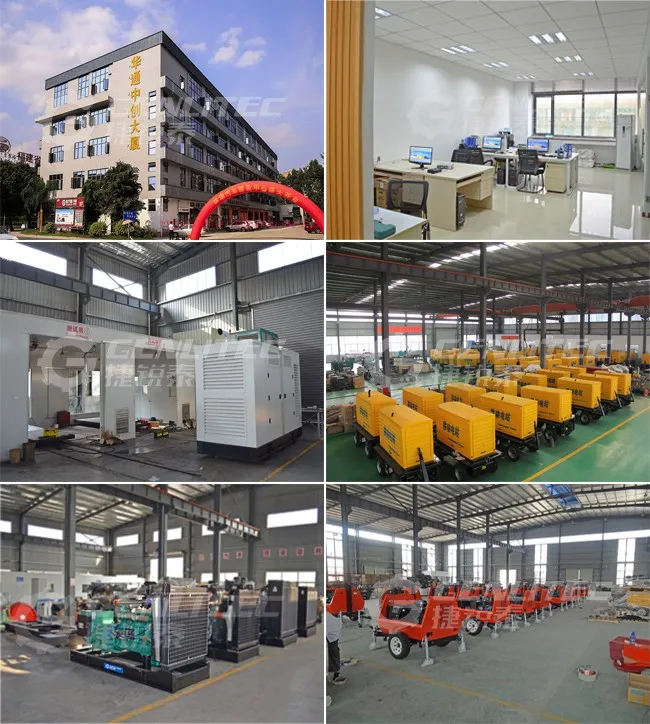

Δ COMPANY & FACTORY VIEW
Electric Portable Power Generator Cummin Silent Canopy Diesel

Δ CUSTOMER QUESTION & ANSWERS

Question: What's your warranty period?
Answer: Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.

Question: Does your generators has global warranty?
Answer: Yes, most of our products like Cummins, Perkins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.

Question: Do you accept OEM/ODM service?
Answer: Yes, we can accept OEM.

Question: What's your payment terms?
Answer: We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.

Question: What's your delivery time?
Answer: Our normal delivery time is 25 working days. But if your order is some special engine and alternator, then the delivery time is longer.
